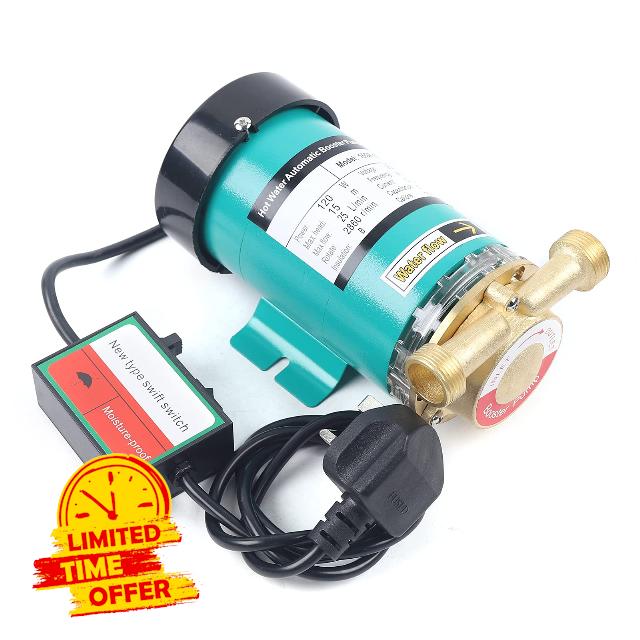

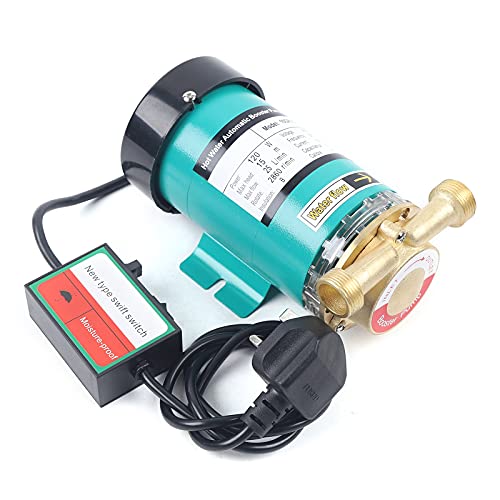

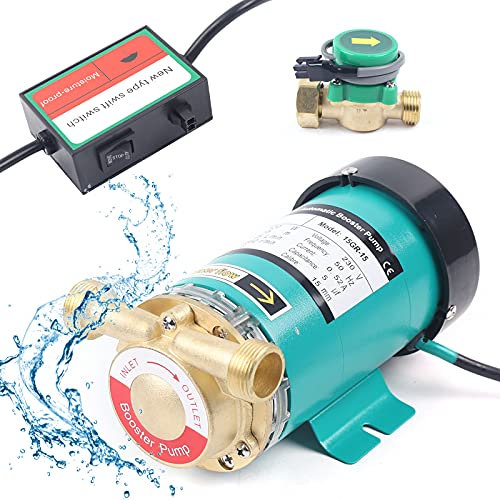

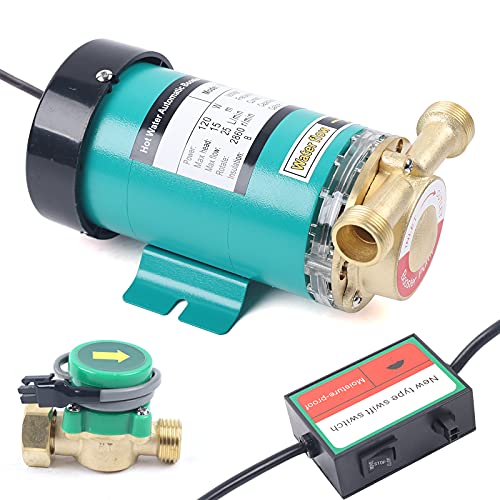

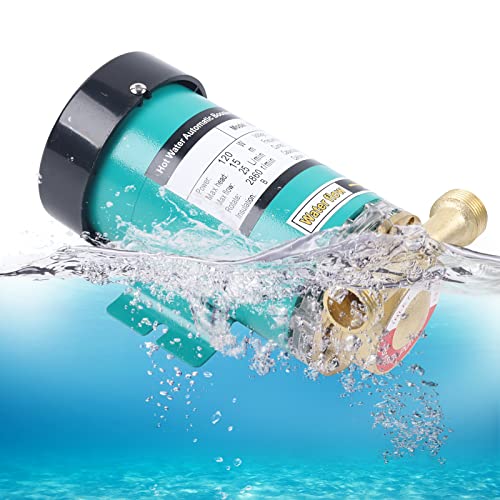

3/4in Water Pressure Booster Pump, 230V/120W 2860R/Min Automatic Hot Cold Water Powered Pump with Control Switch for Home Garden Shower Irrigation (Green – Outlet 3/4 inch)

Description

This booster pump adopts an energy-efficient motor with a stable output of 120 watts strong power, instantly boosting the pressure of the water flow for high-rises or areas with insufficient water pressure, then you can enjoy a smooth shower like a waterfall. Easy to install and simple to maintain, it is the ideal choice for modern families to upgrade their bathing life.

Application

Hot and cold water pressure booster can pressurize water heaters, solar water heaters, and industrial equipment, improve efficiency, and circulate hot water in showers, faucets, washing machines, boilers, and other equipment. It can also oxygenate stock ponds or fish tanks as well as circulate water, pump water to garages, pools or gardens, etc., and transport water from lower to higher buildings.

Specification

Voltage: 230V, 50Hz

Power: 120W

Color: Green

Power Source: Corded Electric

Plug Type: UK Standard

Material: Brass, Stainless Steel, NBR

Maximum Head: 15m/49.2ft

Maximum Flow Rate: 25L/min/6.6GPM

Speed: 2860rpm

Water Consumption: 1.5m³/52.97ft³/h

Insulation Class: B

Outlet Size: 19mm/3/4in

Power Cord Length: 1m/3.28ft

Drive Mode: Motorized

Impeller Structure: Semi-open Training Impeller

Transmission Medium: Clear Water

Impeller Suction Mode: Single Suction

Performance: Automatic

Pump Shaft Position: Side Vertical

Assembly Required: Yes

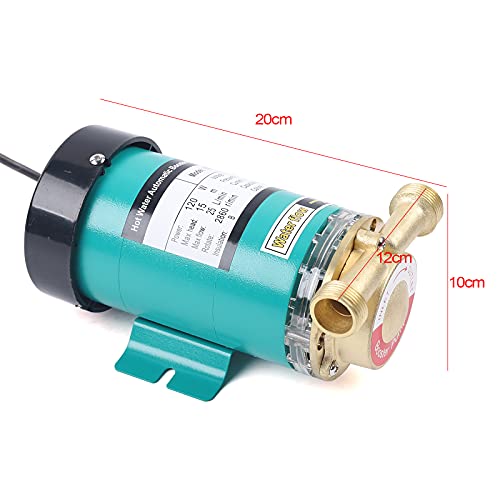

Product Size: 20*12*10cm/7.87*4.72*3.94in

Package Size: 24*19*11.5cm/9.45*7.48*4.53in

Gross Weight: 3.87kg/8.53lbs

Net Weight: 3.68kg/8.81lbs

Package Included

1* Booster Pump

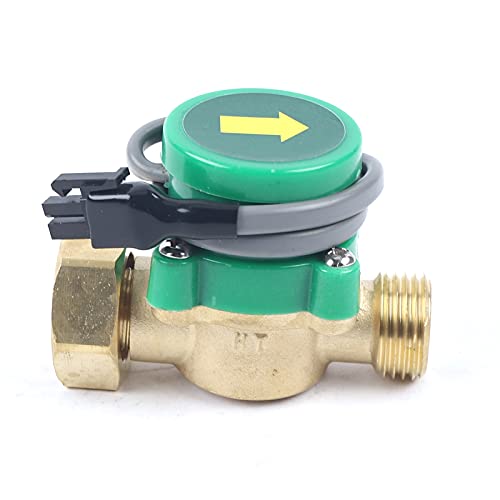

1* Water Flow Switch

1* Switch Box

4* Sealing Rings

1* English Manual

All Accessories for Assembly

Notes

1.Please check the style and size before purchasing.

2.Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included.

3.Please install it vertically or horizontally according to the manual, tilted installation and upside-down installation are prohibited.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

• High Efficiency: Water pump with 120W power design ensures that it reaches a maximum flow rate of 6.6GPM, quickly providing sufficient water pressure and completing water circulation to meet your actual usage needs.
• Practical Tool: Pressure booster pump can boost tap water when the water heater won't turn on due to insufficient water volume or low water pressure. The pump body adopts an automatic flow collection design, with good starting performance and a sensitive switch, so it is convenient for you to use it.
• Automatic Pressurization: Water pressure booster pump has a built-in automatic switch, which automatically boosts the pressure when the faucet is open; when the faucet is closed, it automatically shuts off. The water pump with impeller adopts a centrifugal structure, which makes the booster pump run quietly and does not affect your daily life.
• Safe and Reliable: The water pressure pump has a fan cooling device and heat dissipation holes, which cools the motor temperature more effectively and prolongs its service life. Class B insulation level also ensures safe use. There is also an automatic switch, which adopts the principle of electronics and is controlled by water flow, which is not easy to fail.
• Sealing Rings: Made of NBR, they can effectively prevent leakage and ensure that the booster pump works stably. One of them also has a strainer, which can effectively filter impurities in the water.
