36V 48V 52V Electric Bike Triangle Battery Pack 20Ah – 30Ah
36V 48V 52V Electric Bike Triangle Battery Pack 20Ah – 30Ah Triangle Ebike Lithium Battery with Fast Charger + BMS + Triangle Bag for Mountain Bike/DIY 0-2000W Motors,52V,20AH(XT60)
SNHMFUH 36V / 48V / 52V Li-Ion Triangular Battery – 100% Full Capacity Battery Packs
The new Li-ion battery is composed of the best A-grade 5000mAh cells, true capacity battery pack, e.g. 48V 30AH
(48V30Ah (13S6P) need 78pcs 5000mAH cells (13*6=78pcs, 30Ah =6*5000mAH).
Battery Parameters:
Battery Specifications: 36V 20AH , 36V 22.5AH , 36V 25AH , 36V 27.5AH , 36V 30AH , 48V 20AH , 48V 22.5AH , 48V 25AH , 48V 27.5AH , 48V 30AH ,52V 20AH , 52V 22.5AH , 52V 25AH

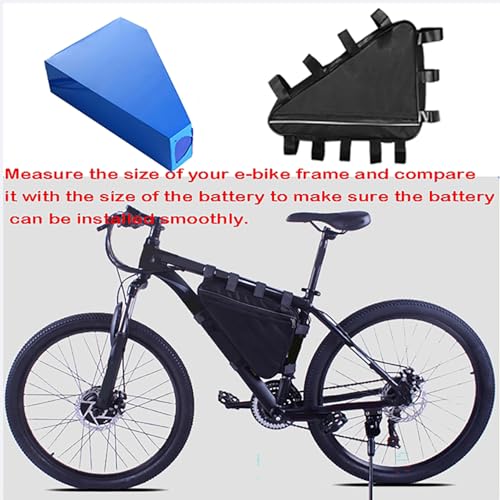

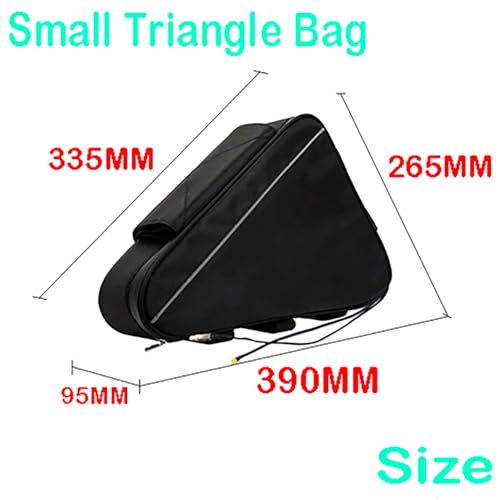

Triangle package size: 95 * 335 * 390 * 265MM
BMS protection board: 30A / 40A / 50A We can customize the protection board for you according to the parameters of your motor and controller.
Battery life: 85 – 125KM
Cycles: 2000+ , 5 years+
Discharge temperature: – 20 – 65 °C
Charging temperature: 0 – 45 °C
Applicable motor power: 0 – 2000 W
Discharge plug: XT60 plug / T-plug
Charging connector: XLR connector
Customized plugs/connectors (XT60 plug / T-plug / Anderson plug / XT90 plug / DC connector / XLR connector / Anderson connector, etc.) are available on request.
Battery type
Our batteries are suitable for most motor kits
Type: our batteries are suitable for electric scooters, mountain bikes, folding e-bikes, electric bicycles, bicycles, electric tricycles, golf carts, scooters, etc.

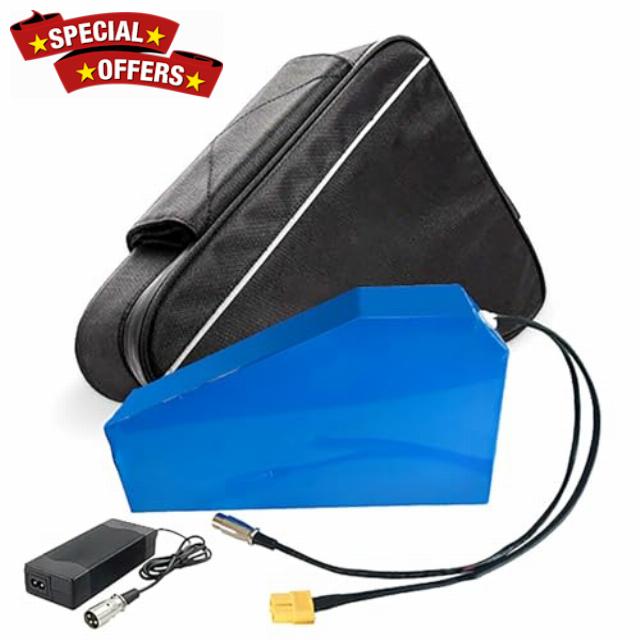

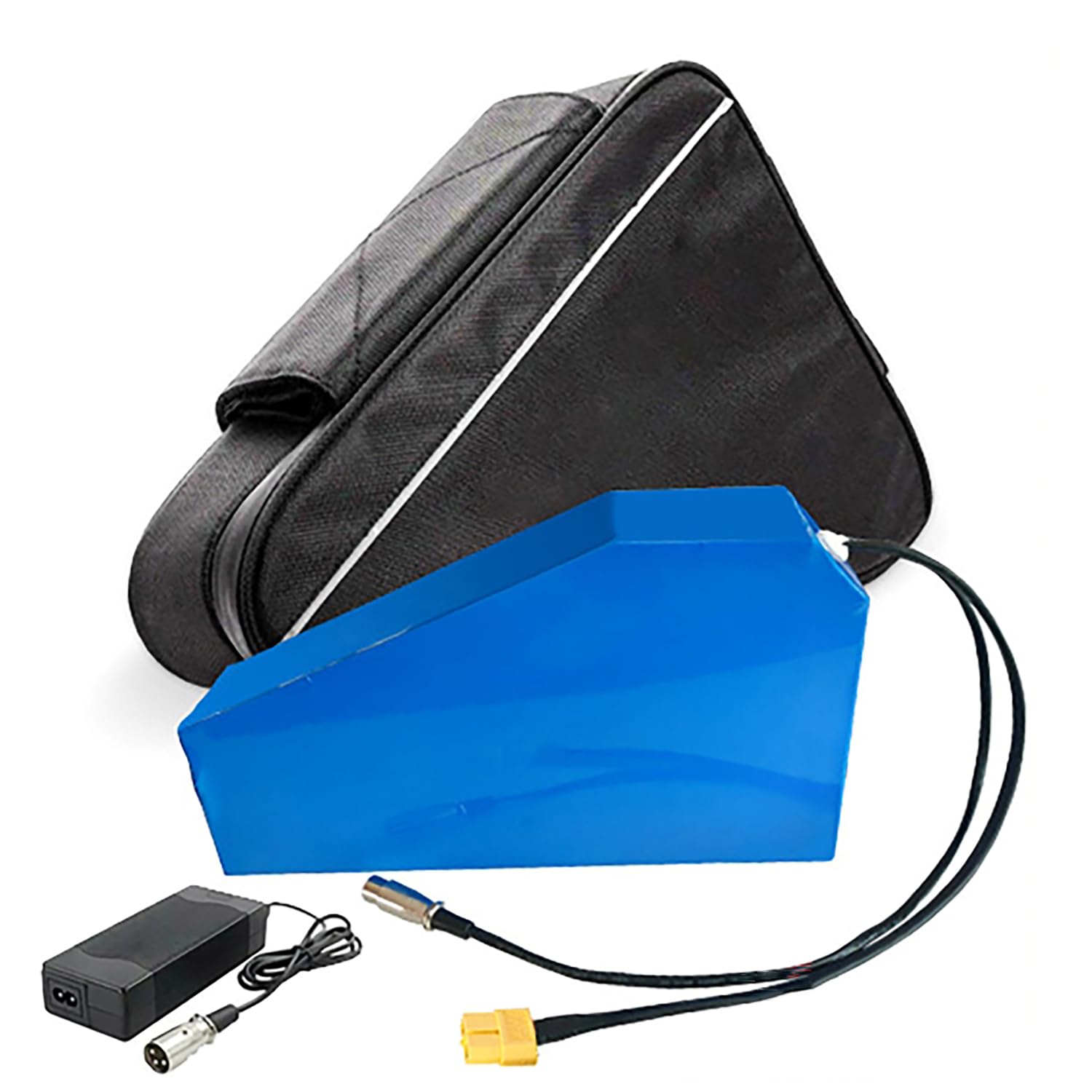

Packing list:
Triangle electric bike lithium battery X 1
Triangle bag bag X 1
3A /5A special charger X 1
- [SNHMFUH 36V 48V 52V Triangular Li-ion Battery Pack Parameters] Battery capacity: 20AH 22.5AH 25AH 27.5AH 30AH , BMS protection board: 30A / 40A / 50A . Suitable for 0-2000W motors, for e-bikes/mountain bikes/e-motorcycles etc.
- [Extra Long Life] Adopting A+ grade battery cell with more than 2000 charging cycles, the battery life is up to 5 years. With intelligent BMS protection board, 8 protection modes to protect the battery efficiently.

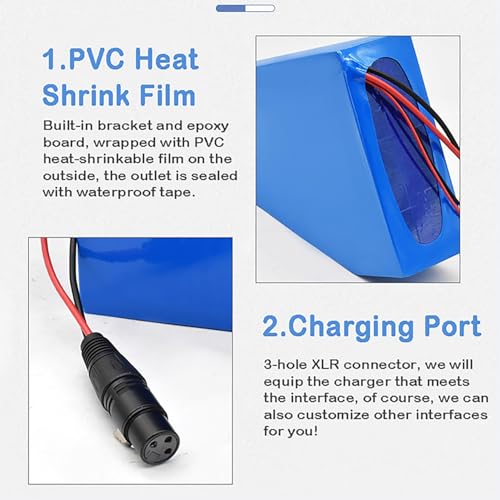

- [Design Features] Triangular design, PVC heat-shrinkable film multi-layer waterproof treatment, 100% full capacity brand new battery cell, with 3A/5A special charger. Small size/large capacity/high power.
- [Applicable equipment] Controller voltage: 36V / 48V / 52V. Motor power: 0-2000W, Battery weight: 3 – 5.5kg, Large capacity super power lithium battery, upgrade your e-bike/mountain bike/moped, etc. [Customized Service] If you want to upgrade your e-bike/moped, please contact us.
- [Customized Service] If you need other models/sizes/styles of lithium batteries, we can provide professional service.
| SKU: | B0FXWWLKST |
