Eonon 6.36 inch Single Din Wireless Carplay Android Auto
Eonon 6.36 inch Single Din Wireless Carplay Android Auto Touch Screen Car Stereo Radio Bluetooth screen mirroring USB EQ Video IN/OUT AUX Backup Camera USB X3U

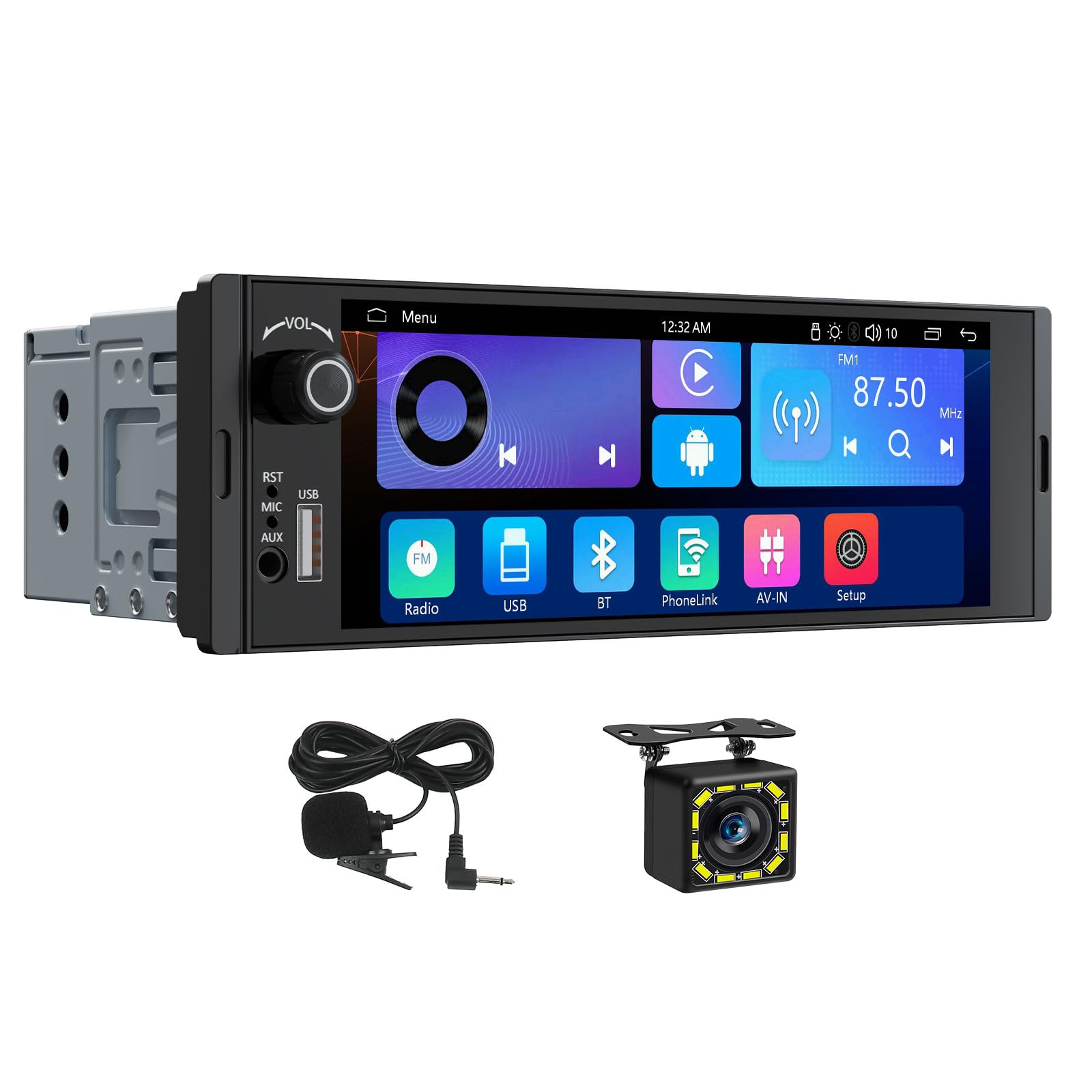

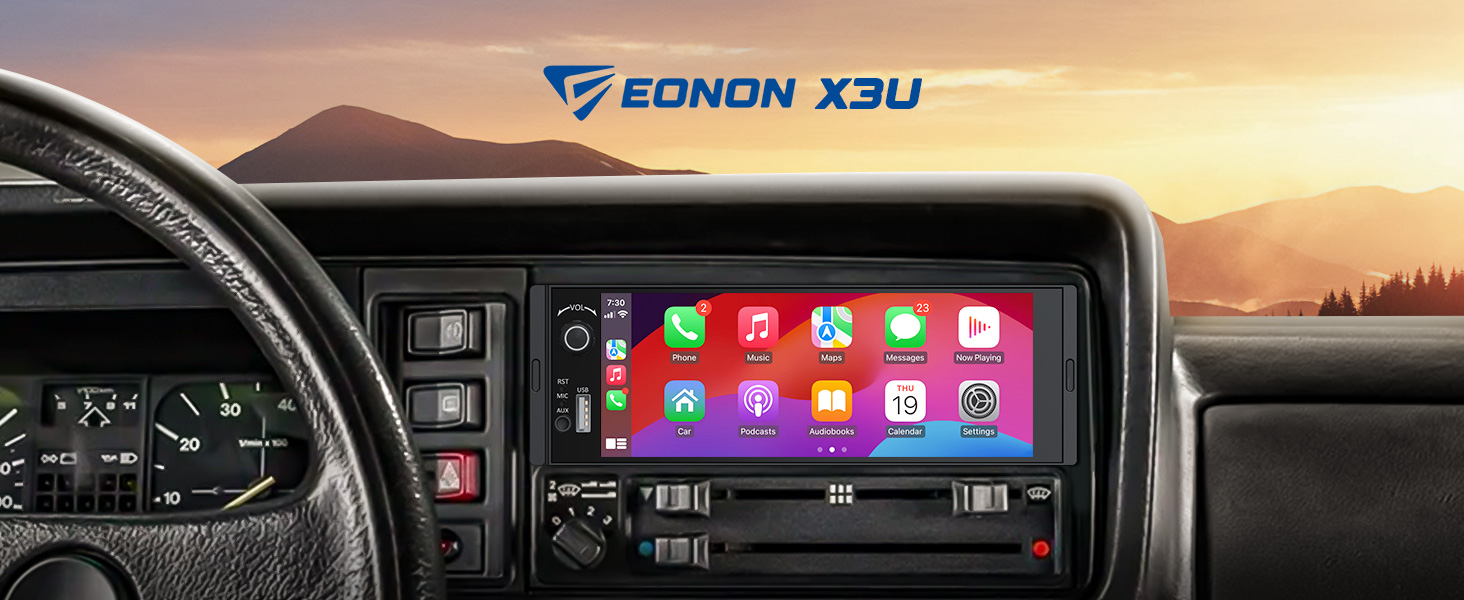

Eonon 6.36 inch Single Din CarPlay Android Auto Car Stereo Backup Camera X3U
Attention: Installation dimensions: 178 mm x 50 mm
Installation dimensions: 178 mm x 50 mm
Specification
| Applicable models | ISO 1 DIN Size; (Note: Before purchasing, please confirm the size and shape of your center console panel. If the installation size of your car's center console is inconsistent with the size of our machine, please be sure to consult first.) |
| System information | CPU: Allwinner F133-B RISC 1 GHz; RAM: 128 MB; Menüsprachen: Englisch/Chinesisch/Spanisch/Französisch/Deutsch/Portugiesisch/Italienisch/Russisch/Polnisch/Japanisch |

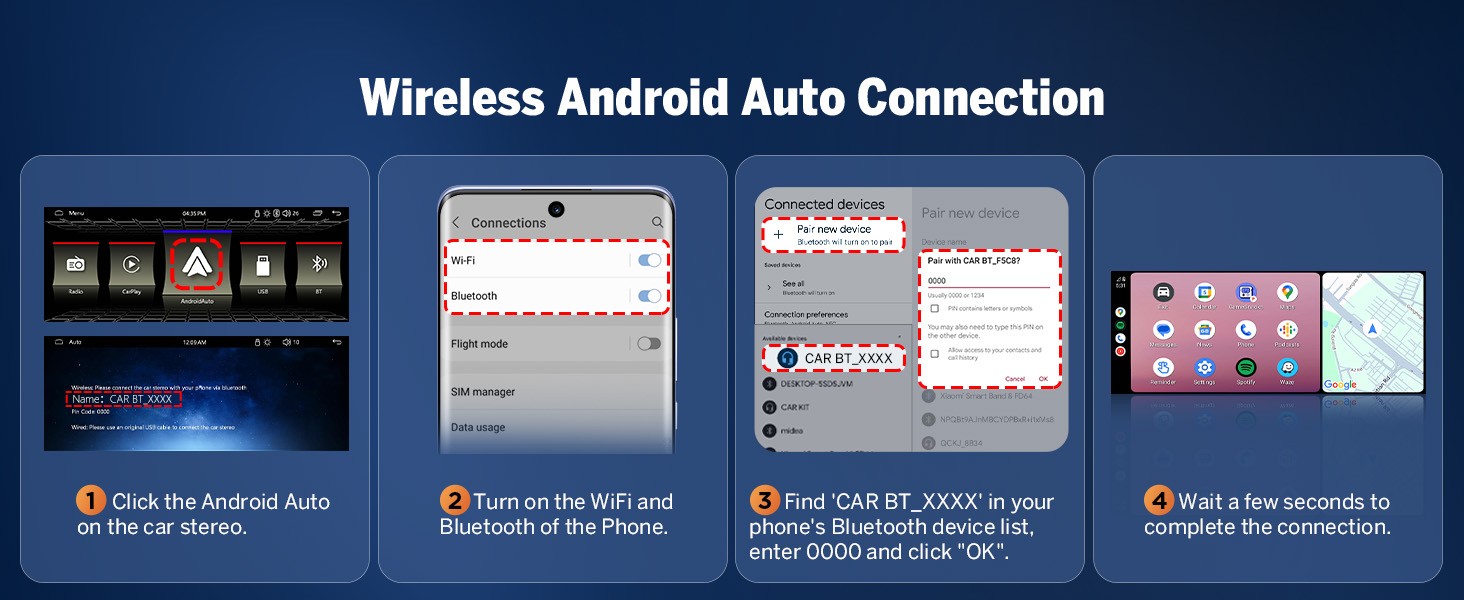

| Android Auto | The smartphone must support Google services and Android Auto. Otherwise, use is not possible. Some smartphones only support Android Auto via cable. For Android Auto via cable, the smartphone must have at least Android 6.0 and the latest version of the Android Auto app installed. For Android Auto via cable, the smartphone must support 5 GHz Wi-Fi and have the latest version of the Android Auto app installed. |

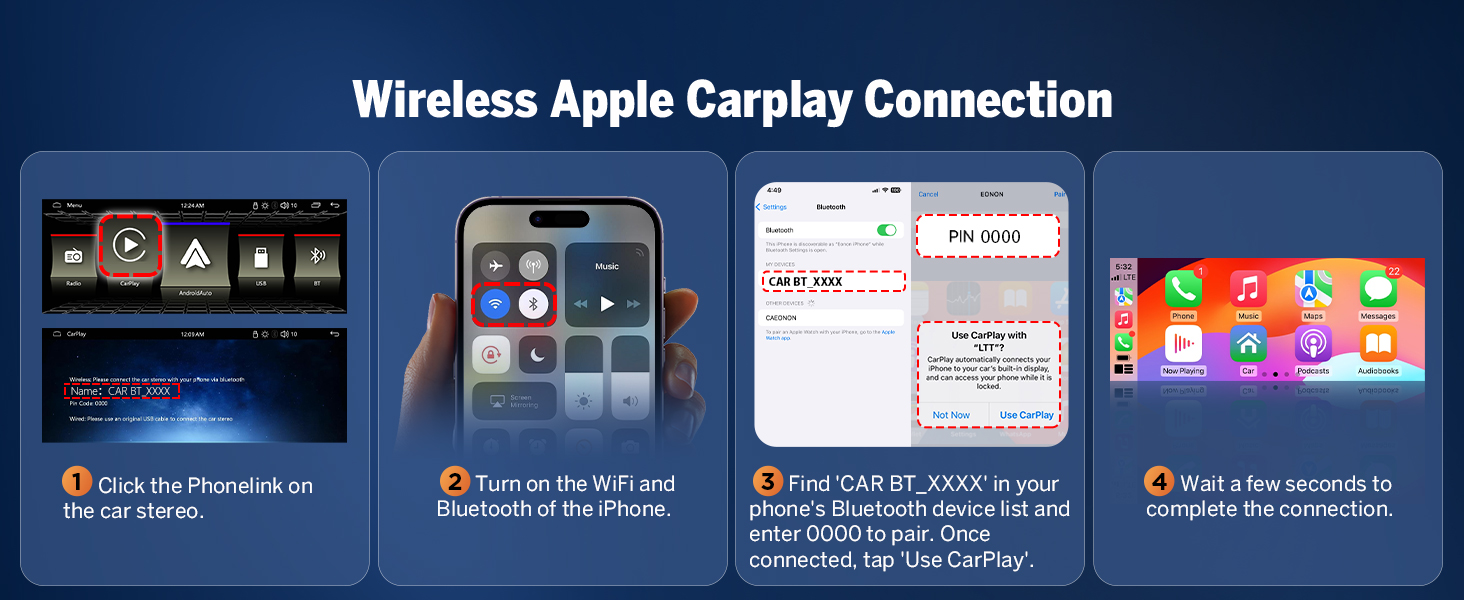

| CarPlay | Only iPhone 5 and later models support CarPlay |

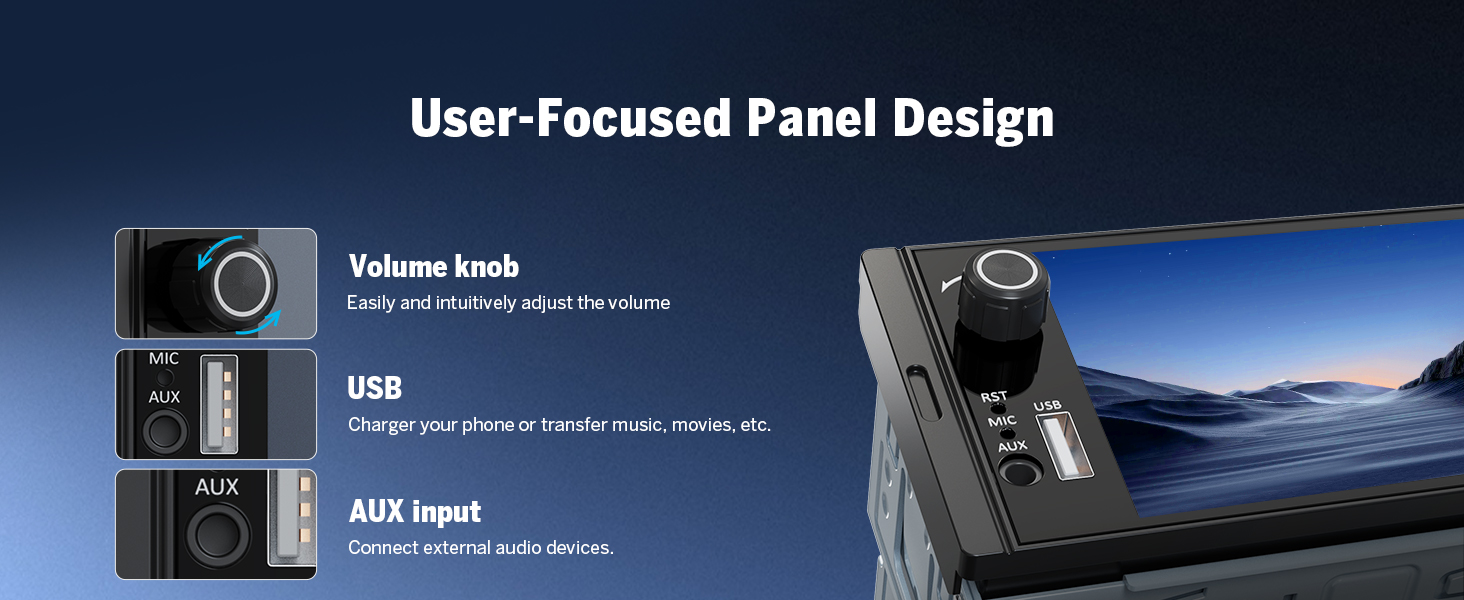

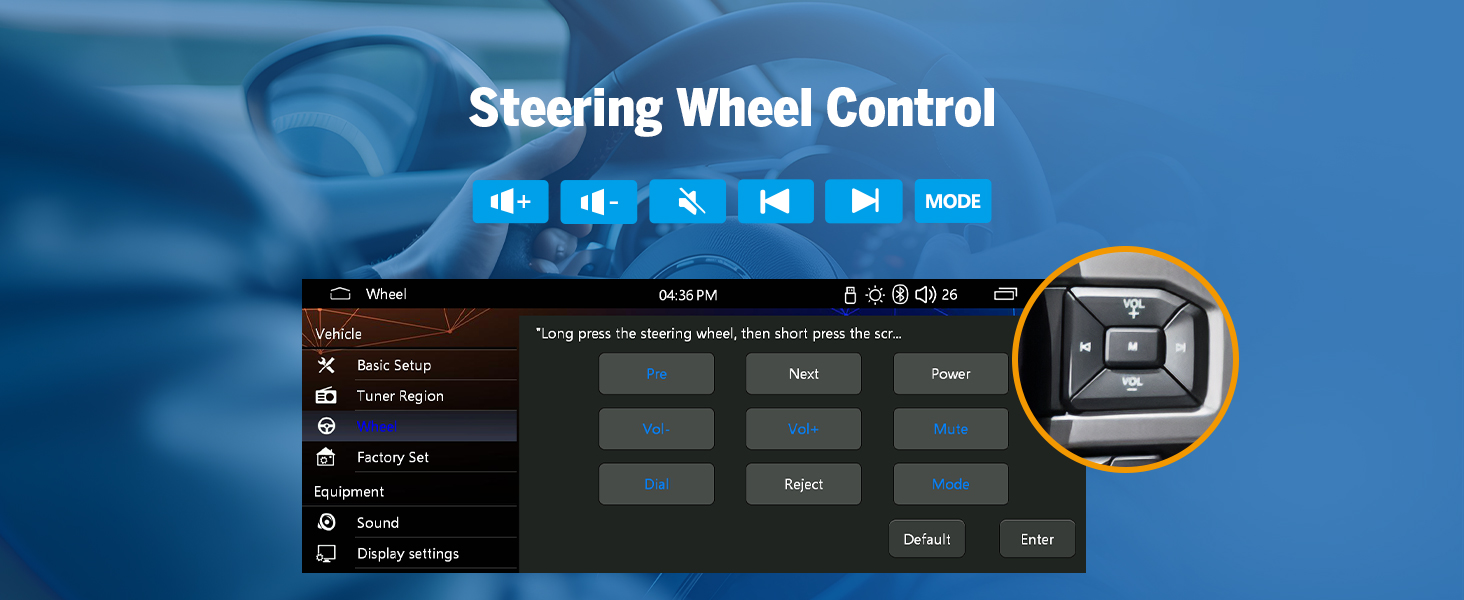

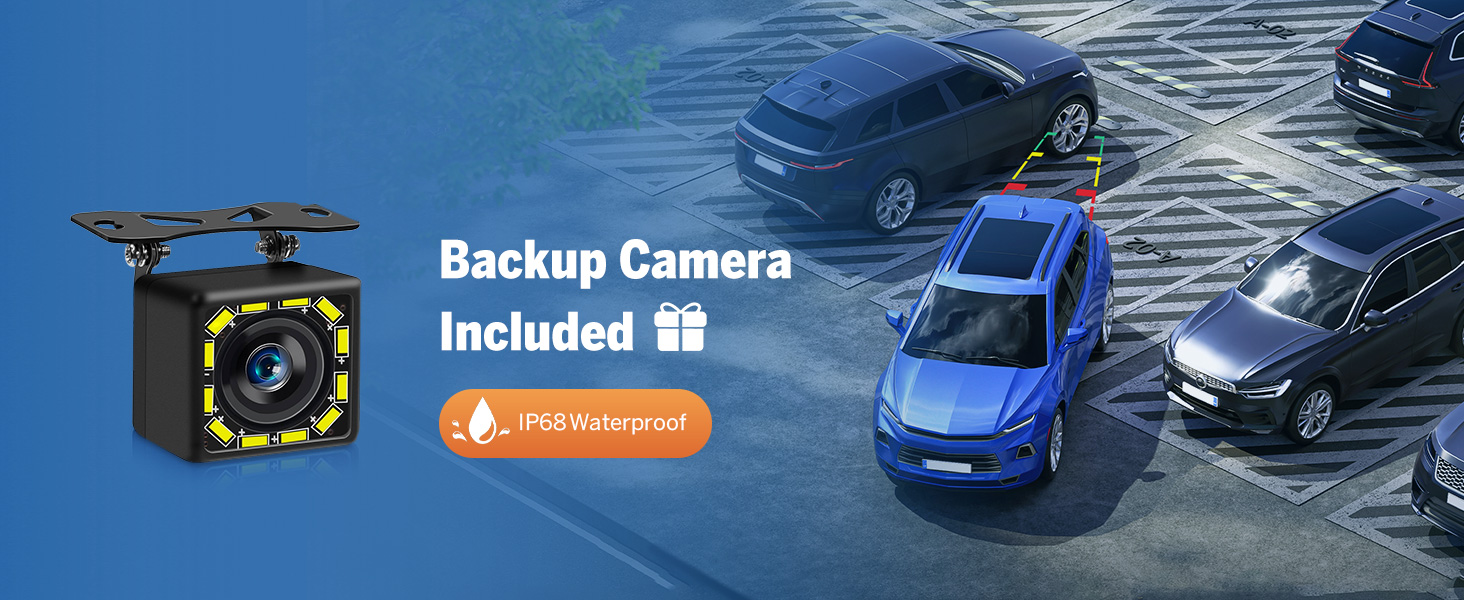

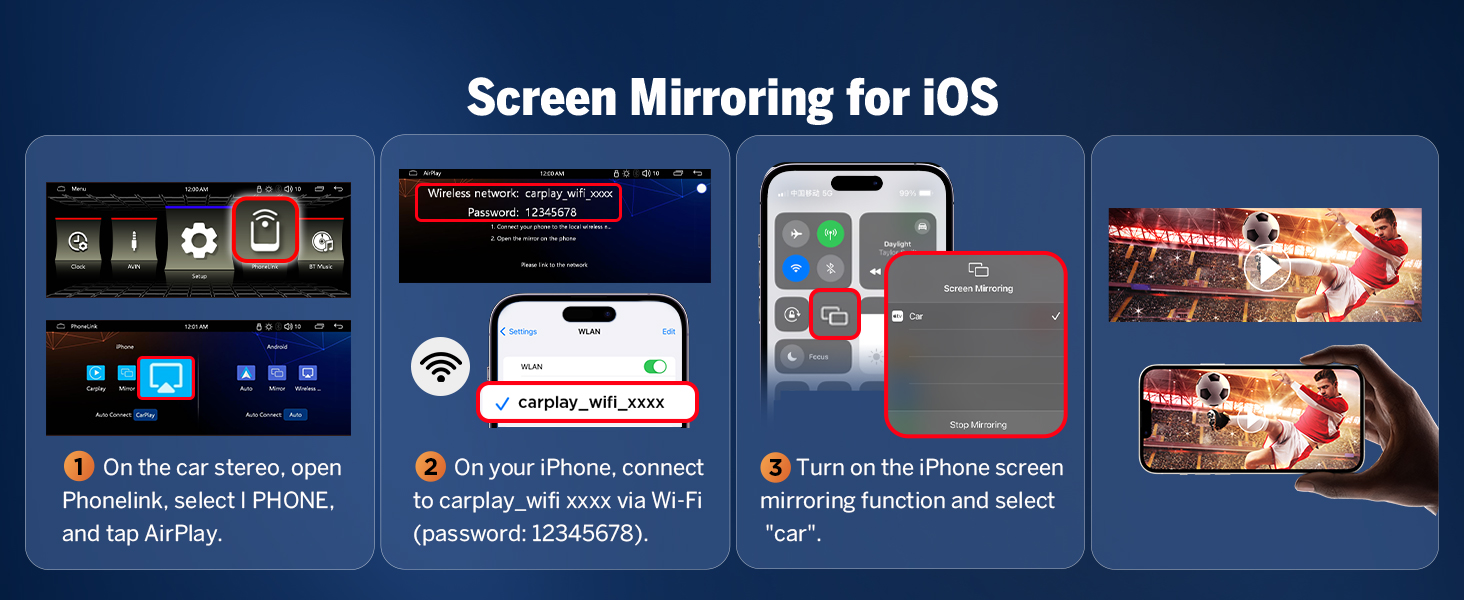

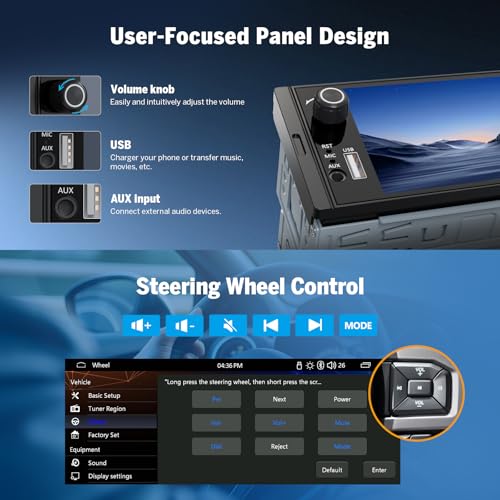

| Features | Supports screen mirroring; Supports steering wheel control; Physical volume control; Supports clock display; Supports playback memory when the device is powered off; Supports rear view camera |

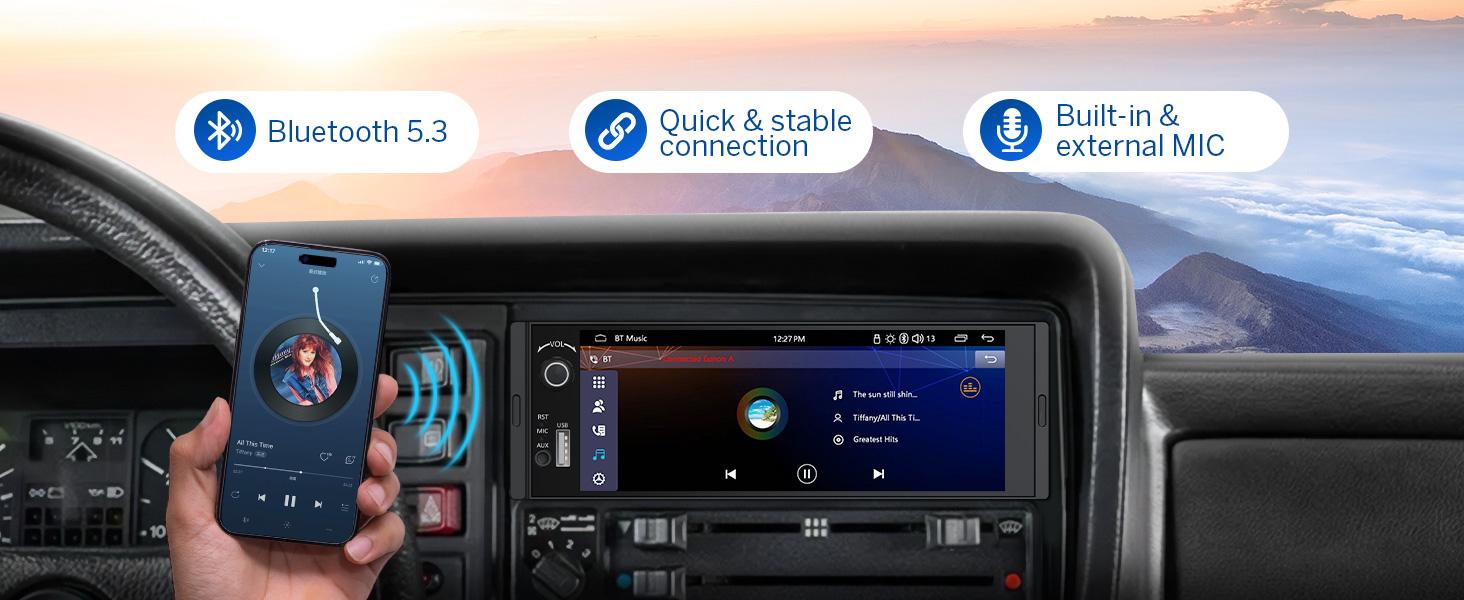

| Bluetooth | Bluetooth version: 5.3; Built-in microphone + external microphone (already installed); Supports Bluetooth music; Supports Bluetooth phone book (can quickly search for contacts manually, supports caller name display) |
| Radio | Use the SI4745 radio module from Silicon Labs. Supports FM/AM |
| USB | Supports USB flash drives, the device has 1 USB interface; Video format: supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB and other video formats; Audio format: supports MP3, WMA, WAV, OGG, AAC, FLAC, APE and other audio formats, network audio playback; Image format: supports JPEG, BMP, PNG and other formats |

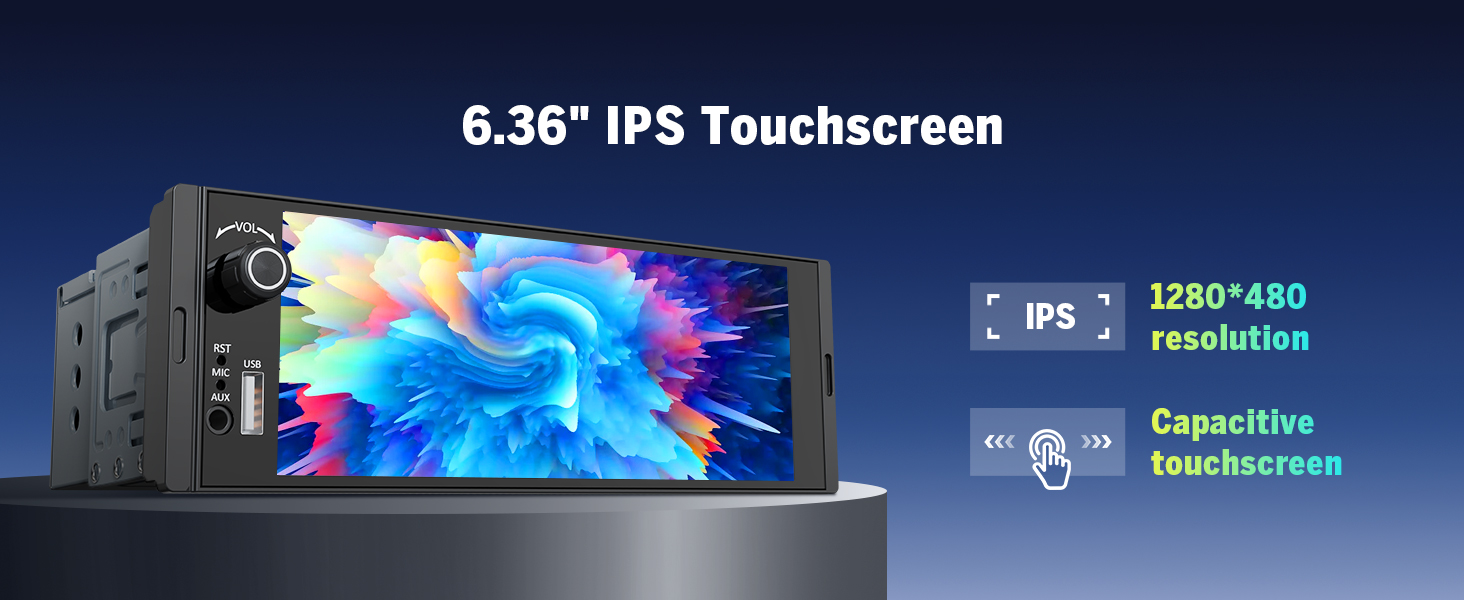

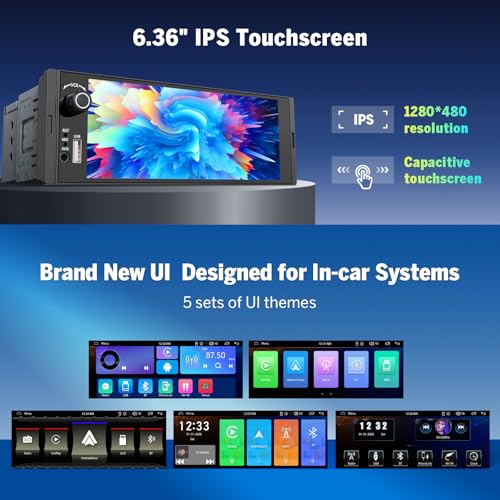

| Screen | Screen size: 6.36 inches (actual display area) IPS screen; Screen resolution: 1280 x 480; Touch: capacitive multi-touch screen |

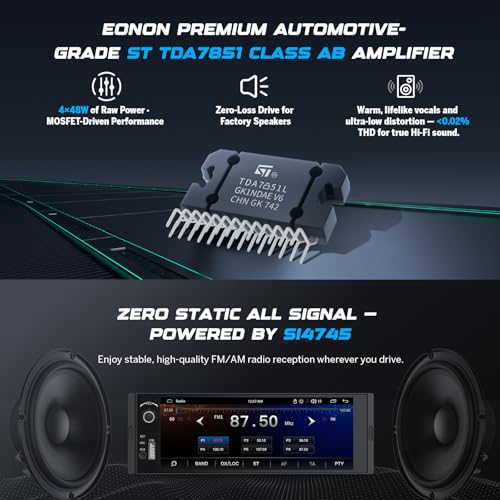

| Sound | 10-band equalizer adjustment; Integrated ST TDA7851 amplifier (4 x 48 W surround stereo output); RCA audio output: F/R 2-channel audio output; EQ mode: Custom, Rock, Pop, Classical, Jazz, Soft |

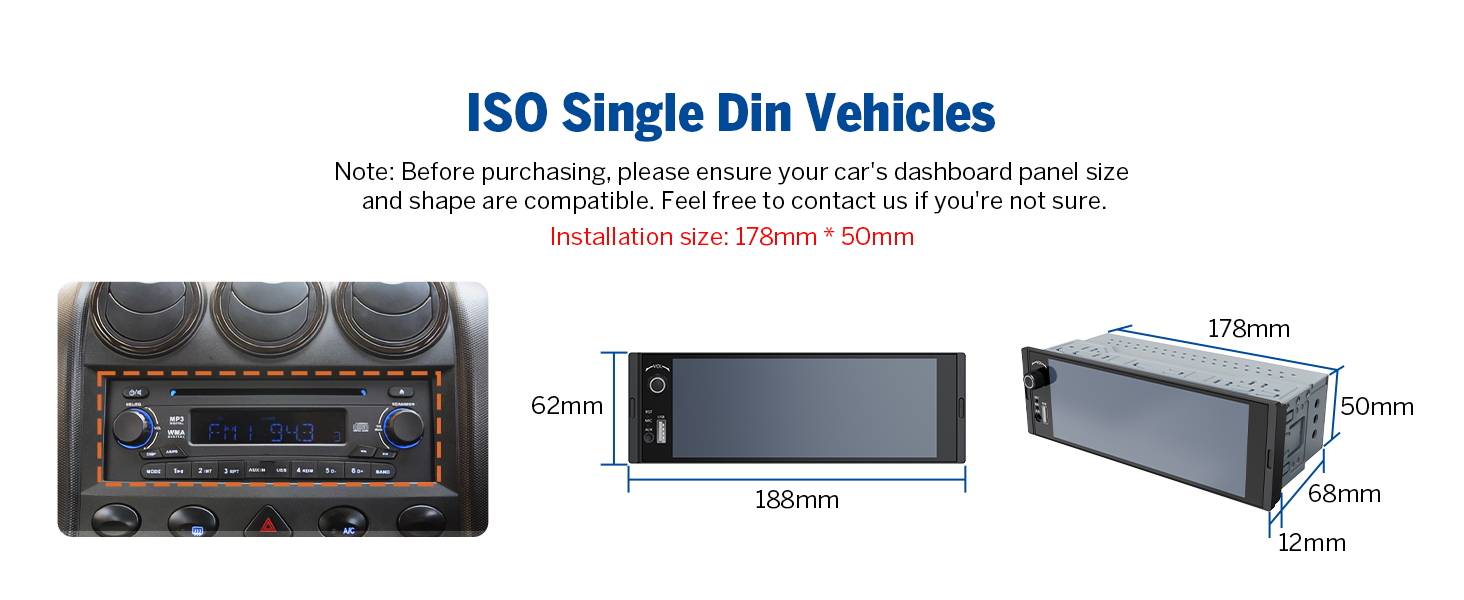

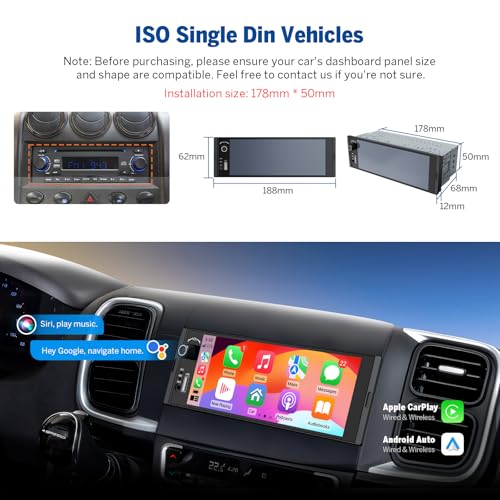

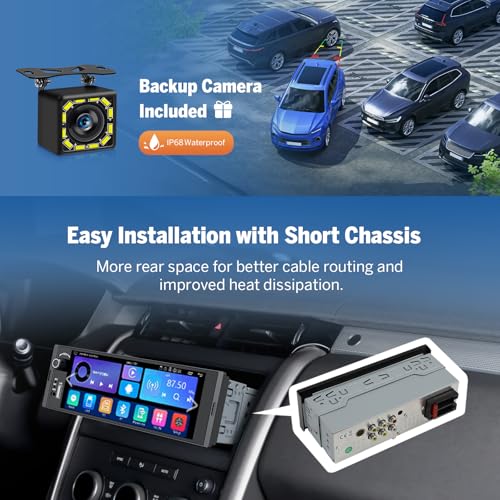

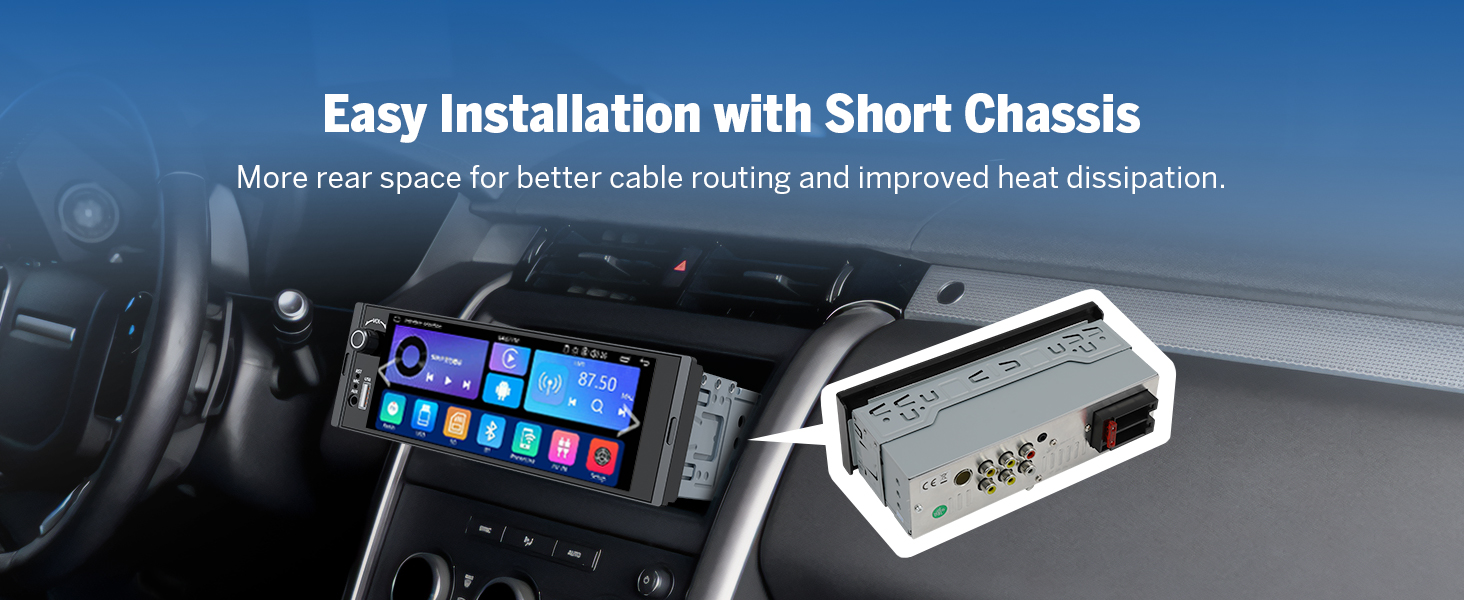

| Parameter | Operating voltage: DC 12 V; Maximum operating current: ≤ 15 A; Gross weight: 1.0 kg; Net weight: 0.5 kg; Installation dimensions: 178 (width) × 75 (depth) × 50 (height) mm; Panel dimensions: 188 (width) × 62 (height) mm |

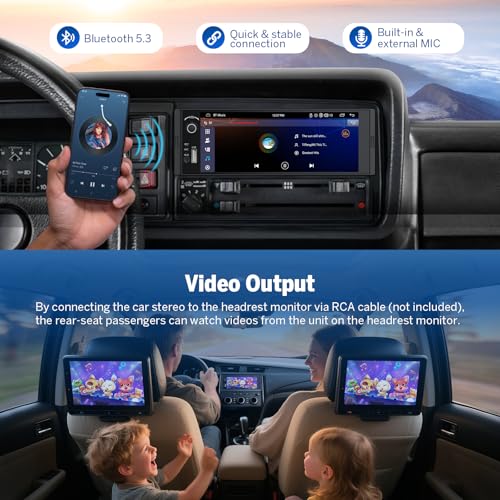

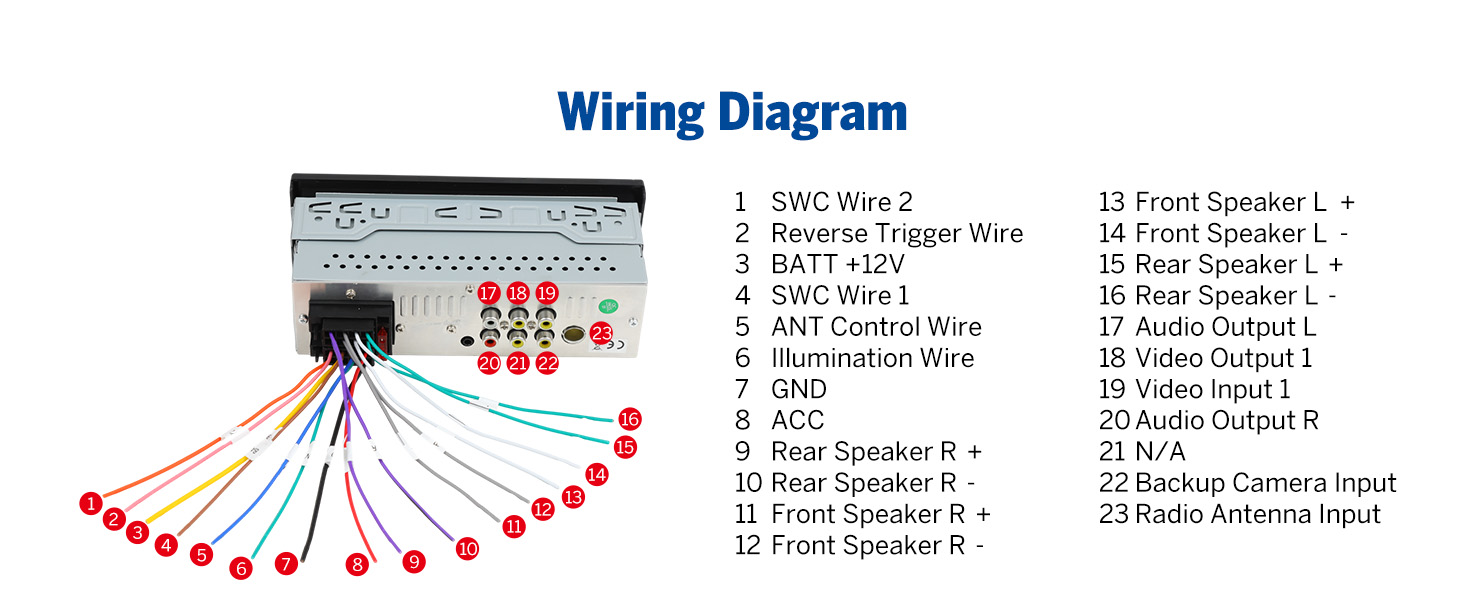

| Input/Output | Radio antenna interface *1; USB interface *1; External microphone interface *1; CAM IN video input *1; VIDEO IN video input *1; VIDEO OUT video output *2; AUX audio input *1; RCA audio F/R output *1 (output voltage 1.0 V) |

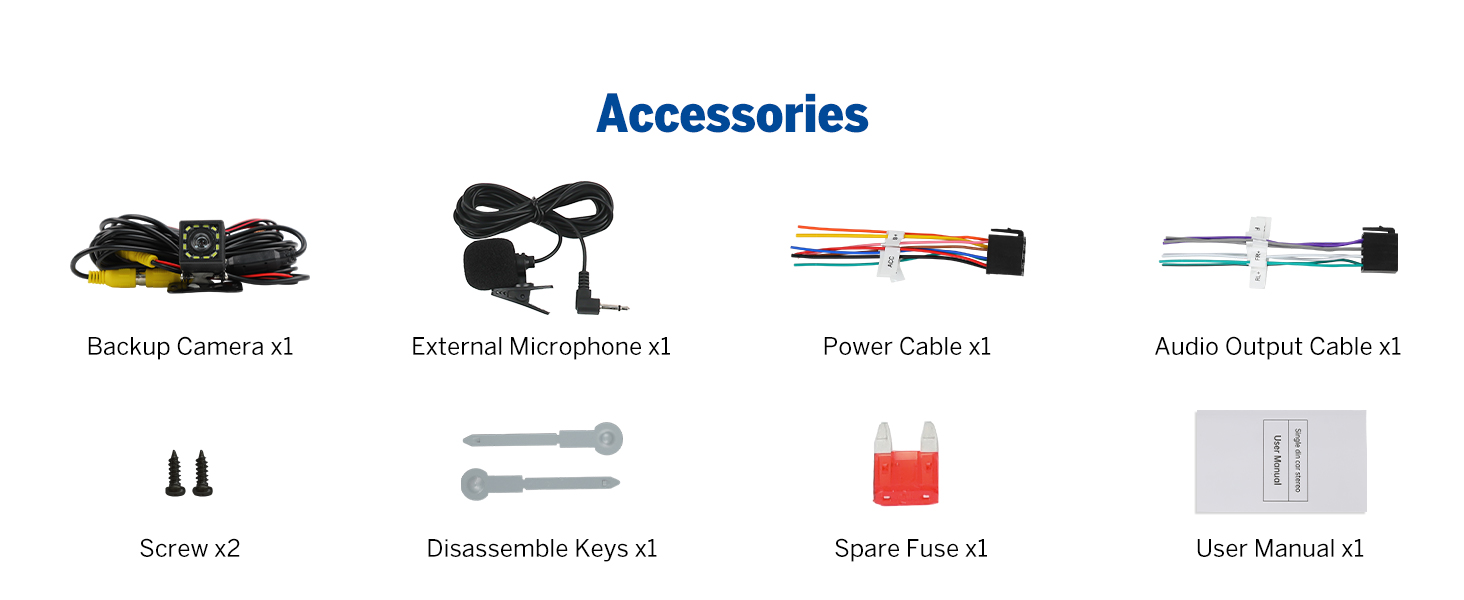

| Accesories | Power cable *1; Speaker output cable *1; 15A fuse *1; External microphone *1; Instruction manual *1; Disassembly key *2 |
| Attention | Installation dimensions: 178 mm x 50 mm |
Other Universal Car Stereo
| Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket | |||||||
| Price | £289.98£289.98 | £159.98£159.98 | £109.99£109.99 | £225.98£225.98 | £229.98£229.98 | £269.98£269.98 | £139.98£139.98 |
| CPU & Memory | 8-core (QCM6225), 6+64GB | 8-core (QCM6125), 6+64GB | 4-core (RK3562), 2+32GB | 8-core (QCM6225), 6+64GB | 8-core (QCM6225), 6+64GB | 8-core (QCM6225), 8+128GB | 4-core (RK3562), 3+32GB |
| Screen/Resolution | 10.95 inch QLED, 2000×1200 | 10.1 inch QLED, 1280×720 | 10.1 inch IPS, 1280×720 | 7 inch QLED, 1280×600 | 10.1 inch QLED, 1280×720 | 10.1 inch QLED, 1280×720 | 7 inch IPS, 1280×600 |
| CarPlay & Android Auto | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Built-in 4G module | ✘ | ✔ | ✘ | ✔ | ✔ | ✔ | ✘ |
| GPS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Split-screen multitasking | ✔ | ✔ | ✘ | ✔ | ✔ | ✔ | ✔ |
| Screen mirroring | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Built-in DSP | ✔ | ✔ | ✘ | ✔ | ✔ | ✔ | ✔ |
| EQ Bands | 48 | 15 | 36 | 48 | 48 | 48 | 48 |
Other Eonon Unit
10.26 inch On Dash Dual Camera Screen
Support photo capture, automatically display the rear camera when reversing, support 1 minute, 3 minutes, 5 minutes loop recording for video files, and support video playback
8.95 inch Rotatable On Dash Screen
- Android Auto wireless, CarPlay
- Supports Apple AirPlay wireless screen sharing
- Supports Android Super Link wireless screen sharing
Motorcycle 7 inch CarPlay Android Auto Screen
Front + rear 200W 110° wide-angle dual-camera dual-recording DVR, supports loop recording, supports photo taking, supports locking, can be connected to a mobile phone for operation
7 inch Universal Double Din Car Stereo
- Physical buttons + knobs
- Type-C fast charging interface
- Support video input + video output
- Support AUX audio input

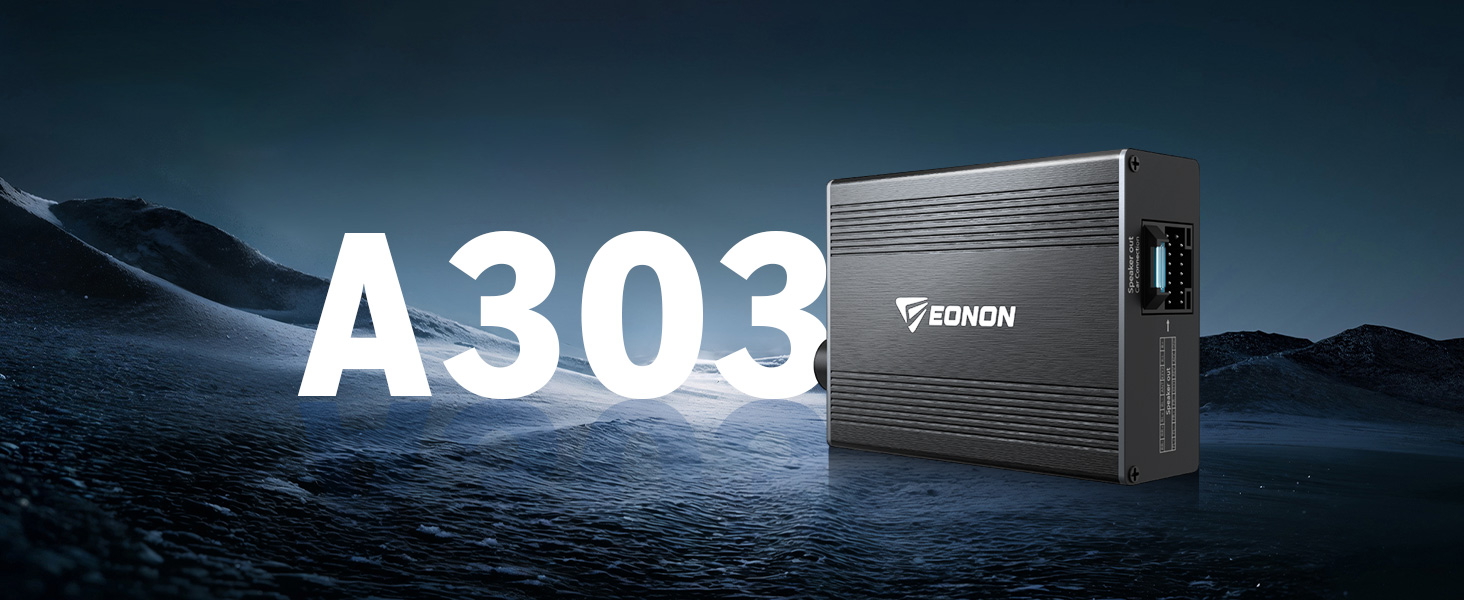

4CH×40W DSP Digital Amplifier box
- Volume Adjustment Range: -12dB-12dB
- EQ Modes: FLAT/CLASSIC/POP/ROCK/JAZZ/VOCAL_BOOST
- Rated Power: 4CH x 40W, Maximum Power: 4CH x 50W
- 16-pin male power plug
USB DAB+ digital radio for Android car stereo
- Receiving frequency: 170-240MHz; Receiving sensitivity: ≤-100dB
- Antenna input impedance: 50Ω; Antenna interface type: SMA
- Data interface type: USB; Operating voltage: USB DC 5V
- Supports screen mirroring; Supports steering wheel control; Physical volume control; Supports clock display; Supports playback memory when the device is powered off; Supports rear view camera
- Screen: Screen size: 6.36 inches (actual display area) IPS screen; Screen resolution: 1280 x 480; Touch: Capacitive multi-touch screen
- Sound: 10-band equalizer adjustment; Built-in ST TDA7851 amplifier, 4×48W surround stereo output; RCA audio output: F/R 2-channel audio output; EQ mode: User, Rock, Pop, Classical, Jazz, Soft
- Input/Output: Radio antenna interface *1; USB interface *1; External microphone interface *1; CAM IN video input *1; VIDEO IN video input *1; VIDEO OUT video output *2; AUX audio input *1; RCA audio F/R output *1 (output voltage 1.0 V)
- Accessories: Power cable *1; Speaker output cable *1; 15A fuse *1; External microphone *1; Instruction manual *1; Disassembly key *2
