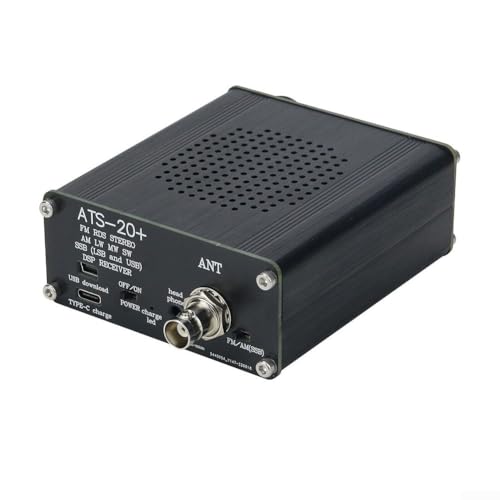

Multi-Band ATS-20+ Plus ATS20 V2 SI4732 Radio Receiver, For DSP Technology With FM AM SSB Frequencies Display, 800MAh Rechargeable Battery

Features:
* With a 0.96-inch for OLED display, it is a high-quality full-band radio receiver that supports the function of automatically keeping settings after power failure. Equipped with audio output, it supports 3.5mm headphones. It supports 4-ohm speaker 2W output. It is pre-configured with 22 commercial and amateur radio bands for your use.

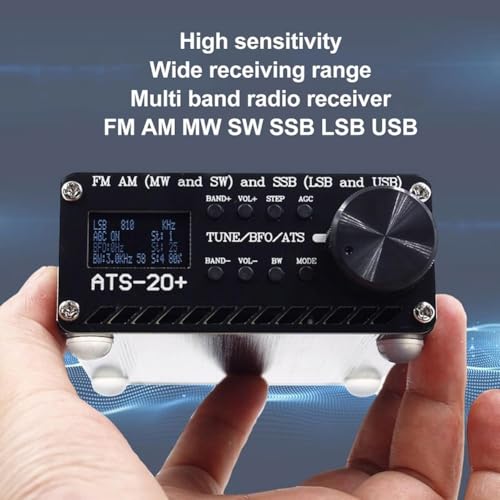

* Equipped with a 0.96-inch for OLED display, you can view the FM band, AGC on/off as needed
* Support automatic retention of settings after power failure
* Built-in 3.6V 800mAh polymer lithium battery, stable and sustainable power supply
* Support USB charging
* Equipped with audio output, supports 3.5mm headphones
* Also supports 8 ohm speaker 1.5W output

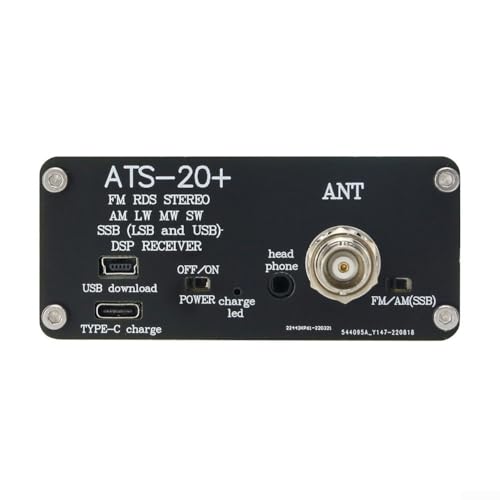

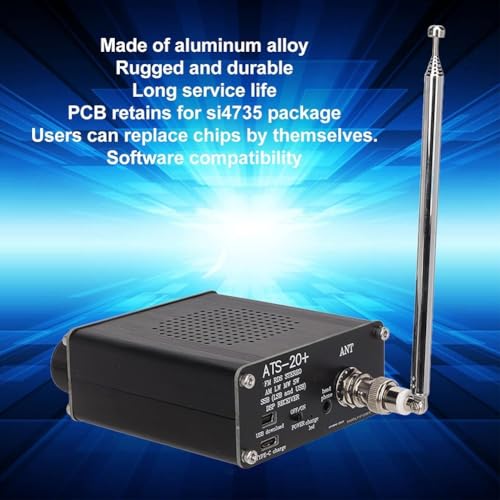

* The antenna interface uses an for SMA interface, the printed circuit board retains the SI4732 package, the chip can be replaced by itself, and the software is compatible
* Pre-configured 22 commercial and amateur radio bands for your use
* Support bands: FM, AM (for MW and SW) and SSB (LSB and USB)
* Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz
* BFO control
* Frequency step switch (1, 5 and 10KHz)
* Tuner Technology: DAB

Specifications:
Part Name: Radio Receiver
Material: PCB
Color: Black
Size: 89*107*41mm/3.50*4.21*1.61 inches
Frequency Bands: (as below)
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5}, {SW_BAND_TYPE, 5500, 6300, 6000, 5}, {SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters {SW_BAND_TYPE, 7800, 10000, 9600, 5}, {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters {SW_BAND_TYPE, 11000, 12500, 11940, 5}, {SW_BAND_TYPE, 12500, 13900, 13600, 5}, {SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters {SW_BAND_TYPE, 14500, 15900, 15300, 5}, {SW_BAND_TYPE, 15900, 17900, 17600, 5}, {SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters {SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters {SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters {SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB Band (11m)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10m

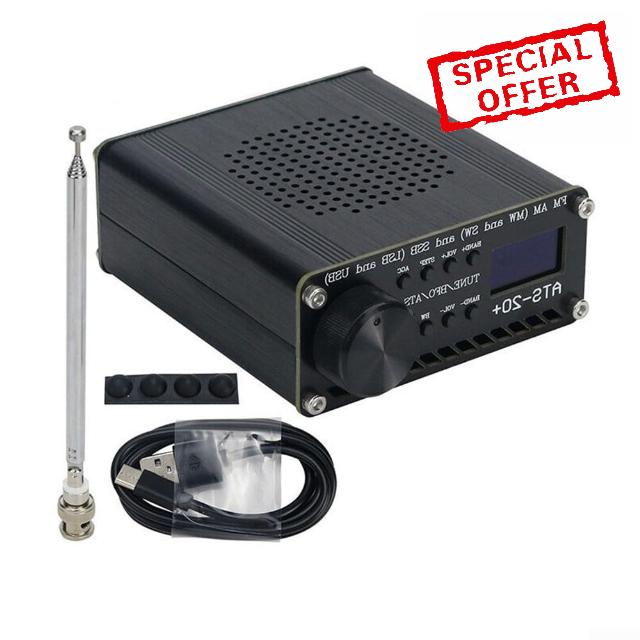

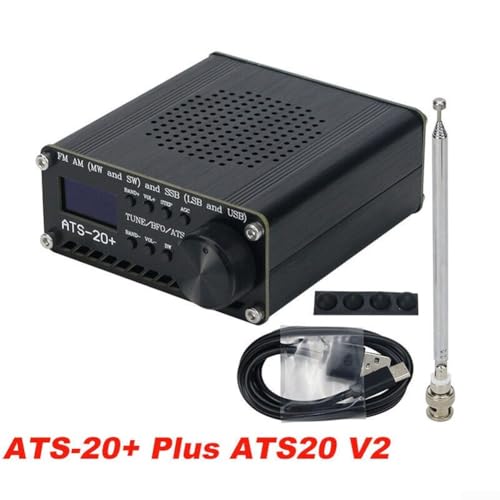

Package Contents:
1 x Radio Receiver
1 x Antenna
1 x Type-C Cable

• 【Full-Band Coverage】: ATS-20+ Plus V2 SI4732 Radio Receiver for DSP Receiver delivers FM, AM (for MW & SW) and SSB LSB & USB bands, with 22 pre-configured commercial and amateur ranges, supporting DAB tuner technology for expansive global listening without missing signals.
• 【Display & Controls】: The 0.96-inch screen presents clear frequency, FM band, AGC status, and settings. Audio bandwidth filters from 0.5 to 4kHz, BFO control, and frequency steps of 1, 5, or 10kHz allow precise tuning for multi-band Radio receiver performance.
• 【Power & Charging Flexibility】: Built-in 3.6V 800mAh polymer lithium battery offers stable long lasting operation. Support for USB C charging insures convenience, while automatic retention of settings after power failure forestalls reconfiguration hassles.
• 【Versatile Audio Output】: Equipped with audio output supporting 3.5mm headphones, 4-ohm 2W speakers, and 8-ohm 1.5W speakers, compatible for SMA antenna interface for enhanced signal reception. PCB design retains SI4732 package for chip replacement with software compatibility.

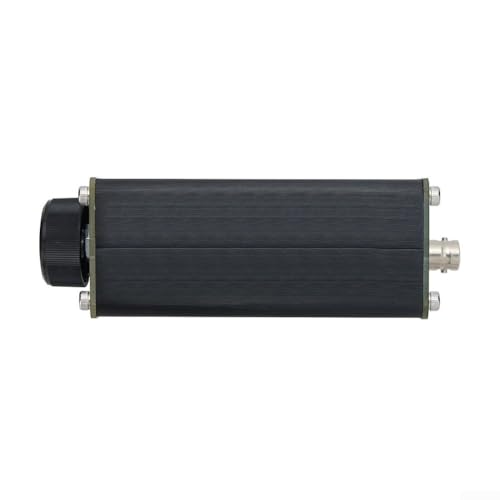

• 【Compact & Portable Design】: Measuring 89*107*41mm (3.50*4.21*1.61 inches), the black PCB construction offers a lightweight yet sturdy build for field or desk use. Package includes antenna and C cable to start monitoring multi-band transmissions immediately.
