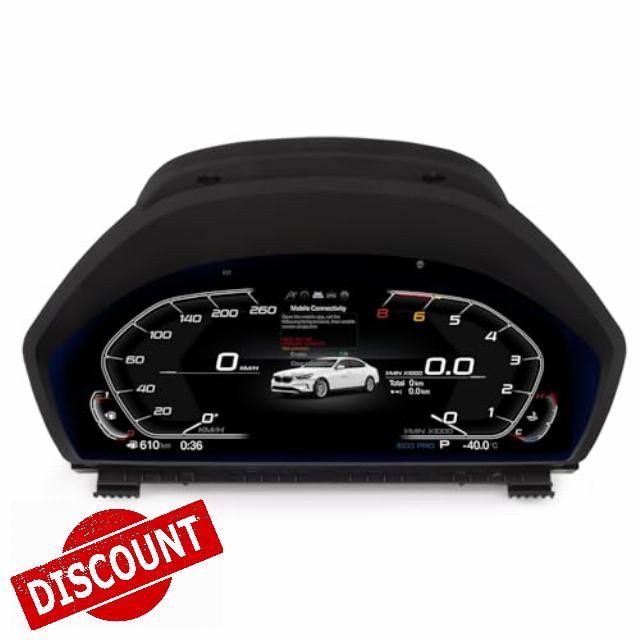

12.3 Inch HD LCD Display Dashboard Player for BMW 3 Series

12.3 Inch Digital Dash Instrument Cluster for BMW Serie 3 Serie 4 F30 F31 F34 F32 F33 F36

12.3 Inch HD LCD Display Dashboard Player for BMW 3 Series F30 F31 F34 4 Series F32 F33 F36 Digital Gauge Cluster Speedometer Replacement Instrument Panel 4 Core 7UI Steering Wheel Control Plug & Play

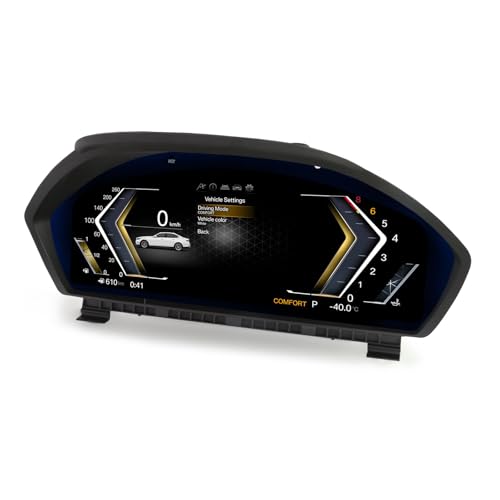

ES4803T 12.3"LCD Display Dashboard Digital Gauge Cluster For BMW 3 Series F30/F31 (2013-2019); GT-F34 (2013-2020); 4 Series F32/F33/F36 (2013-2020)

Key Features

  • Perfectly compatible with original car information, keep all original car’s functions.
  • Support the data display of original tire, oil and water temperature, fuel consumption, body balance adjustment function, etc. Support steering wheel buttons control.
  • 12.3 inch, 1920*720 HD LCD screen. Clearer and brighter picture display.
  • CPU: T507 4-core 1.5Ghz, Linux operation system, stable and fast.
  • Operating system language: English, French, Italian, German, Spanish, Russian, Turkish, Chinese, Traditional Chinese, Japanese, Arabic, Korean.
  • Built-in 7 Theme UI-Style, personalised settings to suit your needs.
  • Plug and play. No need to cut or code. Easy to install.

Compatible Models & Years:

  • BMW 3 Series F30/F31 (2013-2019); BMW 3 Series GT-F34 (2013-2020)
  • BMW 4 Series F32/F33/F36 (2013-2020)

Please Note:

  1. For vehicles with original mechanical gauges only. Not compatible with factory LCD dashboards. Hybrid and phev models are not compatible. Media info (playlist, Bluetooth, radio, etc) does not show on the cluster.
  2. The factory HUD will no longer be useful after installation. If you want to keep the original HUD functionality, you will need to purchase a HUD decoder box HUD03 from us.
  3. Gear display off on manual models. For manual transmission vehicles, you will need to turn off the gear display. Follow the steps below: System Settings →[Factory Settings] →Enter the password [0181] →[Hide Gear] Enter the password again to display the gear.
  4. This ES4803T unit does NOT support the fiber optic system. If you require a compatible model, please purchase the alternative ES4803B item (ASIN:B0G2S1MTLK). Note: If your vehicle has the original Harman Kardon amplifier system (equipped with the original EVO system or some NBT system with an 8.8-inch screen), it's equipped with an optical fiber system. In this case, the ES4803B is recommended.

Specifications:

  • Operating System: LINUX 5.4
  • Main Chip: T507 (CPU 4-core 1.5GHZ frequency)
  • RAM: 1GB
  • ROM: 8GB

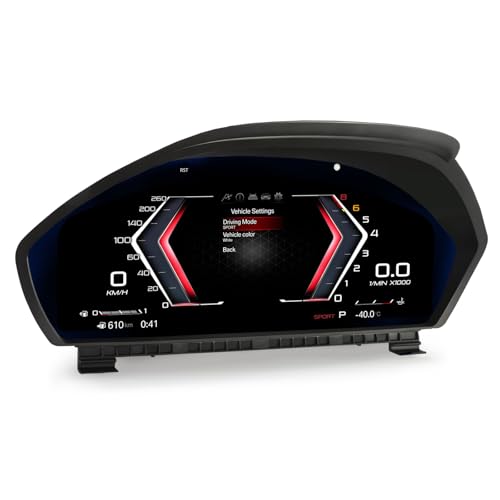

  • Display Size: 12.3 inch HD display
  • Screen Resolution: 1920×720
  • Operating Voltage Range: 9V-18V
  • Operating Current: 480mA
  • Standby Current: Less than 3mA
  • Working Temperature: -20～75℃
  • Storage Temperature: -40～85℃

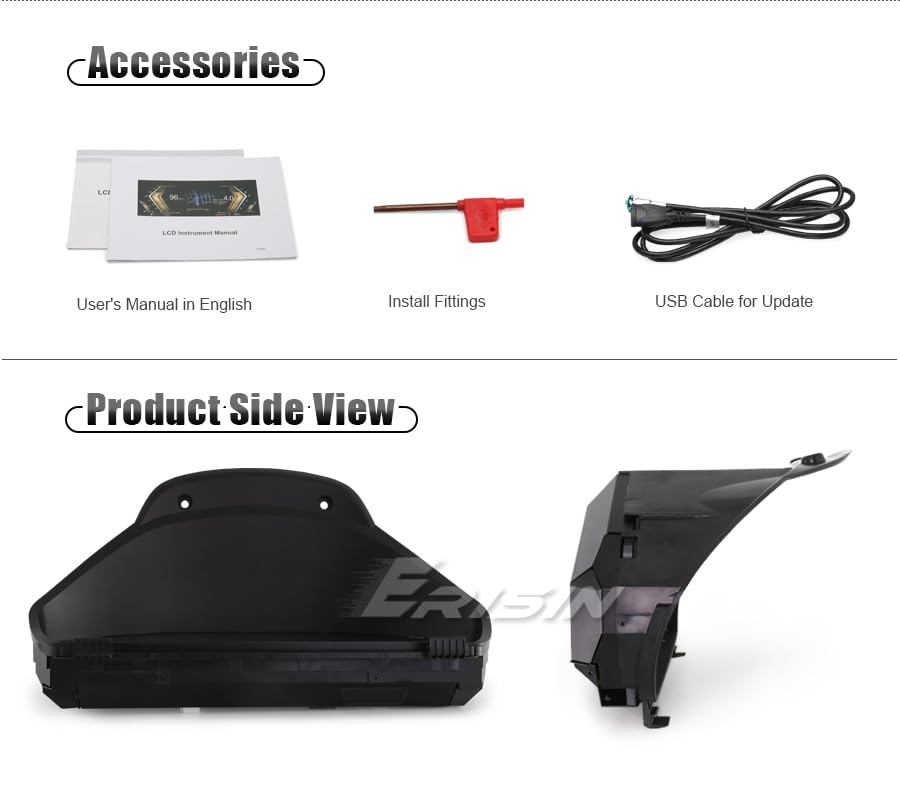

Package List:

  • 1* Car LCD Dashboard Digital Gauge Cluster
  • 2* User's Manual in English
  • 1* USB Cable for Update
  • 1* Install Fittings

  • ⭐️ 【12.3 inch HD LCD Screen】The dashboard player has 12.3 inch HD LCD screen, high brightness and high resolution 1920×720, clearer and brighter picture display. The device runs LINUX 5.4 system and boasts a 4 core CPU with a main frequency of 1.5 GHz, 1GB RAM and 8GB ROM, providing a powerful performance.
  • ⭐️【Multifunctional】The automotive replacement instrument panel gauges is perfectly compatible with original car information, keep all original car's functions. Supports various functions such as the data display of original tire, oil and water temperature, fuel consumption, body balance adjustment function, etc. Support steering wheel buttons control, easily switch songs, channels and adjust volume, etc.

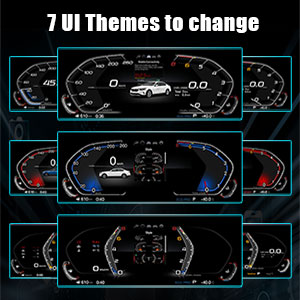

  • ⭐️【Multi Language + 7 UI】This digital speedometer cluster support different operating system languages: English, Spanish, German, French, Italian, Turkish, Korean, Japanese, Chinese, Traditional Chinese, Russian, Arabic. And built-in 7 Theme UI-Style (Classic, Comfort, Sport, Tech, Minimalist, Luxury, and Night), personalised settings to suit your needs.
  • ⭐️ 【Applicable Model】This digital dashboard is suitable for BMW 3 Series F30/F31 (2013-2019), BMW 3 Series GT-F34 (2013-2020), BMW 4 Series F32/F33/F36 (2013-2020). If your vehicle has the original Harman Kardon amplifier system (equipped with the original EVO system or some NBT system with an 8.8-inch screen), it's equipped with an optical fiber system. In this case, the ES4803B (ASIN: B0G2S1MTLK) is recommended.
  • ⭐️ 【Easy Installation】This digital instrument cluster is easy to install, no damage to the vehicle. No cutting or programming, can be plug and play. There is also a USB port for future software upgrades. NOTE: If you want to keep the original HUD functionality, please purchase a HUD decoder box from us.
›
SKU: B0G2RDPR4Z
Weight: 5.5 kg
Dimensions: 43 x 25 x 25 cm; 5.5 kg
Model: ES4803T-XN
Part: LCD Dashboard ES4803T
Colour: Black
Manufacture: GONFEN
Colour: Black

Product Description

ES4803T 12.3″LCD Display Dashboard Digital Gauge Cluster For BMW 3 Series F30/F31 (2013-2019); GT-F34 (2013-2020); 4 Series F32/F33/F36 (2013-2020)

Text reads: '12.3Text reads 'Core Functions' with eight circular icons including: Tire Pressure, Fan/AC, Non-Operating Time, Steering Wheel, Temperature, Navigation, and other vehicle-related functions on dark blue background.Text reads 'Support Steering Wheel Control'. Multiple views of car dashboard and steering wheel controls showing interface displays and lighting features.Text reads 'Support Multi-Languages'. Digital dashboard interface showing globe icon surrounded by national flags, indicating language selection feature.

Package List:

  • 1* Car LCD Dashboard Digital Gauge Cluster
  • 2* User's Manual in English
  • 1* USB Cable for Update
  • 1* Install Fittings
