Dolphin Automotive Reversing Camera Fits Renault Master Van

Dolphin Automotive Reversing Camera Fits Renault Master Van 3rd Generation 2010-2024 (Camera With 5" Monitor)

Dolphin Automotive Reversing Camera Fits Renault Master Van 3rd Generation 2010-2024 (Camera With 5″ Monitor)

Looks Factory Fitted

Our Dolphin Automotive range of van reversing cameras are designed to fit so well they look like original factory fitted equipment. By replacing the housing of the high level brake light you remove the need to drill holes into the metal bodywork of the van which can often lead to leads and issues with corrosion further down the line. It also helps keep the streamline of the vehicle so you do not have an object sticking up above the roof that can get caught on things.

Brake Light Functionality Maintained

In all instances our brake light cameras maintain the functionality of your 3rd brake light. This solution is a replacement housing which your current bulb fits into making it an easy plug and play swap.

Cost Effective

As your van is one of your largest investments in your business then fitting a reversing camera is a cost effective outlay as it helps keep your investment and you on the road and earning money. Also turning up at customers premises with dented vans does not make a good first impression of your abilities. If you are an employer it also helps tick that Duty Of Care box to your staff and customer.

Extra Features

Where the size and design of the brake light housing allows, we have taken the opportunity to add an adjustable ball-socket for final alignment but as standard all our cameras have been designed to give what we believe is the optimum angle looking down at the rear bumper to make best use of those final few feet when reversing in limited space. Most of our cameras also offer reversing guidelines, but these can be deactivated if not wanted.

You can buy our cameras on their own if you already have a compatible head unit you can plug them into. It would need to be capable of accepting either a PAL or NTSC signal. This cameras is not AHD compatible. Your head unit would also need a phono / RCA input. Please note most OEM units require a bespoke wiring loom and so are not compatible. If so we offer a range of dashboard mounted and rear view mirror mounted monitors. Please note some modern inbuilt manufacturer supplied head units may also need ‘programming’ to switch the reversing camera option to On with the vehicles ECU management system so check this out.

Our Range Of Monitors

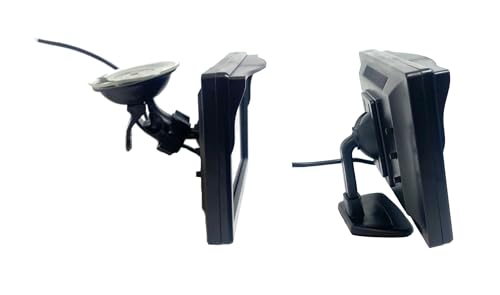

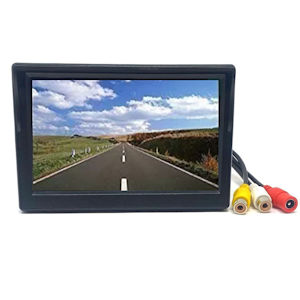

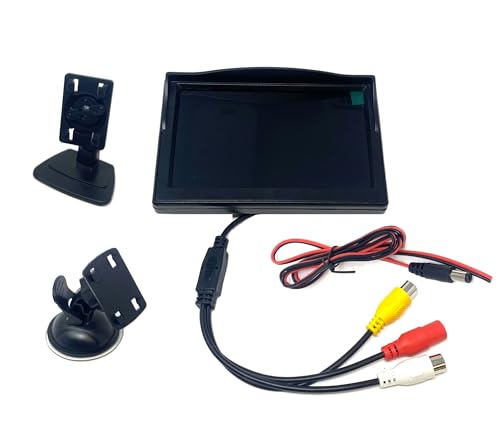

The 5 inch monitor comes with 2 mounting brackets so you can either adhere it to the dash board or with the suction mount attach it to your windscreen – or even vice versa! It has 2 AV inputs and works of a 12v power supply. The monitor will stay blank and come to life when a picture signal is received.

Our Range Of Monitors

The 7 inch dash monitor is certainly the more commercial looking solution giving a larger picture on a bracket that both tilts and swivels so you can locate it as suits your needs. The mounting bracket comes with an adhesive pad but it can also be screwed down to your dashboard.

Our Range Of Monitors

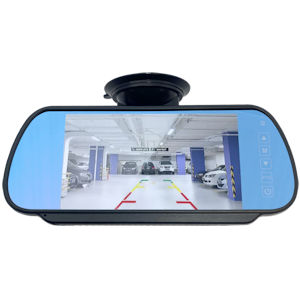

The 7 inch suction mirror monitor can clip over an existing mounted rear view mirror if your van has one but otherwise also includes a commercial strength suction mount to sucker against your windscreen. It has a mirrored finish so will work as a rear view mirror until you select reverse gear at which point the screen will come on.

Our Range Of Monitors

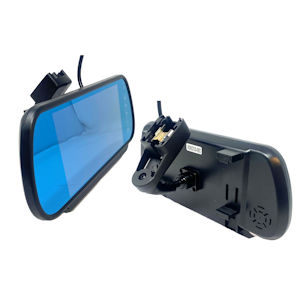

The 7 inch stalk mirror monitor is designed to attach to the OEM mounting plate / shoe that your windscreen should have for attaching a rear view mirror. It can also clip over an existing rear view mirror if you have one fitted. It has a mirrored finish so will work as a rear view mirror until you select reverse gear at which point the screen will come on.

5" Monitor

7" Dash Monitor

7" Suction Monitor

7" Stalk Monitor

Dolphin Automotive

UK Support

As a UK Company, established since 1997, we sell a range of automotive products in addition to reversing cameras and in the intervening 25+ years we have won awards for our range of reversing parking sensors in particular. Being in the UK we can offer both telephone and email support both pre and post purchase should you have any issues.

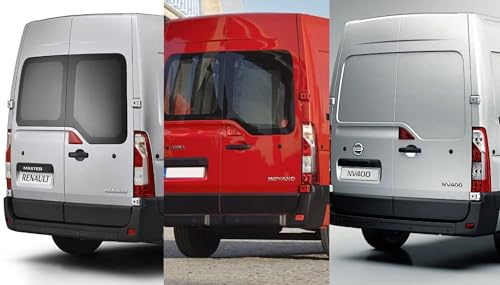

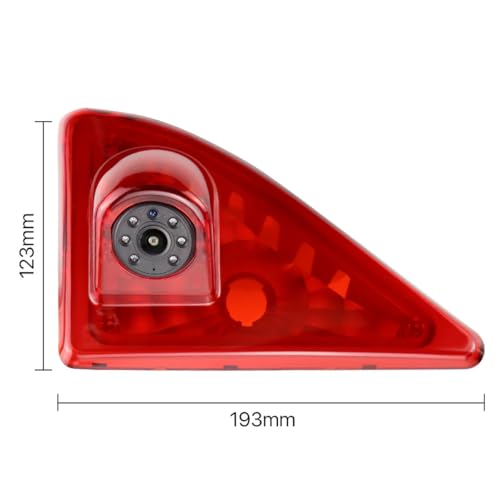

  • VAN: This Reversing Camera Fits The 3rd Generation Renault Master 2010 – 2024 Replacing The Current Brake Light Built Into The Rear Door. It Also Fits The Opel / Vauxhall Movano 2010-2021 And Nissan NV400 2010-2021 Now Renamed Nissan Interstar 2022 – 2024. Your High Level 3rd Brake Light Should Be Triangular With Approx Dimensions Of 19.3cm Wide By 12.3cm High. Your Van Will Look The Same As The Ones In Our Photos.

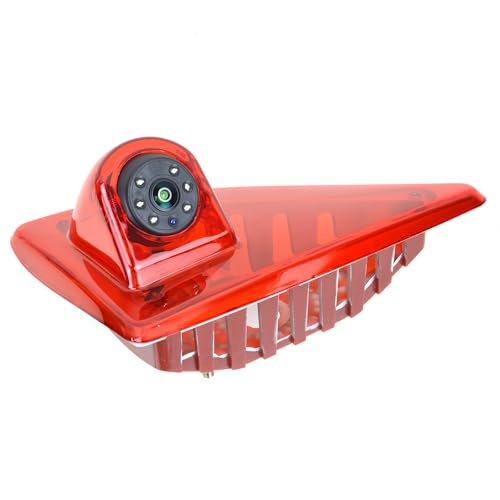

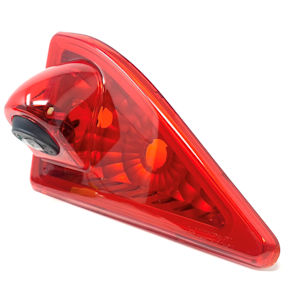

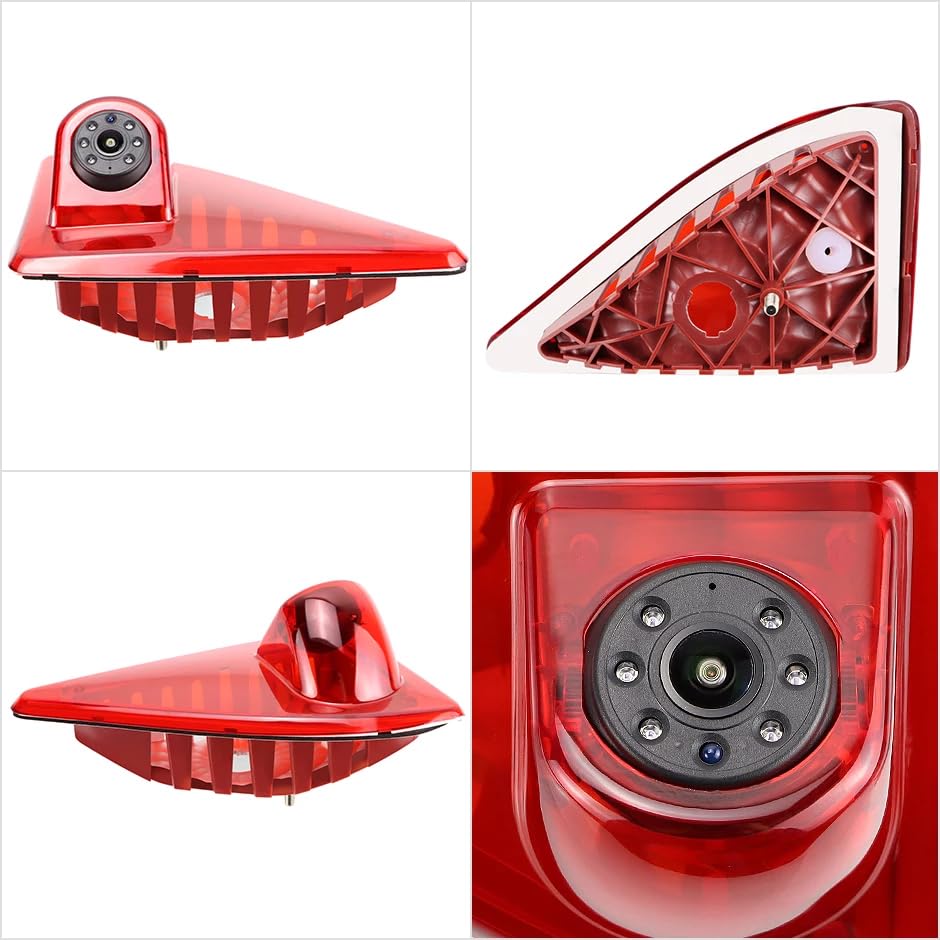

  • DESIGN: The Rear Camera Is Mounted Into The Brake Light To Provide A View Behind Your Van Looking Downwards At The Rear Bumper. This Is A Replacement Brake Light Housing, You Continue To use Your Current Brake Light Wiring & Bulb To Keep Installation Simple & Maintain Your Brake Light Functionality.
  • OPERATION: The Rear Camera Wires To Your Reversing Light Feed So It Comes On When You Select Reverse Gear. You Could Wire It To A 12v Ignition Feed If You Wanted It Always On, But It Looks Down Towards Your Bumper Remember.

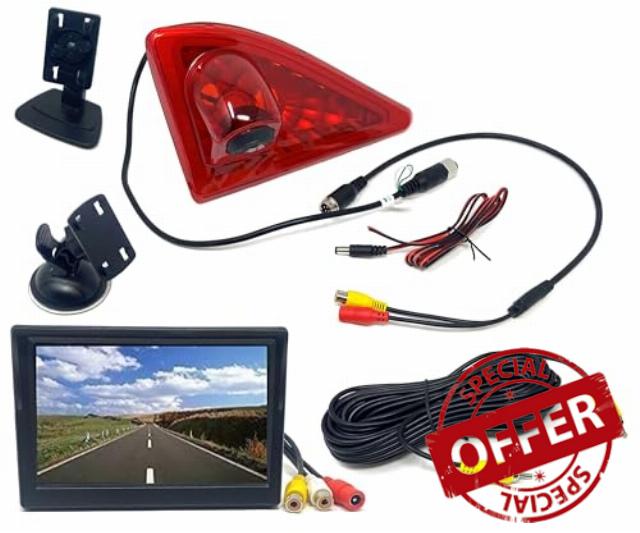

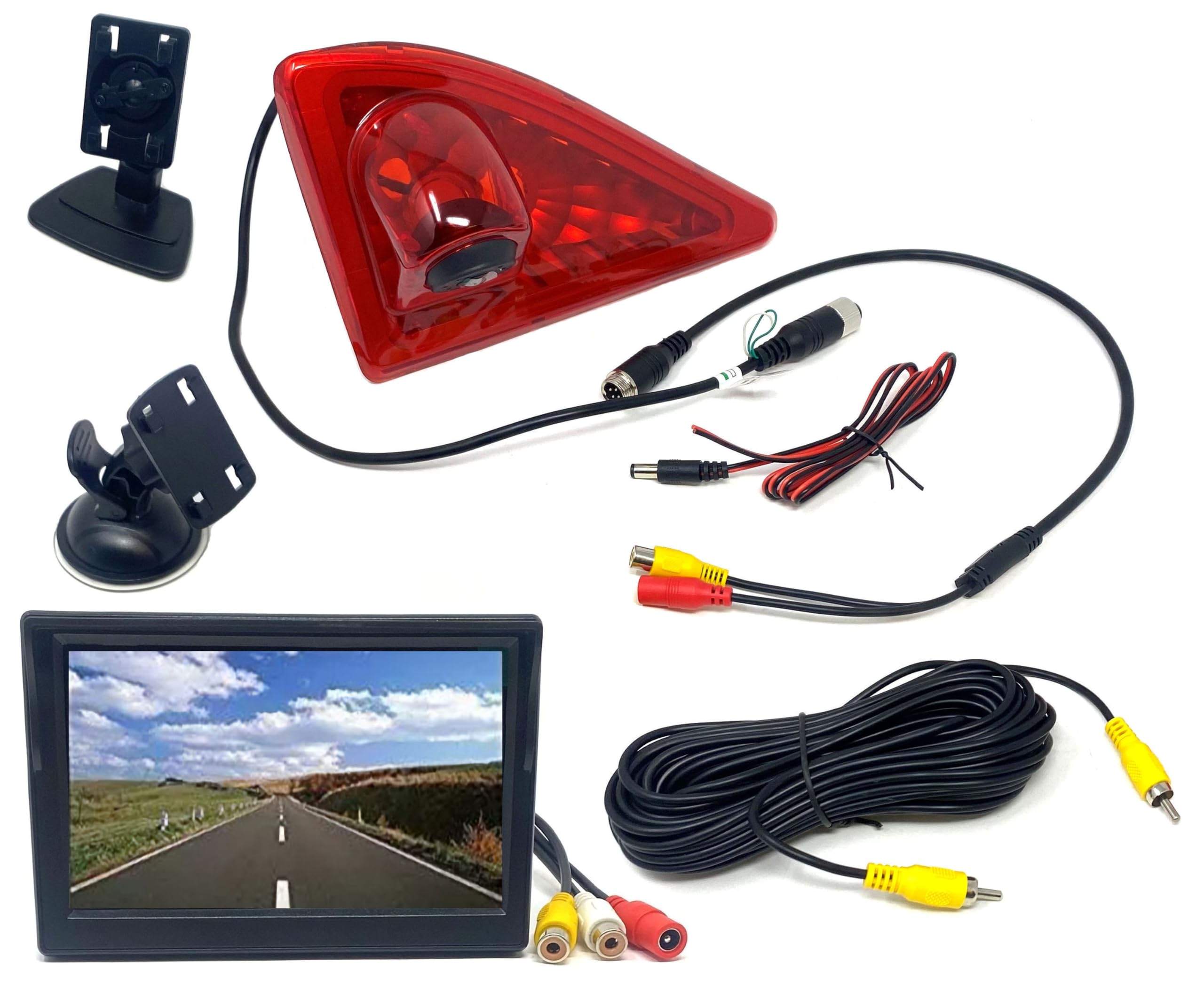

  • CAMERA KIT WITH 5" MONITOR: The Kit Includes A 10m RCA / Phono Cable, 1 x Power Lead And The Required Composite Adaptor Cable. The Monitor Also Has Its Own Power Lead And A Choice Of Mounting Options As Both An Adhesive Dash Mount And Suction Windscreen Mount Are Included.
  • SPECIFICATION: The Camera Works On 12v Power With A CMOS Lens With Dual NTSC & Pal Output. It Has A 170 Degree Viewable Angle With Mirror Image View And Is IP68 Waterproof. It Has 6 LEDs For Infrared Night Vision With A Distance Of 35ft. The Camera Has Reversing Guidelines (These Can Be Deactivated If Not Required).
  • COMPANY: Dolphin Automotive Is A Brand Of UK Company Trading Direct Ltd Based Just Outside Woking In Surrey. Established Since 1997 We Supply Both To The Trade & Retail. VAT Registered Supplier, 12 Months Warranty & Telephone Support.
›
SKU: B0FTGJ7TSF

Product Description

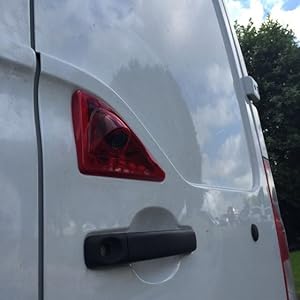

the rear door of a white vanSeries of images showing a red and black audio device with attached cables and earbuds, featuring audio input/output connections.Renault Master Camera Angle Close7-inch vehicle display monitor with adjustable stand, showing blue car on screen. Features black plastic housing and mounting bracket.Black mounting bracket or stabilizer system shown from multiple angles, featuring adjustable components and hardware for installation.

7″ Stalk Monitor

Dolphin Automotive

the new led lighting kit

UK Support

As a UK Company, established since 1997, we sell a range of automotive products in addition to reversing cameras and in the intervening 25+ years we have won awards for our range of reversing parking sensors in particular. Being in the UK we can offer both telephone and email support both pre and post purchase should you have any issues.
