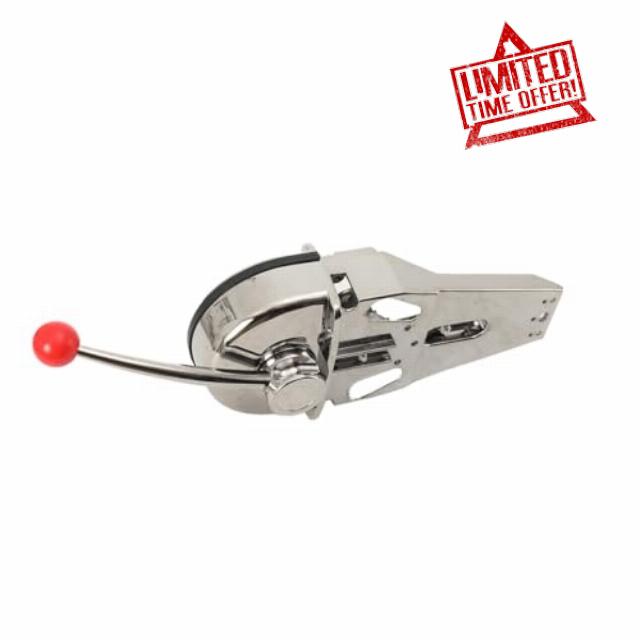

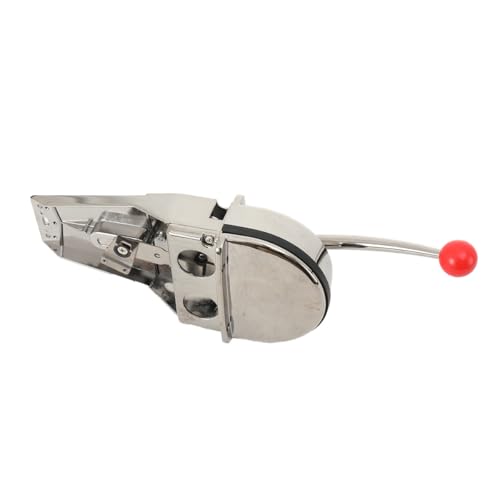

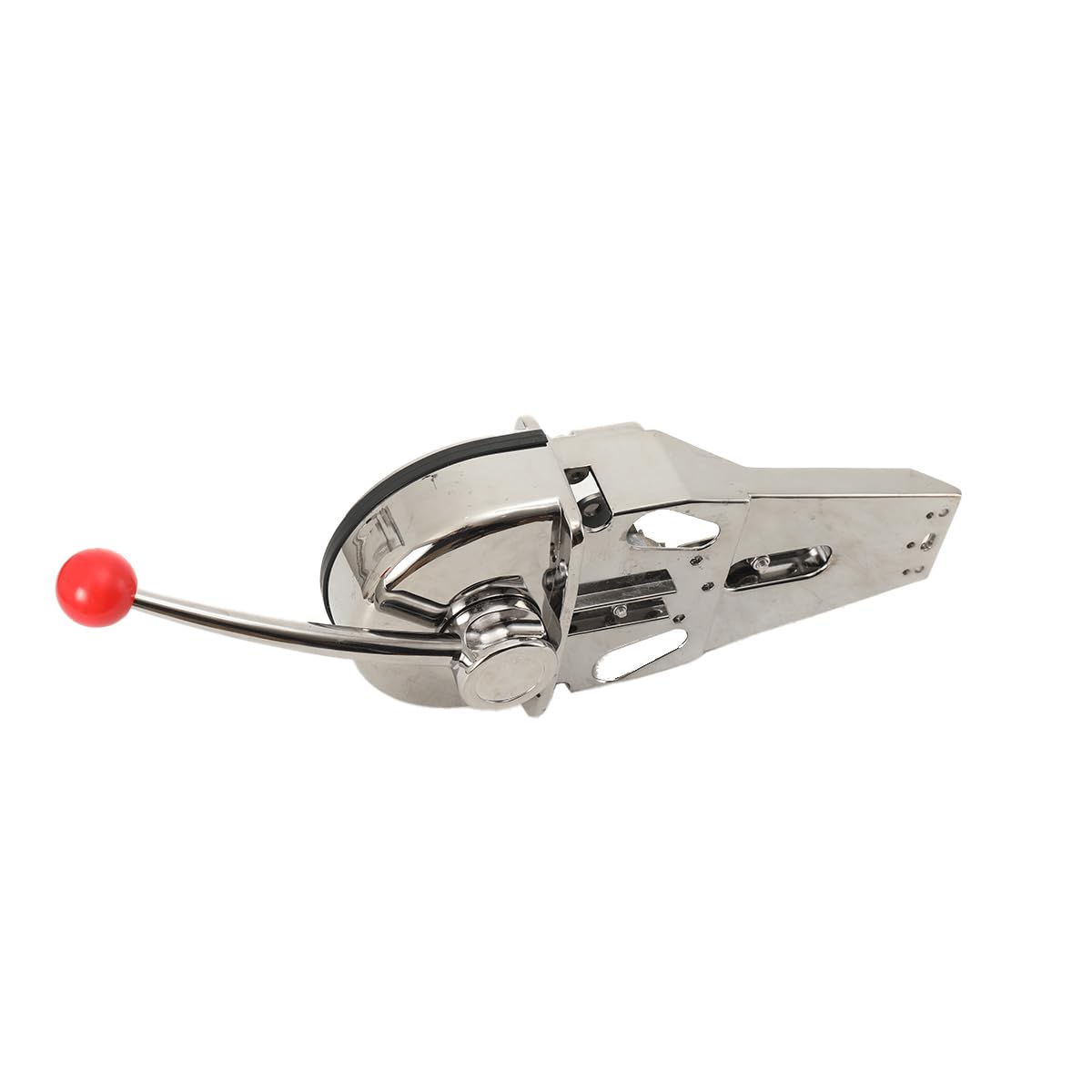

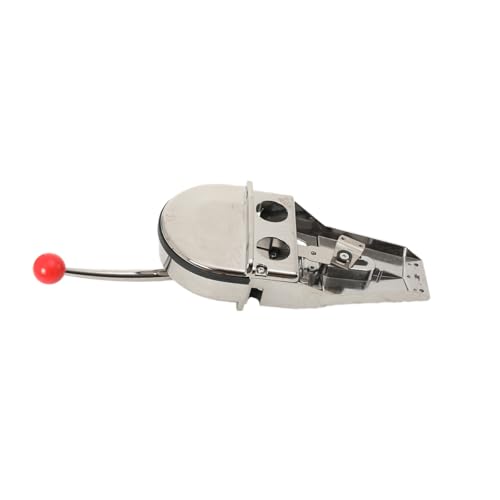

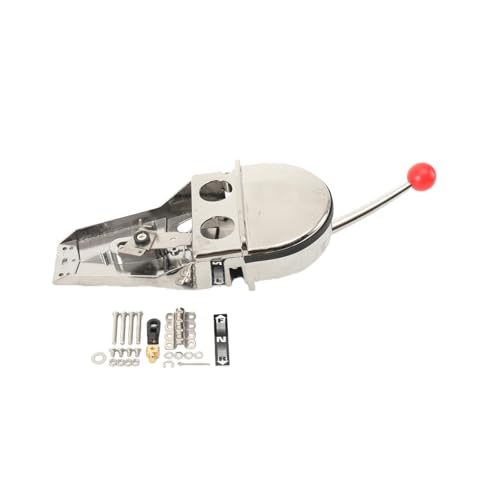

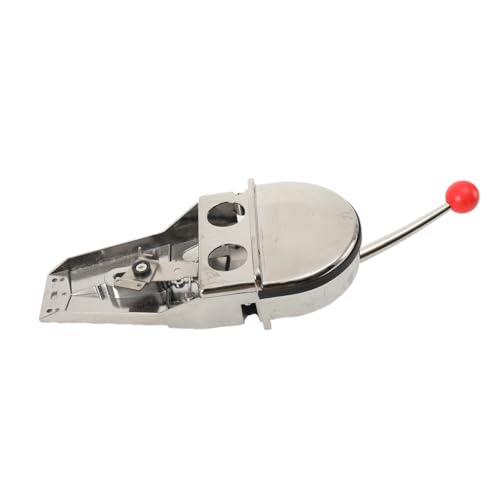

Engine Control Handle, Single Lever Marine Control Box

Engine Control Handle, Single Lever Marine Control Box – Durable Boat Throttle and Gear Shift Replacement for Outboard, Inboard & Sterndrive Engines

This single lever marine control box is a reliable replacement for single engine controls, offering dual-action operation to manage throttle and gear shift in one lever. It is suitable for yachts, fishing boats, and other water vehicles, supporting outboard, inboard, and sterndrive engines with gas/petrol or diesel power. The control allows for very smooth shifting and throttle control, and the pull-out handle disengages the shift for throttle-only warm-up, as per the product specifications. Built-in friction reduces throttle creep, and the neutral position is easily engaged by pulling the handle 30 degrees. Compatible with all 33C style and similar engine control cables, this product includes one marine boat engine control handle for easy installation and dependable performance on the water.

Single Engine Control Replacement

Single Lever Single Engine Control

Dual action, throttle and shift in one lever

Operate both throttle and shift for 1 engine

Great for any type of boat with outboard, inboard or I/O power, gas or Diesel

Very smooth shifting and throttle

Pull-out handle disengages shift for throttle only warm-up

Built-in friction to avoid throttle creep

For use with all 33C style and other engine control cables

Features:

The control system is mainly used for yachts, fishing boats and other water vehicles throttle and gear control, using a single handle to achieve control of the throttle and gear.

The neutral position is done by pulling out the hand levers 30 degree.

Open the throttle step as follows：

1. Remove the lever.

2. Unlock the throttle and pull the flexible shaft.

3. Remove the swivel bracket.

4. Loosen the two (2) hex head screws at the link mechanism and remove the linkage. Make sure that the shift arm engagement teeth position is not changed.

5. Push the throttle arm toward the housing and rotate it 180 degrees until it bounces back.

6. Use the hex head screw to fasten the connecting rod mechanism to the desired position.

7. Insert the swivel bracket into the appropriate hole.

8. Re-install the push-pull flexible shaft and handle bar.

Package Including

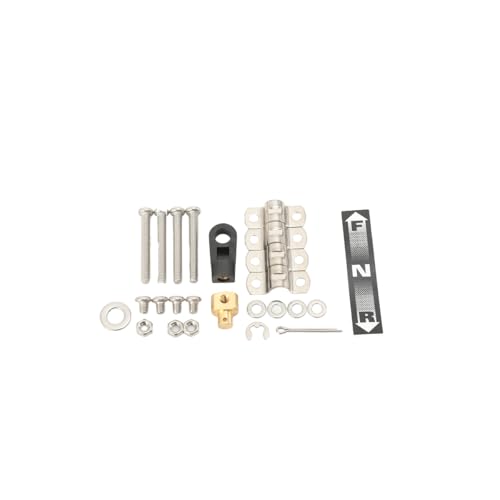

1 x Marine Boat Engine Control Handle

• All-in-One Control Design: This single lever control features a dual-action mechanism that combines throttle and gear shift in one lever, providing smooth operation and precise handling for various marine applications.
• Wide Compatibility: As a replacement control, it works with single engine setups, including outboard engines, inboard, and sterndrive systems, supporting both gas/petrol and diesel, for versatile use as a boat part.
• Smooth and Safe Operation: Enjoy very smooth shifting and throttle response, with a pull-out handle that enables throttle-only warm-up for engine maintenance. The built-in friction helps prevent throttle creep during use.
• Easy Installation: Designed for straightforward setup, this unit serves as a single engine control replacement and is compatible with 33C style control cables and other types, fitting common boat steering equipment.
• Convenient Neutral Function: Achieve neutral position by pulling the handle 30 degrees, and use the throttle only warm-up for safe engine starts, enhancing overall boating control and reliability.
