InoKraft Undercoating Spray Gun with Suction Feed Cup, 360° & Straight Spray Hoses, for Truck Bed Liner Coating, Rubberized Undercoat, Rust Proofing

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Inokraft Rust-Proofing Spray Gun

Merchant video

High Flow, Yet Still Even and Fine.

1 Adjustable Flow 2 360° Coverage 3 No Leakage

Adjustable Pressure

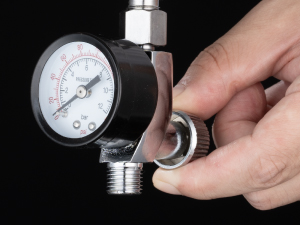

Pressure regulator allows quick adjustments for optimal spray, ensuring uniformity and effective coverage.

No Thinning

Adjustable flow supports high-volume delivery and thick coatings without dilution, maximizing efficiency.

Easy to Fill

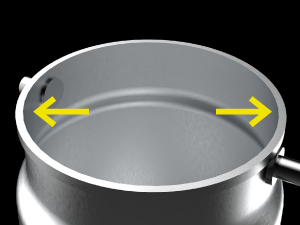

3.15inch – Wide canister opening for easy filling and cleaning.

Firm Hose Connection

Reinforced hose connection withstands 400N, ensuring secure attachment.

Simplify Your Rust Protection

InoKraft Undercoating Spray Gun Key Specifications

Model Number	IK01206001
Type	Undercoating Spray Gun
Max Pressure	9.0bar, 130.5psi
Recommended Air Pressure	4.0bar, 58psi
Feed Type	Siphon
Air Consumption	4.59-5.30 CFM at 58.0psi
Compressed Air Connection	6mm, 1/4''
Cup Capacity	600ml, 20.29oz

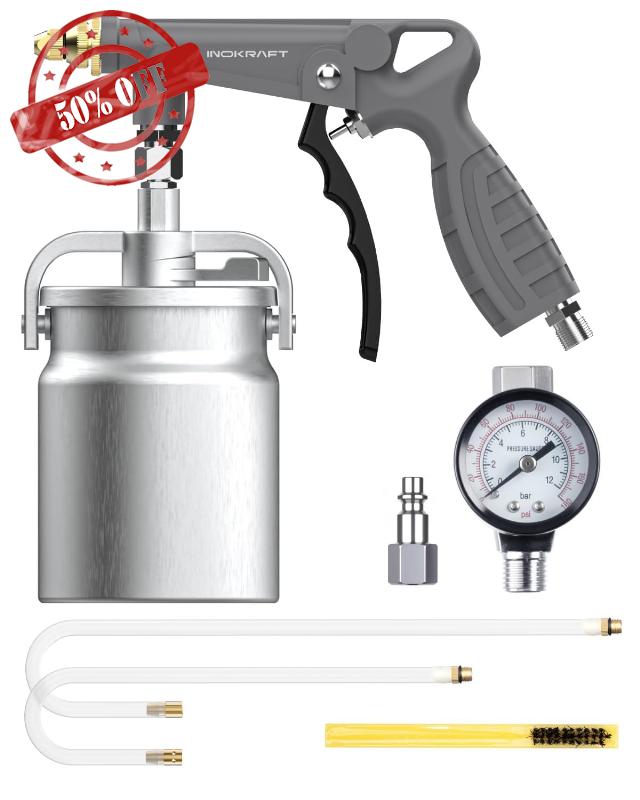

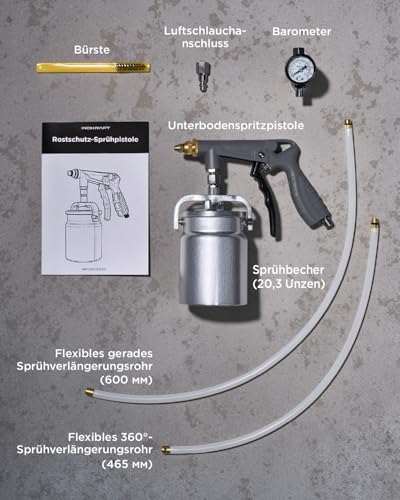

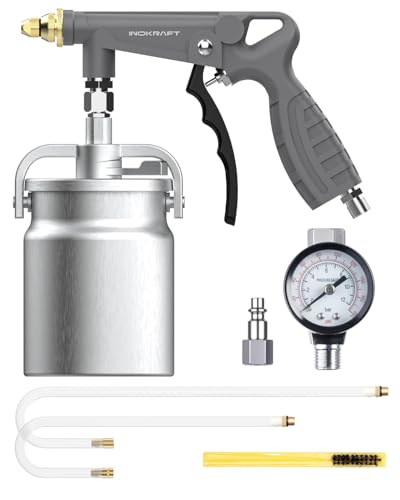

Accessories	Spray gun, Spray cup, Spray standard nozzle, Flexible 360° spray extension wand (18.3inch) , Flexible straight spray extension wand (23.6inch) , Air hose connector, Air pressure guage, Brush, User manual

• What is the difference between InoKraft undercoating spray gun and others?

  The nozzle allows tool-free adjustment of flow, so you can operate under the car with your bare hands. The specially increased flow lets you finish the job easily and quickly. The custom paint cup prevents leaks, avoiding any mess.

• Is the flow rate adjustable?

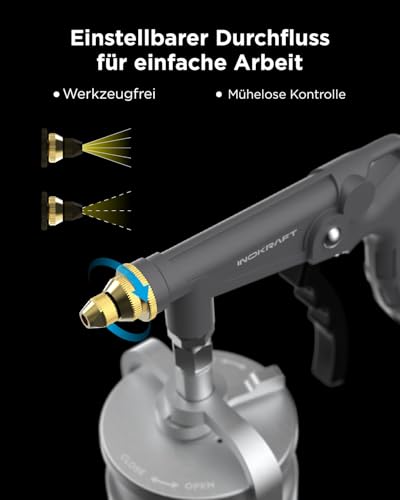

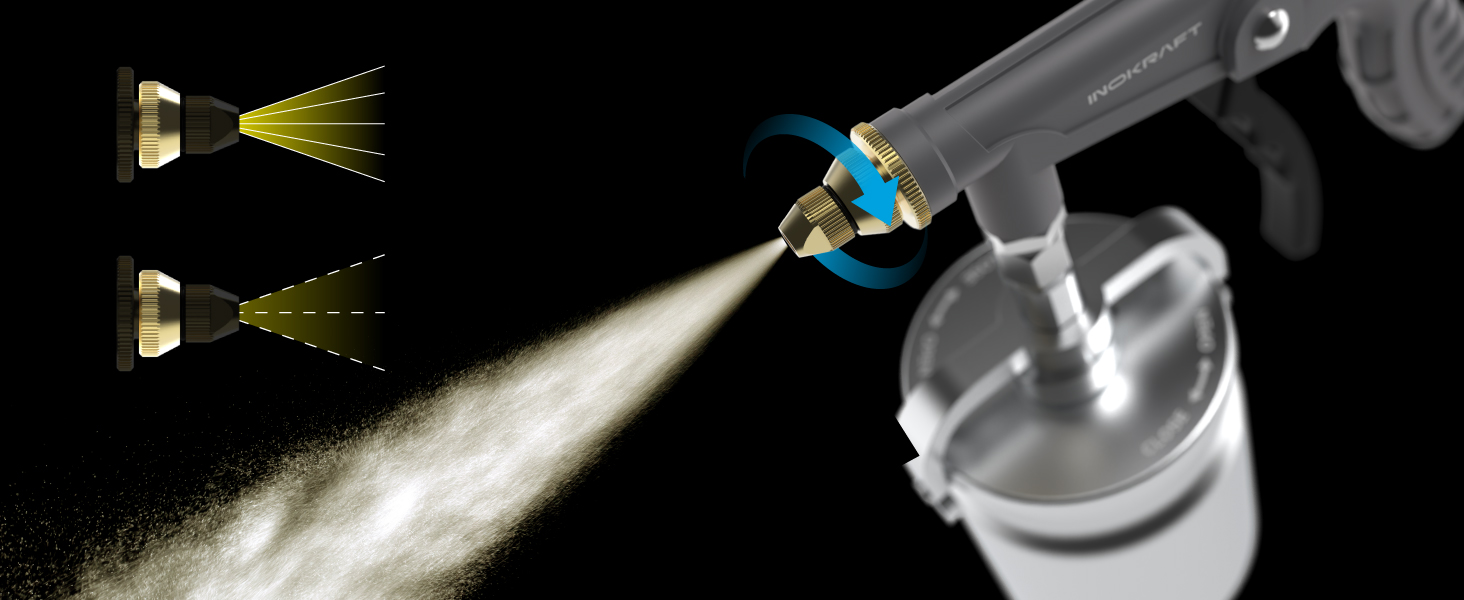

  Yes, the nozzle allows tool-free adjustment to increase flow. It can be easily operated under the vehicle without tools for efficient large-area spraying.

• How can the spraying effect be adjusted? How is the spraying effect?

  The spraying effect is adjusted with the nozzle and pressure regulator. The nozzle controls flow rate, and the regulator changes air pressure to adjust particle size. This ensures optimal particle size for powerful and even coverage over large areas.

• Where can the two extension wands be used?

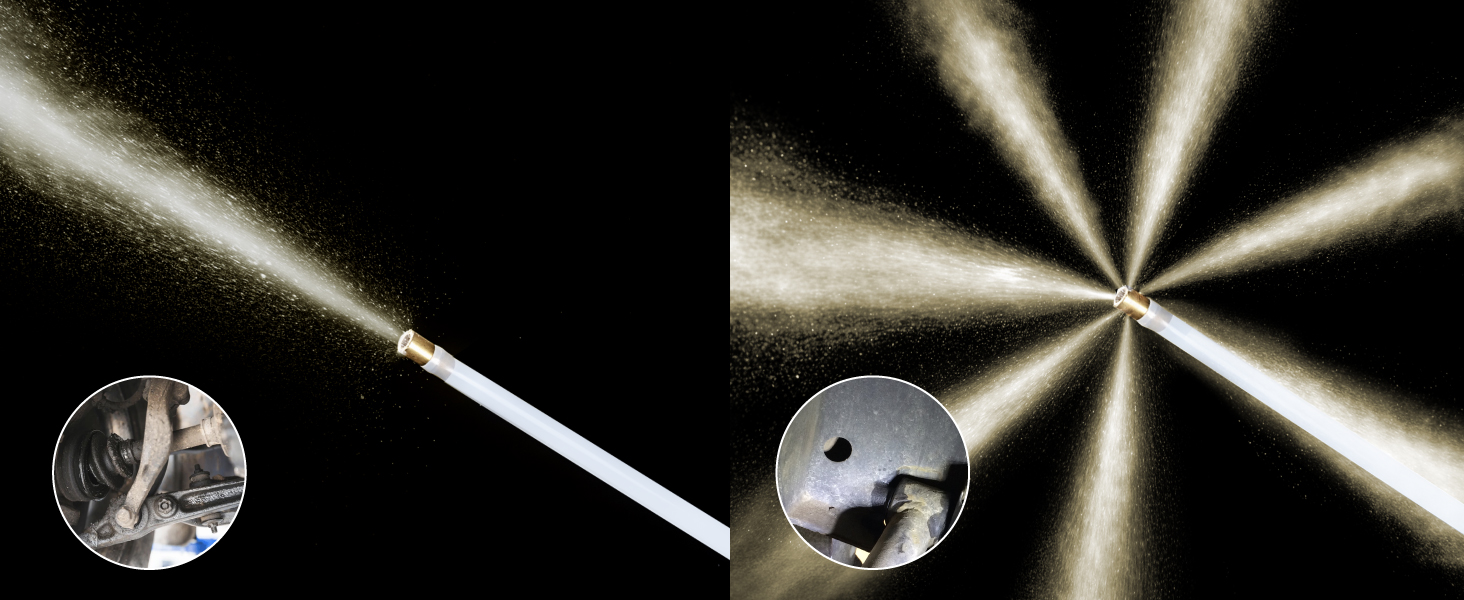

  The 18.3-inch flexible 360° spray extension wand is ideal for holes and cavities, while the 23.6-inch straight wand is perfect for narrow crevices. Both are easy to replace and maintain spray effectiveness, regardless of length.

• What types of paint can be used? Is preheating necessary?

  Most undercoatings on the market can be used without preheating, achieving good atomization and strong flow. Truck bed liners can also be sprayed if needed.

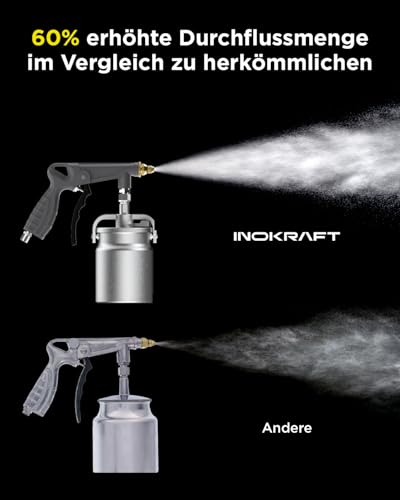

• Efficient Performance: Achieve 60% increased flow rate for high-volume spraying without diluting thick paints, while also catering to precise low-flow applications for detailed work, completing the work efficiently.
• Focus On Your Work: The InoKraft undercoating spray gun is equipped with adjustable nozzles and pressure regulators, allowing you to focus on work with a smooth operational experience. The nozzle features threads for quick flow adjustment, allowing for swift operation under the car just by hand. The pressure regulator is also adjustable to control air pressure, fine-tuning the spray atomization effect without crawling under the vehicle or climbing down from the trunk.

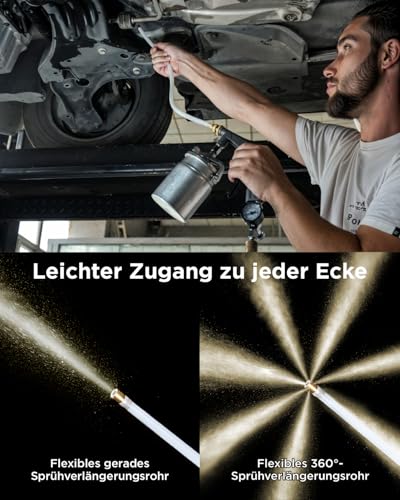

• 360° Spray Coverage: With the flexible 360° spray extension wand and straight spray extension wand, the undercoating gun can reach deep into various gaps and holes for complete coverage without missing any areas.

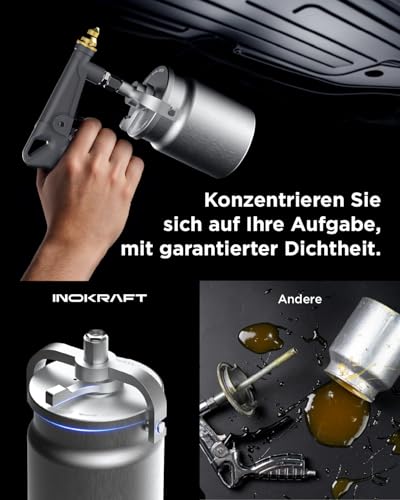

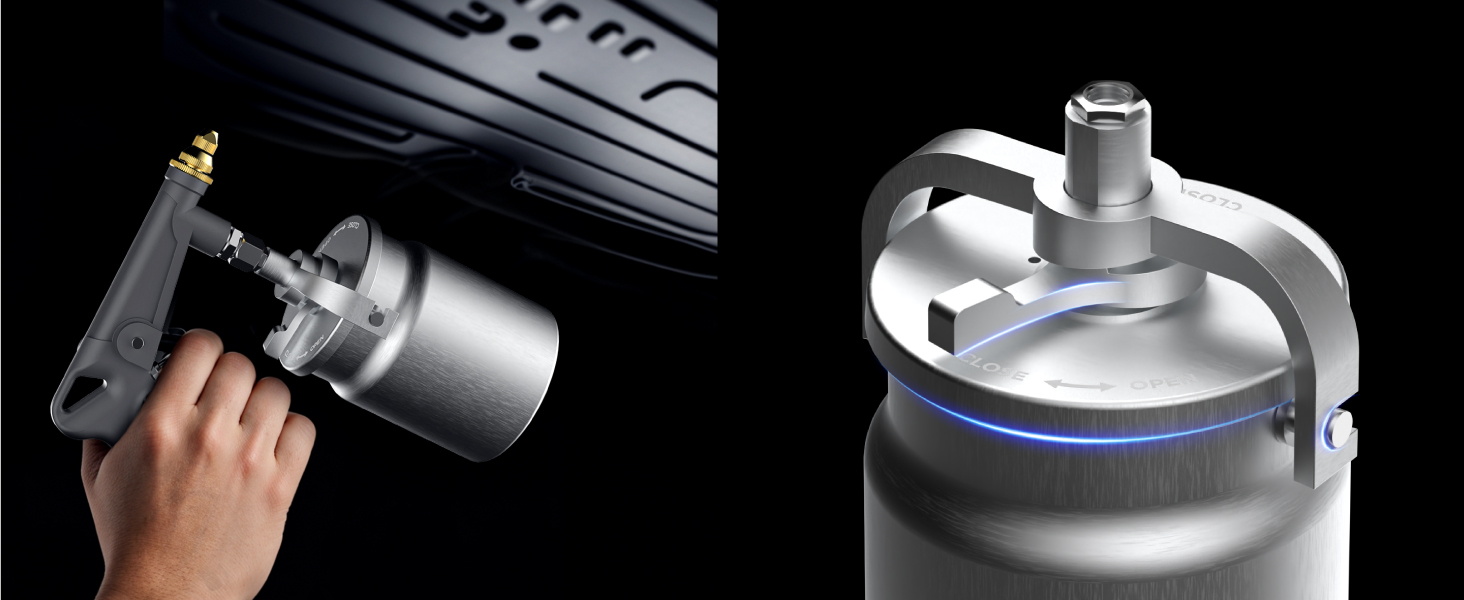

• Comfortable & Clean Experience: The undercoating spray gun features a snap-lock pot that ensures air tightness, making assembly and disassembly a breeze. No worry about paint leakage when the spray gun is tilted. Additionally, the large opening of the pot makes it easy to pour in paint, enhancing convenience during the refilling process.

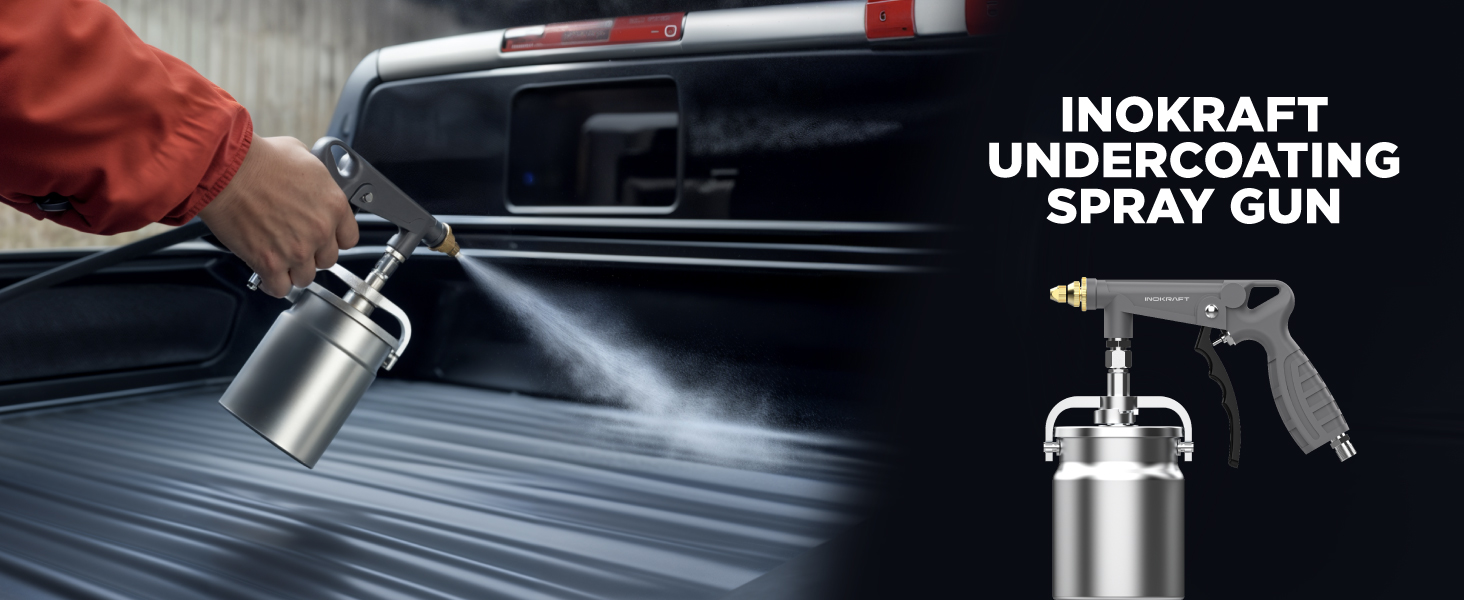

• Ease to Use: Ideal for undercoating spray and truck bed liner spray. Complete kit with Pressure Regulator, 360° Spray Extension Wand, Straight Spray Extension Wand, Cleaning Brush, Detailed Manual, and Instructional Videos for worry-free application.

›
