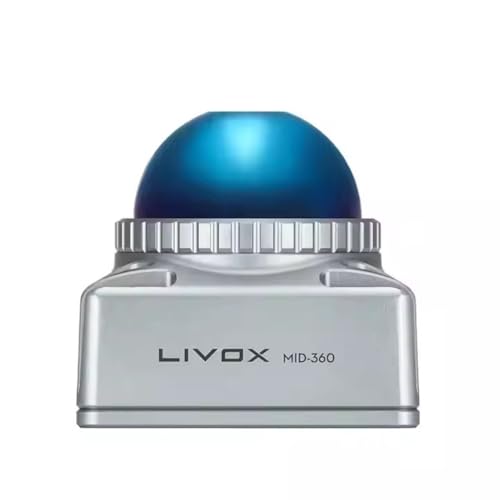

Livox Mid-360 3D LiDAR Laser Radar for Self-Driving Robots

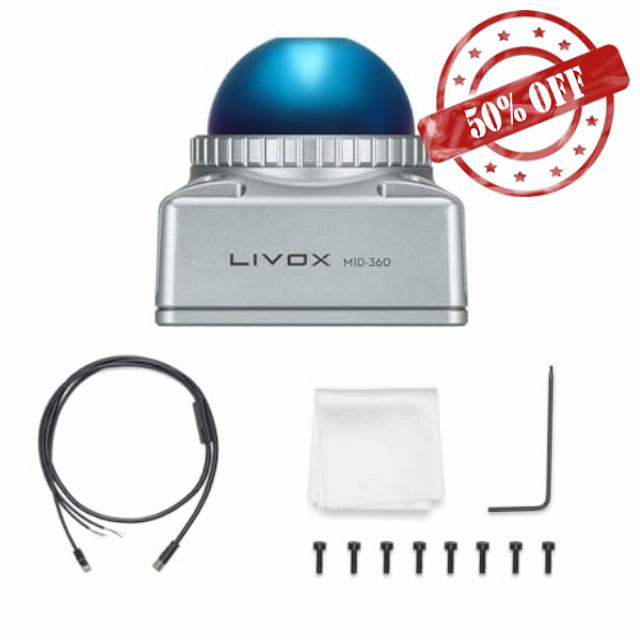

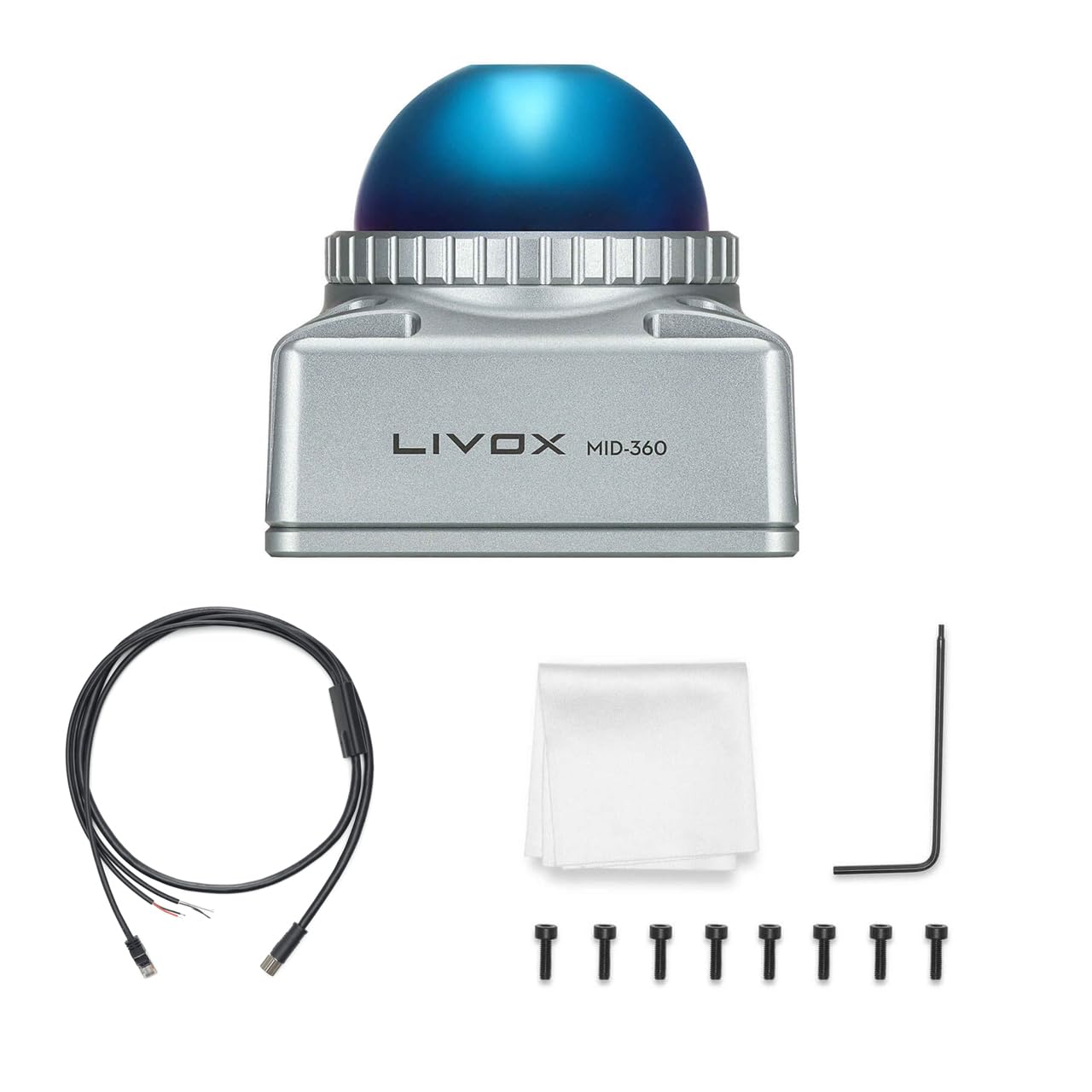

Livox Mid-360 3D LiDAR Laser Radar for Self-Driving Robots & UAV Navigation(with Connector)

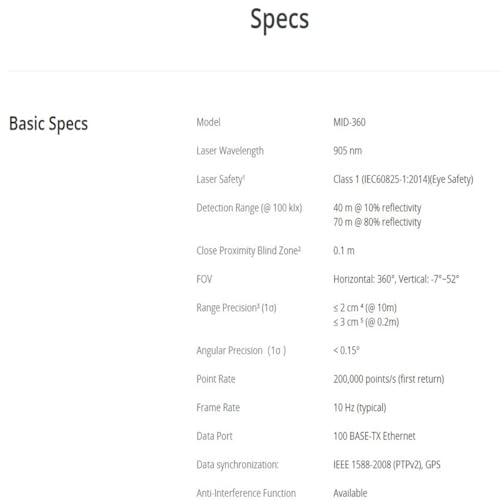

Product Specifications

MID-360 is the latest generation of Livox LiDAR for low speed robotics.

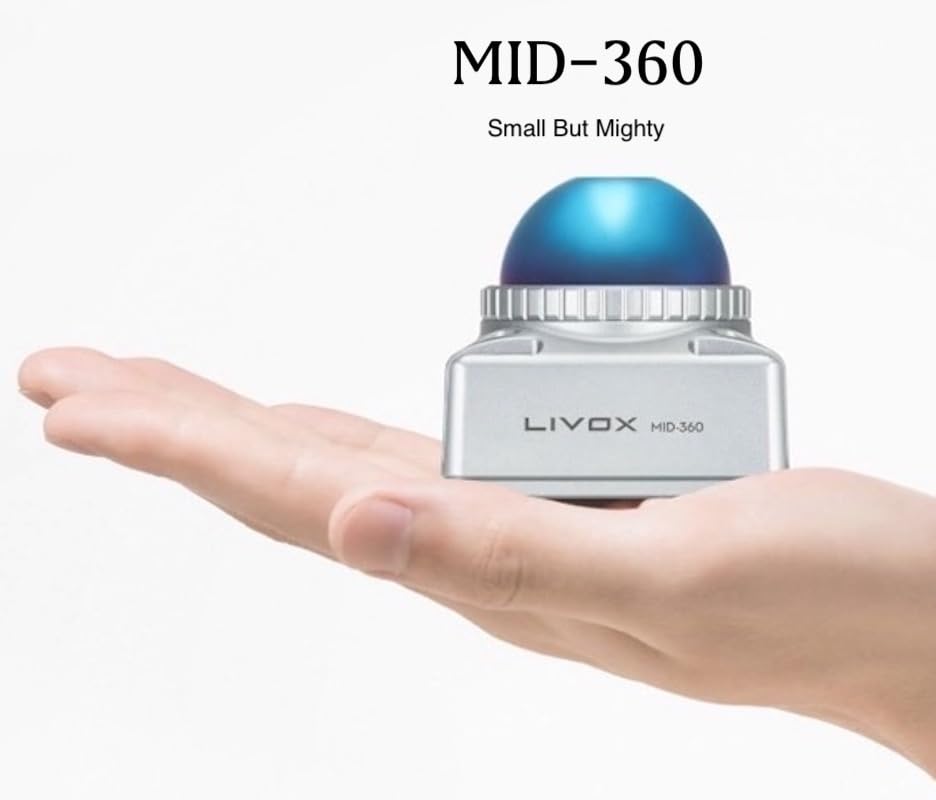

Size: 65mm L*65mm W *60mm H ; 265g Weight.

Laser Wavelength: 905 nm

Close Proximity Blind Zone2 is 0.1

Point Rate: 200,000 points/s (first return)； Frame Rate: 10 Hz (typical)

Data Port: 100 BASE-TX Ethernet；Data synchronization: IEEE 1588-2008 (PTPV2), GPS

Anti-Interference Function is Available

IMU: Built-in IMU Model: ICM40609

IP Rating: IP67

Power Supply Voltage Range: 9 ~ 27 V DC

Target objects within 0.1 to 0.2 m from Mid-360 can be detected and point cloud data can be recorded.

The divergence of the embedded laser is 25.2° (horizontal) × 8° (vertical),

Tested in an environment at a temperature of 25° C (77° F) with a target object that has a reflectivity of 80% and is 10 meters away from Livox Mid-360.

Tested in an environment at a temperature of 25° C (77° F) with a target object that has a reflectivity of 80% and is 0.2 meters away from Livox Mid-360.

The false alarm ratio of the noise created by the stray light in a test environment of 100 klx at a temperature of 25° C (77° F).

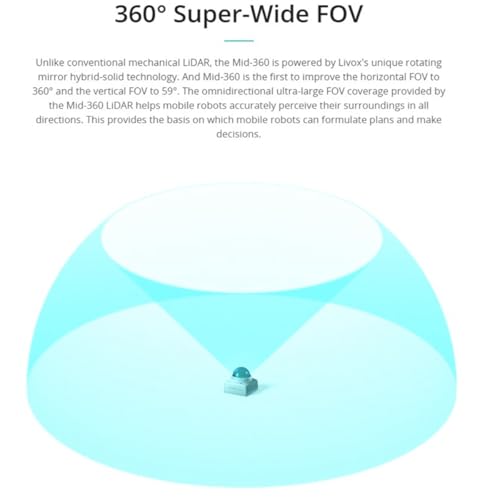

• 360° Full Surround Coverage: The Wide 38.4° Circular Fov And Non-Repetitive Scanning Technology Achieve Seamless 360° Point Cloud Data Collection, Eliminating Blind Spots For Robots And Uavs In Complex Environments.
• Enhanced Close-Range Detection: Features A Minimal Detection Range Of Just 0.1 Meters, Effectively Capturing Low-Speed Or Stationary Objects Near The Device—Critical For Collision Avoidance And Precise Localization. This Advanced Detection Capability Ensures Safety And Precision In Challenging Environments.
• Robust All-Weather Performance: Equipped With Ip54 Dust And Water Resistance, Operating Reliably In Challenging Conditions Including Rain, Fog, And Varying Light Intensities. The Device Is Designed To Function Seamlessly In Diverse Environments, Making It Ideal For Long-Endurance Uavs And Mobile Robots.
• Centimeter-Level High Precision Offers up to 2 cm ranging accuracy within 10 meters, ensuring reliable data for SLAM, 3D mapping, and autonomous navigation even in low-light conditions.
• Easy Integration & Low Power Consumption Supports standard communication protocols (Ethernet, CAN) and consumes only 11W, making it ideal for long-endurance UAVs and mobile robots without requiring heavy power systems.
