sourcing map DC12V Worm Gear Motor, 5RPM 15mm D Shaft

sourcing map DC12V Worm Gear Motor

sourcing map DC12V Worm Gear Motor, 5RPM 15mm D Shaft Self-Locking High Torque Speed Reduction Gear Motor for Automotive, Home Appliances, Robotics

DC12V Worm Gear Motor, 5RPM 15mm D Shaft Self-Locking High Torque Speed Reduction Gear Motor for Automotive, Home Appliances, Robotics

What is it?

A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.

What will I get?

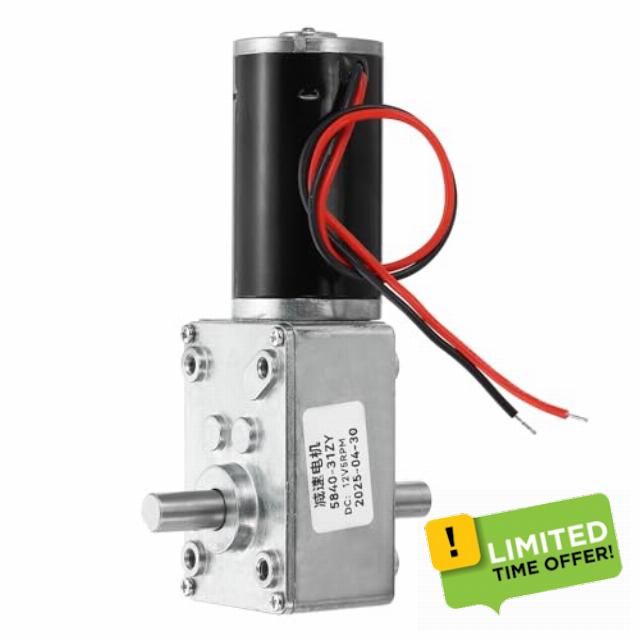

DC Worm Gear Motor

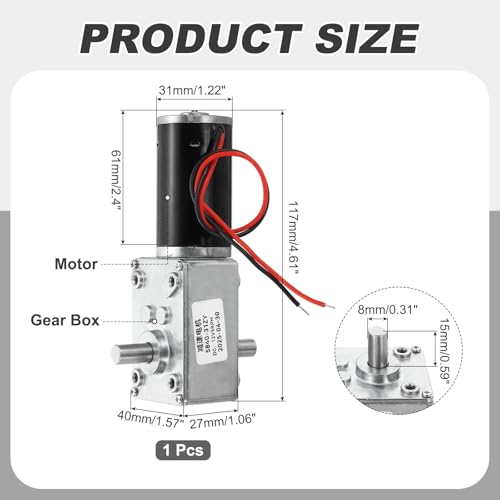

Total Size: 117 x 40 x 66.5 mm / 4.61 x 1.57 x 2.62 inch (L x W x H);

Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H);

Motor Size: 61 x 31 x 61 mm / 2.4 x 1.22 x 2.4 inch (L x W x H);

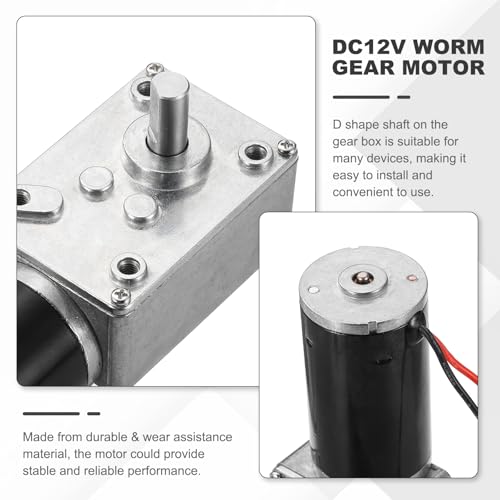

Shaft Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L);

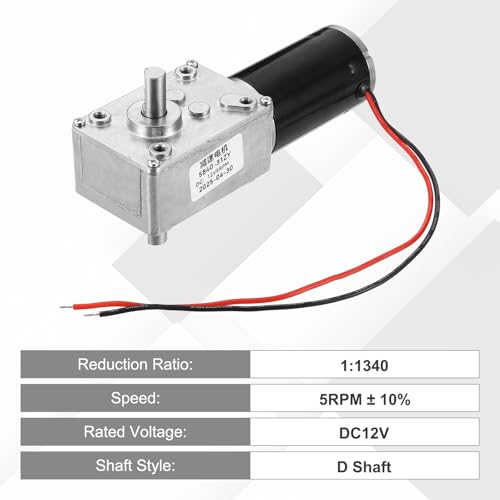

Reduction Ratio: 1:1340;

Speed: 5RPM ± 10%;

Rated Voltage: DC12V;

In the package of: 1 Pcs x Worm Gear Motor

Are there any advantages of this product?

This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.

How to use it?

This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.

What should I notice?

Please check the product specification information in advance and operate within voltage limits.

  • A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.
  • DC Worm Gear Motor: Total Size: 117 x 40 x 66.5 mm / 4.61 x 1.57 x 2.62 inch (L x W x H); Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H); Motor Size: 61 x 31 x 61 mm / 2.4 x 1.22 x 2.4 inch (L x W x H); Shaft Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L); Reduction Ratio: 1:1340; Speed: 5RPM ± 10%; Rated Voltage: DC12V;
  • This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.
  • This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.
  • Please check the product specification information in advance and operate within voltage limits.
›
SKU: B0FL26KM7P
Weight: 395 g
Size: 5RPM
Dimensions: 13 x 8 x 5 cm; 394.63 g
Part: a25050500ux0850
Pack Quantity: 1
Batteries Required: No
Manufacture: sourcing map
Quantity: 1
Reference: a25050500ux0850
Size: 5RPM

Product Description

Orange and white logo design featuring a square shape with curved spiral elements and text reading 'Sourcing Map'Standard Image Header With Text

DC12V Worm Gear Motor, 5RPM 15mm D Shaft Self-Locking High Torque Speed Reduction Gear Motor for Automotive, Home Appliances, Robotics

What is it?

A DC gear motor is a combination of a standard DC motor and a gearbox designed to reduce the motor's high-speed, low-torque output to a slower speed with higher torque. This makes it great for applications requiring controlled movement, power, and precision at lower speeds.

What will I get?

DC Worm Gear Motor

Total Size: 117 x 40 x 66.5 mm / 4.61 x 1.57 x 2.62 inch (L x W x H);

Gear Box Size: 58 x 40 x 27 mm / 2.28 x 1.57 x 1.06 inch (L x W x H);

Motor Size: 61 x 31 x 61 mm / 2.4 x 1.22 x 2.4 inch (L x W x H);

Shaft Size: 8 x 15 mm / 0.31 x 0.59 inch (D x L);

Reduction Ratio: 1:1340;

Speed: 5RPM ± 10%;

Rated Voltage: DC12V;

In the package of: 1 Pcs x Worm Gear Motor

Are there any advantages of this product?

This D shaft self-locking worm gear motor supports bidirectional rotation and auto self locking when powered off, ensuring load stability. It delivers high torque at low speeds, eliminating external brakes while enabling safe, synchronized motion, very suitable for barbecue grill, range hood, remote controlled curtain, electronic motor, etc.

How to use it?

This gear motor supports reversible rotation, and changes the direction of rotation according to the positive and negative poles of the connection terminals. Fix the motor to the device, connect the power supply, and connect the load to the shaft to complete the installation.

What should I notice?

Please check the product specification information in advance and operate within voltage limits.
