VFD Display Music Spectrum Analyzer with Adjustable Settings

VFD Display Music Spectrum Analyzer with Adjustable Settings and Accurate Frequency Response (JVFD2515 (JVFD2517 (narrow))

Features:

*VFD Music Spectrum Screen:This product features a classical vacuum fluorescent display(VFD) screen with a unique music spectrum. It utilizes a and STM32F103 processor, offering 10 display modes.

*Environmental Noise Learning:With a key, the device can learn the environmental noise and calculate the display threshold accordingly.

*Dual-Mode Input and Analysis:The product supports both silicon microphone(MEMS) and audio input, allowing for the analysis and display of sound spectrum. It utilizes an STM32F103 processor to for ensure accurate results.

*Configurable Functions:Users can easily configure settings such as MEMS gain, noise learning, display speed, sleep pattern, and clock.

*Compact and Versatile Design:Measuring at 176x50x28mm, this product is compact and easy to use. It can serve as a clock or an audio spectrum analyzer depending on the situation.

Specifications:

*Part Name:Music Spectrum Leveler

*Material:Glass+Acrylic

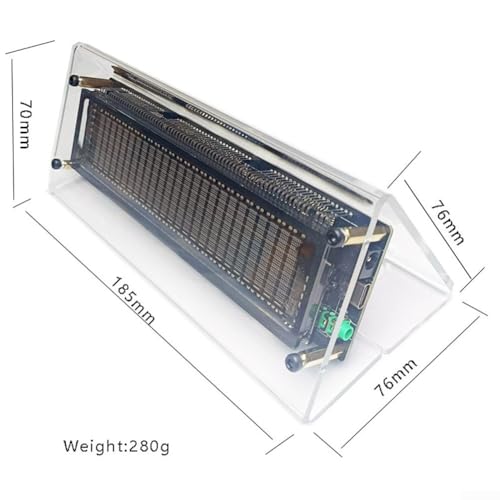

*Size:About 176x50x28mm

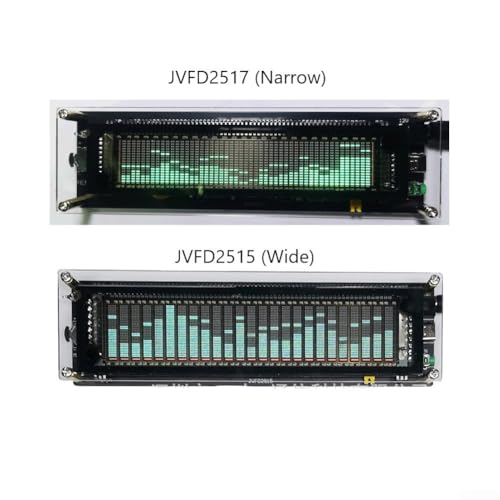

*Styles:JVFD2517(narrow), JVFD2515(wide)

*Color:Black

*Input voltage:5V Type-C/ 12VDC

*Sleep current:0.03A(5V)

*Working current:0.3-0.8A(5V)

*Input channel:Audio input x1

*:Silicon label EMS( for jumper selection)

*Frequency response:300Hz-20KHz

*Input impedance:50kOhm

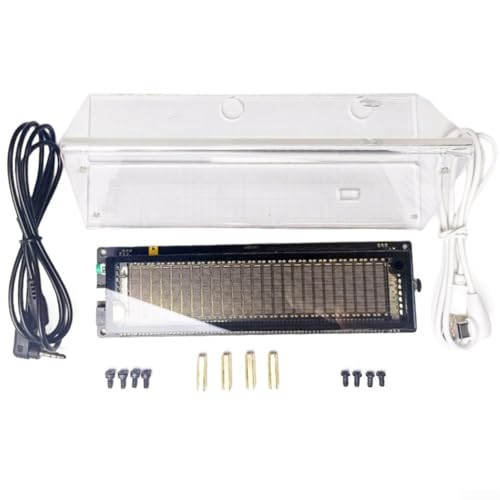

Package Content:

1*Music Spectrum Leveler

• [CLASSIC VFD DISPLAY] Elevate your audio setup with a sophisticated vacuum fluorescent display that features a mesmerizing music spectrum. Choose from 10 different display modes to match your mood or style.
• [INTELLIGENT NOISE LEARNING] The built-in environmental noise learning capability ensures that the display adapts to ambient sounds, providing a seamless viewing experience tailored to your surroundings.
• [DIVERSIFIED INPUT OPTIONS] Analyze sound effortlessly with dual input options MEMS silicon microphone and direct audio input, all backed by the advanced STM32F103 processor for precision analysis.
• [EASY CONFIGURATION OPTIONS] Personalize your device settings easily with configurable functions such as MEMS gain adjustment and customizable sleep patterns for enhanced usability.
• [COMPACT AND STYLISH] Measuring just 176x50x28mm, this multifunctional device fits perfectly in any setting as both a clock and an audio spectrum analyzer, offering versatility without sacrificing style.
