YWBL-WH 100W Electronic Load, Digital Battery Capacity

YWBL-WH 100W Electronic Load, Digital Battery Capacity Tester, Constant Current Discharge Module for Battery Testing

[Battery Performance Testing] Detects battery capacity with for reliable performance.
[Advanced Cooling System] Features adjustable fan speed for optimal heat management during discharge.
[Versatile Applications] Ideal for various battery types and scenarios including home use and laboratory testing.
[Multiple Protections] Comprehensive safety measures against overheat, overpower, and voltage abnormalities.
[Compact and Durable] Built with materials and a dust-resistant design for long-term usability.

This electronic load can automatically change the speed with the high speed fan. Fine quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity and power supply voltage abnormity.
Features:
A professional test module for detecting discharge battery capacity.
High speed of the fan can change according to the heat sink temperature.
conservation of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.
Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.
Long-lasting construction for a long time performance.
Specifications:
Item type: Electronic Load
Power Supply: DC12V±5%
Fan Current: 0.72A
Constant Discharge Current Range: 0-10A(whole machine)
Working Mode: Single Mode Constant Current(CC)
Discharge Current Max Error: 0.7%-0.01A
Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%
Max. Power: 100W

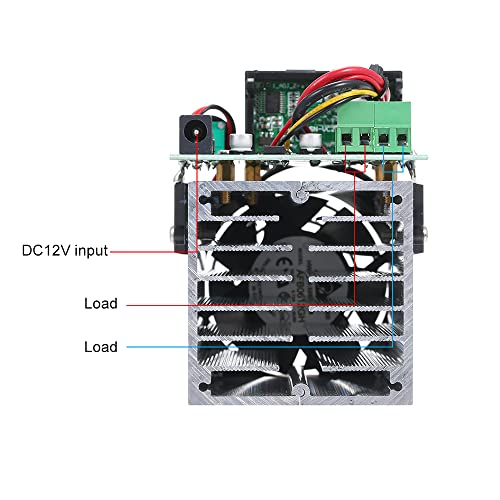

Input Interface: 5.5 * 2.5mm
Package weight: 458g / 1pounds
Package size: 140 * 130 * 120mm / 5.51 * 5.11 * 4.72inches
Operation Instructions:
Connect with DC12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!
Set constant current through
