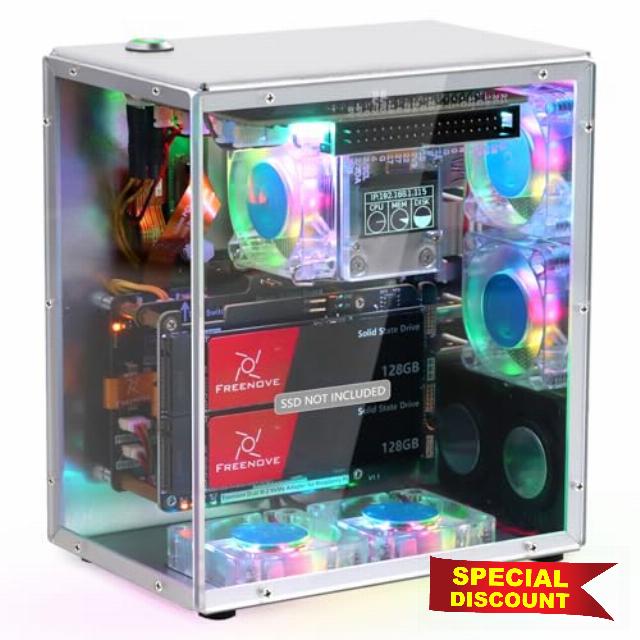

FREENOVE Raspberry Pi 5 Case Kit Pro, Dual M.2 NVMe SSD
FREENOVE Raspberry Pi 5 Case Kit Pro, Dual M.2 NVMe SSD Slots, 5 PWM ARGB Fans Light Sync, CPU Tower Cooler, 0.96″ OLED Screen, Stereo Speakers, 3.5 mm Audio (SSD NOT Included)
Important Notes:
Compatible with Raspberry Pi 5 only, NOT included in this kit.
Needs a 5V/5.1V 5A power supply and a memory card or SSD for the system.
Purchase Options:
This kit has several purchasing options.
Each option has a different number of M.2 slots.
Overview:
This computer case kit provides multiple practical upgrades for your Raspberry Pi.
It integrates M.2 SSD slots, lighting system, cooling system, media system, exposed card slot and ports.
We provide free technical support to help you with any questions and problems.
Compatible Systems:
We provide a software that can adjust lights and fans. Compatible with the following systems:
* Raspberry Pi OS
(Note: Other systems have not been tested and may not be able to run the software.)
(Without running the software, the lights and fans will run preset, but the OLED screen will not display.)
Compatible SSDs:
Used as system disk, regular hard drive or bulid a NAS / RAID. Compatible with the following SSDs:
* M.2 NVMe SSDs, PCIe 2.0 compatible, size 2230 / 2242 / 2260 / 2280
(Note: NOT compatible with M.2 SATA SSDs.)
Tutorial:
Comes with detailed tutorial to show how to use, including case assembly, system flashing and SSD use.
(Download or view online, no paper tutorial.)
The tutorial link can be found on the product box.
- Case Kit Pro: Integrated with dual M.2 NVMe SSD slots, controllable ARGB lighting system, 5 fans cooling system, media system, exposed card slot and GPIO header (Note: Compatible with Raspberry Pi 5 running Raspberry Pi OS, NOT included in this kit. Needs a 5V/5.1V 5A power supply and a memory card or SSD for the system)
- Dual M.2 SSD Slots (SSD NOT Included): Boost your system to an amazing speed by upgrading memory card (SDR104: 104 MB/s max) to SSD (PCIe 2.0: 500 MB/s max). Used as system disk, regular hard drive or bulid a NAS / RAID. Provide detailed tutorial (The tutorial link can be found on the product box, no paper tutorial)
- Lighting System: The color and brightness of all the 5 ARGB fans and 12 case ARGB LEDs are controllable. Provide multiple dynamic (rainbow, breathing, flowing) and static (fixed color) lighting effects, supports custom programming (Python)
- Cooling System: The speed of all the 4 case fans and 1 CPU fan with tower cooler is controllable. Provide multiple dynamic (CPU temperature control, case temperature control) and static (fixed speed) cooling modes, supports custom programming (Python)

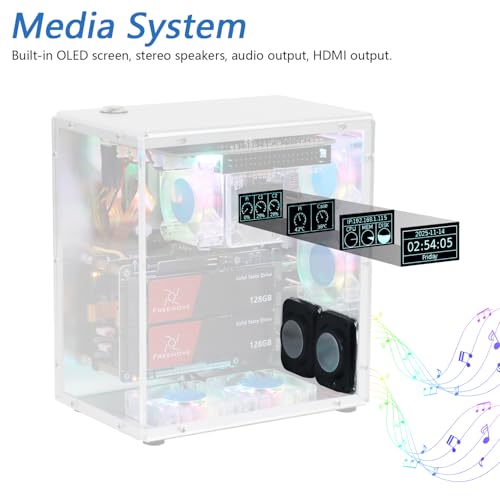

- Media System: Built-in 0.96 inch OLED screen (128 x 64 pixel, single-color) displaying various system status information, stereo speakers, 3.5 mm audio output, dual standard HDMI outputs
| SKU: | B0G38WH2Y2 |
| Weight: | 943 g |
| Dimensions: | 17.5 x 14.8 x 11 cm; 943 g |
| Brand: | FREENOVE |
| Model: | FNK0107B |
| Colour: | 2x Slot no SSD |
| Batteries Included: | No |
| Manufacture: | Freenove |
| Colour: | 2x Slot no SSD |
