GLOTRENDS SF02 2-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X8

GLOTRENDS SF02 2-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X8 Adapter Card without PCIe Bifurcation Function

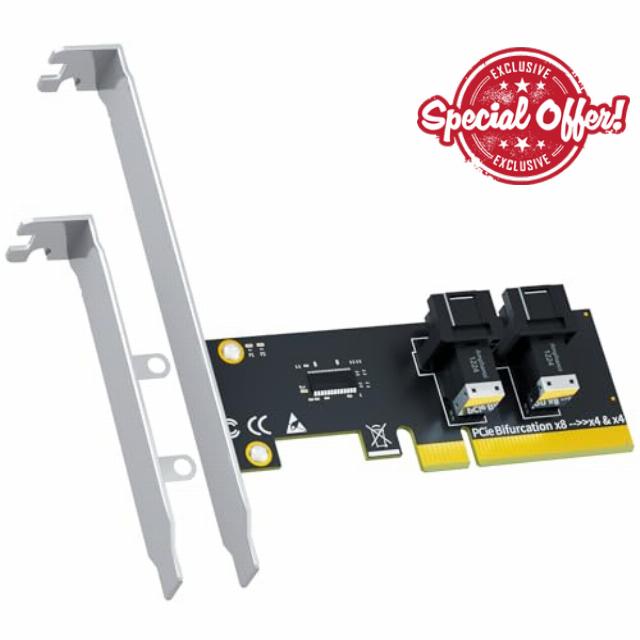

GLOTRENDS SF02 2-Port SFF-8643(Mini-SAS HD) to PCIE 4.0 X8 Adapter Card without PCIe Bifurcation Function, Regular and Low-profible Bracke

Model: SF02

Internal PortPCI-Express 4.0 X8 (128GBbps at max)
External Port2 x SFF-8643
OS CompatibilityWindows and Linux (Note: not support windows 7)
PCIe BifurcationNot support, so it requires a motherboard that supports PCIe Bifurcation
Hardware PlatformIntel and AMD motherboard with PCIe Bifurcation (Note: not support Mac Pro)
CPU RequirementsIntel 11th Gen or Ryzen 5000 Series and above
RAID SetupSoftware RAID setup via Windows Disk Management or Linux mdadm Utility

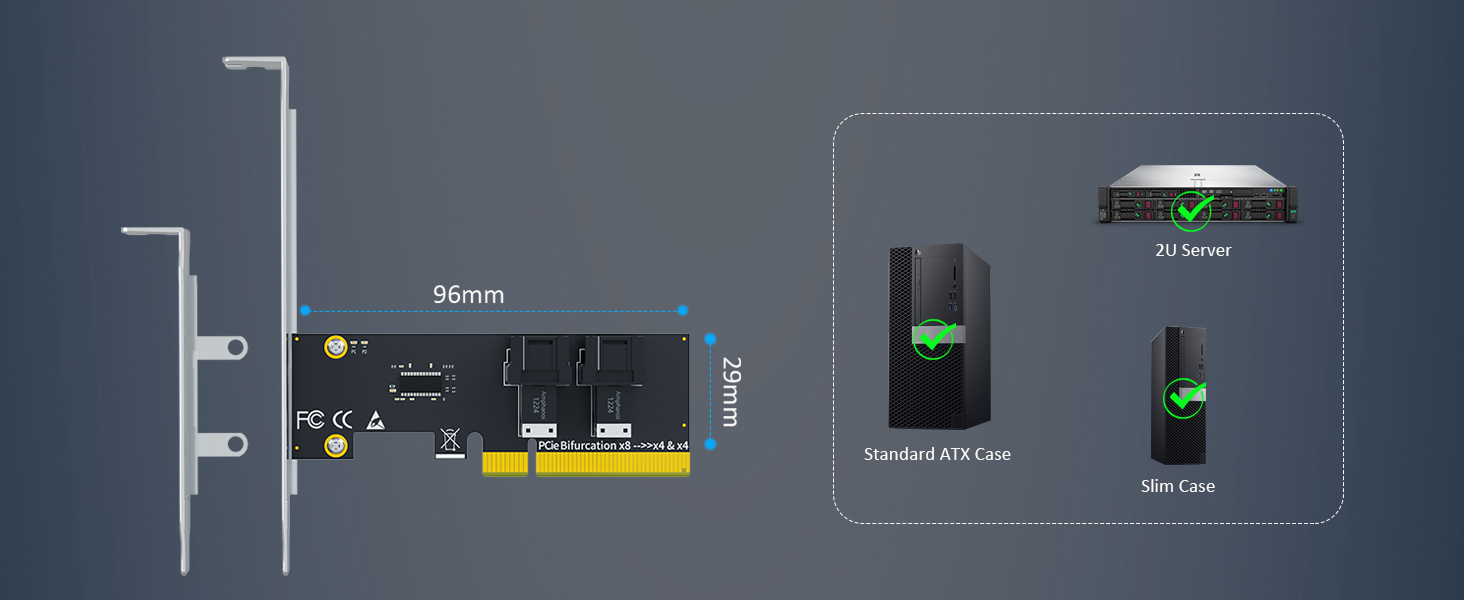

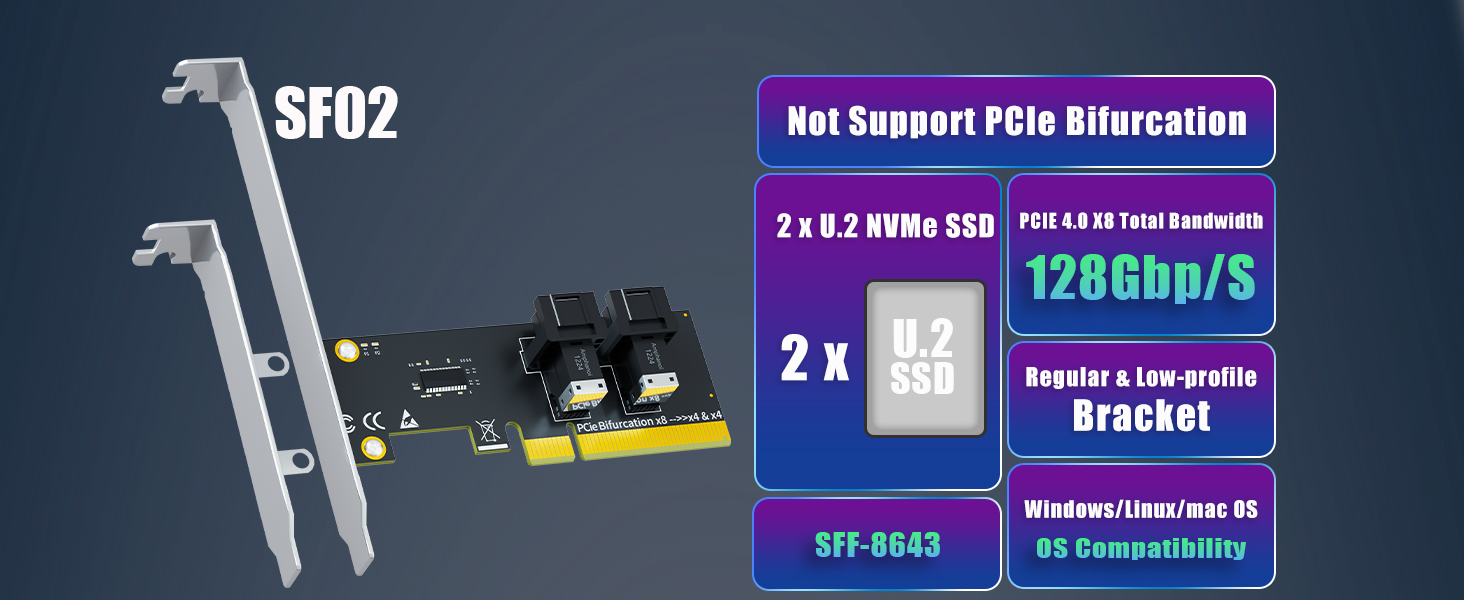

InstallationLow-profile and Regular-profile bracket
1 Features 2 PCIE 4.0 X8 Bus 3 No PCIe Bifurcation

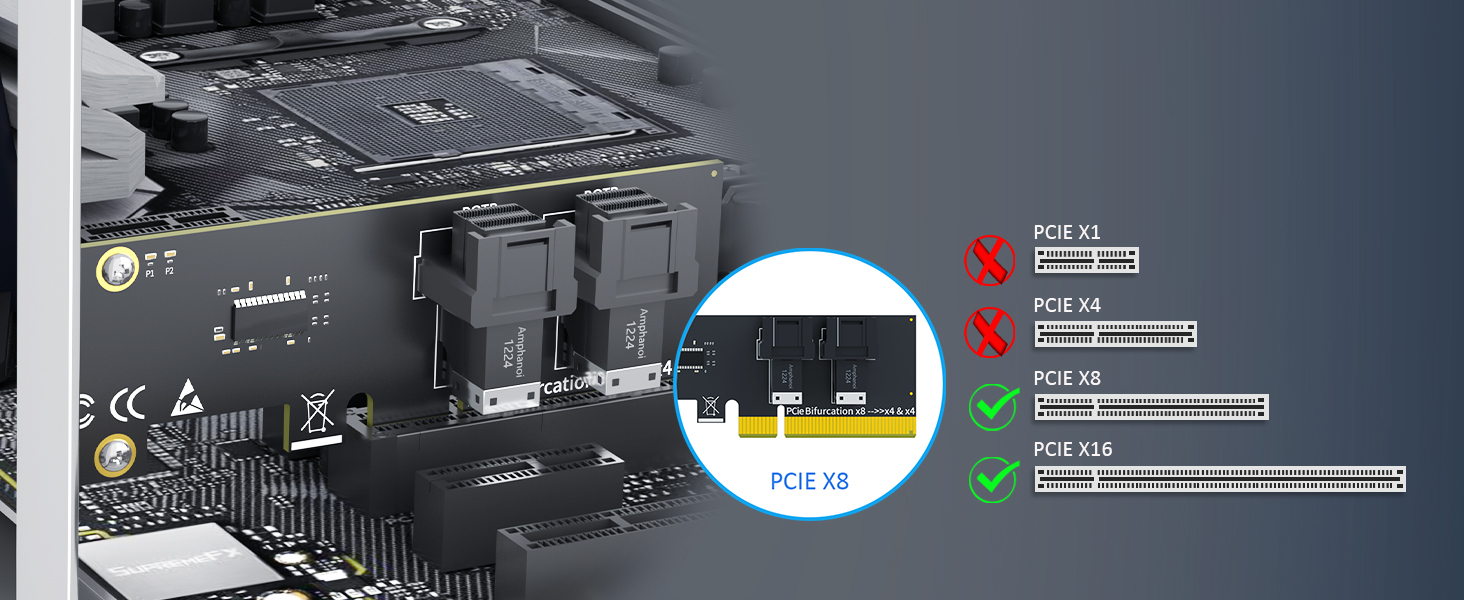

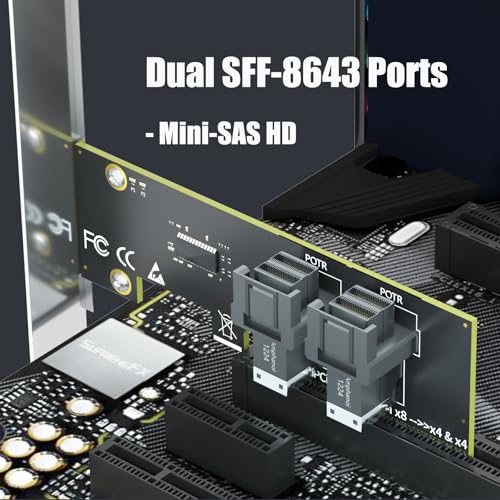

1 2 x SFF-8643 Port 2 PCIE X8 Interface 3 Installation

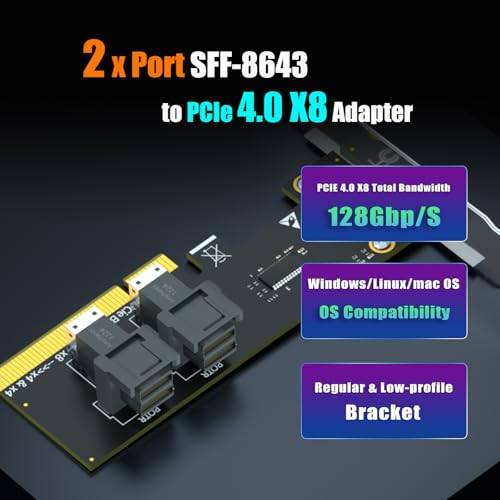

  • 2-port SFF-8643 to PCIe 4.0 x8 Adapter Card: Convert a single PCIe 4.0 X8 interface into 2 x SFF-8643 port, back compatible with PCIe 3.0/2.0/1.0.
  • With this PCIe Adapter, you can add 2 x U.2 SSD to PC/Server that doesn’t natively support U.2 SSD (Note: you need to purchase SFF-8643 to SFF-8639 cable separately)

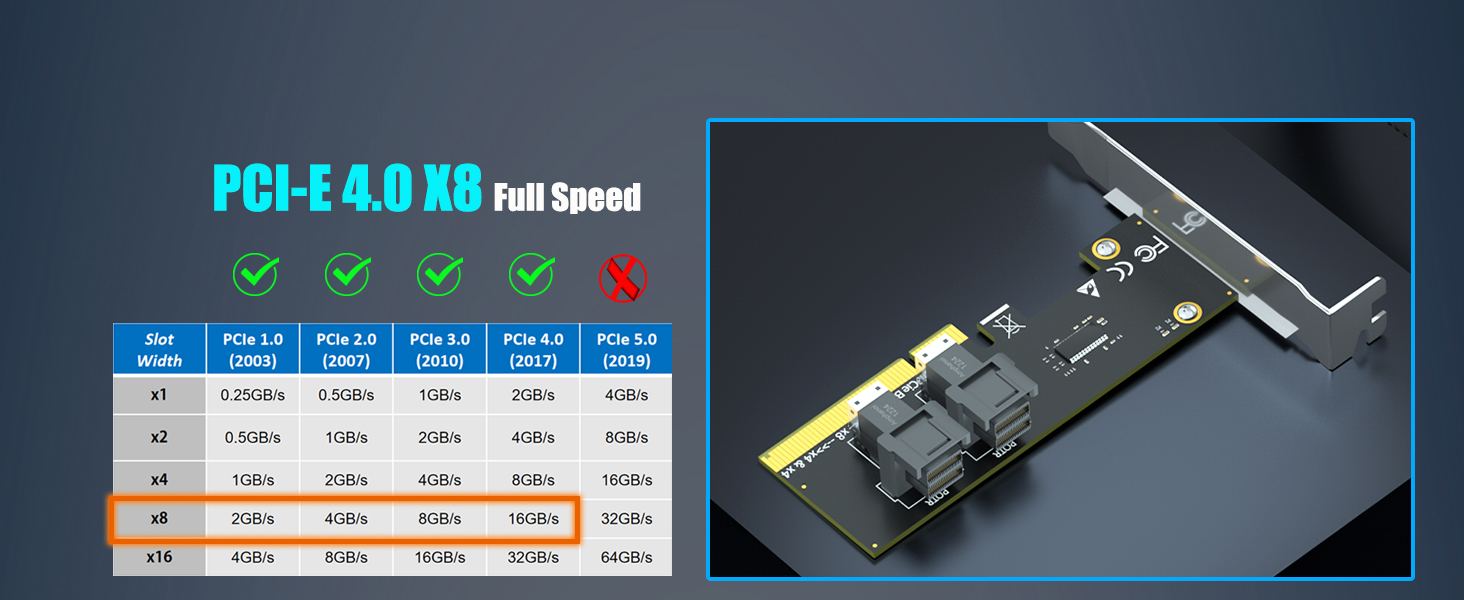

  • Bandwidth allocation: PCIe 4.0 x8 at max upstream bandwidth, and PCIe 4.0 X4 for each SFF-8643 port.

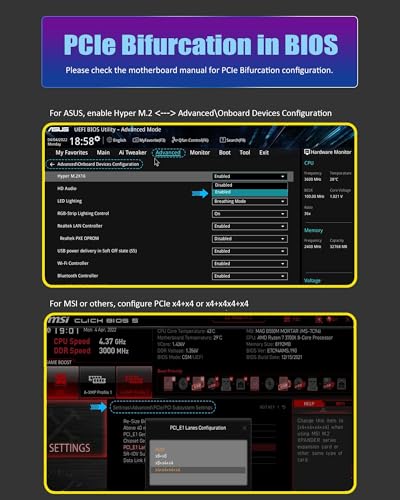

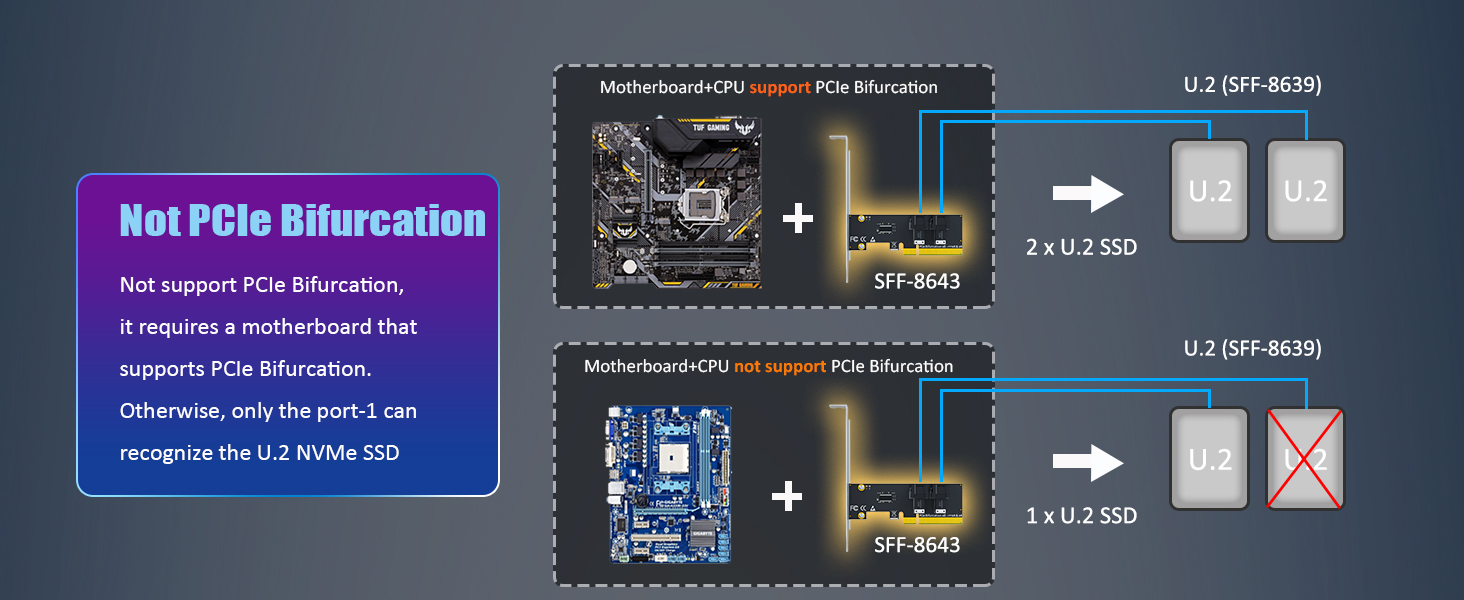

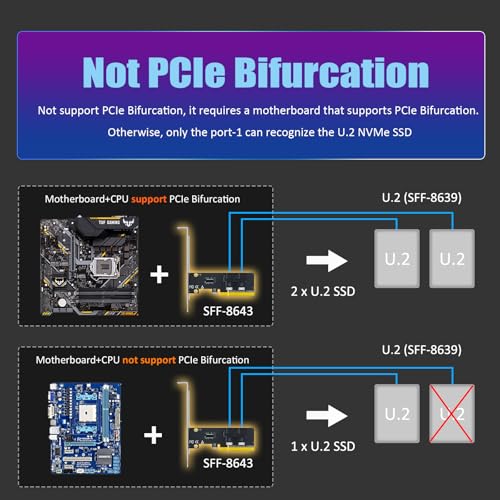

  • Not support PCIe Bifurcation, so it requires a motherboard that supports PCIe Bifurcation, otherwise only the port-1 can be recognized.
  • Cross-Platform Plug-and-Play & RAID Support: Works seamlessly with Windows 11/10/8, Linux, and macOS (no driver installation required). Configure SSD RAID setups via native OS disk management tools.
SKU: B0FXF1DLZJ
Dimensions: 14.5 x 12 x 2.5 cm; 80 g
Model: B0FXF1DLZJ
Manufacture: glotrends

Product Description

Model: SF02

Internal Port PCI-Express 4.0 X8 (128GBbps at max)
External Port 2 x SFF-8643
OS Compatibility Windows and Linux (Note: not support windows 7)
PCIe Bifurcation Not support, so it requires a motherboard that supports PCIe Bifurcation
Hardware Platform Intel and AMD motherboard with PCIe Bifurcation (Note: not support Mac Pro)
CPU Requirements Intel 11th Gen or Ryzen 5000 Series and above
RAID Setup Software RAID setup via Windows Disk Management or Linux mdadm Utility
Installation Low-profile and Regular-profile bracket

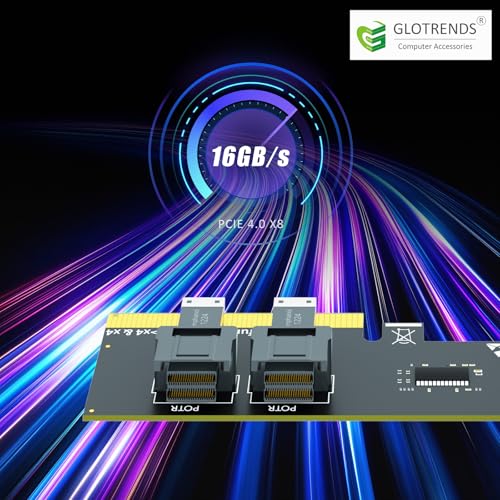

  1. Text reads 'SF02' and '1760mbps'. Technical interface or specifications display with purple and blue lighting effects.
  2. Text reads 'PCI-E 4.0 M2'. Technical interface or connection diagram showing multiple pins and connection points on dark background.
  3. aplus content image
  1. aplus content image
  2. aplus content image
  3. Technical diagram showing dimensions and placement specifications for mobile device installation, with measurement indicators and mounting positions illustrated on dark background.
