SAS HBA Card Compatible with LSI 9207-8i IT Mode PCIe SATA

SAS HBA Card Compatible with LSI 9207-8i IT Mode PCIe SATA Expansion Card

SAS HBA Card Compatible with LSI 9207-8i IT Mode PCIe SATA Expansion Card, 8-Port 6Gbps PCIe 3.0, SAS Expander Support, HBA Controller with 2x SFF-8087 to 4x SATA Cables for ZFS TrueNAS unRAID NAS

Compatible with: LSI 9207-8i; Controller: LSI SAS2308 (6Gb/s SAS).

  • Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: up to 6Gbps SAS and SATA 6Gbps per lane.

.

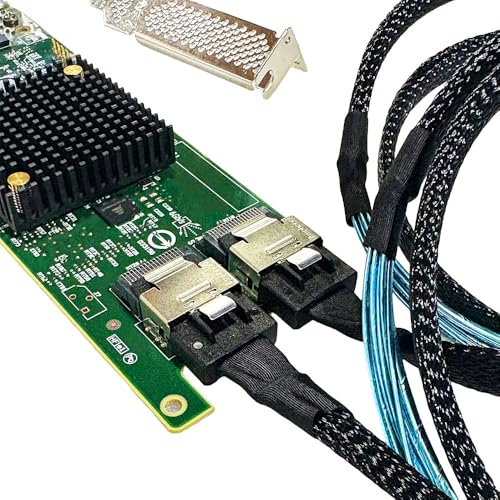

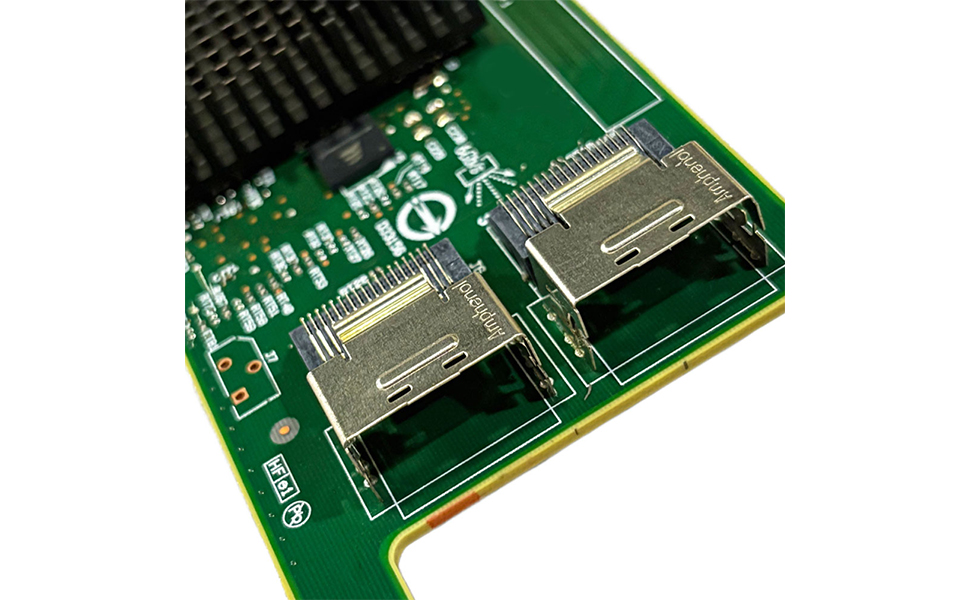

  • Host Interface: PCIe 3.0 x8; Internal Connectors: 2× Mini-SAS SFF-8087. –Direct attach up to 8 drives, and expand via external SAS Expander for large arrays.

.

  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi home-lab & NAS storage (JBOD/passthrough).

.

2x SFF-8087 to 4x SATA Cables, 8-Port 6Gbps PCIe 3.0

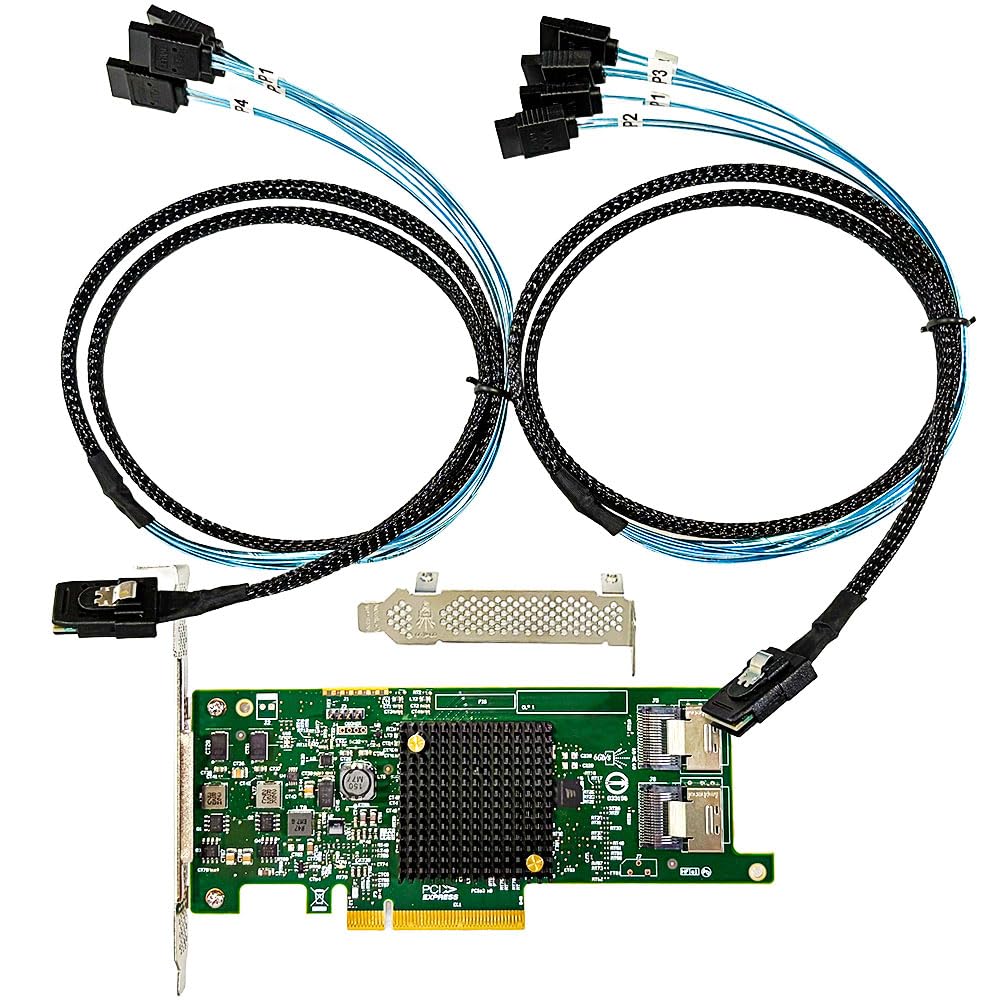

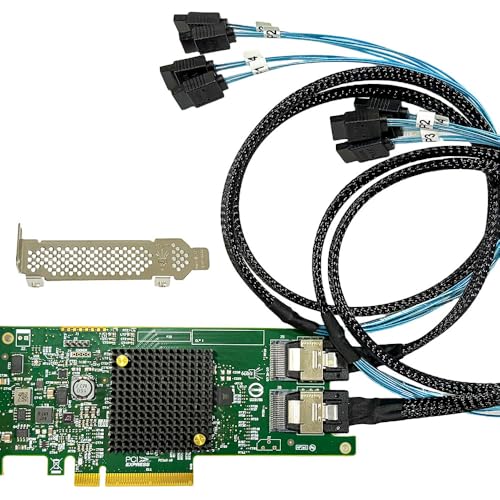

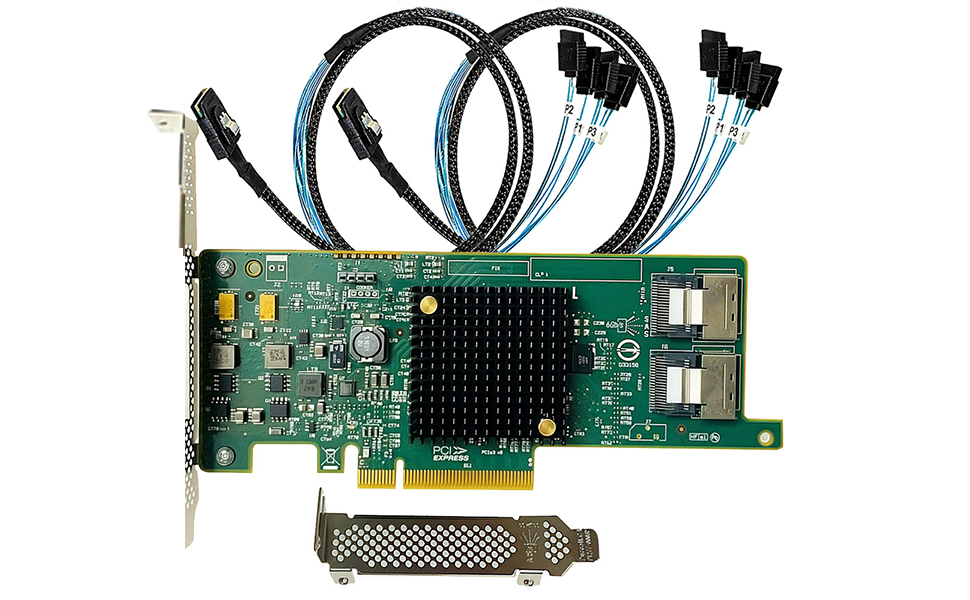

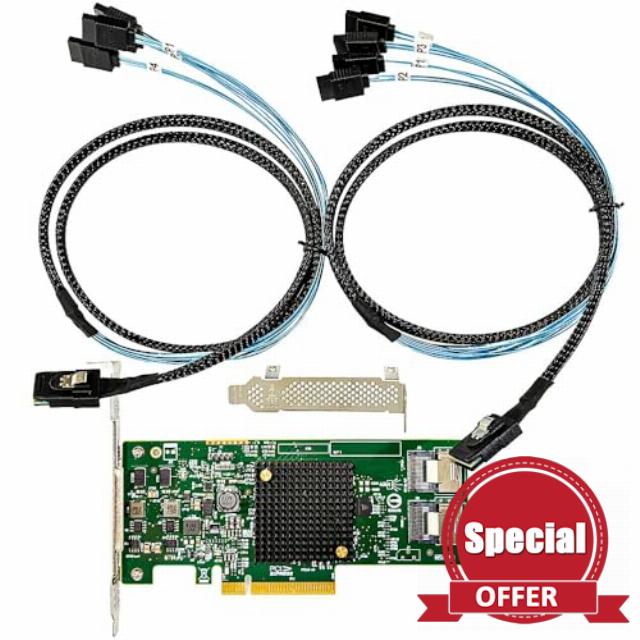

Packing List: HBA Card ×1; SFF-8087 to 4× SATA Cables ×2 (for 8 ports).

–Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8087 to 4× 8482 SAS cables (sold separately) or our matched HBA + cable kit.

Built around the LSI/Broadcom SAS2308 controller, this 8-port 6Gb/s SAS HBA delivers PCIe 3.0 x8 bandwidth and dual internal Mini-SAS SFF-8087 connectors for clean, reliable cabling. In IT Mode (Non-RAID), it presents each drive directly to the OS—ideal for ZFS, TrueNAS/FreeNAS, unRAID, Proxmox, and ESXi home-lab or NAS builds. Out of the box, we include two SFF-8087 to 4× SATA breakout cables so you can directly attach up to 8 SATA HDD/SSD. Need more capacity? Attach an external SAS Expander to scale to large arrays while keeping management simple (JBOD/passthrough). Note: the included cables are for SATA drives; for SAS drives, use SFF-8087 to 4× 8482 SAS cables (sold separately) or our matched kit.

PriceFeature
Add To BasketAdd To BasketAdd To Basket Add To Basket
— no data£98.00£98.00£63.00£63.00£190.00£190.00— no data£199.00£199.00
8-Port 12Gbps PCIe 3.08-Port 12Gbps8-Port 12Gbps PCIe 3.016-Port 12Gbps PCIe 3.116-Port 12Gbps PCIe 3.016-Port 12Gbps PCIe 3.0

  • Compatible with: LSI 9207-8i; Controller: LSI SAS2308 (6Gb/s SAS).
  • Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: up to 6Gbps SAS and SATA 6Gbps per lane.
  • Host Interface: PCIe 3.0 x8; Internal Connectors: 2× Mini-SAS SFF-8087. –Direct attach up to 8 drives, and expand via external SAS Expander for large arrays.
  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi home-lab & NAS storage (JBOD/passthrough).
  • Packing List: HBA Card ×1; SFF-8087 to 4× SATA Cables ×2 (for 8 ports). –Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8087 to 4× 8482 SAS cables (sold separately) or our matched HBA + cable kit.
›
SKU: B0FXMRYR3D
Dimensions: 22 x 14.5 x 3 cm; 300 g
Model: B0FXMRYR3D
Manufacture: ROSE RAIN

Product Description

aplus content imageaplus content image

Packing List: HBA Card ×1; SFF-8087 to 4× SATA Cables ×2 (for 8 ports).

–Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8087 to 4× 8482 SAS cables (sold separately) or our matched HBA + cable kit.

Built around the LSI/Broadcom SAS2308 controller, this 8-port 6Gb/s SAS HBA delivers PCIe 3.0 x8 bandwidth and dual internal Mini-SAS SFF-8087 connectors for clean, reliable cabling. In IT Mode (Non-RAID), it presents each drive directly to the OS—ideal for ZFS, TrueNAS/FreeNAS, unRAID, Proxmox, and ESXi home-lab or NAS builds. Out of the box, we include two SFF-8087 to 4× SATA breakout cables so you can directly attach up to 8 SATA HDD/SSD. Need more capacity? Attach an external SAS Expander to scale to large arrays while keeping management simple (JBOD/passthrough). Note: the included cables are for SATA drives; for SAS drives, use SFF-8087 to 4× 8482 SAS cables (sold separately) or our matched kit.

SAS HBA Card Compatible with D3307 & LSI 9300-8i IT Mode PCIe SATA Expansion … SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-… SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-… SAS HBA Card Compatible with 430-16i & LSI 9400-16i IT Mode PCIe SATA Expansi… SAS HBA Card Compatible with LSI 9305-16i IT Mode PCIe SATA Expansion Card, 1… SAS HBA Card Compatible with LSI 9305-16i IT Mode PCIe SATA Expansion Card, 1…
Price — no data£98.00£63.00£190.00 — no data£199.00
Feature 8-Port 12Gbps PCIe 3.0 8-Port 12Gbps 8-Port 12Gbps PCIe 3.0 16-Port 12Gbps PCIe 3.1 16-Port 12Gbps PCIe 3.0 16-Port 12Gbps PCIe 3.0
