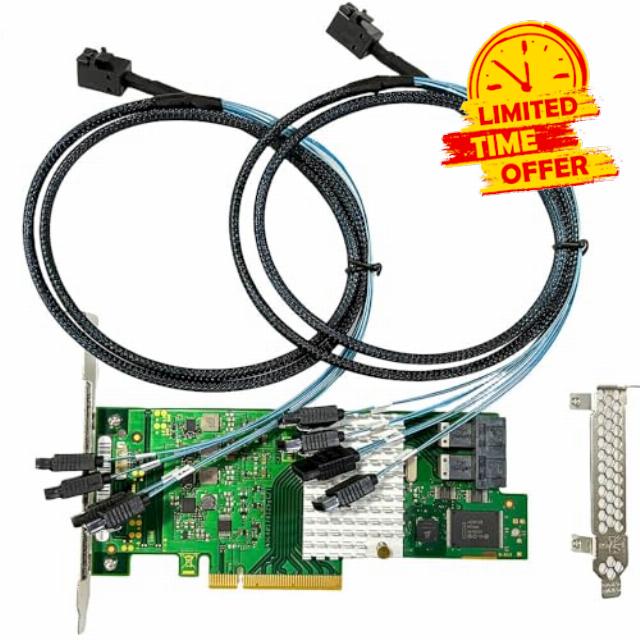

SAS HBA Card Compatible with LSI 9300-8i IT Mode & D3307

SAS HBA Card Compatible with LSI 9300-8i IT Mode & D3307 PCIe SATA Expansion Card

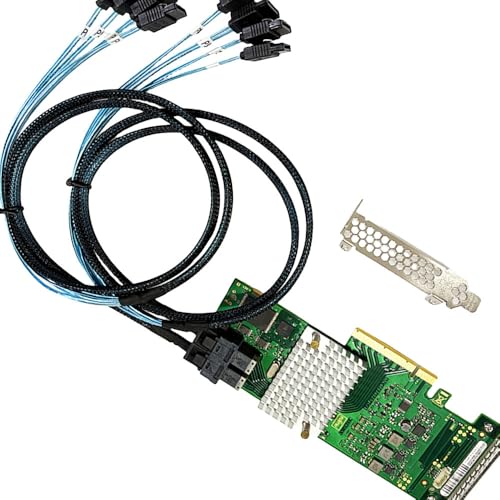

SAS HBA Card Compatible with LSI 9300-8i IT Mode & D3307 PCIe SATA Expansion Card, SAS Expander Support, 8-Port 12Gbs PCIe 3.0, with 2x SFF-8643 to 4x SATA Cables for NAS TrueNAS unRAID

Compatible with: D3307/LSI 9300-8i ; Controller: LSI/Broadcom SAS3008 (equivalent to LSI 9300-8i).

  • Firmware (FW): HBA IT Mode (Non-RAID) ; Data Transfer Rate: 12Gbps SAS; SATA devices supported via breakout cables.

.

  • Host Interface: PCIe 3.0 x8 ; Internal Connectors: TWO Mini SAS SFF-8643. Direct attach up to 8 drives, and expand via external SAS Expander for large arrays.

.

  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, JBOD, NAS home lab and server storage.

.

2x SFF-8643 to 4x SATA Cables, 8-Port 12Gbps PCIe 3.0

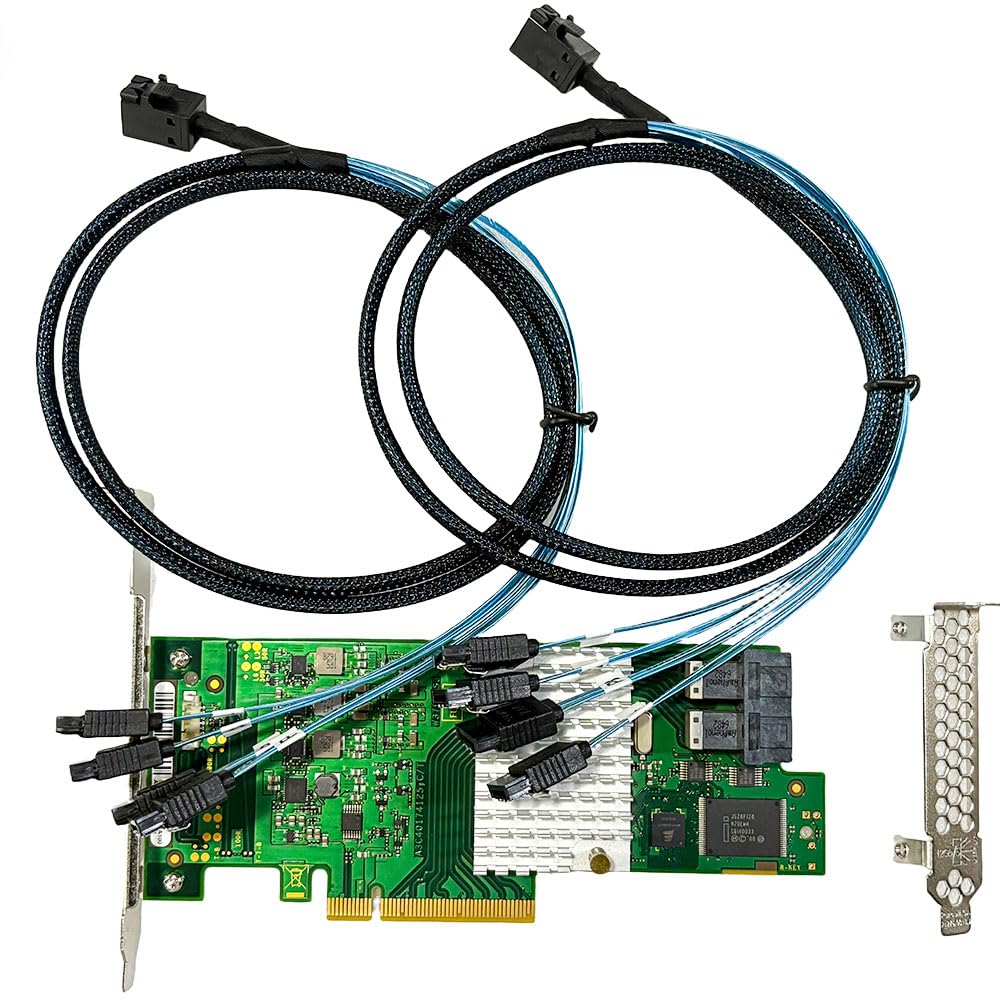

Packing List: HBA Card ×1 ; Cables: 2× SFF-8643 to 4× SATA breakout (supports 8 SATA drives).

  • Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to 8482 cables (sold separately) or our matched HBA + cable kit.

Built on the LSI SAS3008 controller (LSI 9300-8i class), this 12Gb/s SAS/SATA HBA delivers reliable non-RAID pass-through for NAS and software-defined storage. The card exposes TWO Mini SAS HD (SFF-8643) internal connectors and includes 2× SFF-8643→4× SATA breakout cables for direct attachment of up to eight SATA HDDs/SSDs. With PCIe 3.0 x8 bandwidth and SAS Expander support, you can start small and scale to large arrays while keeping ZFS/TrueNAS/unRAID in full control. Ideal for JBOD, home labs and rack servers.

Included cables support SATA drives only; to attach SAS drives, use SFF-8643→SAS 8482 cables (not included) or choose our matched HBA + cable kit.

PriceFeature
Add To BasketAdd To BasketAdd To Basket Add To Basket
— no data£98.00£98.00£63.00£63.00£190.00£190.00— no data£199.00£199.00
8-Port 12Gbps PCIe 3.08-Port 12Gbps8-Port 12Gbps PCIe 3.016-Port 12Gbps PCIe 3.116-Port 12Gbps PCIe 3.016-Port 12Gbps PCIe 3.0

  • Compatible with: D3307/LSI 9300-8i ; Controller: LSI/Broadcom SAS3008 (equivalent to LSI 9300-8i).
  • Firmware (FW): HBA IT Mode (Non-RAID) ; Data Transfer Rate: 12Gbps SAS; SATA devices supported via breakout cables.
  • Host Interface: PCIe 3.0 x8 ; Internal Connectors: TWO Mini SAS SFF-8643. Direct attach up to 8 drives, and expand via external SAS Expander for large arrays.
  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, JBOD, NAS home lab and server storage.
  • Packing List: HBA Card ×1 ; Cables: 2× SFF-8643 to 4× SATA breakout (supports 8 SATA drives). Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to 8482 cables (sold separately) or our matched HBA + cable kit.
›
SKU: B0FXMNYKGQ
Dimensions: 22 x 14.5 x 3 cm; 300 g
Model: SAS3008
Manufacture: ROSE RAIN

Product Description

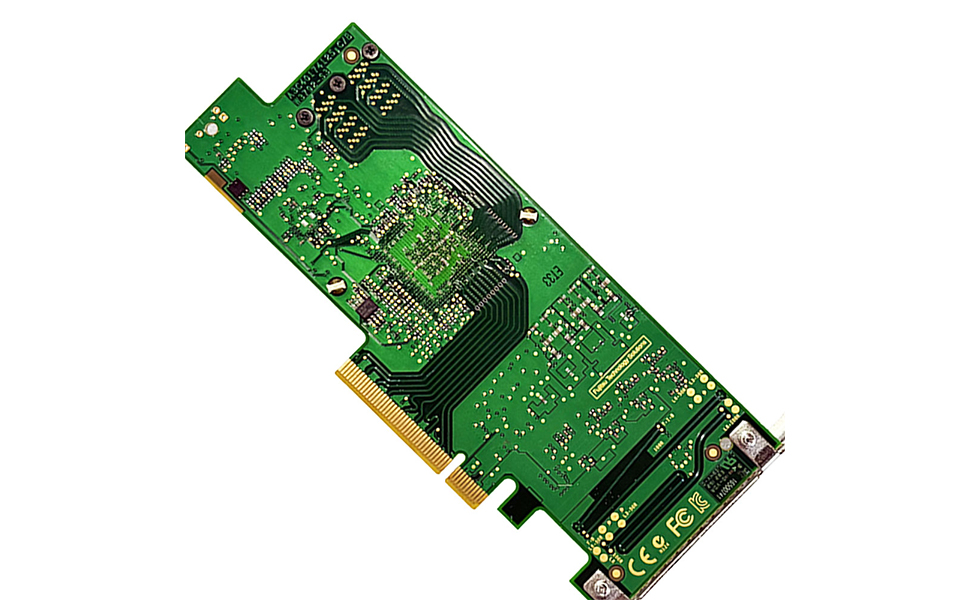

aplus content imageMultiple green circuit boards or electronic components shown in a row, displaying various PCB layouts and electronic components mounted on green substrate.

Packing List: HBA Card ×1 ; Cables: 2× SFF-8643 to 4× SATA breakout (supports 8 SATA drives).

  • Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to 8482 cables (sold separately) or our matched HBA + cable kit.

Built on the LSI SAS3008 controller (LSI 9300-8i class), this 12Gb/s SAS/SATA HBA delivers reliable non-RAID pass-through for NAS and software-defined storage. The card exposes TWO Mini SAS HD (SFF-8643) internal connectors and includes 2× SFF-8643→4× SATA breakout cables for direct attachment of up to eight SATA HDDs/SSDs. With PCIe 3.0 x8 bandwidth and SAS Expander support, you can start small and scale to large arrays while keeping ZFS/TrueNAS/unRAID in full control. Ideal for JBOD, home labs and rack servers.

Included cables support SATA drives only; to attach SAS drives, use SFF-8643→SAS 8482 cables (not included) or choose our matched HBA + cable kit.

SAS HBA Card Compatible with D3307 & LSI 9300-8i IT Mode PCIe SATA Expansion … SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-… SAS HBA Card Compatible with LSI 9300-8i IT Mode PCIe SATA Expansion Card, 8-… SAS HBA Card Compatible with 430-16i & LSI 9400-16i IT Mode PCIe SATA Expansi… SAS HBA Card Compatible with LSI 9305-16i IT Mode PCIe SATA Expansion Card, 1… SAS HBA Card Compatible with LSI 9305-16i IT Mode PCIe SATA Expansion Card, 1…
Price — no data£98.00£63.00£190.00 — no data£199.00
Feature 8-Port 12Gbps PCIe 3.0 8-Port 12Gbps 8-Port 12Gbps PCIe 3.0 16-Port 12Gbps PCIe 3.1 16-Port 12Gbps PCIe 3.0 16-Port 12Gbps PCIe 3.0
