SAS HBA Controller Card Compatible with LSI 9300-16i IT Mode

SAS HBA Controller Card Compatible with LSI 9300-16i IT Mode PCIe 3.0 12Gbps 16-Port SATA Expansion Card

SAS HBA Controller Card Compatible with LSI 9300-16i IT Mode PCIe 3.0 12Gbps 16-Port SATA Expansion Card, with 4x SFF-8643 to 4x SATA Cables, Support SAS Expander, for ZFS TrueNAS unRAID NAS

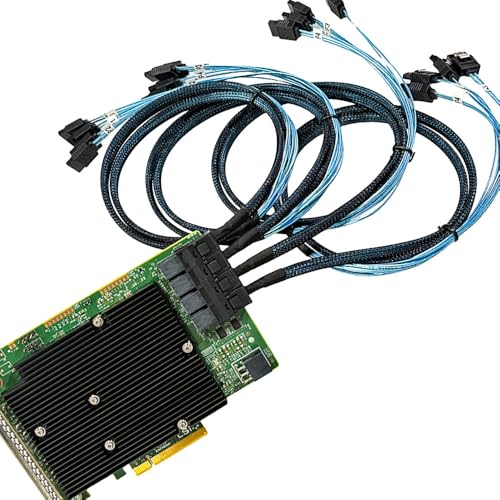

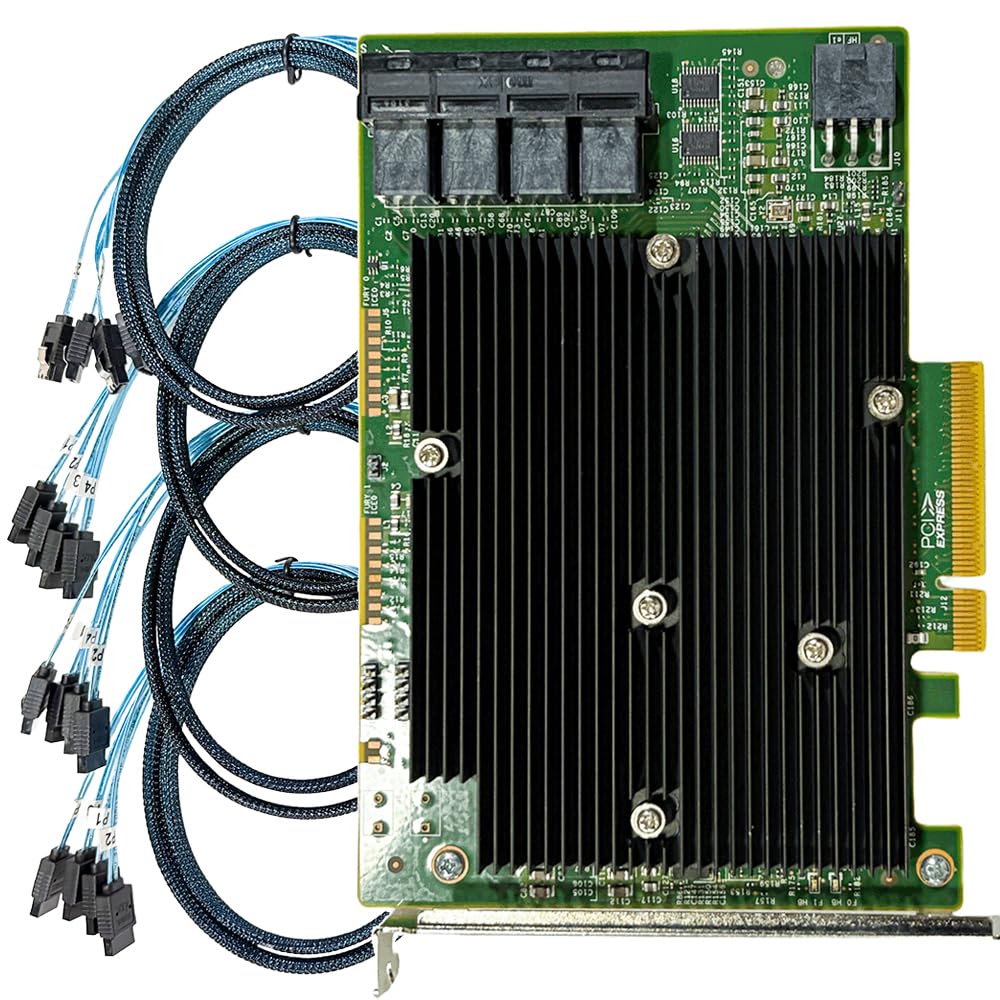

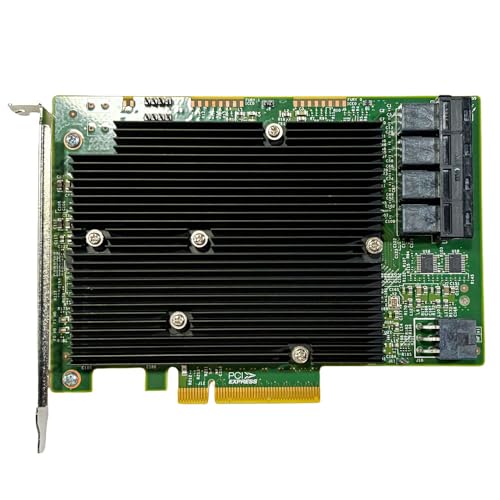

Built for high-density storage, this 16-port 12Gb/s SAS HBA (Compatible with LSI 9300-16i) uses dual LSI/Broadcom SAS3008 controllers behind an onboard PCIe switch to deliver full-bandwidth PCIe 3.0 x8 performance to four Mini-SAS HD (SFF-8643) connectors. In IT Mode (Non-RAID), it exposes your disks cleanly to the OS for ZFS, TrueNAS/FreeNAS, unRAID, Proxmox, and ESXi, enabling reliable JBOD passthrough and easy expansion with external SAS expanders. Each SFF-8643 port fans out to four SATA devices; we include 4× SFF-8643 to 4× SATA breakout cables (total 16 SATA drops) so you can wire a full chassis on day one. Backward-compatible with 6Gb/s SATA, supports hot-swap, and includes both full-height/low-profile brackets in typical deployments. Note: the included cables are for SATA drives; for SAS drives, use SFF-8643 to 4× SFF-8482 SAS cables (with power) sold separately or our matched kit.

  • Compatible with: LSI 9300-16i; Controller: LSI/Broadcom SAS3008
  • PERFECT FOR: ZFS, FreeNAS/TrueNAS, unRAID, Proxmox, ESXi home-lab & NAS storage—stable IT-mode passthrough for JBOD and virtualization.
  • Firmware (FW): HBA IT Mode (Non-RAID); Data Transfer Rate: up to 12Gbps SAS and 6Gbps SATA per port (backward compatible)

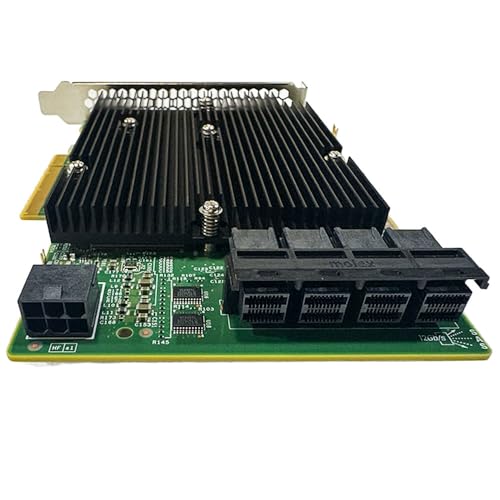

  • Host Interface: PCIe 3.0 x8; Internal Connectors: 4× Mini-SAS HD SFF-8643. –Direct attach up to 16 drives, and expand via external SAS Expander for large arrays.
  • Packing List: HBA Card ×1; SFF-8643 to 4× SATA Cables ×4. –Cables in box are for SATA drives. They are not compatible with SAS drives. To connect SAS drives, use SFF-8643 to 4× SFF-8482 SAS cables (sold separately) or our matched HBA + cable kit.
›
SKU: B0G77XBFGR
Dimensions: 22 x 14.5 x 3 cm; 300 g
Manufacture: ROSE RAIN
