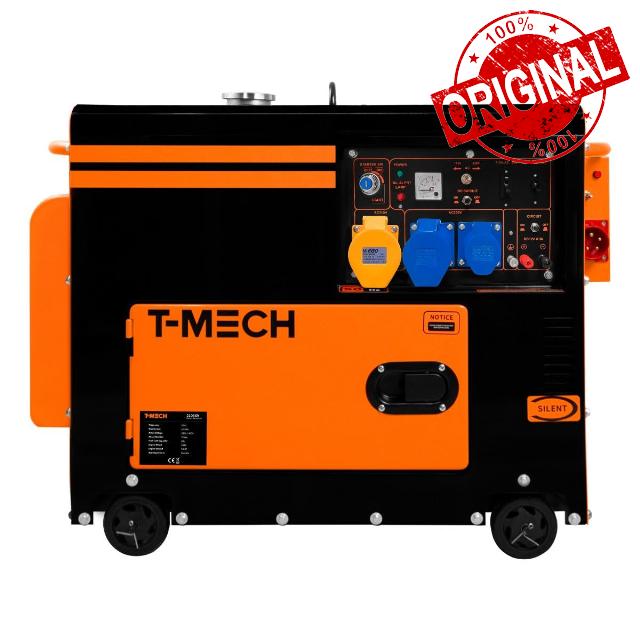

Silent Diesel Generator Single Phase ATS 230V 6kVA 6500W
Silent Diesel Generator Single Phase ATS 230V 6kVA 6500W 13HP 115V / 230V Electric Start Closed Frame Emergency Power 4 Portable Wheels Black Powder Coated Steel 20L Fuel Capacity Tool Kit & Funnel
If you’re looking for a reliable source of backup electrical power for your home or business, then this super powerful silent diesel generator from T-MECH is the perfect solution for the job.
When the power drops out this supreme diesel generator will automatically kick in thanks to the built in ATS (automatic transfer switch). As soon as an outage is detected the ATS will restore power to your electrical items almost instantly for minimal downtime. What’s more, the ATS continuously monitors your main power supply to identify when mains power is restored and turns the generator off, saving you time and overall running costs. With an electric key start option, you can also easily stop or start the generator manually should you wish to do so.
A generous 20L fuel tank provides sufficient power for up to 16 ½ hours at around 50% load making it suitable for use in a wide range of environments such as domestic, construction and industrial. With a maximum output of 6kVA, this high-performance single-phase generator can power multiple devices at any one time. Featuring 1 x 32A 115V, 1 x 16A 230V and 1 x 32A 230V sockets as well as 1 x 12A DC output, it’s suitable for a wide range of equipment.
The silenced nature of this generator is down to the closed frame design which reduces sound output to a minimum, just 72 dB at 7m, for a more pleasant experience when in use. This style also adds an attractive yet super protective element to the machine, hiding the internal mechanisms and shielding them with a tough powder coated steel. The clean black with orange detailing finish creates a truly unique design which will blend in seamlessly to your surroundings. Moving the generator around is made easy with the 4 heavy duty 4” wheels and sturdy handle, which are fitted to the industrial frame design.
To ensure safe running, the machine features a low-level warning light which will illuminate when more oil is required. In the event of oil pressure becoming too low, the generator will automatically switch off to protect the powerful 13HP engine from potential damage. To top the machine up we’ve included a handy fuel funnel for clean and convenient pouring directly to the fuel tank. It’s also fitted with an AVR (automatic voltage regulator) control system which closely monitors the output and protects the unit against voltage fluctuations to produce a smooth stream of power to your sensitive electrical items.
Whether you want the security of having a backup power source in the event of an outage or need a reliable source of portable power when on the move, this impressive silent diesel generator is sure to satisfy all your needs.
What's Included:
✔️ 1 x Powerful Diesel Generator
✔️ 1 x Practical Tool Kit
✔️ 1 x Handy Fuel Funnel
✔️ 2 x Starter Keys
Robust Design
Built using super strong powder coated steel, the closed frame perfectly protects the powerful 13HP engine to ensure it can keep you running for years to come. Thanks to the soundproof canopy, noise is kept to a minimum at just 72 dB from a 7m range for a pleasant environment when in use.
Efficient ATS
With a built-in ATS, this is a generator you can rely on to supply you with backup power almost at an instant to keep your home or business running smoothly. An optional electric start system, with 2 keys included, allows you to effortlessly turn on the generator manually should you wish to.
Incredibly Powerful
Power multiple devices at once with this single-phase generator using the multiple AC and DC outlets available. With a 6kVA maximum output and a sufficient 20L fuel tank, this high-performance generator can keep your devices powered for up to an incredible 16 1/2 hours.
Conveniently Portable
Fitted with 4 heavy duty 4” wheels and sturdy handle, this compact machine is extremely easy to transport allowing you to manoeuvre it as required whether on a permanent site or on the move so you always have a reliable source of power whenever or wherever you need it.
Single Phase Silent Diesel Generator Specifications

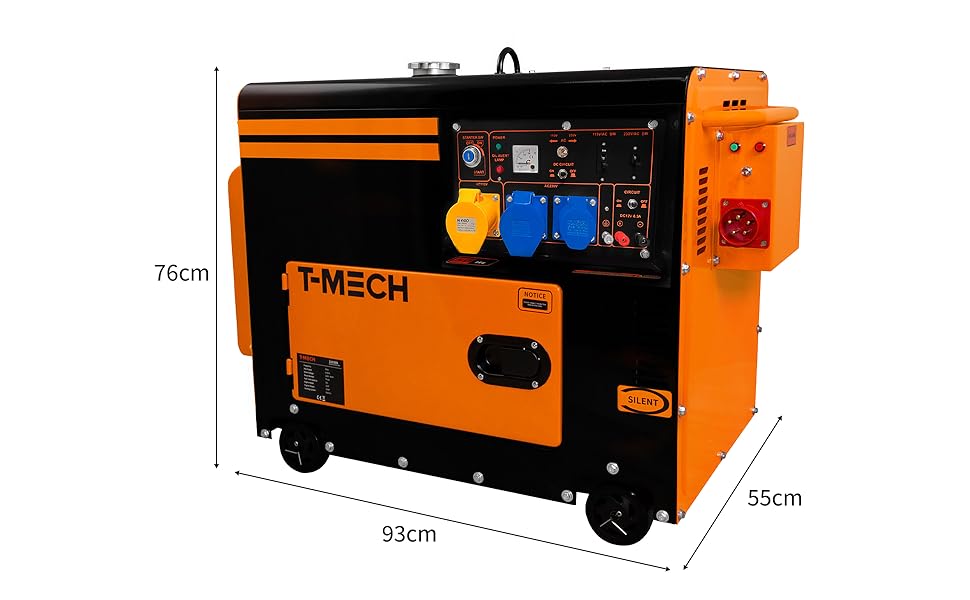

| Dimensions | 76.1cm H x 93.2cm W x 54.8cm D |
| Weight | 154kg |
| Fuel Tank Capacity | 20L |
| Running Time at 50% | 16 1/2 Hours |
| Max Engine Output | 6kVA |
| Engine Output | 9kW / 13HP |
| Generator Rated Output | 6000W |
| Generator Max Output | 6500W |
| Phase | Single |
| Starting System | Electric |
| Voltage | 115V / 230V |
| Frequency | 50Hz |
| RPM | 3000 |
| Sound Level at 7m | 72dB |

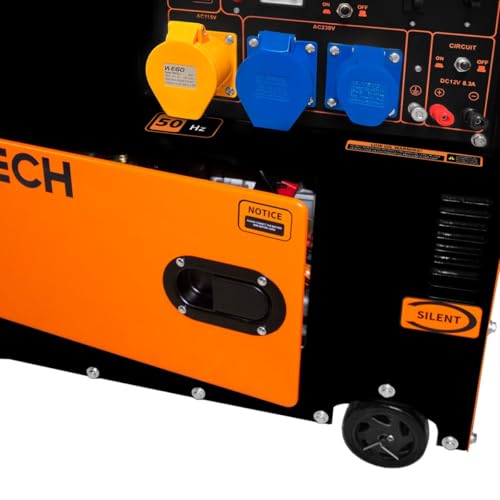

| AC Output | 1 x 32A 115V, 1 X 16A 230V, 1 X 32A 230V |
| DC Output | 1 x 12A |
- Enclosed by a soundproof canopy, you can be sure this powerful diesel generator will keep noise to a minimum, so it doesn’t disturb you, your neighbours, or employees when in operation.
- With a built-in ATS, this is a generator you can rely on to supply you with back up power almost at an instant to keep your home or business running smoothly. An optional electric start system allows you to effortlessly turn on the generator manually should you wish to.
- A fully fuelled 20L tank will provide you with consistent power for up to 16 ½ hours making the generator extremely economical.
- Power multiple devices at once with this high-performance single-phase generator and it’s incredible 6kVA maximum output.
- Fitted with 4 heavy duty 4” wheels and a sturdy handle, this compact machine is extremely easy to transport allowing you to manoeuvre it as required whether on a permanent site or on the move.
| SKU: | B0G2MPQ8C5 |
| Dimensions: | 55 x 93 x 76 cm |
| Model: | 210314F3 |
| Part: | 210314F3 |
| Colour: | Orange |
| Manufacture: | Monster Shop |
| Colour: | Orange |
Product Description




Conveniently Portable
Fitted with 4 heavy duty 4” wheels and sturdy handle, this compact machine is extremely easy to transport allowing you to manoeuvre it as required whether on a permanent site or on the move so you always have a reliable source of power whenever or wherever you need it.
Single Phase Silent Diesel Generator Specifications
| Dimensions | 76.1cm H x 93.2cm W x 54.8cm D |
| Weight | 154kg |
| Fuel Tank Capacity | 20L |
| Running Time at 50% | 16 1/2 Hours |
| Max Engine Output | 6kVA |
| Engine Output | 9kW / 13HP |
| Generator Rated Output | 6000W |
| Generator Max Output | 6500W |
| Phase | Single |
| Starting System | Electric |
| Voltage | 115V / 230V |
| Frequency | 50Hz |
| RPM | 3000 |
| Sound Level at 7m | 72dB |
| AC Output | 1 x 32A 115V, 1 X 16A 230V, 1 X 32A 230V |
| DC Output | 1 x 12A |
