Software Defined Radio SDR-V6 with 1.10d Firmware, 4.3″ IPS

4.3" IPS Touchscreen

Software Defined Radio SDR-V6 with 1.10d Firmware, 4.3″ IPS Touchscreen, 100kHz-149MHz Full-Band Receiver for Amateur Radio, Shortwave Monitoring, Aviation Bands, Black(Silver)

Features:

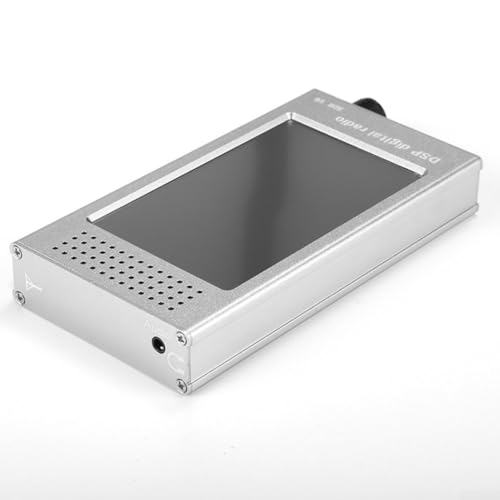

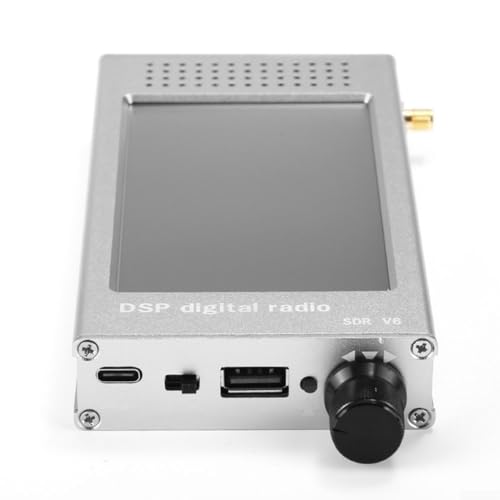

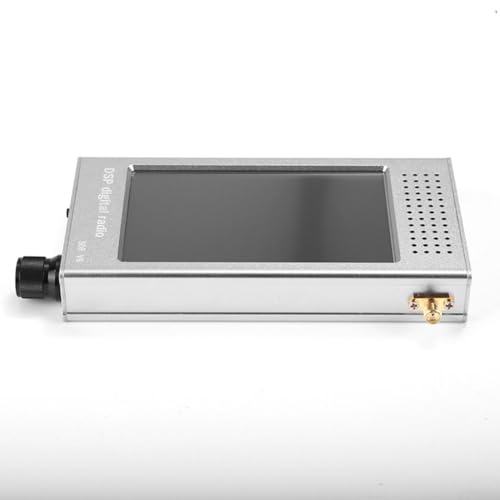

* The SDR-V6 is a high-performance digital demodulation receiver based on a software-defined radio architecture. It employs Taylore quadrature mixer technology and a 192kHz real-time spectrum display, supporting full-band reception (100kHz-149MHz). Featuring a 4.3-inch IPS touchscreen and a CNC-machined aluminum alloy chassis, it combines professional performance with a portable design, suitable for amateur radio, shortwave monitoring, and aviation band reception.

* Full-band coverage.

* Frequency range: 100kHz-149MHz, supporting 1Hz precise step tuning.

* Supported modes: CW/AM/SSB(LSB/USB)/WFM/FM stereo/aviation bands.

* Based on Taylore Quadrature Product Detector mixer technology, it achieves ultra-low noise zero-IF (ZIF) reception.

* For DSP digital demodulation combined with a 16-bit high-dynamic-range ADC ensures signal fidelity.

* High-definition real-time spectrum and waterfall plot.

* 4.3-inch 800×480 IPS screen, supporting adjustable spectrum bandwidth of 192kHz/128kHz/64kHz.

* Waterfall graph and waveform display modes, supporting multiple amplitude scaling levels (x1/x8/x64).

* Portable design and long battery life.

* Built-in 3000mAh lithium battery, providing 10-12 hours of battery life, Type-C fast charging interface.

Specifications:

Part Name: Radio

Material: Aluminum Alloy

Color: Black, Silver, Blue, Pink (Optional)

Size: 140×74×22mm

Frequency Range: 100kHz-149MHz

Step: 1Hz/10Hz/100Hz/1kHz/10kHz

Display: 4.3-inch IPS Touchscreen (800×480)

Demodulation Modes: CW/AM/LSB/USB/WFM/FM Stereo

Antenna Interface: BNC Male (50Ω, Maximum Input -20dBm)

Reference for Crystal: TCXO 26MHz±0.5ppm

Audio Output: 3.5mm headphone jack (CTIA standard supported), 3W speaker

Storage Channels: 99 programmable channels (supports frequency/mode/name)

Professional Operation Configuration

12 adjustable encoder parameters: Channel selection, frequency step, volume adjustment, modulation mode, AGC (off/slow/medium/fast), reference level, backlight brightness, IF gain (-12~67dB), spectrum style/bandwidth, waterfall area setting

Fixed Display Information: Battery level, date and time, station information, spectrum bandwidth, antenna input power

Application Scenarios: (as follows)

Amateur radio (HAM) communication

Shortwave broadcast reception and monitoring

Aviation band monitoring

Outdoor exploration and communication

Radio teaching and experiments

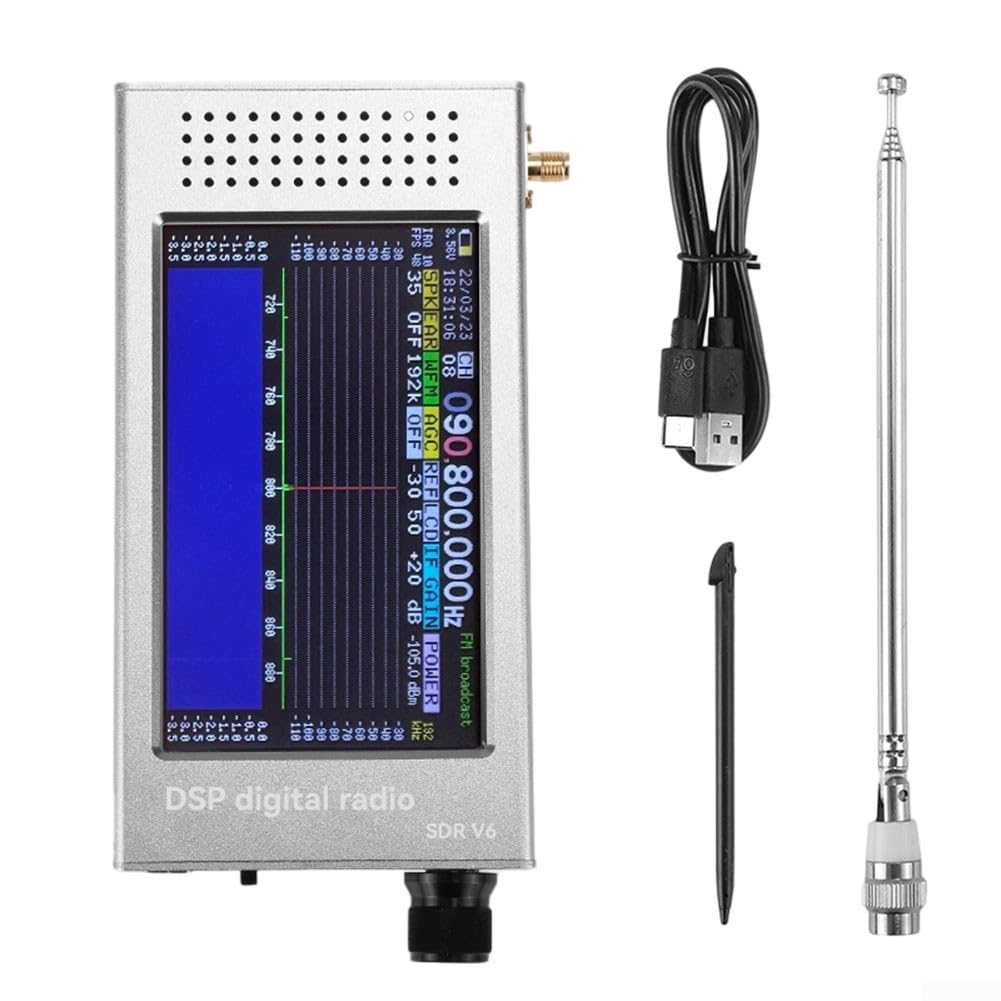

Package Contents:

1 x SDR-V6 main unit

1 x Retractable antenna

1 x Type-C charging cable

1 x Stylus pen

1 x User manual

  • [Full Band Reception] Covers a wide frequency range from 100kHz to 149MHz, supporting reception of amateur radio bands, shortwave broadcasts, and aviation communications with 1Hz tuning step.
  • [Large Touchscreen Display] Features a clear 4.3-inch IPS touchscreen with 800×480 resolution for real-time spectrum and waterfall graph visualization, offering adjustable bandwidth and scaling.
  • [Professional Radio Performance] Utilizes Taylore quadrature mixer and for DSP digital demodulation for low-noise reception, with a stable TCXO and configurable parameters like AGC and IF gain for clear signal processing.
  • [Portable & Long-Lasting] Built with a compact CNC aluminum chassis and integrated 3000mAh battery providing up to 12 hours of use, making it suitable for outdoor monitoring and field operations.
  • [User-Friendly Operation] Includes 99 programmable memory channels, multiple encoder controls, a retractable antenna, stylus pen, and supports various modes including CW, AM, SSB, and FM stereo for versatile listening.
›
SKU: B0G71HHZXK
Dimensions: 15 x 8 x 3 cm; 409 g
Model: X8BN1131O152XI62ENH93453
Manufacture: HanOaki
