Svbony SV226P Telescope Filter Drawer M42-M48, Filter Holder

Filter Holder with 1.25'' and 2"

Svbony SV226P Telescope Filter Drawer M42-M48, Filter Holder with 1.25'' and 2″, Twelve M2.5 Female Threads for OAG, Anti Light Leaking, Telescope Accessories for Deep Sky Astrophotography

Effortless switching, astrophotographying quickly

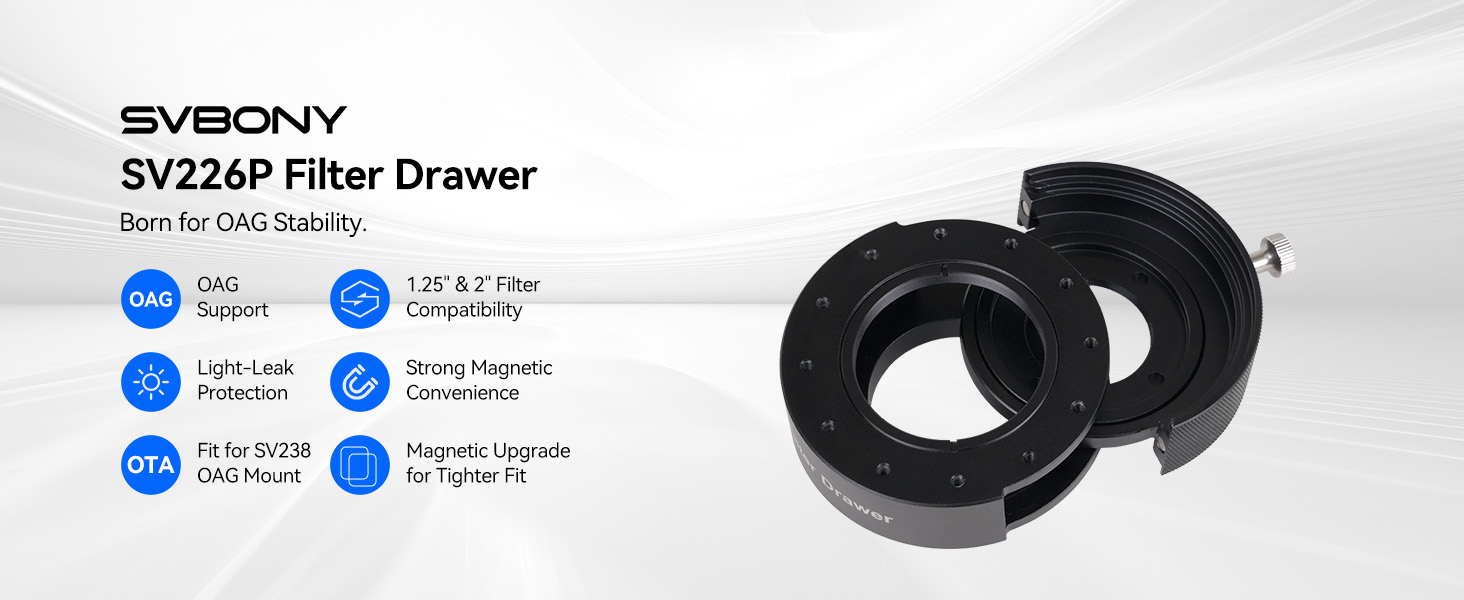

The Svbony SV226P telescope filter drawer offers strong OAG support, secure H-type magnetic locking with a side screw, and dual-size filter compatibility for both 1.25" and 2" filters.

1 OAG Connection 2 1.25" & 2" Filters 3 Strong Magnet 4 Shift-Free Installation 5 High Compatibility

Precision CNC One-Piece Design

Its precision-crafted, fully integrated metal structure ensures a seamless fit build quality, and zero light leaks even during long-exposure imaging—giving you cleaner, sharper, and more reliable astrophotography results.

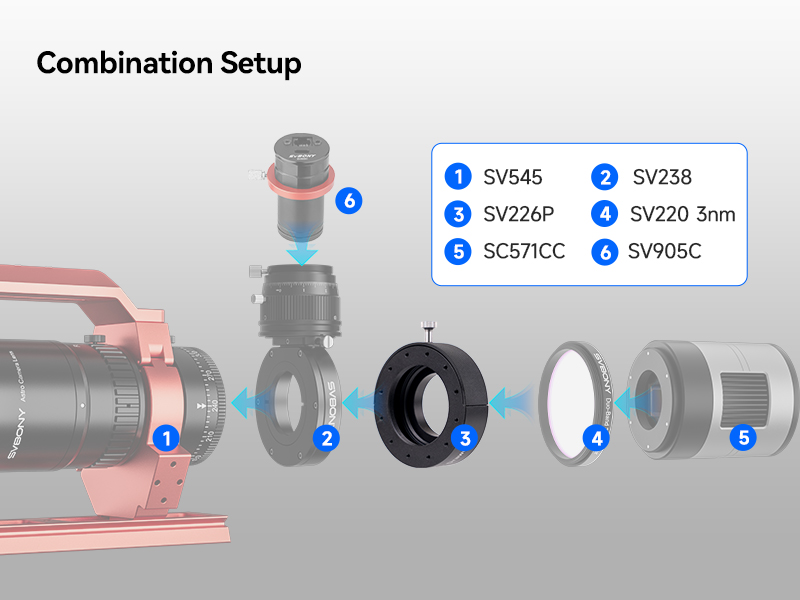

Combination Introduction

Pair the SV226P filter drawer with the SV545 telescope, SV238 off-axis guider, SV220 3nm telescope filter, SC571CC main camera, and SV905C guide camera for a streamlined, high-precision setup. This combination delivers fast acquisition, clean narrowband data, stable guiding, and effortless filter changes—ideal for capturing faint nebulae and rich deep-sky detail with maximum efficiency.

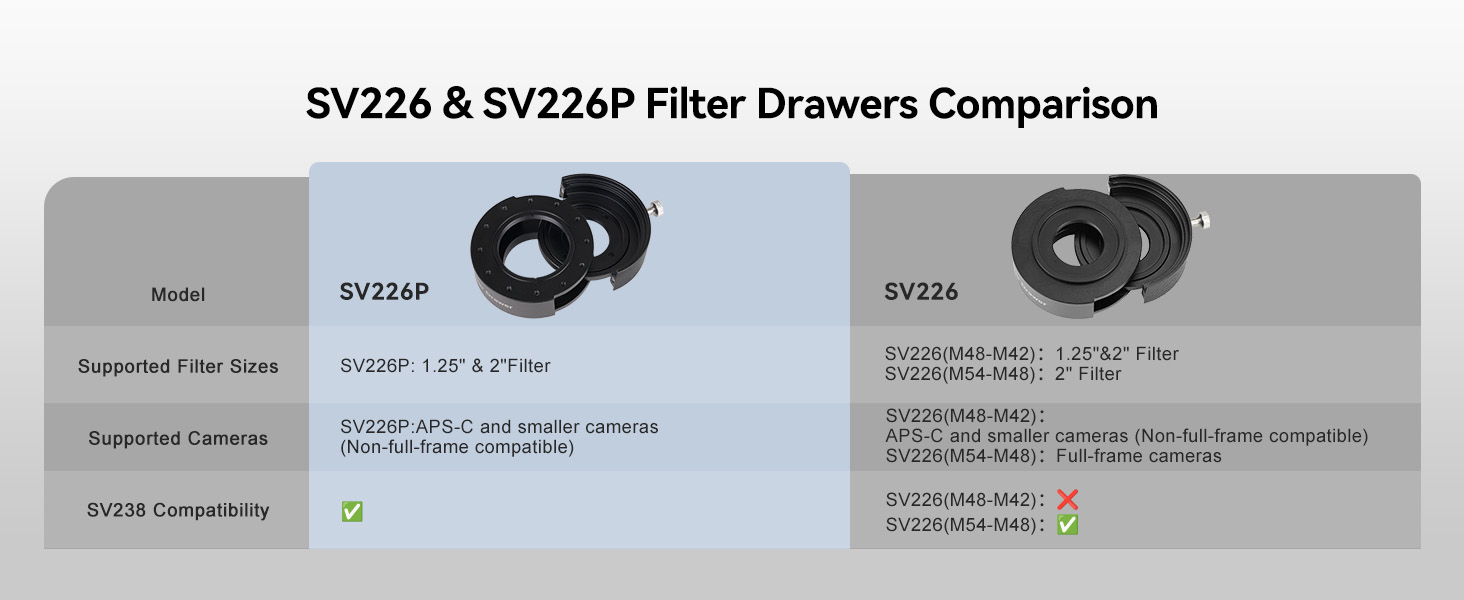

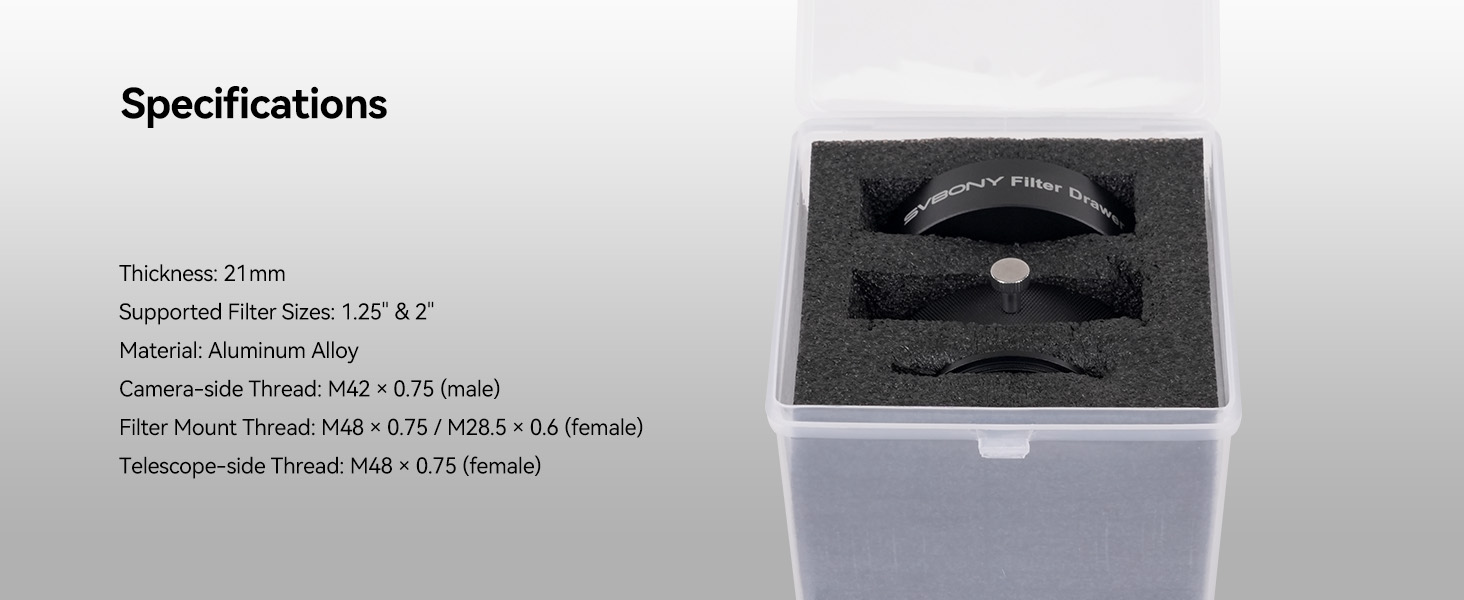

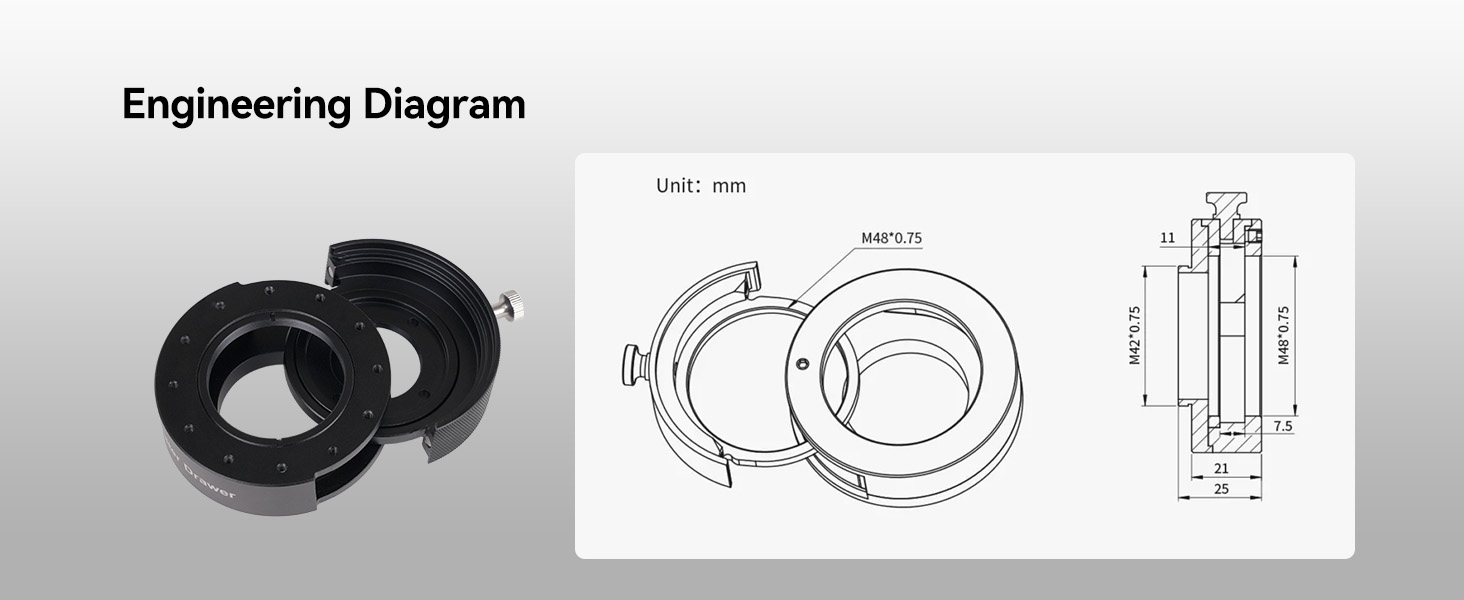

1 Compared with SV226 2 Engineering Diagram 3 Specifications

  • What are the key upgrades in the new version of SV226P filter drawer?

    Upgrades feature M2.5*12 internal threads for direct attachment to major filter wheels and cameras, along with a magnet redesign for enhanced stability and grip.

  • What accessories are included as standard with the new filter drawer?

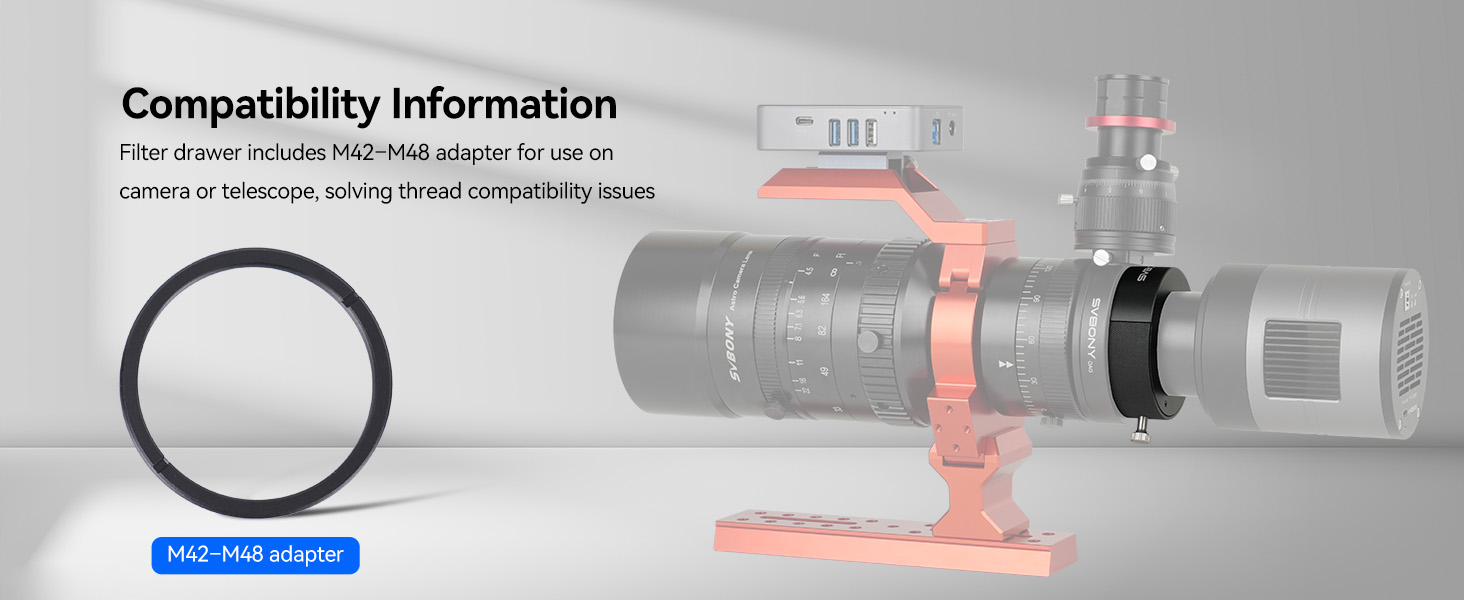

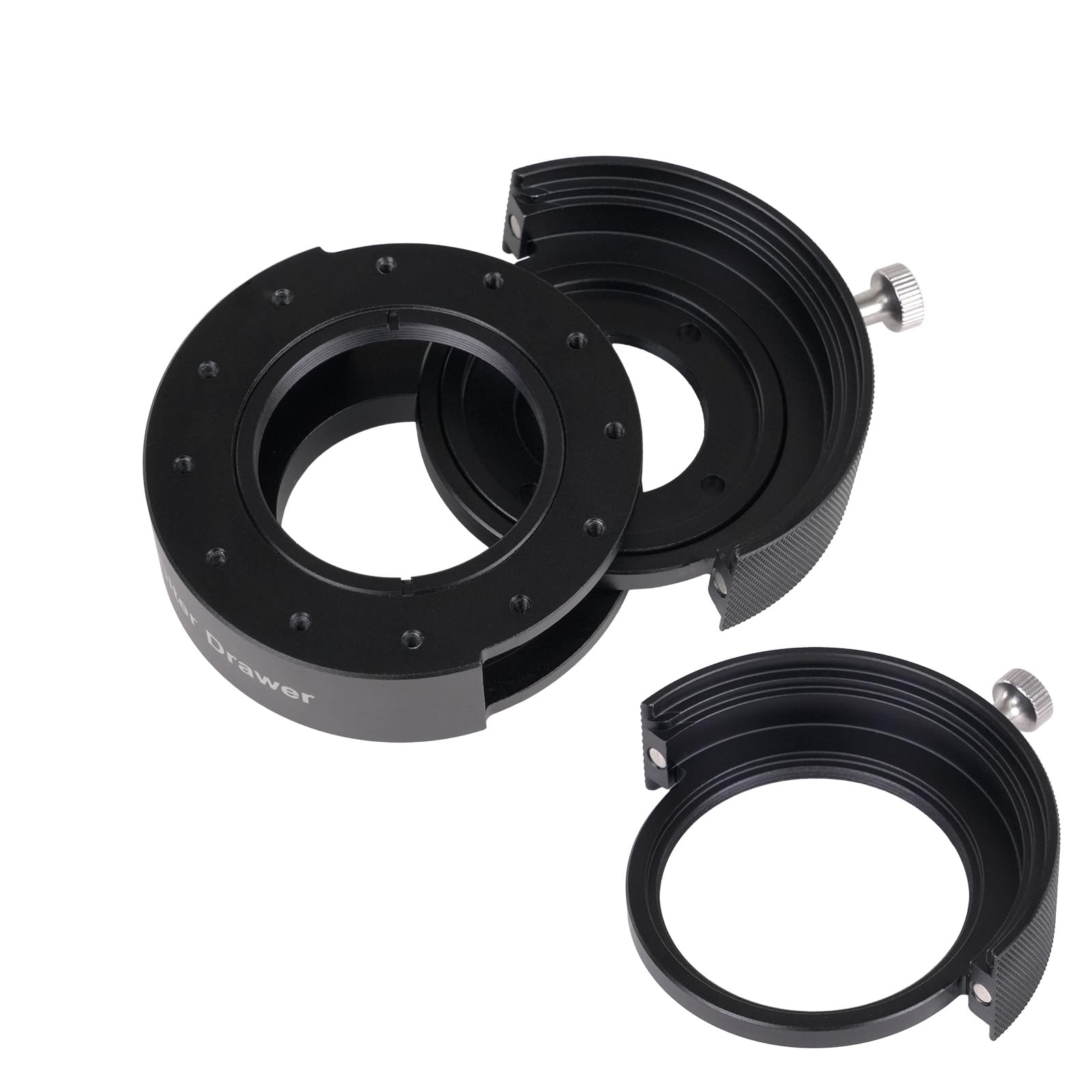

    The filter unit, two 2-inch filter cells, a 2-inch to 1.25-inch adapter ring, an M42 to M48 threaded adapter ring, a plastic storage case, and the corresponding installation wrench.

  • What are the dimensions of the filter drawer, and what are the installation interface standards at both ends?

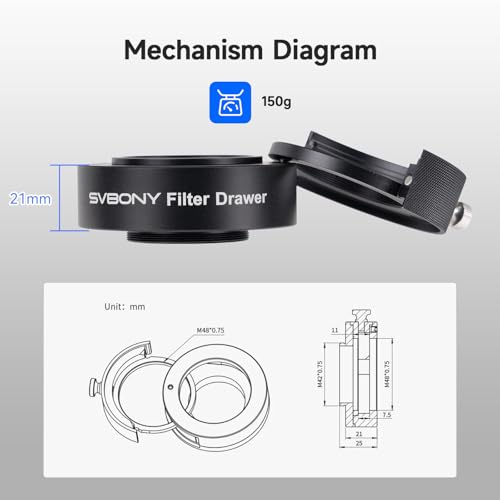

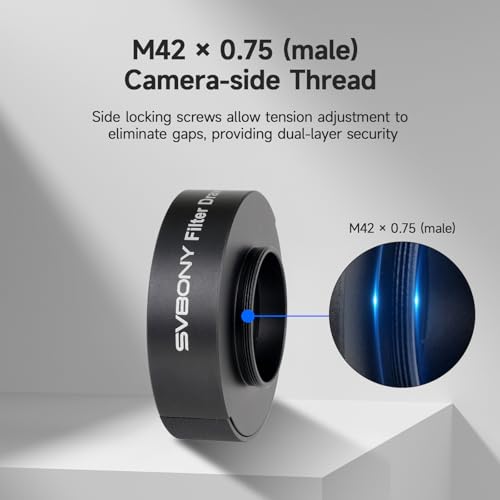

    The diameter is 68mm, and the thickness is 21mm. The camera end features an M42 male thread, while the telescope end has an M48 female thread.

  • What sensor size/format cameras does Svbony SV226P filter drawer support for connection?

    The filter drawer supports connection and installation with APS-C and smaller format astronomical cameras. When used with a full-frame camera, vignetting will occur.

  • Strong OAG support: Svbony SV226P filter drawer uses 12 evenly spaced M2.5 threads for a tight; stable OAG connection; keeping your telescope filter drawer setup solid and aligned

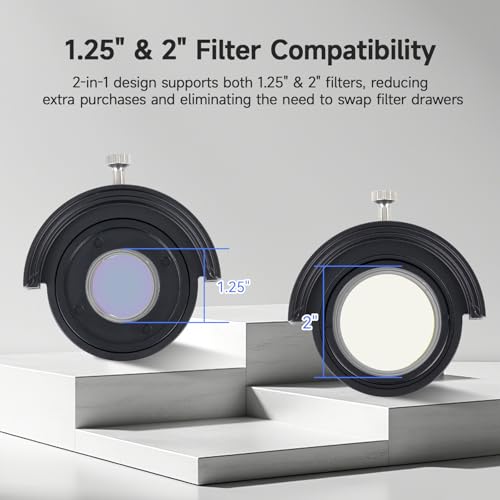

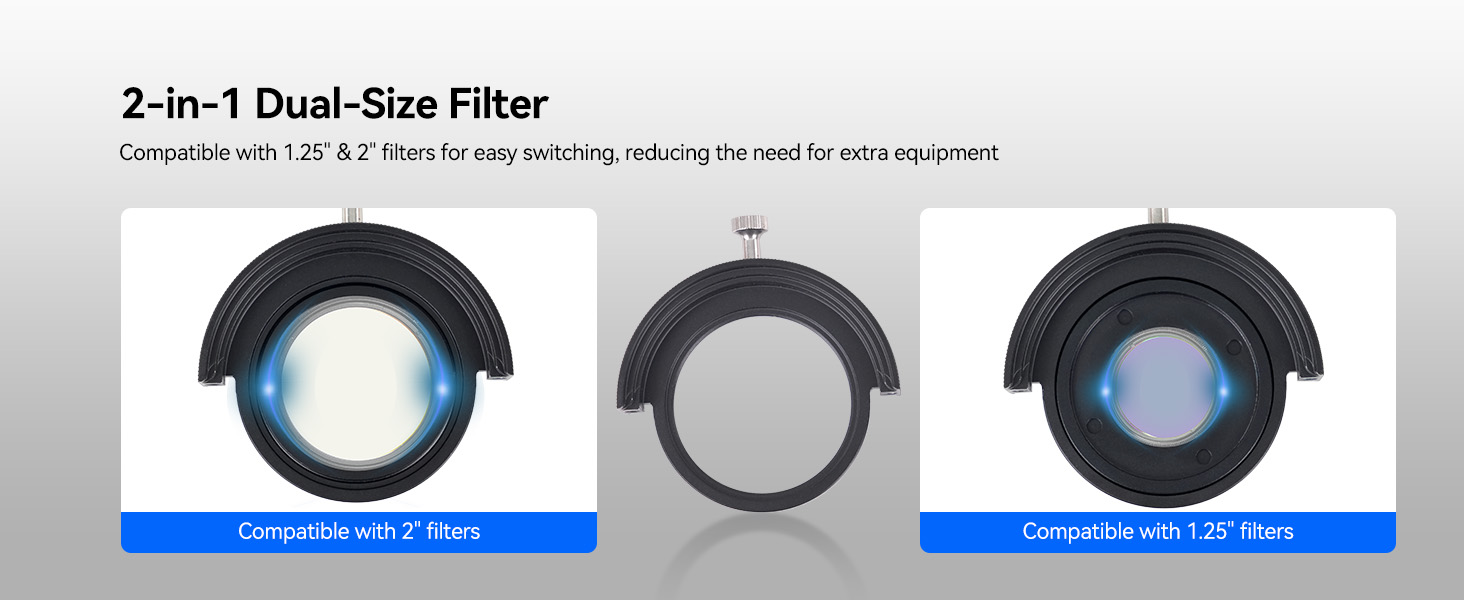

  • Dual-size compatibility: this Svbony SV226P filter holder features a 2-in-1 design that fits both 1.25" and 2" filters; reducing extra purchases and simplifying your telescope accessory setup
  • Stronger magnetic locking: this telescope filter drawer uses an upgraded H-type magnetic structure combined with a side locking screw to keep filters firmly in place; offering tighter fit; stronger hold; and long-term stability
  • Side-lock double security: the Svbony filter drawer features an adjustable side-lock system that removes gaps and prevents slipping; keeping your filters firmly in place with reliable dual protection

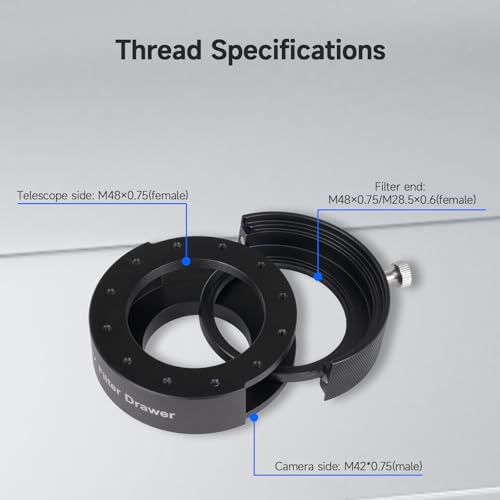

  • Versatile telescope compatibility: equipped with M48×0.75 and M28.5×0.6 filter threads; plus M48×0.75 telescope-side threads; this telescope accessories offers flexible; secure connections for a wide range of astrophotography setups
  • Precision CNC build: crafted with one-piece CNC machining; this telescope filter holder delivers exceptional rigidity and precise alignment; ensuring zero light leaks even during long-exposure imaging
  • Streamlined deep-sky imaging setup: combine SV226P filter drawer with the SV545; SV238; SV220 3nm filter; SC571CC main camera; and SV905C guide camera for a clean; efficient workflow;delivering fast captures; stable guiding
›
SKU: B0G2RRLSY7
Weight: 363 Grams
Dimensions: 13.2 x 12.4 x 9.8 centimetres
Brand: SVBONY
Model: EUW9184D
Part: EUW9184D

Product Description

Effortless switching, astrophotographying quickly

Text reads 'SIVBONY SV725IP Filter Drawer'. Product appears to be a black circular filter drawer component with measurement markings and technical specifications.

The Svbony SV226P telescope filter drawer offers strong OAG support, secure H-type magnetic locking with a side screw, and dual-size filter compatibility for both 1.25″ and 2″ filters.

  1. aplus content image
  2. aplus content image

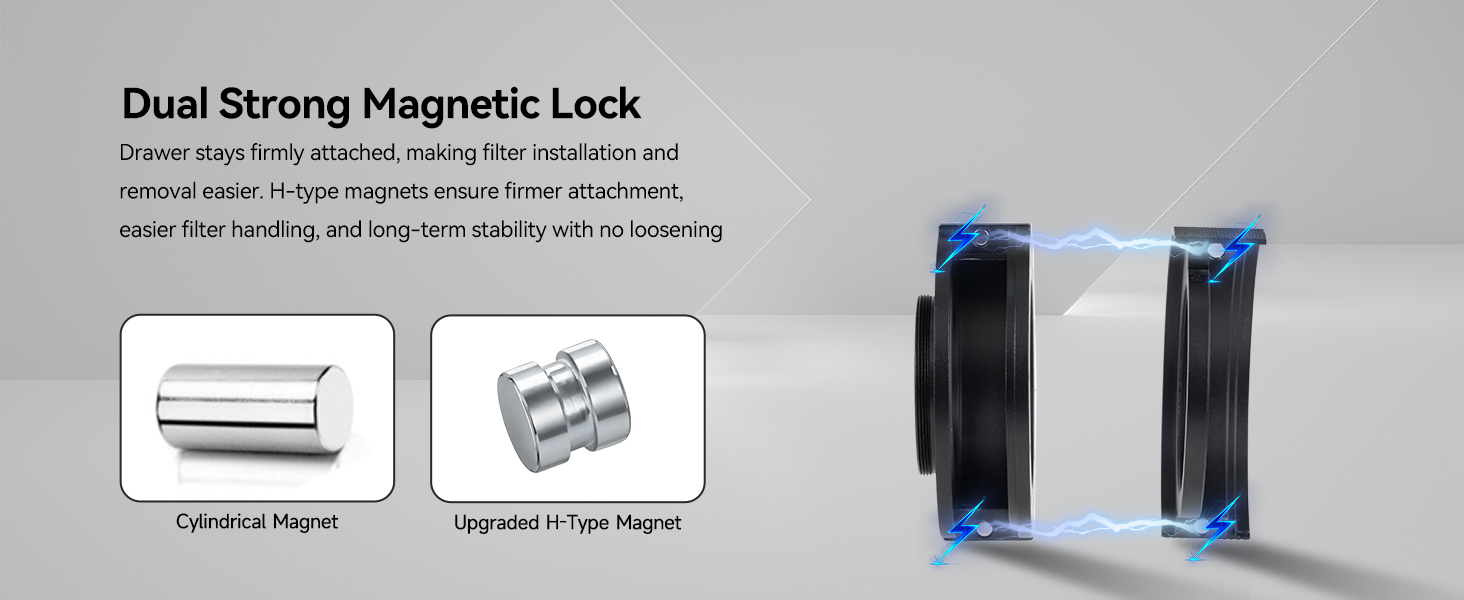

  3. Text reads 'Dual Strong Magnetic Lock'. Technical diagram showing magnetic locking mechanism components and installation.

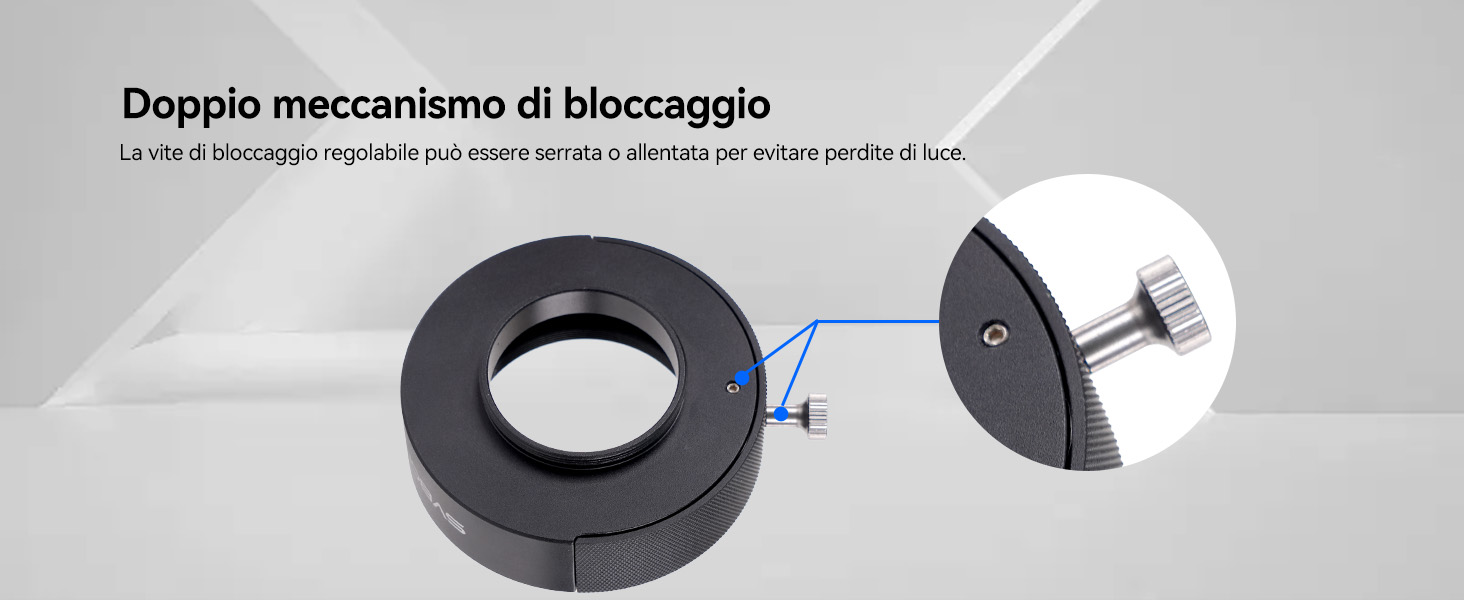

  4. Text reads 'Doppio meccanismo di bloccaggio'. Technical diagram showing black circular locking mechanism components and assembly steps with arrows indicating movement and installation.
  5. aplus content image

Precision CNC One-Piece Design

Its precision-crafted, fully integrated metal structure ensures a seamless fit build quality, and zero light leaks even during long-exposure imaging—giving you cleaner, sharper, and more reliable astrophotography results.

aplus content imageText reads 'Installation Guide'. Step-by-step instructional diagram showing mounting or installation sequence with numbered steps and illustrations.

Combination Introduction

Pair the SV226P filter drawer with the SV545 telescope, SV238 off-axis guider, SV220 3nm telescope filter, SC571CC main camera, and SV905C guide camera for a streamlined, high-precision setup. This combination delivers fast acquisition, clean narrowband data, stable guiding, and effortless filter changes—ideal for capturing faint nebulae and rich deep-sky detail with maximum efficiency.

  1. Close-up shots of what appears to be documentation or instruction materials with text and diagrams.
  2. aplus content image
  3. aplus content image

  • Upgrades feature M2.5*12 internal threads for direct attachment to major filter wheels and cameras, along with a magnet redesign for enhanced stability and grip.

  • The filter unit, two 2-inch filter cells, a 2-inch to 1.25-inch adapter ring, an M42 to M48 threaded adapter ring, a plastic storage case, and the corresponding installation wrench.

  • The diameter is 68mm, and the thickness is 21mm. The camera end features an M42 male thread, while the telescope end has an M48 female thread.

  • The filter drawer supports connection and installation with APS-C and smaller format astronomical cameras. When used with a full-frame camera, vignetting will occur.
