Uninterruptible power supply UPS module compatible
Uninterruptible power supply UPS module compatible with Raspberry Pi 5/4B/3B+/3B/2B, support charging and power output at the same time, 3S and 5V 5A output, adapting various
Uninterruptible power supply module (UPS), supports charging and power output at the same time, 3S and 5V 5A output. Suitable for Type-C power port devices
Features

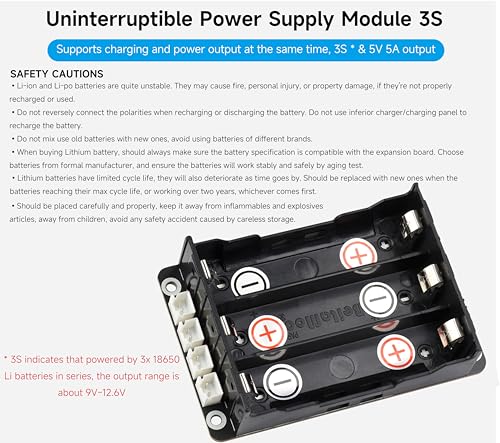

1. 3S UPS Module: 3S indicates that powered by 3 x 18650 Li batteries in series, the output range is about 9V~12.6V.
2. Adapt various interfaces through cables, easy to integrate into mobile robots or industrial control equipment.

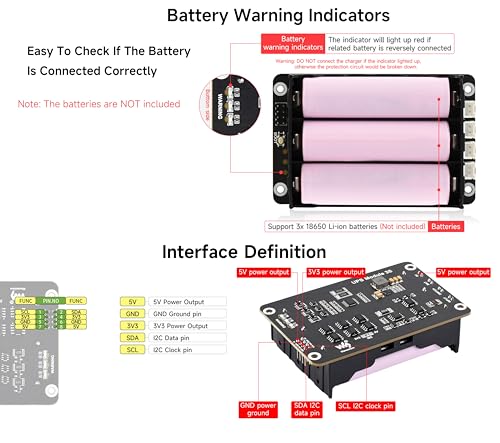

—Interface Definition The DC5521 female port is a 12.6V 2A charging port, which is charged with a 12.6V 2A power supply. The switch button is a switch for power output. XH2.54 male port is 12.6V 2A voltage output port. Type C male port is for 5V voltage output.
3. I2C truck communication, monitoring battery voltage, current, real-time power

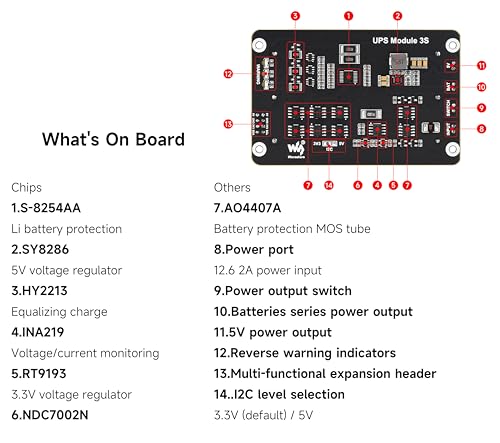

4. Multiple battery protection circuits: overcharge/discharge protection, over-current protection, short circuit protection and reverse protection, along with the equalization charging function, more safe and stable
5. Built-in 5V dimmer, continuous output current up to 5A, more enough power supply for Raspberry Pi
6. Battery warning indicators, easy to check if the battery is connected correctly.
7. Suitable for Type-C power port devices
Comes with online and manual development resources: bit.ly/3WgEsD8

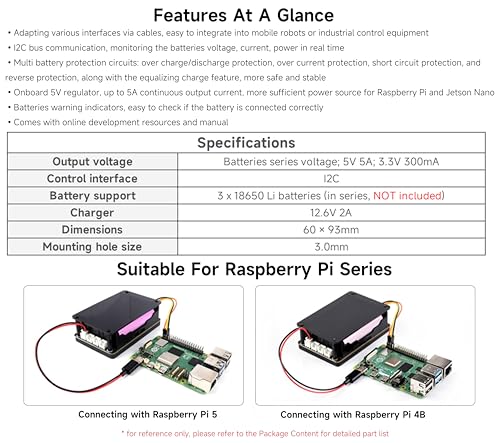

Specifications:
Output voltage: battery series voltage; 5V 5A; 3.3V 300mA
Control interface: I2C
Battery holder: 3 x 18650 Li batteries (in series, not included)
Charger: 12.6V 2A
Dimensions: 60 x 93 mm.
Mounting Hole Size: 3mm

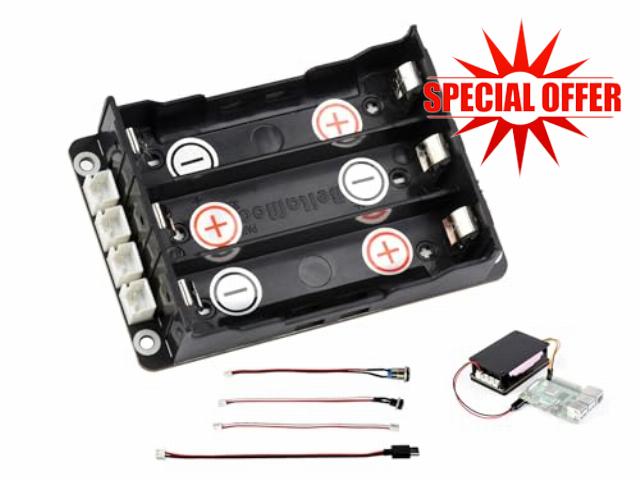

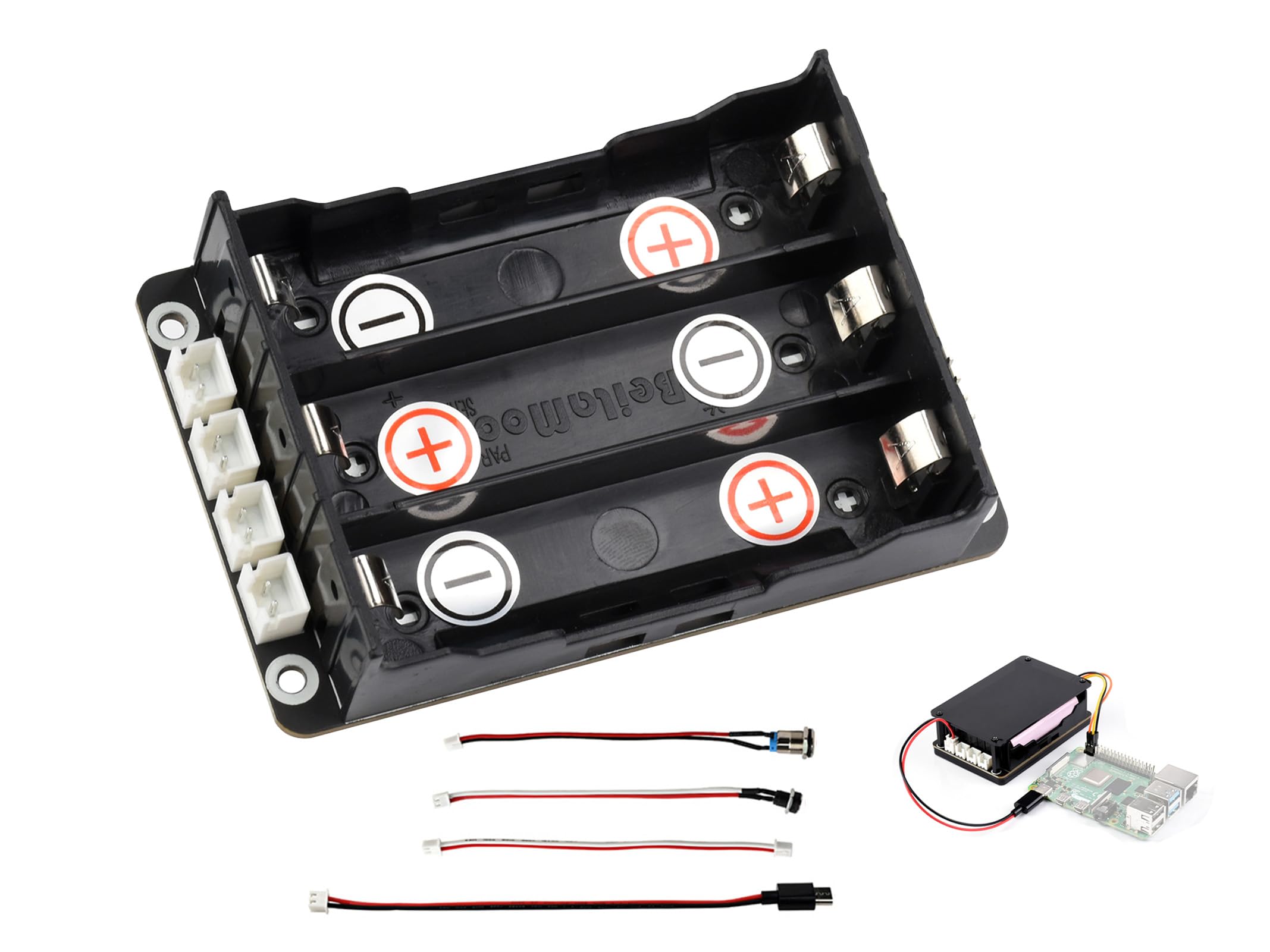

Package Contents
3S UPS Module x1
Male Self-locking Push Button Switch XH2.54~15cm ×1
XH2.54 Male to DC5521 Female Cable ~15cm x 1
XH2.54~15cm ×1 Dual Connector Cable
XH2.54 Male to Type C Cable ~ 20cm x 1
1 x Acrylic Protection Panel
1 x Screw Pack
1 x 12.6V 2A Battery Charger
Note: 18650 batteries are not included.
- 3S * & 5V 5A Output: 3S indicates that powered by 3x 18650 Li batteries in series, the output range is about 9V~12.6V. Note: 18650 batteries are NOT included.

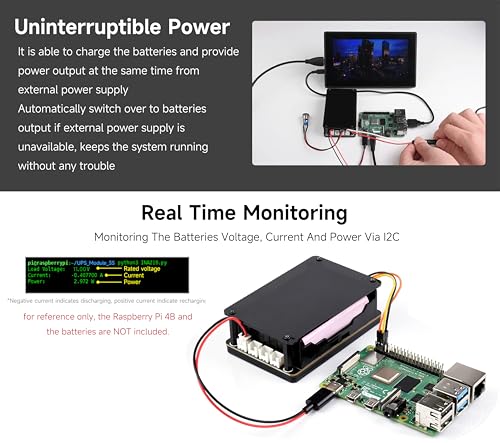

- Uninterruptible Power: It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
- Adapting various interfaces via cables: Easy to integrate into mobile robots or industrial control equipment
- Real time monitoring: Monitoring the batteries voltage, current and power via I2C. Battery warning indicators: Easy to check if the battery is connected correctly.

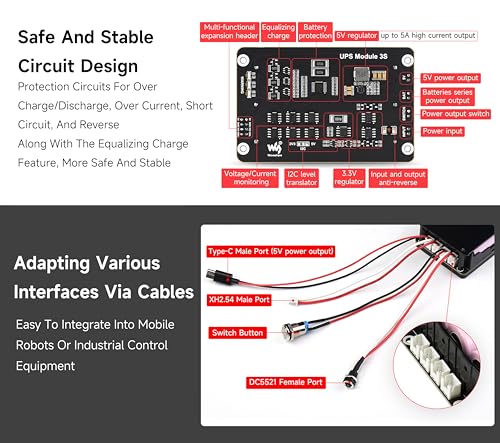

- Safe and stable circuit design: Protection circuits for over charge/discharge, over current, short circuit, and reverse.Along with the equalizing charge feature, more safe and stable.Onboard 5V regulator, up to 5A continuous output current, the more sufficient power source for Raspberry Pi.Comes with Online Development Resources and Manual: bit.ly/3WgEsD8
| SKU: | B0D3B1NFSF |
| Dimensions: | 6 x 9.3 x 9.3 cm; 260 g |
| Model: | UPS Module 3S |
| Manufacture: | UeeKKoo |
