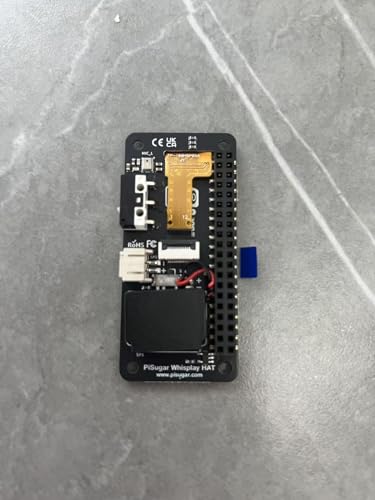

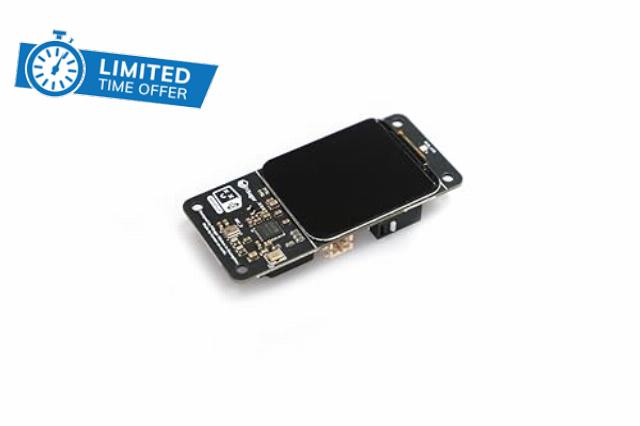

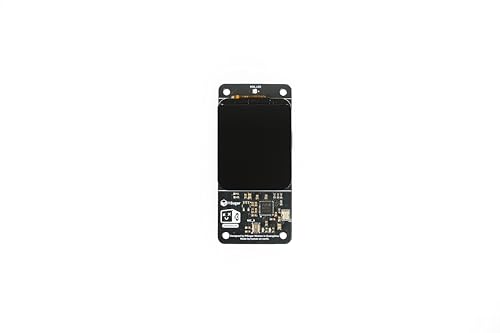

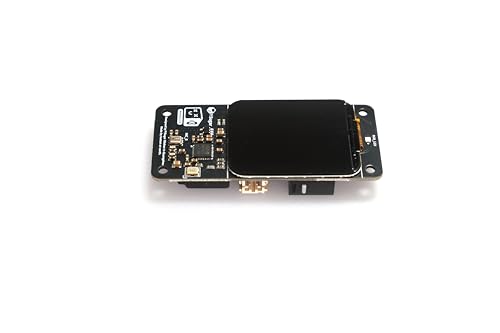

Whisplay HAT for Raspberry Pi Zero W/2W – Audio + Display

Whisplay HAT for Raspberry Pi Zero W/2W – Audio + Display Expansion Board

Whisplay HAT for Raspberry Pi Zero W/2W – Audio + Display Expansion Board

Talk, See, Create — Unleash Your Pi's Potential

Bring sound and visual expression to your Raspberry Pi and unleash unlimited creativity.

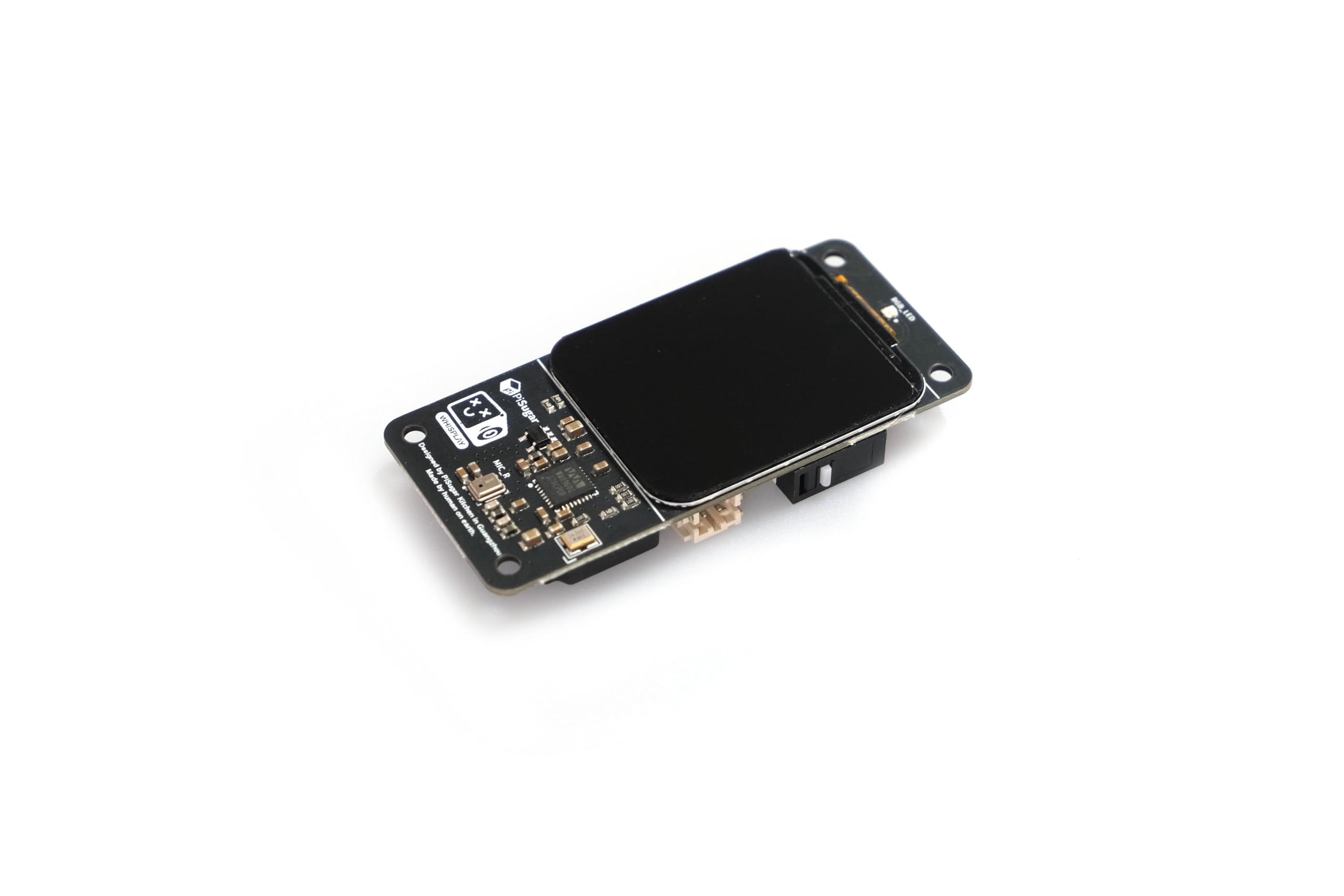

Whisplay HAT is a compact yet powerful Raspberry Pi expansion board that combines high-fidelity audio, color display, RGB lighting, and programmable interaction into one seamless solution.

Whether you’re building an AI voice assistant, smart speaker, or a creative interactive terminal, Whisplay HAT helps turn your ideas into reality — faster and easier.

Key Features

Zero-Seamless Design

Perfectly matches the Raspberry Pi Zero footprint . Compact, lightweight, and ideal for handheld or space-constrained DIY projects.

High-Fidelity Audio

Powered by the WM8960 codec, featuring dual integrated microphones and an onboard speaker. Perfect for voice recognition, AI chatbots, and high-quality playback.

Crisp Visuals & Vibrant Lights

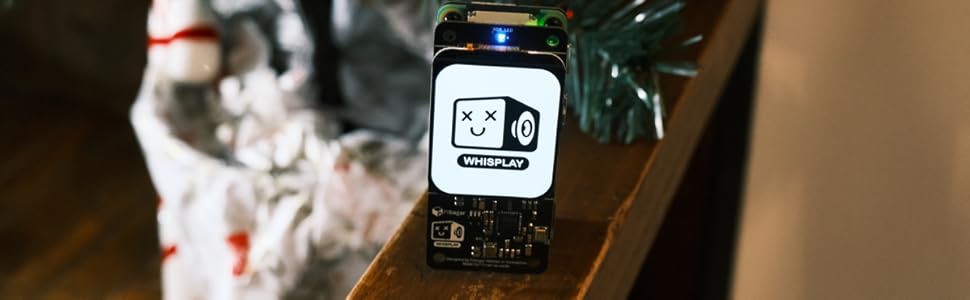

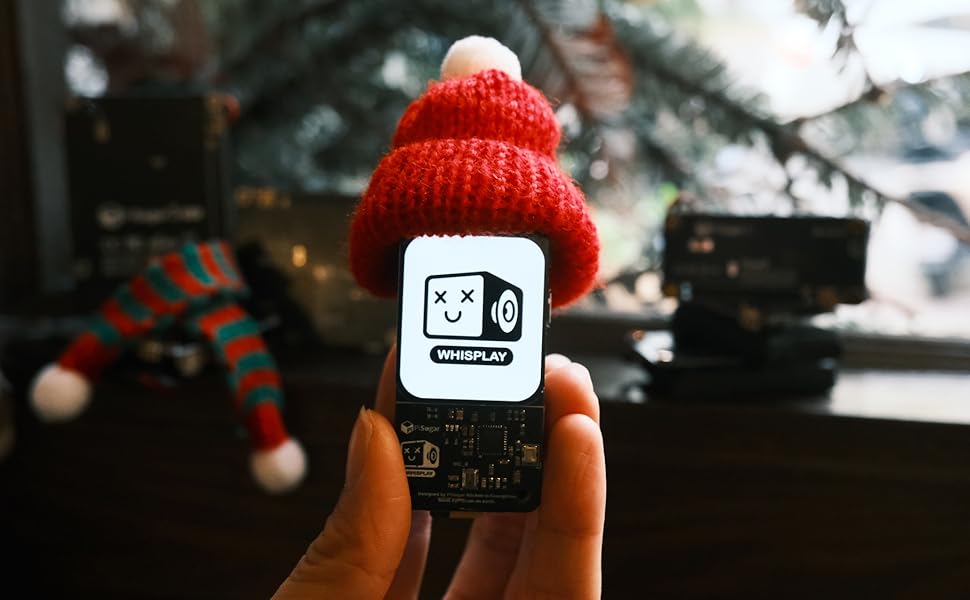

69-inch LCD (240×280) with full-color RGB LEDs lets your Raspberry Pi show system status, custom UIs, and visual effects, making projects more interactive.

Programmable Button

The mouse-click style programmable button lets you trigger scripts or custom functions, perfect for adding interactive control to your projects.

Product Features

  • Power supply voltage: 5V
  • Logic voltage: 3.3V
  • Audio codec chip: WM8960
  • Audio control interface: I2C
  • Audio data interface: I2S
  • Speaker power: 8Ω1W
  • Screen size: 1.69 inches (30mm*37mm)
  • Screen resolution: 240*280RGB
  • Screen controller chip: ST7789
  • Screen interface: 4-SPI

Installation & Quick Start

  1. Plug Whisplay HAT into Raspberry Pi GPIO pins
  2. Remove screen film, insert TF card, and power on
  3. Install drivers and run test tools or AI demo

Full docs and examples available online

Glass screen — handle with care

Technical Specifications

Display1.69-inch color LCD with 240 × 280 resolution, SPI interface, driven by ST7789P3. Ideal for system status, UI display, and visual feedback.
AudioWM8960 audio codec with dual microphones and onboard speaker. Supports external speaker expansion via PH2.0 interface.
LED & ButtonFull-color RGB LEDs for visual status and effects, plus a programmable mouse-click style button for custom actions.
Interface40-pin GPIO interface, fully compatible with Raspberry Pi expansion standards.
CompatibilityCompatible with Raspberry Pi Zero, Raspberry Pi Zero 2 W, and Raspberry Pi 5.
Dimensions65 × 30 mm, same footprint as Raspberry Pi Zero, perfect for compact and handheld projects.

What’s in the Box

Package Contents

  • Whisplay HAT Board

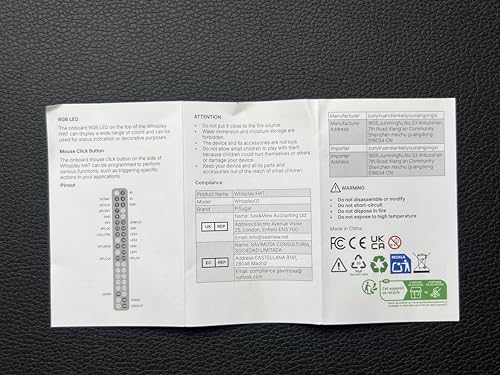

  • User Manual

Safety & Compliance

  • Do not disassemble or modify
  • Avoid water, fire, or high temperatures
  • Keep away from children
  • FCC Part 15 compliant
  • Meets EU / UK safety standards

  • Same Dimension as RPI zero: Perfect match with Raspberry Pi zero (2w), perfect fit for handhold device.
  • High-performance audio: WM8960 chip, dual microphones, onboard speaker, supports external speakers.
  • HD color display: 1.69-inch LCD, 240×280 resolution, SPI interface, clear UI and status display.
  • Colorful RGB LEDs: for status indication or decorative effects.
  • Mouse Click Button: customize actions, trigger programs, or simulate mouse clicks.
  • Creative interaction: compatible with Python, supports AI chatbot and other creative projects.
›
SKU: B0FPG8S6K6
Dimensions: 8 x 5.1 x 2.7 cm; 20 g
Model: whisplay
Manufacture: Soft Electric

Product Description

Talk, See, Create — Unleash Your Pi's Potential

whisplay主图手持1/4产品特性配图3

What’s in the Box

Package Contents

  • Whisplay HAT Board
  • User Manual

Safety & Compliance

  • Do not disassemble or modify
  • Avoid water, fire, or high temperatures
  • Keep away from children
  • FCC Part 15 compliant
  • Meets EU / UK safety standards
