16A Plug to 32A 3 Phase Adapter 400-415V Converter 0.5 m SY

16A Plug to 32A 3 Phase Adapter 400-415V Converter 0.5 m SY 5G 4mm² Armoured Cable Robust Industrial Power Adaptor CEE

16A Plug to 32A 3 Phase Adapter 400-415V Converter 0.5 m SY 5G 4mm² Armoured Cable Robust Industrial Power Adaptor CEE

CEE Adapter 3-Phase 400 V | 16A Plug (IP44) to 32A Coupling (IP44) – 0.5 m SY 5G 4mm² Armoured Cable – Not an Extension Cable

This heavy-duty CEE 3-phase adapter allows you to connect a 16A (11 kW) CEE socket to devices that use a 32A (22 kW) CEE coupling. With its short 0.5 m SY 5G2.5 mm² armoured cable and robust connectors, it is designed for secure, professional use in workshops, construction sites, generators, EV setups and industrial environments where reliability and safety are essential.

Key Features

  • 16A to 32A CEE conversion: Connect 32A equipment to a 16A, 400 V 3-phase CEE outlet. The adapter provides a safe physical conversion; electrical protection remains defined by the upstream 16A circuit.

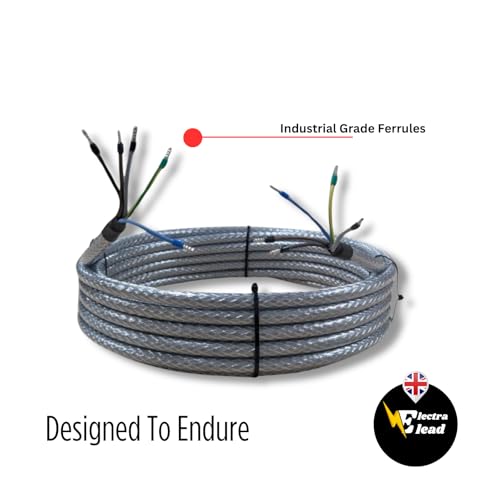

  • SY armoured cable (0.5 m): Steel-braided SY 5G2.5 mm² cable for excellent mechanical protection against abrasion and impact, ideal for harsh industrial and workshop environments.
  • Compact adapter – not an extension cable: Short length for a secure and stable connection. Minimises mechanical stress and voltage drop compared to long, flexible extension leads.
  • IP44 splash-proof connectors: Plug and coupling both rated IP44 for use in dusty, slightly damp and outdoor conditions (when installed correctly).
  • Professional-grade build: Industrial connectors, strain relief and carefully assembled terminations for long service life and reliable operation under load.

Typical Applications

  • Industrial machines and tools
  • Workshops and garages
  • Construction sites and temporary power distribution
  • Generators and mobile power systems
  • EV charging setups (where compatible with charger specifications and local regulations)
  • Agricultural and mobile equipment

Important Notes

  • This product is a power conversion adapter, not a standard extension cable.
  • The maximum current is limited by the 16A supply side, even when connected to 32A devices.
  • Installation and use should follow local electrical regulations and safety standards.

Technical Specifications

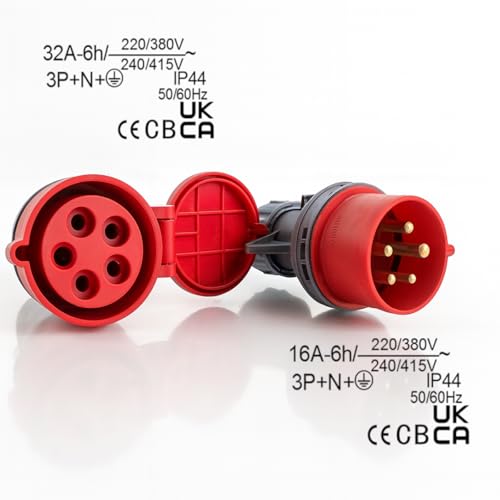

Input Connector CEE 16A 5-pin, 400 V, 3-phase, IP44 Output Connector CEE 32A 5-pin, 400 V, 3-phase, IP44 Rated Current 16 A (upstream limit) Power Rating Up to approx. 11 kW at 400 V (3-phase) Cable Type SY armoured steel-braided cable Cable Size 5G2.5 mm² Cable Length 0.5 m (approx.) Protection Class IP44 (plug and coupling) Voltage 400 V AC, 3-phase Use Industrial environments, workshops, construction sites, generators, EV setups* Note *Check compatibility with your device/charger and local regulations.

  • 16A to 32A 3-Phase Conversion (Max ~11 kW Output) – Allows 32A equipment to be connected to a 16A 400 V CEE supply. Power is limited by the 16A source (approx. 11 kW). Suitable for workshops, generators, EV setups and industrial machinery.
  • Heavy-Duty SY Armoured Cable – 0.5 m 5G 4mm² steel-braided cable provides exceptional mechanical protection and long service life in demanding environments.
  • Compact Adapter (Not an Extension Lead) – Short, stable design reduces strain on connectors and ensures a secure power transfer with minimal voltage drop.
  • IP44 Splash-Proof Connectors – Durable 16A plug and 32A coupling suitable for indoor/outdoor use, construction sites, mobile power and temporary installations.

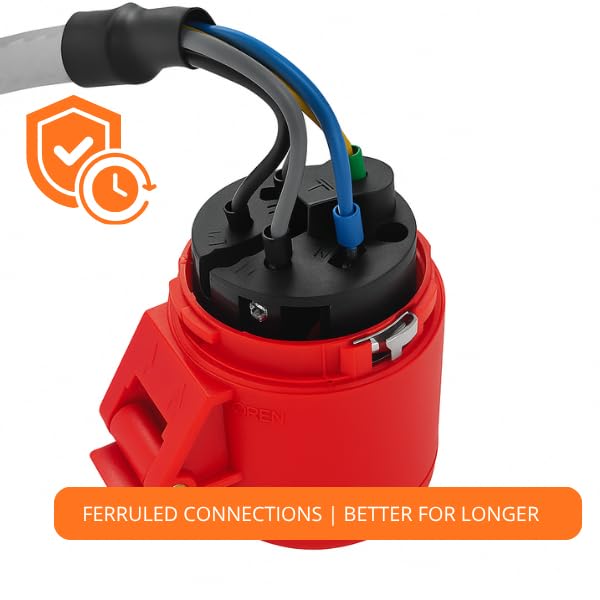

  • Industrial-Grade Build Quality – Precision-crimped terminals, strain relief and robust components ensure safe, reliable 3-phase operation under load.
›
SKU: B0G5Q5LX5D
Weight: 250 Grams
Brand: Generic
Model: A4416a32a
Colour: Red
Manufacture: Electralead
Colour: Red
