Adjustable Film Applicator Coater for High-Precision Wet
Adjustable Film Applicator Coater for High-Precision Wet Film Preparation, 0-3500um Range with Multiple Width Options
The high-efficiency film-coating technique is widely promoted in the current chemical industry, as it can minimize the technical dependence on operators, thereby improving efficiency and accuracy. Our adjustable film applicator can have an adjustable coating thickness within 0-3500μm, with an accuracy of up to 1μm, making it a reliable coating tool.
This product is mainly used to apply a wet film of specified thickness to determine the covering power of a specimen, the color, or to prepare a sample plate. It is suitable for various coating, printing, paint, cosmetics, drugs, adhesives, batteries, and other scientific research industries.
Specification:
– Frame material: Aluminum alloy
– Scraper material: Aluminum alloy
– Coating Thickness: 0-3500μm
– Effective Coating Width: 55mm, 100mm, 150mm, 200mm, 300mm
– Precision: 2μm
Package Included:
– 1 Adjustable Film Applicator
– 1 Storage Case
Notes:
1. Occasionally, the differential head needs to be repositioned to correct errors caused by wear or misalignment (achieved by loosening, not removing, the two hidden fixing screws on each differential).
2. The exact proportion of wet film thickness relative to any scraper clearance depends on the material used, the viscosity and texture of the liquid, the force applied to the scraper, the coating speed, and the geometric shape of the coating edge.
3. After each use, please clean the instrument immediately with an appropriate solvent (not included).
- Constructed from durable aluminum alloy, this product resists rust and deformation for extended longevity and reliable performance in various coating applications.
- Features adjustable coating thickness from 0 to 3500μm, eliminating the need for multiple fixed-gap applicators and offering versatility to meet diverse project requirements.

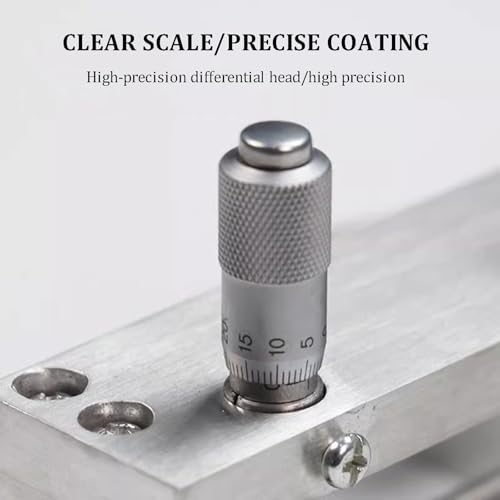

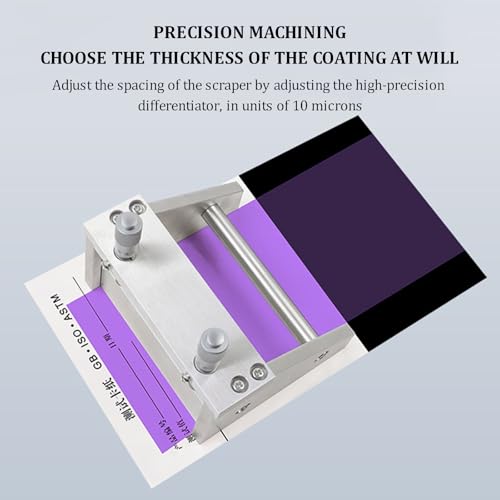

- Enables precise coating control with a high-precision differentiator that adjusts scraper spacing in 10 μm increments, ideal for detailed film thickness assessment and research.
- Equipped with an extension edge to gather paint during application, ensuring even film distribution and reducing material waste for efficient and consistent results.

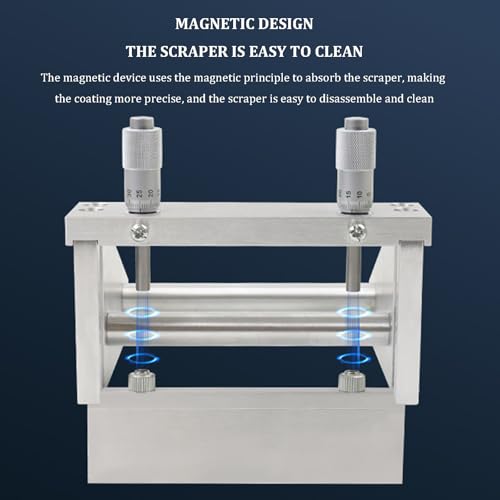

- Incorporates a magnetic suction scraper design for easy disassembly and cleaning, facilitating maintenance and contributing to accurate, high-quality coating outcomes.
| SKU: | B0GDLXVRZB |
| Brand: | Generic |
| Model: | KM-pzj5f7–150mm |
