Benshuuk 5 inch Dashboard Touch Screen Gear Shifter for MOZA

Benshuuk 5 inch Dashboard Touch Screen Gear Shifter for MOZA R3/R6/R9/R12; PC Multi-functional Instrument Speed Display For Logitech G29/G920/G923/RS50 Base Steering Wheel

Benshuuk 5 inch Dashboard Touch Screen Gear Shifter for MOZA R3/R6/R9/R12; PC Multi-functional Instrument Speed Display For Logitech G29/G920/G923/RS50 Base Steering Wheel

Housing Material:
6061 Aluminum
Dimensions:
139*96*26
Display area:
5-inch 16:9 HDMI IPS screen
LCD nits:
350 nits
Number of Pixels:
800*480RGB (IPS 60HZ)
Operating conditions:
PC-USB3.0&Simhub
RGB LED number:
22-simhub control


Technical Parameters:
Simulated racing dashboard –DT
1.16 RGB indicator lights with soft lighting, and various lighting functions can be customized through the SIMHUB software.
2.Exclusive touch – screen display solution. Different display information on the screen can be switched via touch – screen. The 500 – nit brightness and 60 – hz frame rate
can provide a better experience.
3.Considering that most players need to use devices such as button plates but don’t want to buy an additional USB hub, two additional USB interfaces are placed at the rear,
making it convenient for players to connect devices like button plates, and there is no need to buy an additional USB hub.
4.Although there is a touch – screen function, to meet various additional needs of players, two buttons are placed at the rear, and various button functions can be customized in SIMHUB.
5.A switch is placed at the rear, which can turn off the screen and speed lights. After turning off, the USB interfaces can still be used normally.
6.6061 aluminum alloy CNC machining,anodized black.Size 160*105*25 MM
7.Supports the installation of the following devices:FANATEC/SIMAGIC/ 8.SIMCUBE/MOZA/OSW/IMMS
9.Installation hole distance 45-102MM

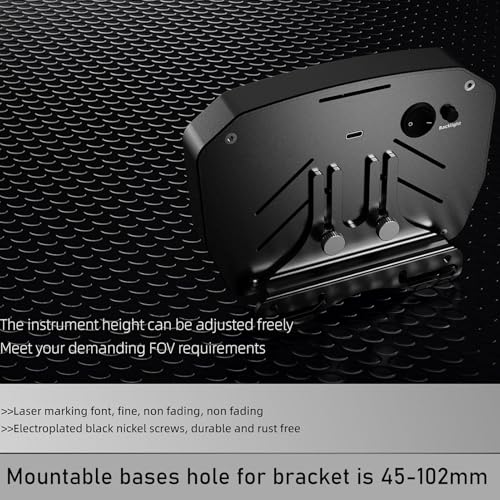

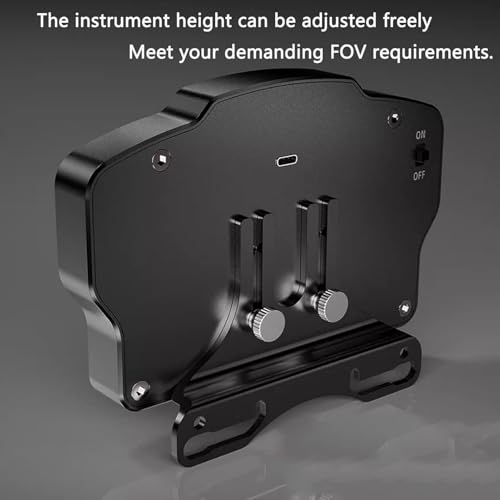

The instrument height can be adjusted freely Meet your demanding FOV requirements
>>Laser marking font,fine,non fading,non fading
>>Electroplated black nickel screws,durable and rust free

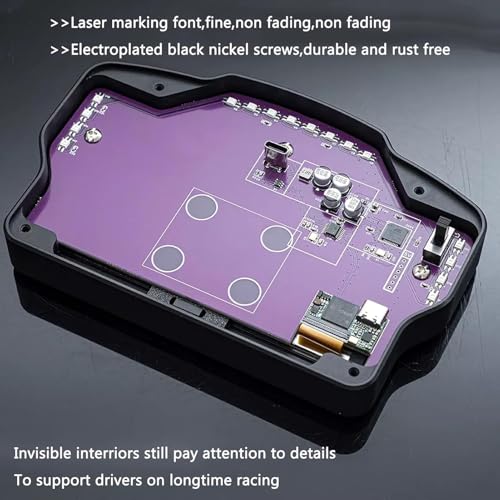

Invisible interriors still pay attention to details
To support drivers on longtime racing

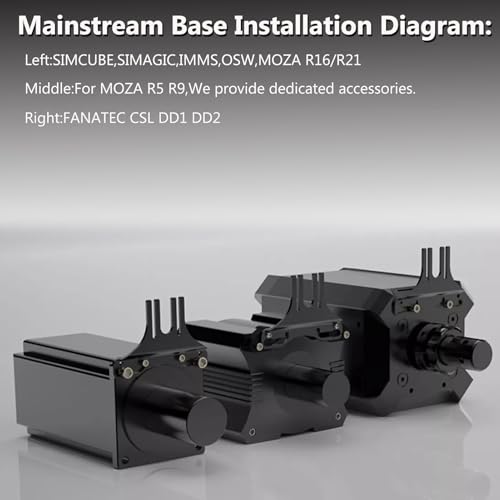

Mainstream Base Installation Diagram:
Left:SIMCUBE,SIMAGIC,IMMS,OSW,MOZA R16/R21
Middle:For MOZA R5 R9,We provide dedicated accessories.
Right:FANATEC CSL DD1 DD2

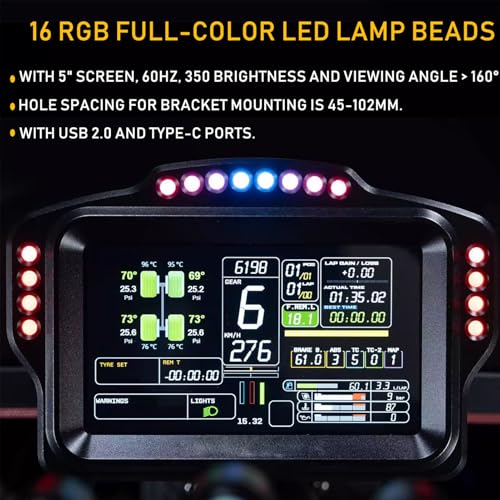

  • 16 RGB indicator lights with soft lighting, customizable for various lighting functions via SIMHUB software.CNC machined 6061 aluminum alloy is anodized black. Electroplated black nickel screws are durable and rust-free. Mountable bases hole spacing for bracket mounting is 45-102mm.Such as:For G27/G29/G920/G923/RS50 ;For T248/T248X/TGT/TS-XW/T300/T300RS/T300 RS;For MOZA R3/R5/R9/R12;For PXN V99/ V10/V12 LITE.

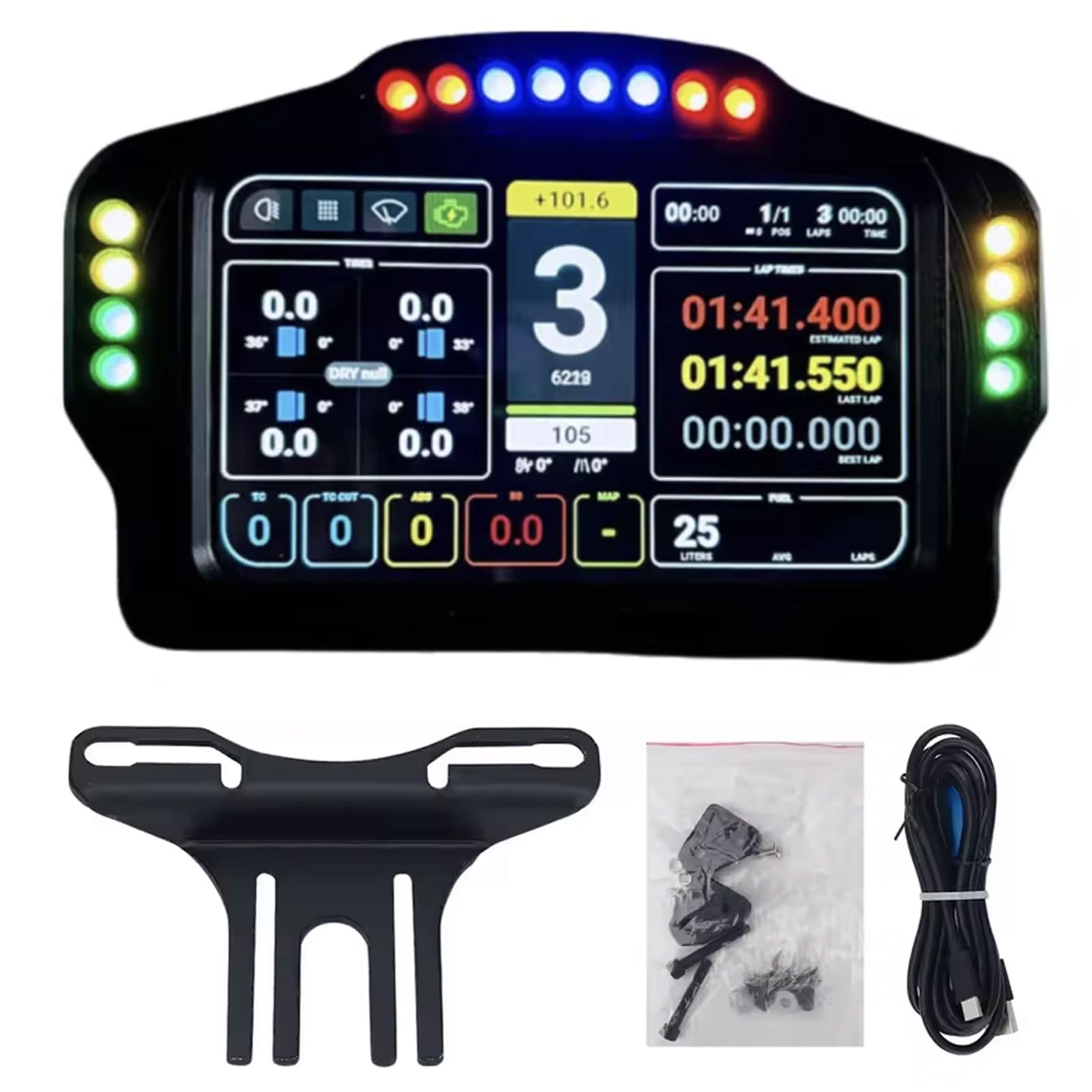

  • DT is a sim racing dash screen. With 5" screen, 60Hz, 350 brightness and viewing angle > 160°. Touchable to switch dashboards.After connecting to the computer,it is necessary to run the simulation racing software SIMHUB in order to display the dashboard on the screen.Exclusive touchscreen display solution allows switching between different on-screen information via touch. With 500 nits brightness and a 60Hz refresh rate, it delivers an enhanced user experience.
  • Considering that most players need to use devices such as button plates but prefer not to purchase additional USB hubs, two extra USB ports are installed at the rear. This allows players to connect devices like button plates conveniently, eliminating the need for a separate USB hub.Although touchscreen functionality is available, two rear buttons have been added to meet various additional needs of players. These buttons can be customized in SIMHUB to assign different functions.
  • With USB 2.0 and type-c ports. When connected to a computer, it does not display the contents of the computer's desktop. It needs to be used with simulator software and does not take up the resources of your computer's graphics card. The dashboard will only be displayed after running the simulator software.
  • A rear switch is included, allowing you to turn off the screen and speed lights while keeping the USB ports fully functional.Simulation racing dashboard with a high-performance Display link DL-3X USB graphics card built-In. After connecting to the computer Becoming the second monitor of a computer.
›
SKU: B0G63H6Q8N
