FiiO DM15 CD Player with 24Bit R2R DAC (Black)
FiiO DM15 CD Player with 24Bit R2R DAC (Black)

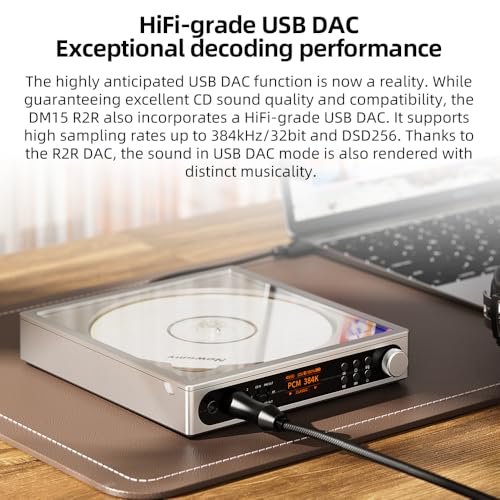

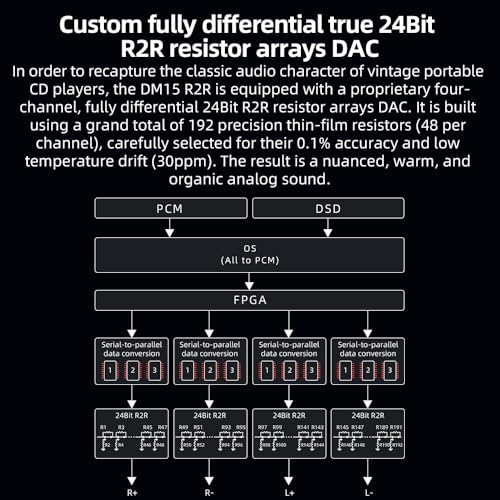

The DM15 R2R represents a breakthrough, combining a smaller footprint with an even stronger feature set. Packed into its portable chassis are five core pillars: the CD Servo, USB DAC, R2R Module, and Bluetooth Module, all managed and coordinated by an MCU (microcontroller unit). Such a thorough “core” evolution elevates the device in every way, surpassing the competition in its product category. In order to recapture the classic audio character of vintage portable CD players, the DM15 R2R is equipped with a proprietary four-channel, fully differential 24Bit R2R resistor arrays DAC. It is built using a grand total of 192 precision thin-film resistors (48 per channel), carefully selected for their 0.1% accuracy and low temperature drift (30ppm). The result is a nuanced, warm, and organic analogue sound. The highly anticipated USB DAC function is now a reality. While guaranteeing excellent CD sound quality and compatibility, the DM15 R2R also incorporates a HiFi-grade USB DAC. It supports high sampling rates up to 384kHz/32bit and DSD256. Thanks to the R2R DAC, the sound in USB DAC mode is also rendered with distinct musicality. Retro meets modern: A dual advancement in both features and experience. Equipped with the Qualcomm QCC3095 Bluetooth chip and Bluetooth 5.4, the DM15 R2R supports standard and high-resolution Bluetooth transmission protocols, including aptX, aptX Adaptive, aptX HD, and SBC. Bluetooth transmission is supported for both CD input and USB input*. A brand-new visual interface makes pairing and connecting Bluetooth devices perfectly clear. With 3 BASS modes and 8 built-in EQ presets, you can combine these for up to 24 dynamic sound presets. There is even a specially tuned RETRO sound preset that delivers a rich, analogue, and classic sound flavour. *Differences may exist in Bluetooth protocols among certain brands. Please ensure you set the required Bluetooth codec on the receiving device before connecting.
- Fully differential true 24Bit R2R resistor arrays DAC

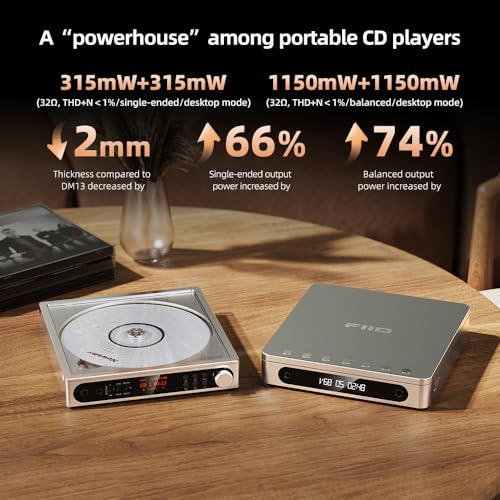

- Powerful 1150mW+1150mW output
- 24 sound presets
- Listen while ripping CDs
- Custom infrared remote control

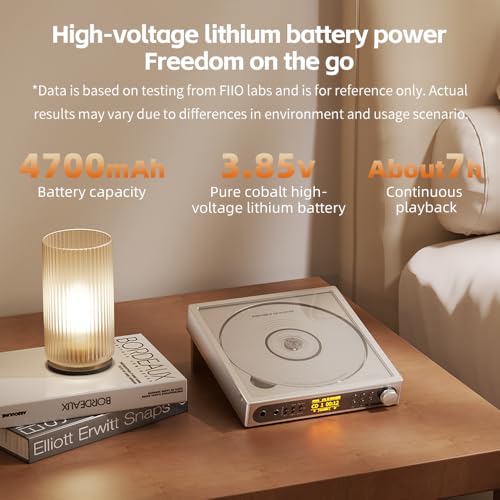

- 7 hours battery life
| SKU: | B0G3T537GX |
| Dimensions: | 13.7 x 14.4 x 2.55 cm; 471.5 g |
| Model: | DM15 |
| Manufacture: | FiiO |
