Godox GM6S Pro Kit 1 DSLR Camera Field Monitor, 5.5 Inch Touch Screen, 2000 Nits 4K HDMI Input/Loop-Through, 3D LUT Import, HD 1920×1080 IPS, Screenshot, On-Camera Monitor with Sunshade Hood
New Screenshot Feature: A new screenshot feature has been added. Capture any frame and create a semi-transparent overlay with the live view for smooth comparison.
Fast heat dissipation and zero noise: The aluminum alloy body offers high thermal conductivity, and its fanless, silent cooling system ensures stable operation even after extended use.
Supports reverse camera control: The built-in camera control module allows direct control of camera parameters such as aperture, shutter, focus, and even menu settings from the monitor.Supports mainstream models from brands such as Sony, Nikon, and Canon.Note: The camera control cable is sold separately.
New anamorphic lens correction features are now available. Supports Auto, 16:9, 4:3, and 1-3x squeeze ratios.
Specifications
Model: GM6S Pro
Display: 5.5-inch IPS High-Brightness Touchscreen
Aspect Ratio: 16:9
Resolution: 1920×1080
Contrast: 1200:1
Color Depth: 8-bit
Viewing Angle: 170°H/170°V
Brightness: 2000nit±10%
Power Input: 10W
Power Supply:
DC input: 7-24V, compatible with a 5.5mm x 2.1mm plug;
DC output: 7.8±0.3V/1.5A, compatible with a 5.5mm x 2.1mm plug;
USB-C: 9V 2A (USB PD);
NP-F battery: compatible with 7.2V F550/F750/F970 lithium battery.
Material: Metal
Video Format:
480l/p@60Hz;576l/p@50Hz;1280x720p@50/60Hz;1920x1080l@50/59.94/60Hz;[email protected]/24/25/29.97/30/50/59.94/60Hz;[email protected]/24/25/29.97/30Hz
[email protected]/24/25/29.97/30Hz
Audio Output: 3.5mm Headphone Dual-Channel Output
SD Card Slot: Supports LUT Import and Firmware Updates via SD Card; cube Files Support 17/32/33/64/65 Cubes
Operating Temperature: -10~40°C
Dimensions: 14.5×8.7×2.7cm
Weight: 286g

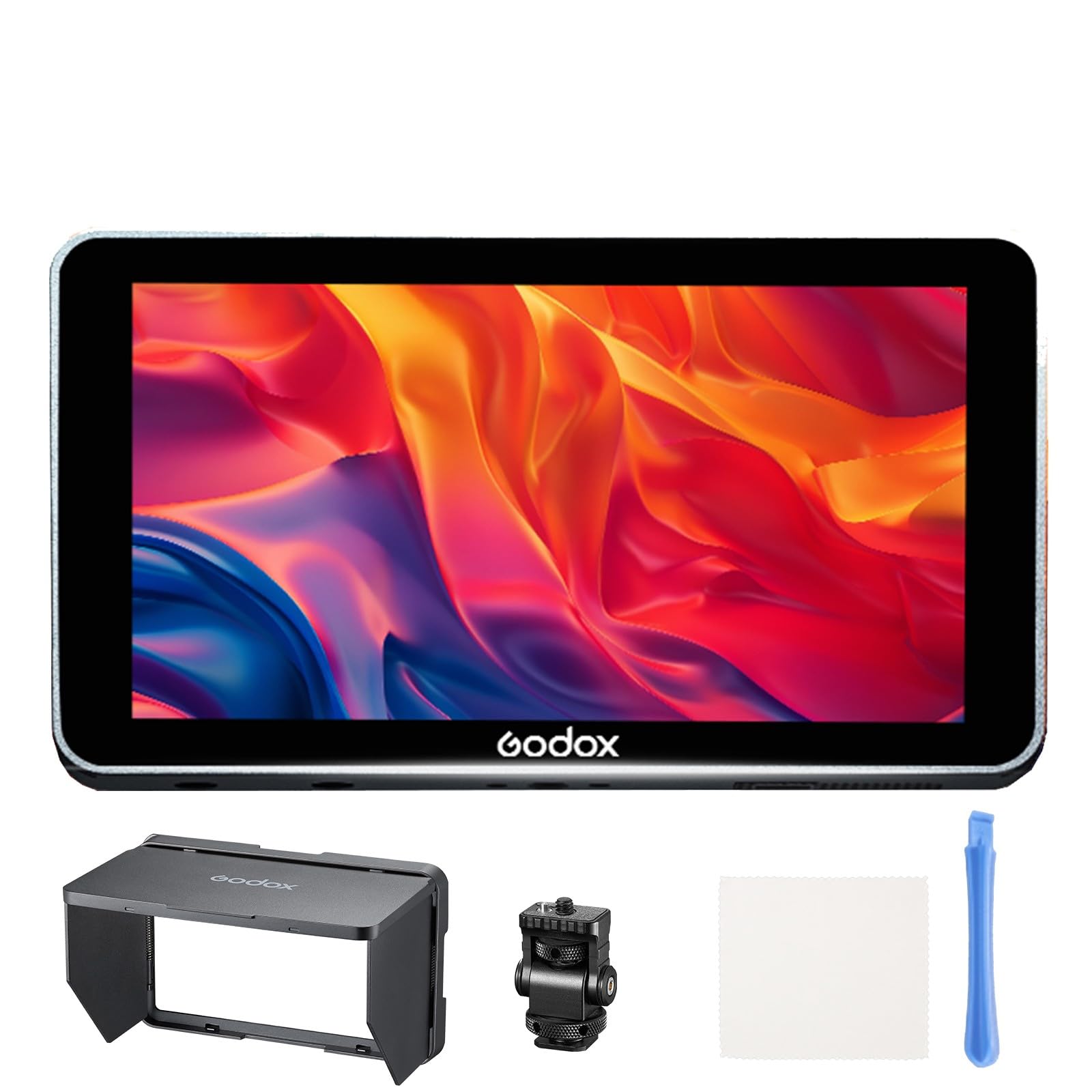

Package Including:
Monitor x1
Lens hood x1
Cold shoe gimbal x1
Cleaning cloth x1
Spudger x1
- True 2000 nits, true brightness: Using imported high-brightness LEDs, the device boasts a peak brightness of 2200 nits and a sustained 2000 nits of brightness. Paired with a large 5.5-inch HD screen, detailed images are visible even in direct sunlight, without obstruction.
- 4K HDMI Input/Loop-through: Lossless HD transmission for smoother monitoring.Supporting 4K HDMI signal input/loop-through and lossless HD transmission, it provides a clear and smooth HD monitoring experience for filmmakers, meeting the demands of professional shoots.
- Touch screen: New UI, just a tap away.Adopting an intelligent UI, over 20 functions are clearly categorized and fully touchscreen-operated.Supports zoom and real-time adjustments to ensure high-quality images.
- 3D LUT Import: Creative styles, switch with one click. Import up to 25 custom LUT files via SD card, instantly loading and previewing different color effects for improved workflow efficiency.
- Rec 709 Film and Television Industrial Color Gamut: Each screen undergoes precise factory calibration to ensure accurate color reproduction. The screen covers 99.9% of the Rec.709 color gamut and boasts a wide 170° viewing angle, ensuring true color reproduction from any angle, meeting the requirements of mainstream film and television production.
- 10W Low Power Consumption, Multiple Power Supply Methods: Imported high-brightness LEDs offer ultra-low power consumption of 10W and excellent light output, enabling exceptionally long battery life and easily handling demanding all-day photography. Power is available via NP-F lithium batteries and DC/USB-C.
- CNC aviation aluminum body: The all-metal CNC aviation aluminum alloy body offers a premium feel and is rugged, drop-resistant, and shock-resistant, making it easy to handle even the most demanding shooting environments. The ultra-lightweight aviation aluminum alloy casing is scratch-resistant, drop-resistant, and wear-resistant, ensuring peace of mind.
