VILTROX 16mm F1.8 L Full Frame Lens for L-Mount, Large Aperture Autofocus Lens with LCD Screen, Wide Angle Prime Lens for Panasonic LUMIX S5 II S1 S9 S1R II, Compatible with LEICA SL2, Sigma FPL BF

Native Wide Angle Full Frame

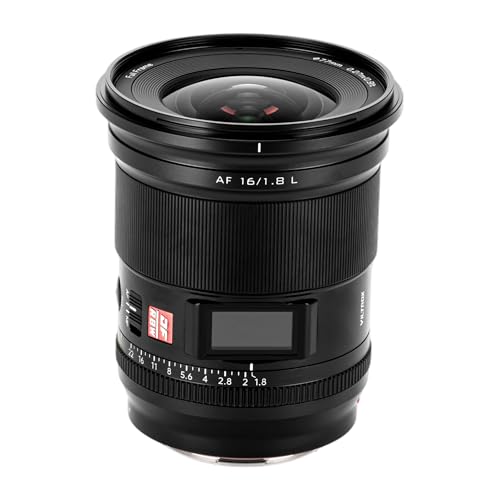

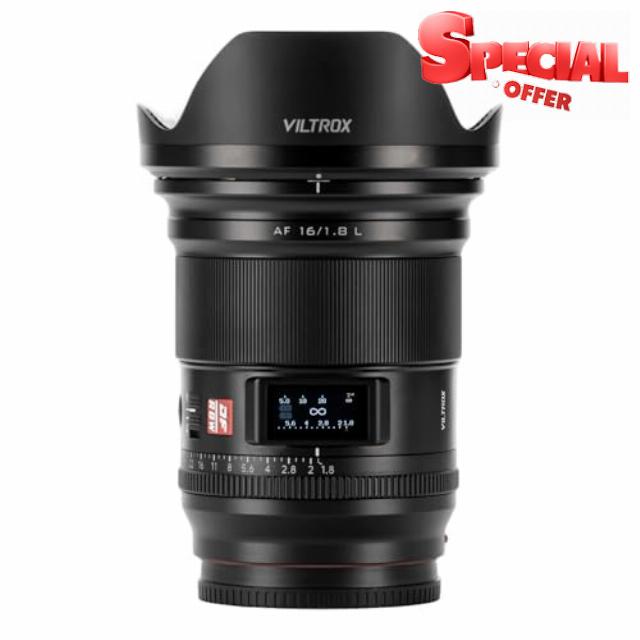

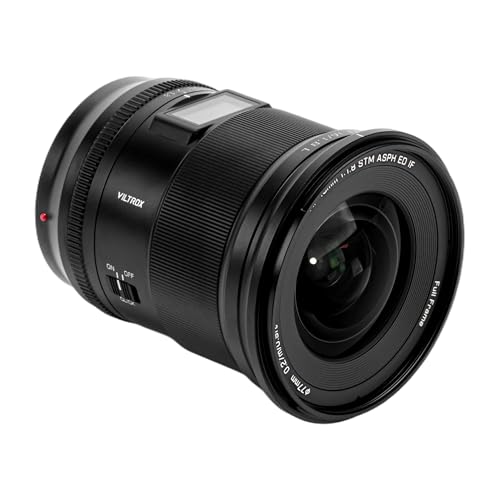

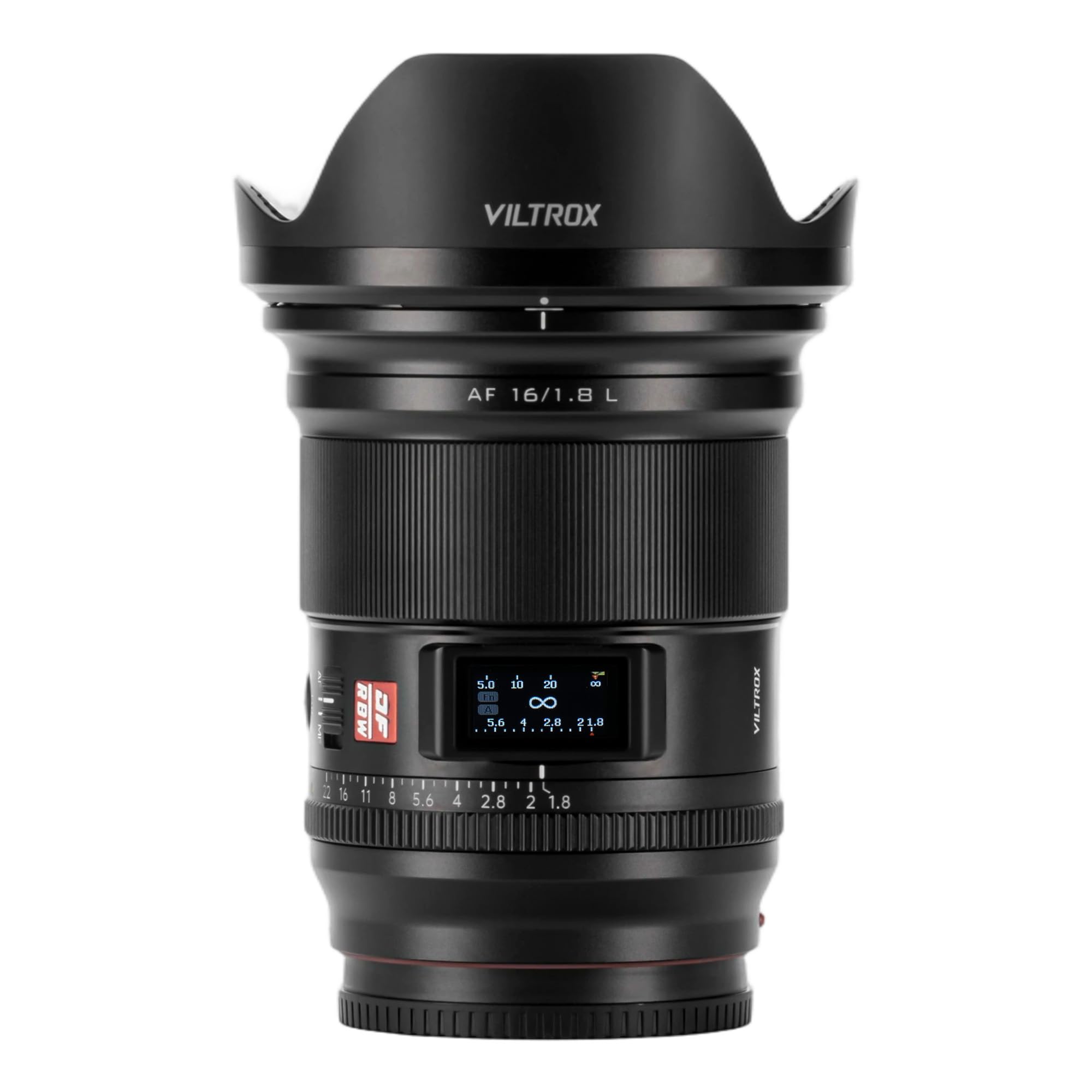

VILTROX 16mm F1.8 L Mount Lens

Engineered for expansive views, this ultra-wide prime lens features a 105.6° field of view and bright F1.8 aperture. It delivers sharp, low-distortion images for professional landscape, architecture, and creative work.

1. VILTROX Official

   Viltrox AF 16mm F1.8 L



   • 3-year waranty
   • Full-time professional support
   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   viltrox 16mm f1.8 L for leica sigma Panasonic

   Merchant video
2. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   for star light sky

   Merchant video

   Master of the Night Sky

   Capture Starry Trails with Precision




   Engineered to excel in low-light conditions, it offers exceptional light intake, significantly reducing image noise while preserving clarity and rich details. This ensures superior image quality, even in the darkest areas.

3. Professional Details

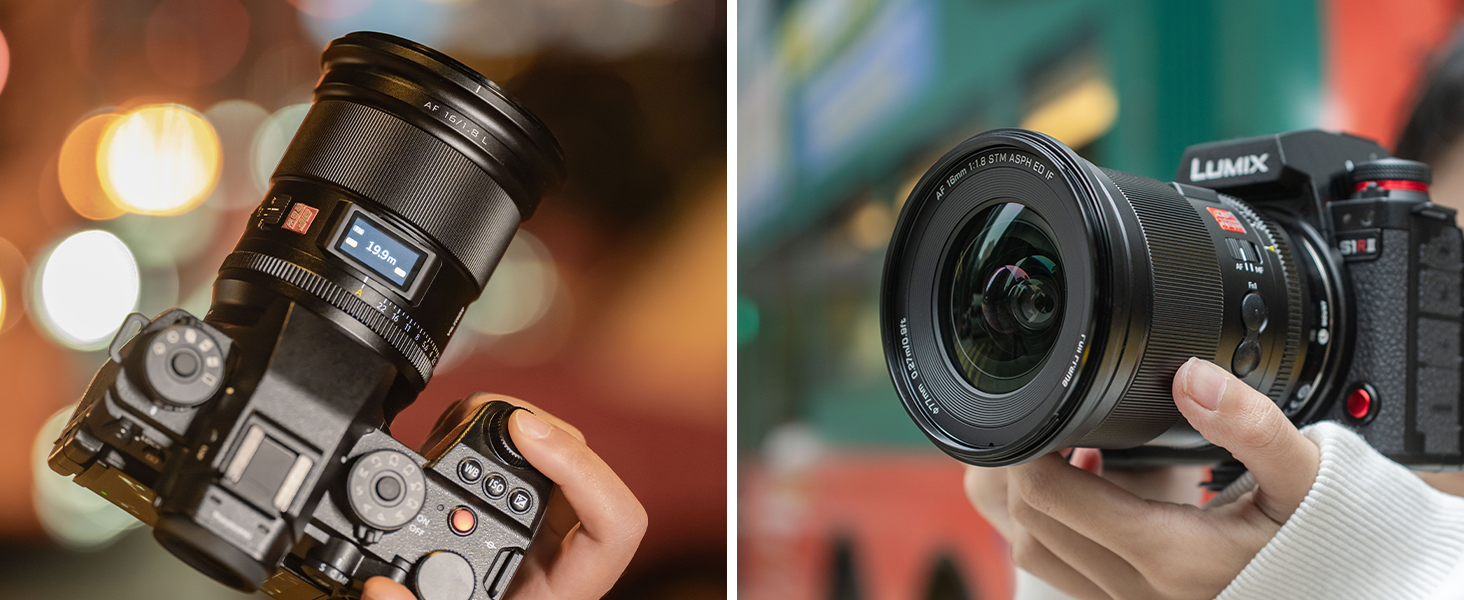

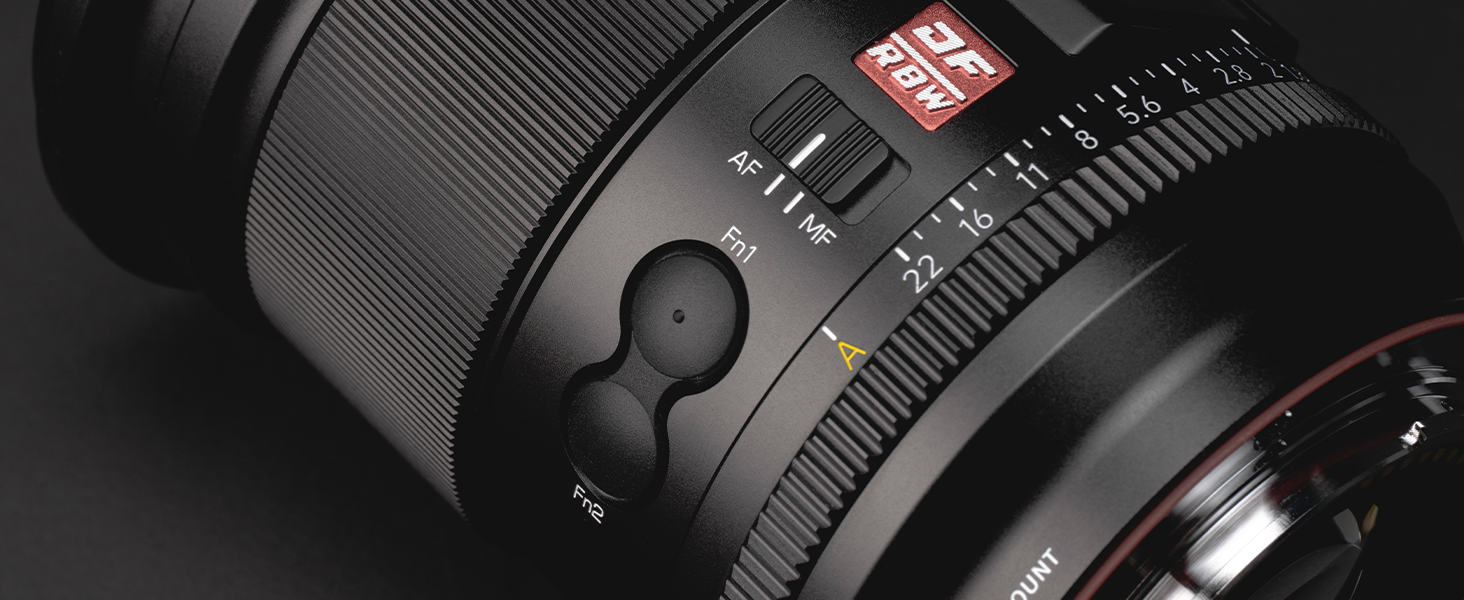

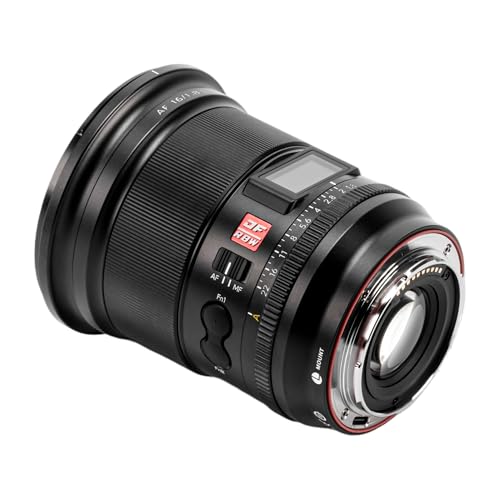

   Intuitive Functional Controls




   Featuring dual FN buttons, a dedicated aperture ring with a CLICK switch, AF/MF Switch and a precise focus ring, it ensures seamless, efficient, and professional operation tailored to meet the needs of discerning users.

   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   FN buttons for l mount

   Merchant video
4. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Cloud Motion Timelapse

   Merchant video

   Exceptional Aberration Control

   Seamless Cloud Motion Timelapse




   Outstanding control over focus breathing and color fidelity ensures smooth, consistent timelapse footage with vibrant, true-to-life colors.

5. High Efficiency and Reliability

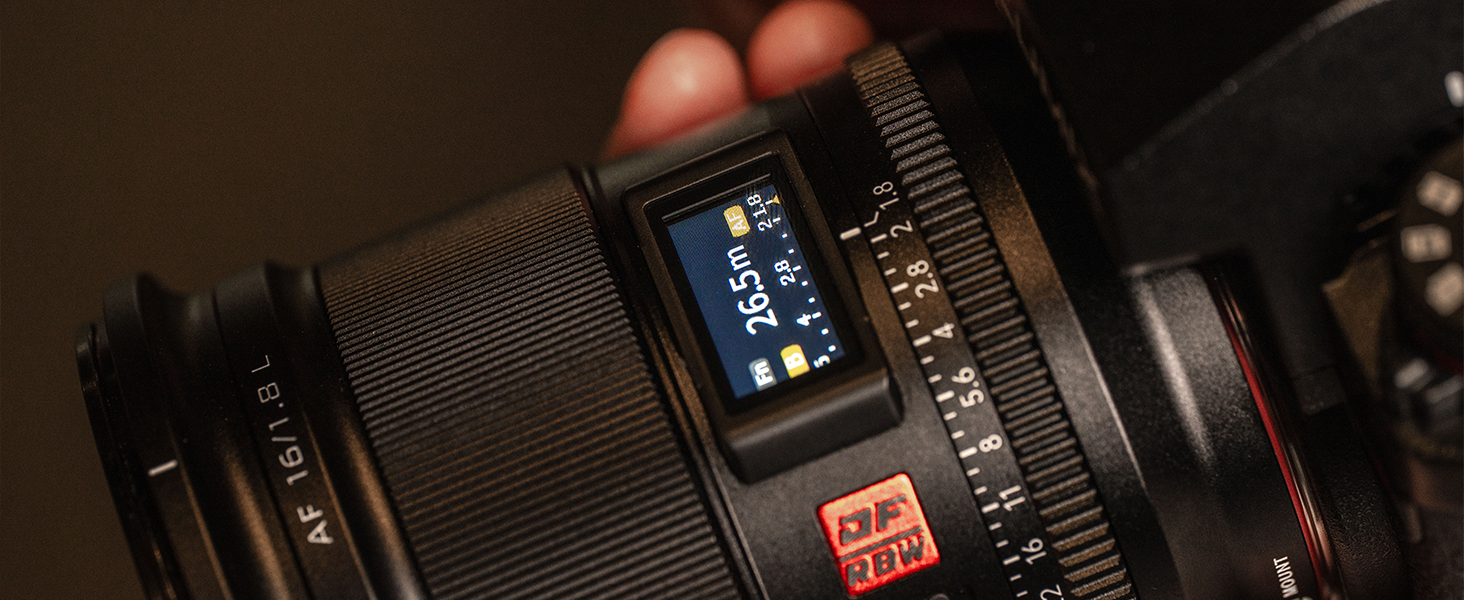

   Real-Time Information Screen




   A built-in real-time information screen displays key parameters, enabling greater focus, enhanced efficiency, and precise control during composition and shooting. Additionally, users can personalize the startup animation through the dedicated app for a customized experience.

   The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

   Real-Time Information Screen

   Merchant video

1 F1.8 Large Aperture 2 Low-light Performance 3 L-mount Native Experience 4 Low Focus Breathing 5 Exceptional Sharpness

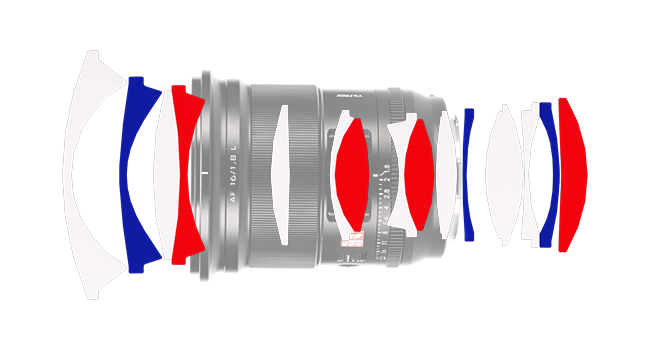

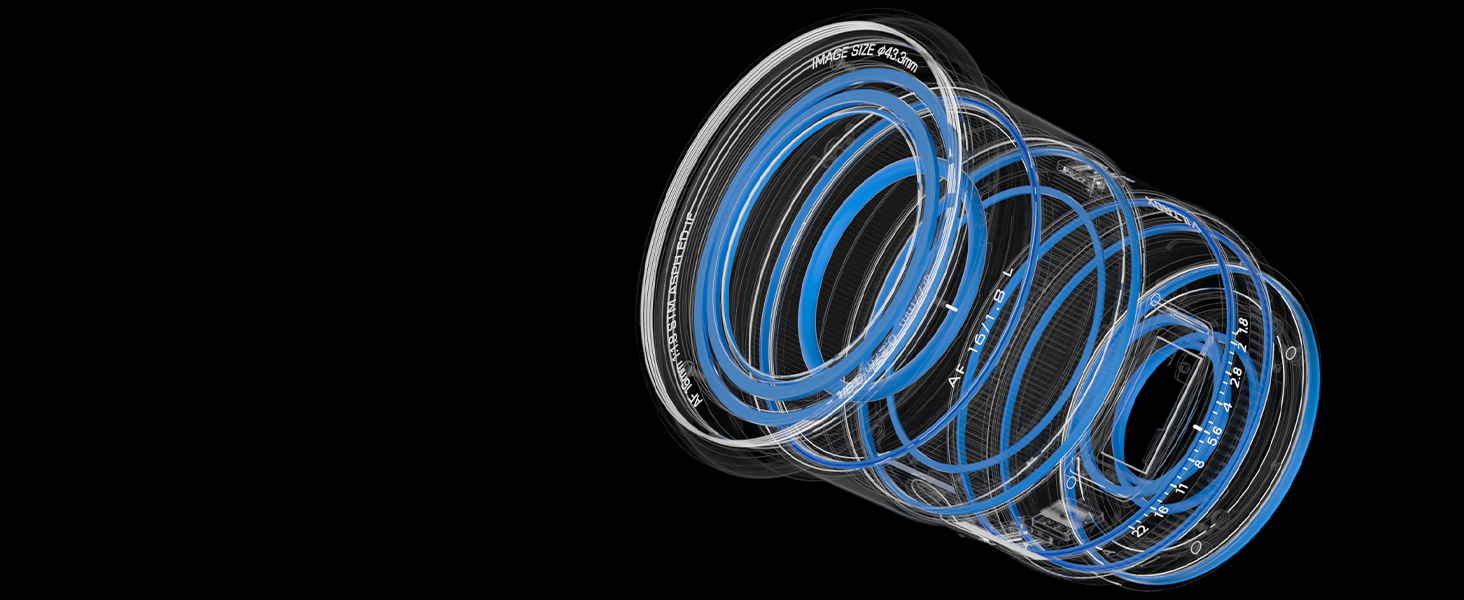

15 elements in 12 groups

Including 4 ED lenses, and 3 aspherical lens.

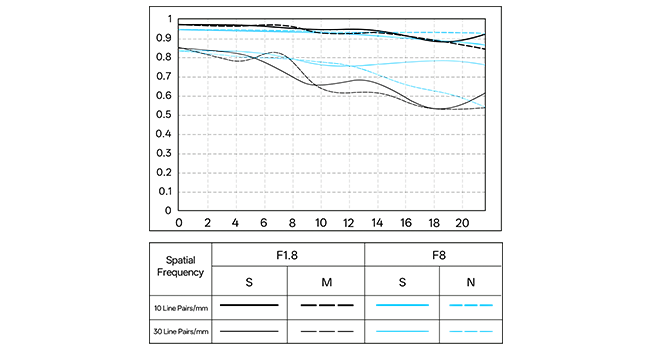

MTF Chart

The MTF chart shows excellent central sharpness with strong contrast and resolution, while edge performance declines slightly, maintaining decent consistency between sagittal and tangential lines.

ltem	AF 16/1.8 L

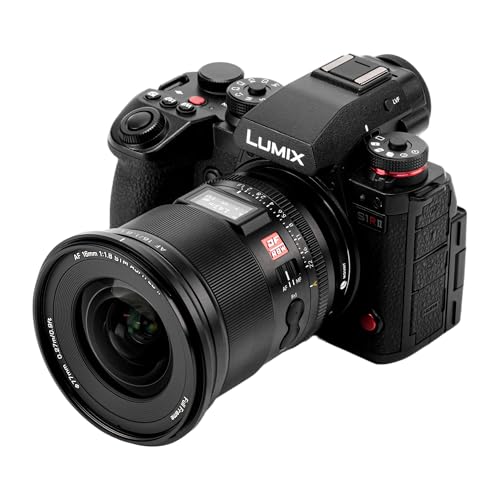

Lens Mount	L-mount
Sensor Format	FF
Lens Elements	15/12
Viewing Angle	105.6°
Number of Aperture Blades	9
Shooting Distance	0.27m-∞

Focus Mechanism	Ultra light internal focusing
Focus Motor	STM+Lead screw
Max.magnification	0.1X
Focus Mode	MF, AF
Weight	≈550g
Filter Size	φ77mm
Lens Size ( Diameter/Length )	85.2mm X 103mm

5. Note: Leica require the memory card to be formatted via the camera body before upgrading.

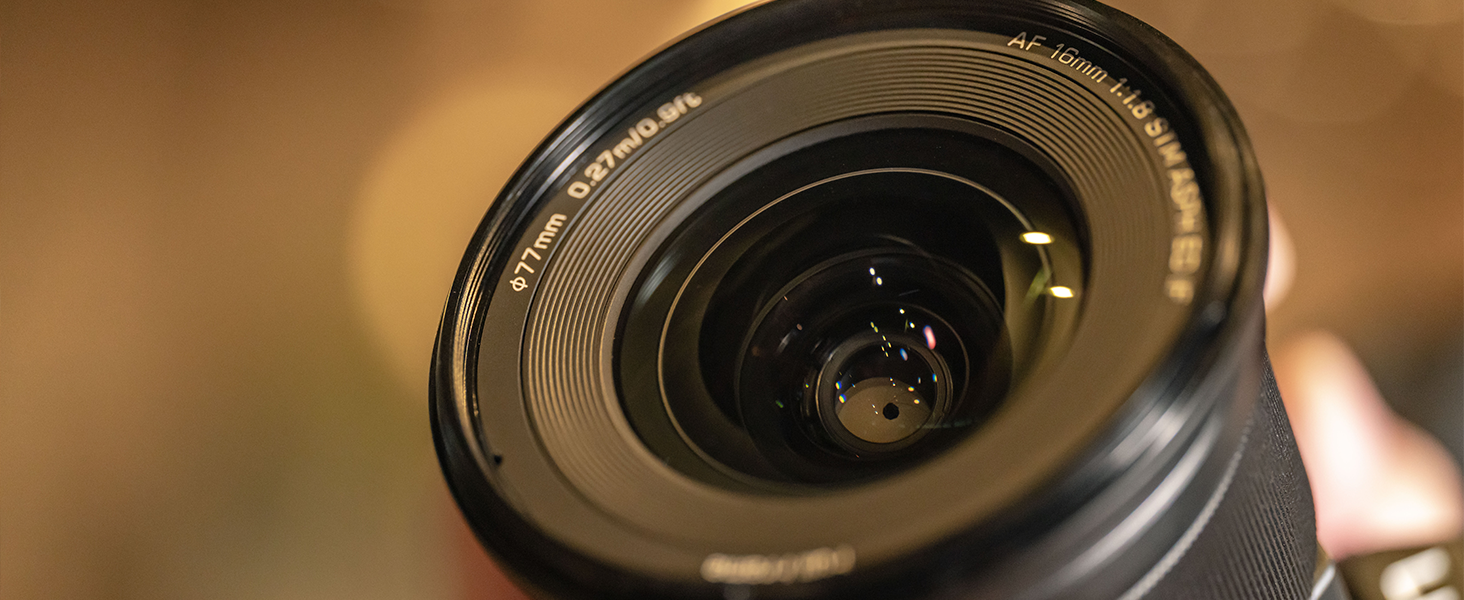

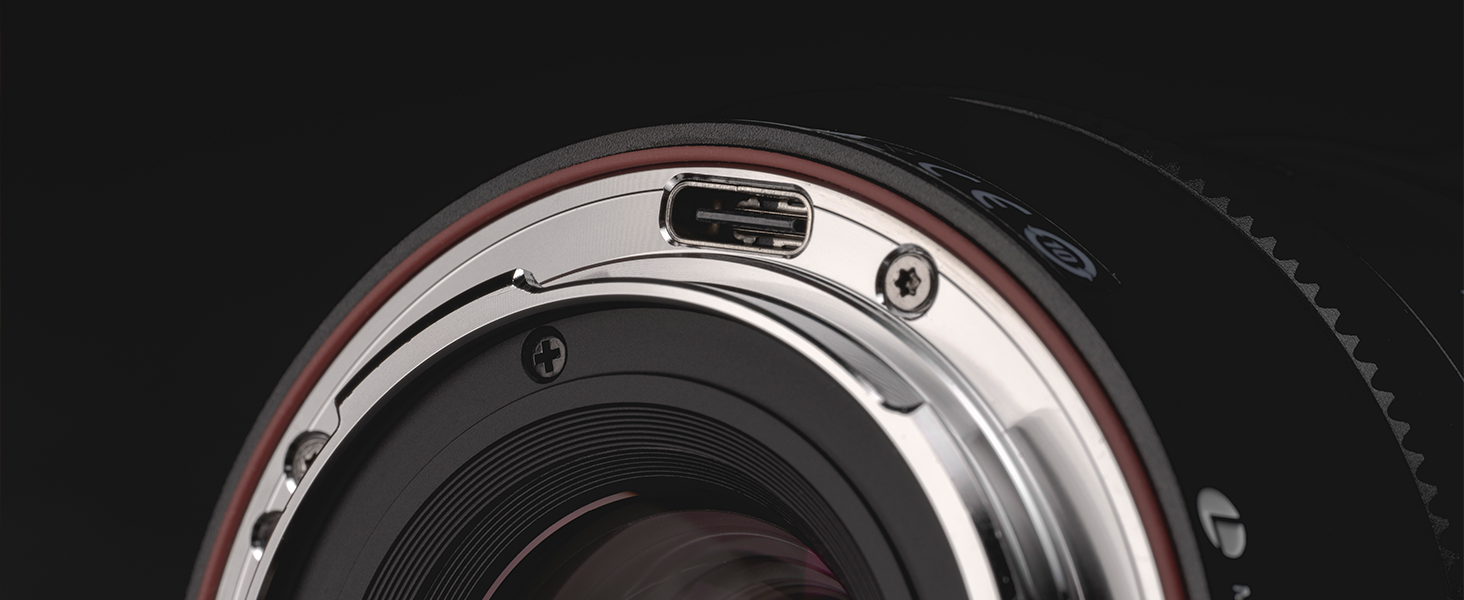

1 77mm Filter 2 LCD Display 3 FN1/FN2 Preset Key 4 Rugged and Durable 5 SD and USB upgrade

Sample Exhibition

• F1.8 Large Aperture for Beautiful Bokeh: Features an F1.8 large aperture, ideal for shooting in dim lighting while creating smooth and natural background blur.
• 12 Groups, 15 Elements Optical Design: Including 4 ED lenses and 3 aspheric lenses, effectively reducing chromatic aberration and distortion for sharp, clear images.
• 0.1x Professional Close-Up: Combines a 0.27m minimum focus distance with 0.1x magnification for close-up capability, capturing fine details in textures and small subjects.
• STM Fast and Accurate Autofocus: Equipped with an STM stepping motor, providing fast, smooth, and nearly silent autofocus—excellent for video and quiet environment photography.
• Professional Control: Features customizable buttons, a CLICK switch, an electronic parameter display, and an aperture ring, enabling quick function settings and real-time information viewing for efficient and flexible shooting control.

›
