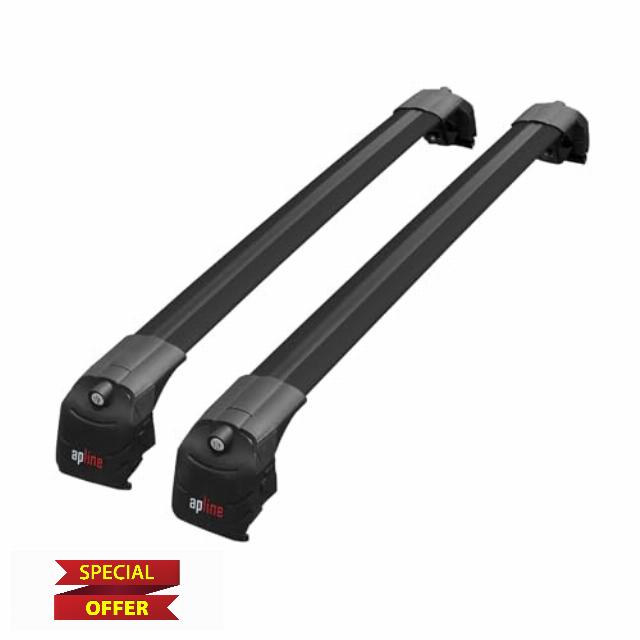

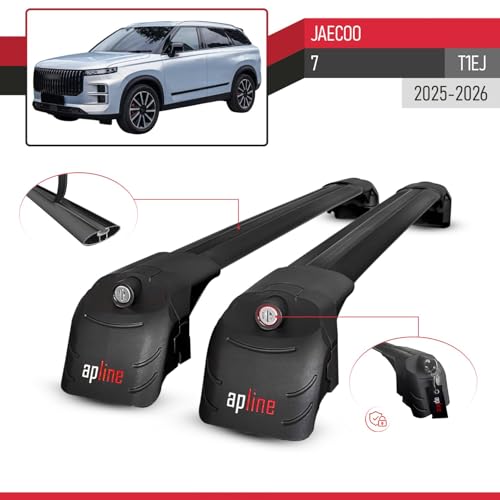

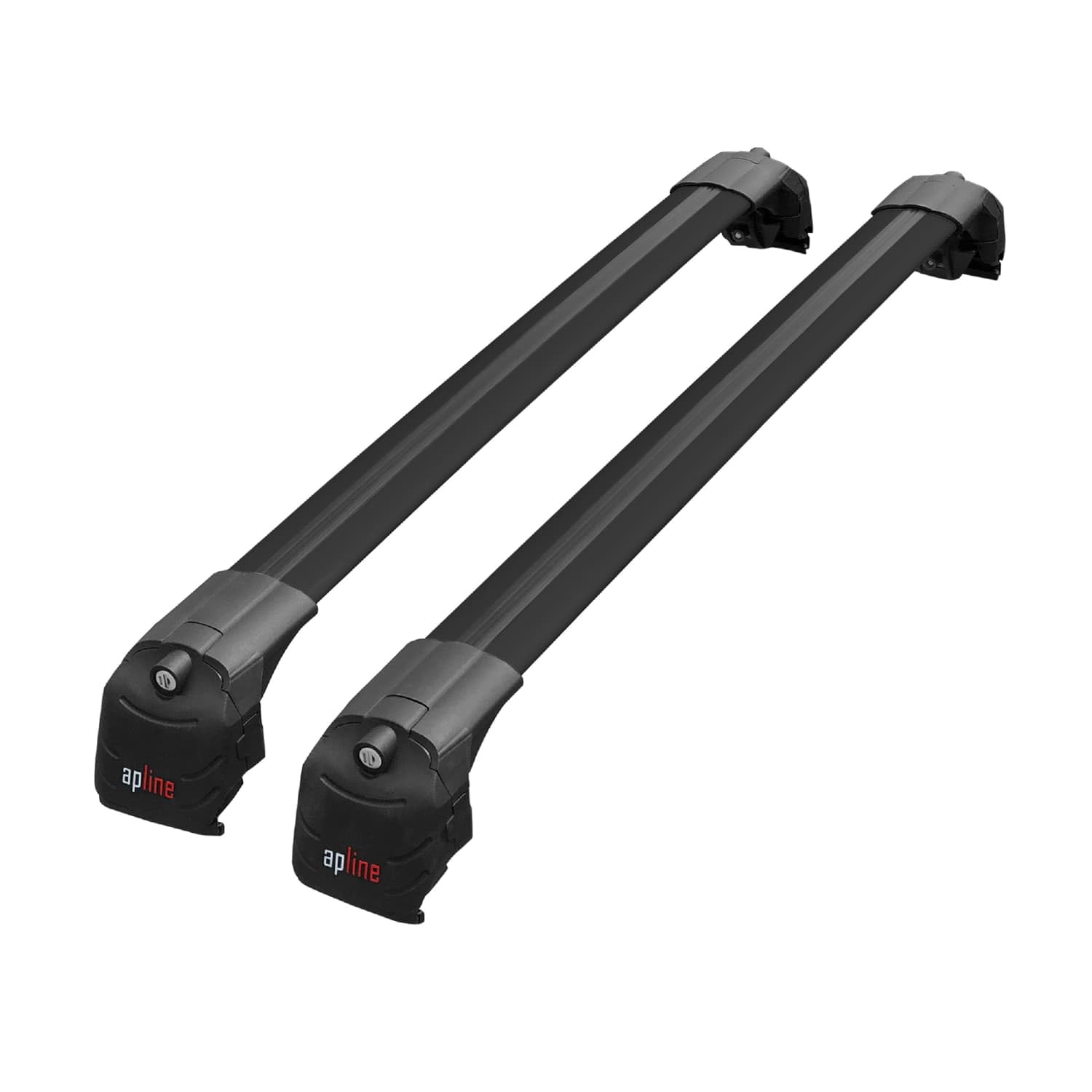

Compatible with JAECOO 7 2025-2026 ACE-2 Car Roof Rack Cross Bar Black Aluminium 2 Bars

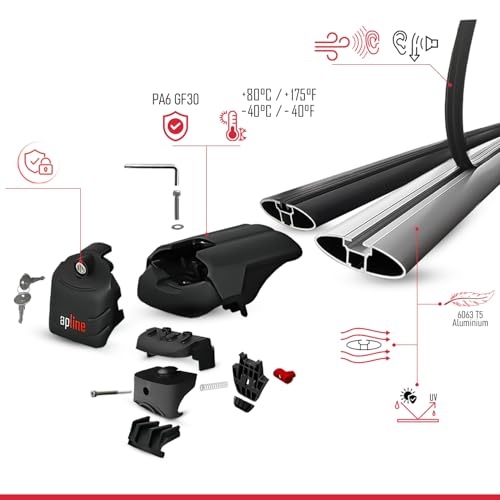

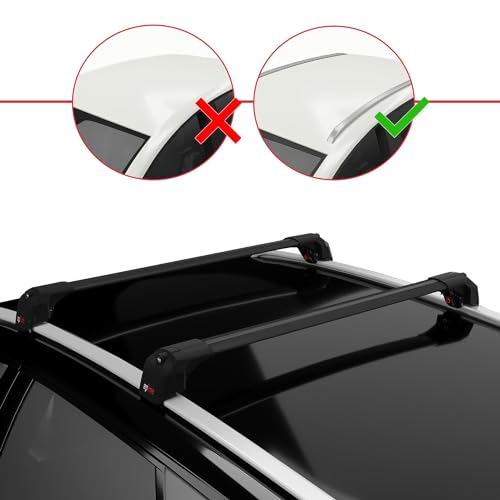

ACE-2 Model Roof Rack Developed with a modern and aesthetic design approach, the ACE-2 Model Cross Bars are a vehicle-specific roof rack carrying system designed for vehicles equipped with notched roof rails. The system is engineered to provide a balanced, robust, and long-lasting load-carrying solution, enhancing your vehicle’s transport capacity while maintaining structural stability. This product cannot be used on vehicles without roof rails. For vehicles without roof rails, alternative ACE series cross bar models are available. The adaptive mounting bracket of the ACE-2 is designed to conform to the position and angle of the roof rail on the vehicle, helping to distribute the load more evenly across the mounting points. This structure supports driving stability and contributes to reducing the impact of road-induced vibrations. The system combines high corrosion-resistant aluminum bars with UV-resistant PA6 GF30 connection components, selected to ensure reliable and long-term use under various climate conditions. Elastomer seals located on the surface of the bars create an interface between the load and the bar, helping to reduce the effects of sudden load movements and limiting unwanted noise caused by friction. The aluminum bars feature a channel structure compatible with T-Bolt mounting elements. The maximum dimensions compatible with the T-Bolt are: a channel width of 20 mm, a channel height of 4 mm, and an M8 bolt. Additionally, aluminum bars with dimensions of 75 mm with and 22 mm height are compatible with U-Type mounting bolts. If U-Type mounting is used, it is recommended to verify that the accessories are compatible with these dimensions. Before purchasing, please ensure that the vehicle brand–model–year information specified in the product title and images exactly matches your vehicle. Each product is manufactured in vehicle-specific dimensions according to brand, model, and year. Compatibility of accessories from different brands or manufacturers may vary; therefore, checking technical measurements is recommended. Regardless of brand, it is recommended to remove roof load carrying systems when no load is being transported. Continuous installation increases aerodynamic drag, which may lead to higher fuel consumption and increased wind noise. The roof dimensions of some vehicles decrease from front to rear. Therefore, the long bar should be attached to the front and the short bar to the rear. In some vehicles, the front and rear dimensions may be equal. Areas of Use Camping & Outdoor: Provides suitable infrastructure for rooftop tent use with loads up to 150 kg (330 lbs) when the vehicle is parked. Sports & Hobbies: Can be used with many standard accessories such as bicycle carriers, canoe holders, and ski racks. Family Use: Creates additional luggage space through roof box installation. Box Contents Aluminum bars Mounting kit

• VEHICLE-SPECIFIC PRODUCTION The ACE-2 Model Cross Bars are manufactured in vehicle-specific dimensions based on brand–model–year for vehicles with notched roof rails. Not a universal product.
• ADAPTIVE MOVING MOUNTING BRACKET The mounting structure is designed to adapt to the angle of the roof rail, providing balanced installation support with approximately 5° horizontal and 3° vertical movement tolerance.

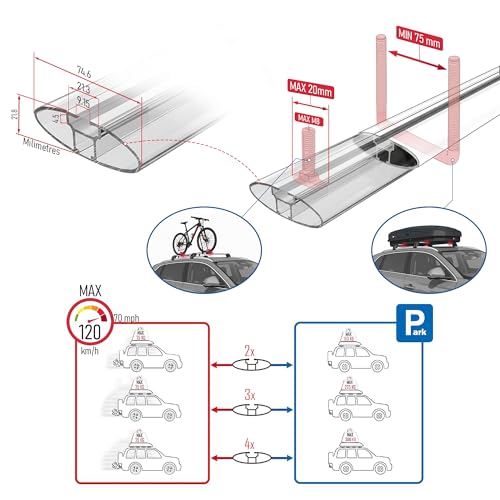

• 75 KG DRIVING / 150 KG PARKED LOAD SUPPORT Suitable for loads up to 75 kg (165 lbs) while driving within manufacturer and legal limits, and provides appropriate infrastructure for up to 150 kg (330 lbs) when the vehicle is parked.
• WIDE ACCESSORY COMPATIBILITY Compatible with accessories using T-Bolt systems or U-Type mounting bolts with a minimum width of 75 mm.

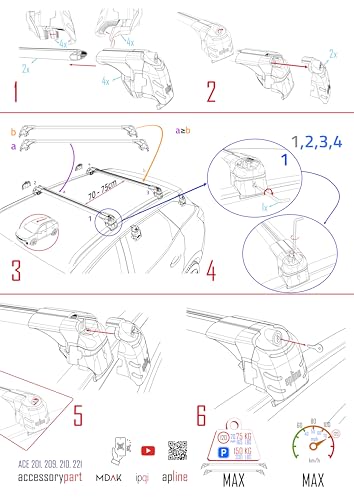

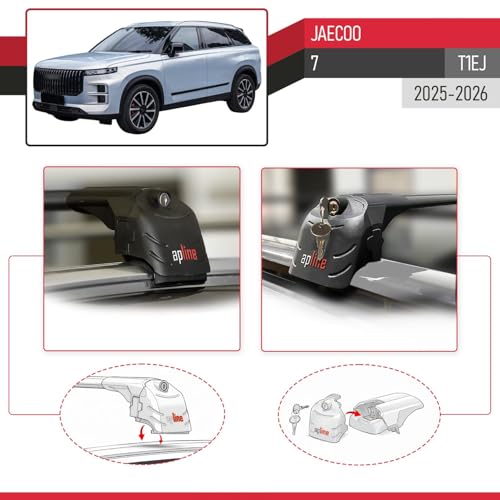

• LOCKABLE & EASY INSTALLATION Equipped with a deterrent locking mechanism against unauthorized removal. Installation can be completed within 15–25 minutes without professional assistance using vehicle-specific mounting kits.
