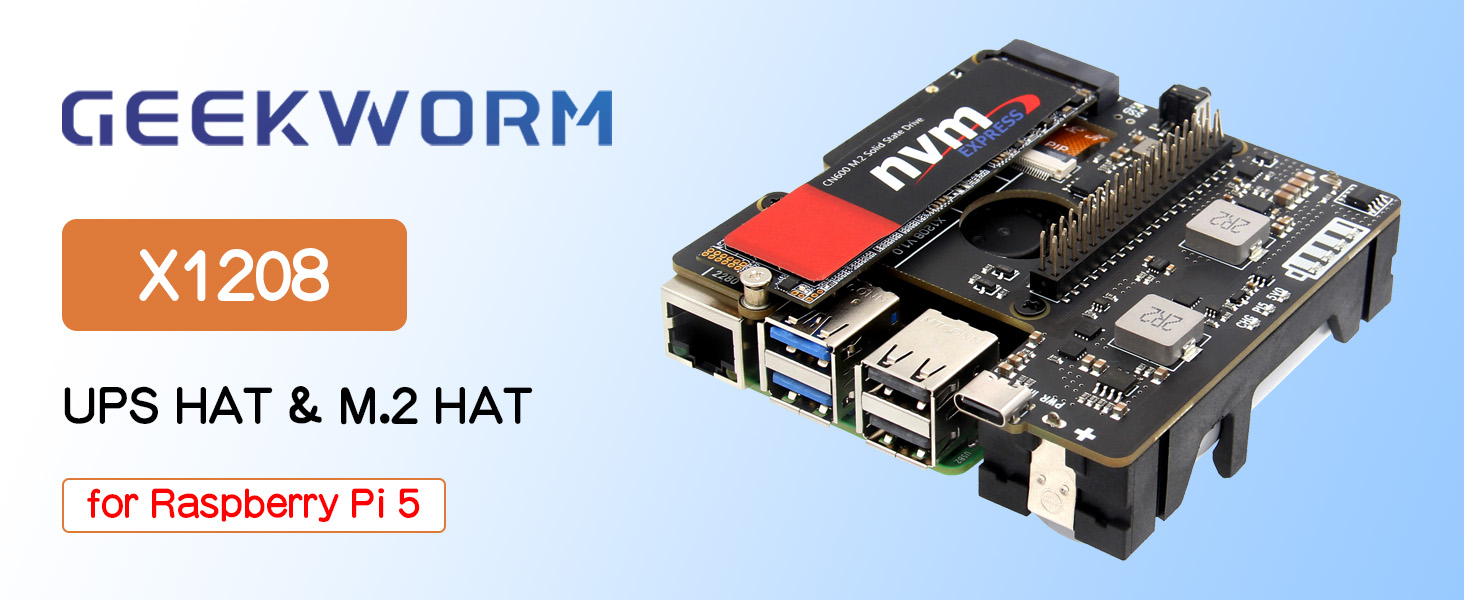

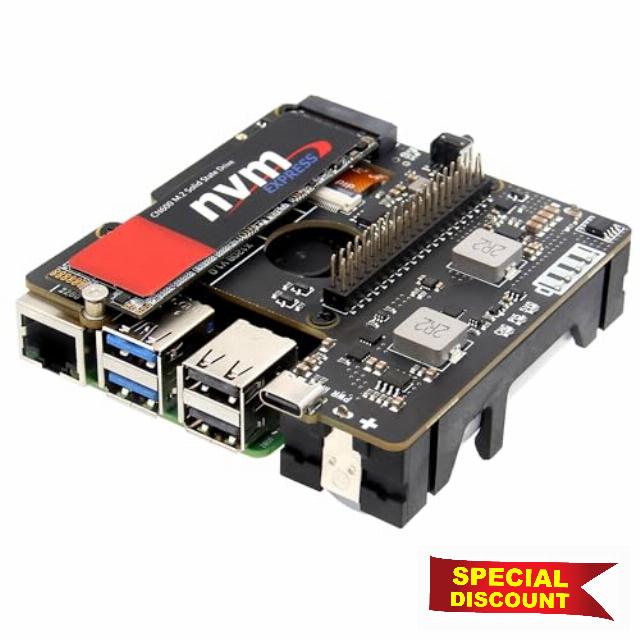

Geekworm X1208 UPS for Raspberry Pi 5 with NVMe SSD

Geekworm X1208 UPS for Raspberry Pi 5 with NVMe SSD (2280/2242/2230) Expansion | 5.1V/5A Output | Power Supply via GPIO | Auto Start & Safe Shutdow

Geekworm X1208 UPS for Raspberry Pi 5 with NVMe SSD (2280/2242/2230) Expansion | 5.1V/5A Output | Power Supply via GPIO | Auto Start & Safe Shutdow

Other Geekworm UPS Shield Series:

Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket
Customer Reviews——5.0 out of 5 stars33.8 out of 5 stars393.9 out of 5 stars94.8 out of 5 stars18
Price£55.00£55.00£60.00£60.00£50.00£50.00£54.99£54.99£49.99£49.99£47.99£47.99
Compatible withRaspberry Pi 5Raspberry Pi 5Raspberry Pi 5Raspberry Pi 5Raspberry Pi 5Raspberry Pi 5
Positionon the top of Pi 5on the top of Pi 5on the Bottom of Pi 5on the Bottom of Pi 5on the Bottom of Pi 5on the Bottom of Pi 5
Battery Holder NO.1-Cell 217001-Cell 217002-Cell 217004-Cell 186502-Cell 186502-Cell 18650

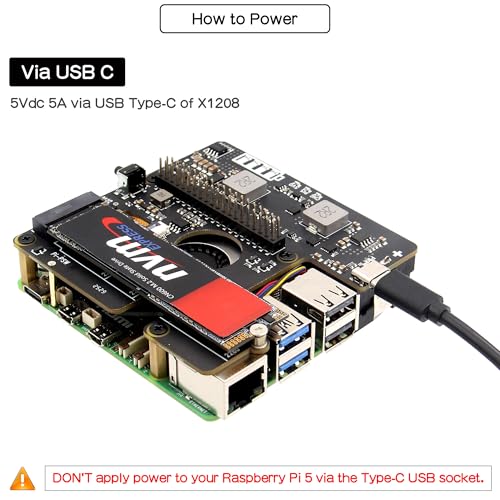

How to Power (Optional-1)5Vdc 5A via USB-C of X12085Vdc 5A via USB-C of X12075Vdc 5A via USB-C of X12055Vdc 5A via USB-C of X12025Vdc 5A via USB-C of X12015Vdc 5A via USB-C of X1200
How to Power (Optional-2)—35-57Vdc via PoE (802.3af/at)9-18Vdc≥3A via DC5521 of X12056-18Vdc≥3A via DC5521 of X12025Vdc ≥3A via XH2.54 of X1201—
How to Power (Optional-3)——9-18Vdc via XH2.54 of X12056-18Vdc≥3A via XH2.54 of X1202——
Matching Case (NOT included)X1207-C1(B0G7TM8Q96)X1207-C1(B0G7TM8Q96)X1205-C1(B0F2HQ61YM)X1202-C1(B0D4ZBXGSH)X1201-C1(B0D4Z92TBB)X1200-C1(B0D4Z7NDNP)
Support NVMe SSD(NOT included)×√ NVMe SSD 2280/2242/2230××××

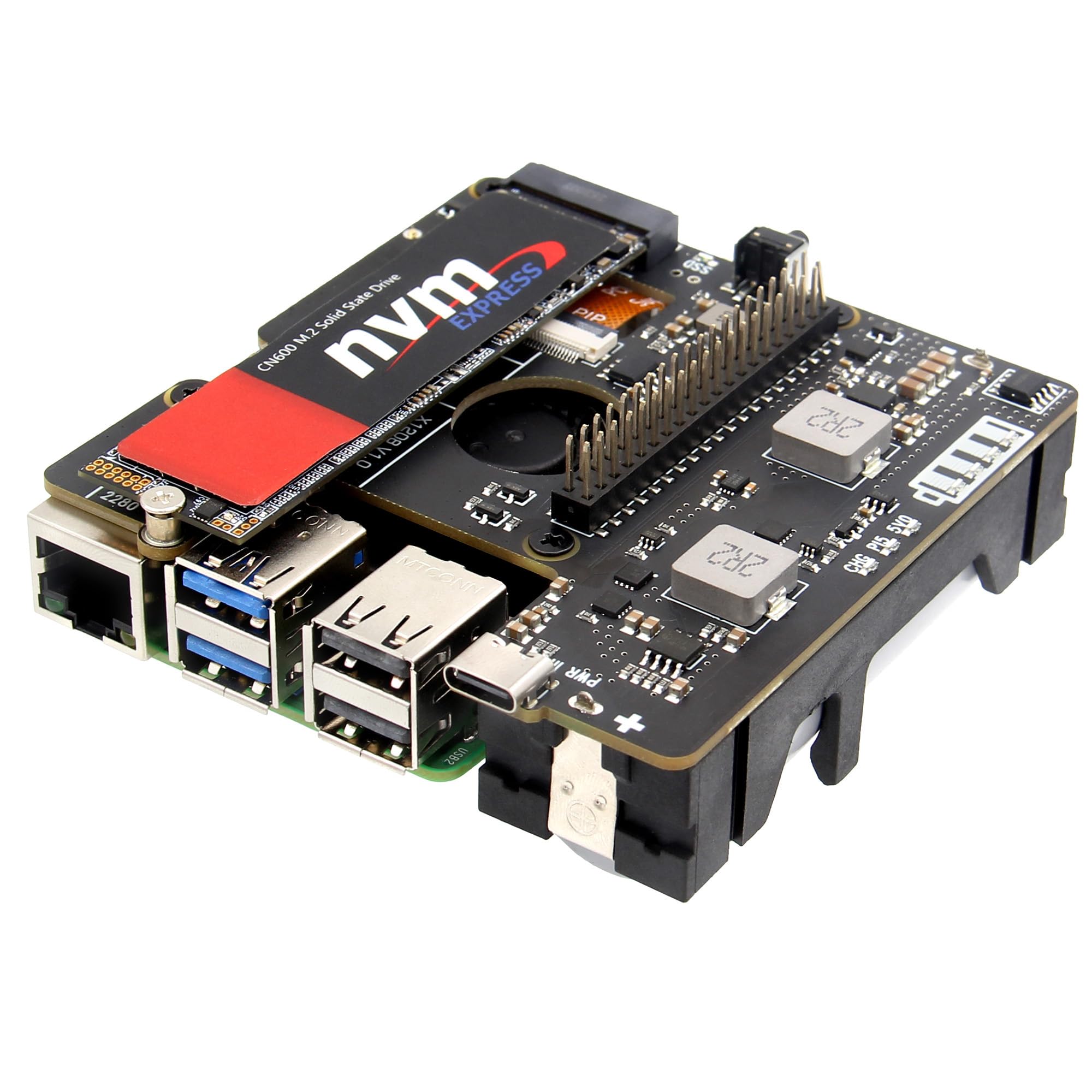

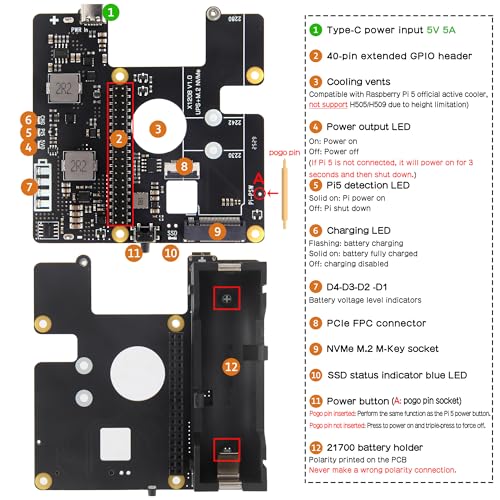

  • Power and Data Protection: Combines uninterruptible power supply (UPS) and M.2 NVMe SSD slot into a single shield for the Raspberry Pi 5. Protect your projects from power outages and ensure reliable data storage
  • Stable high performance output: Delivers a stable backup power supply of 5.1V/5A directly via the 40-pin GPIO header. Supports demanding applications and multiple peripherals without additional cables or soldering

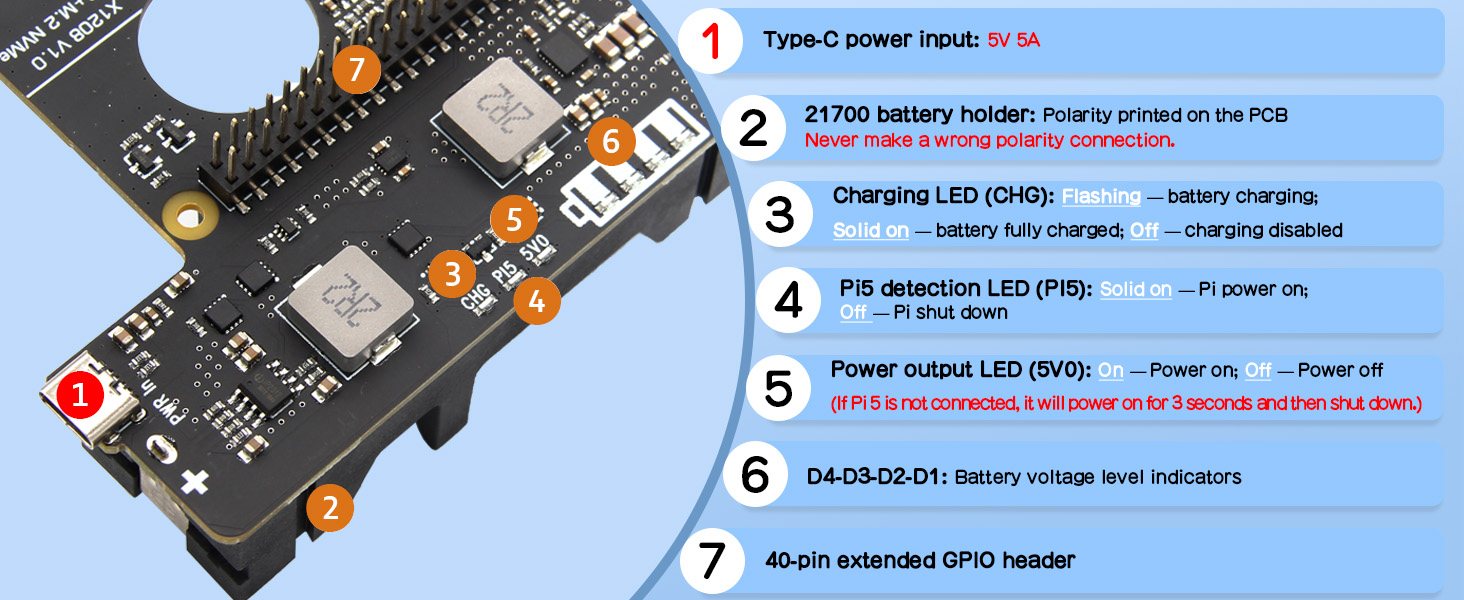

  • Advanced Power Management Features intelligent system monitoring that automatically shuts off power after the Pi shuts down to maximize battery life. Includes ultra-low standby consumption, automatic power on, detection of mains power outages and programmable safe shutdown

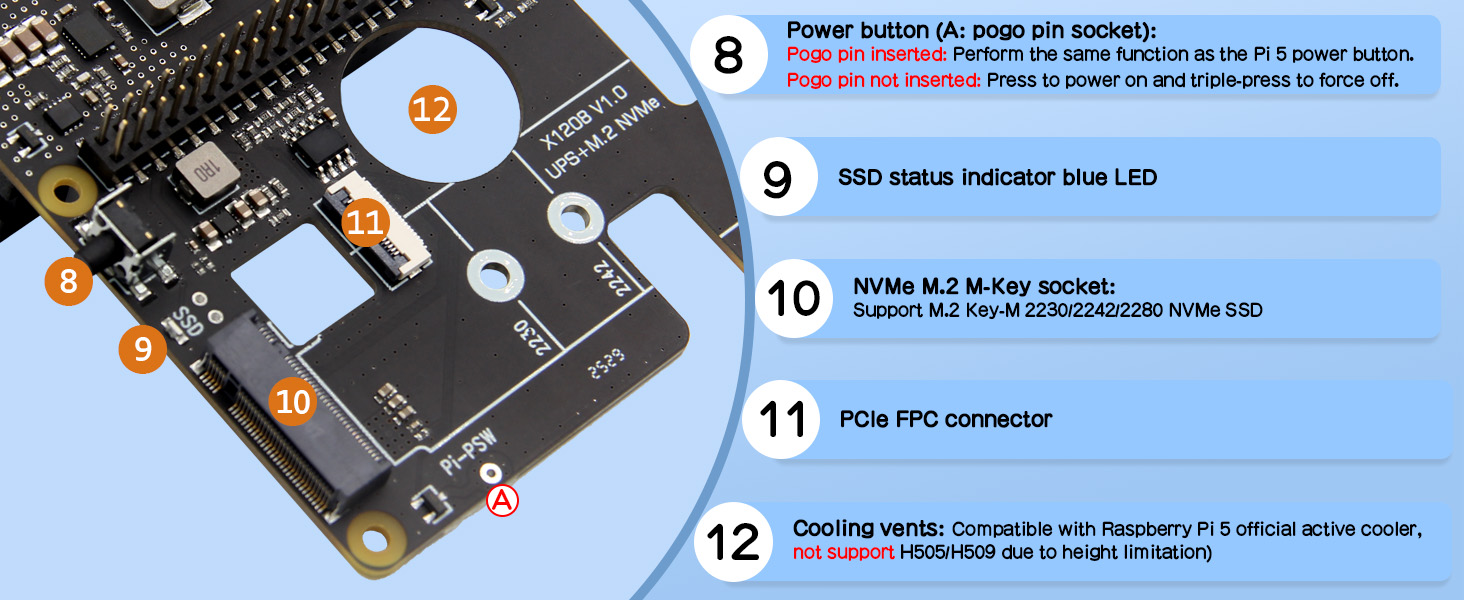

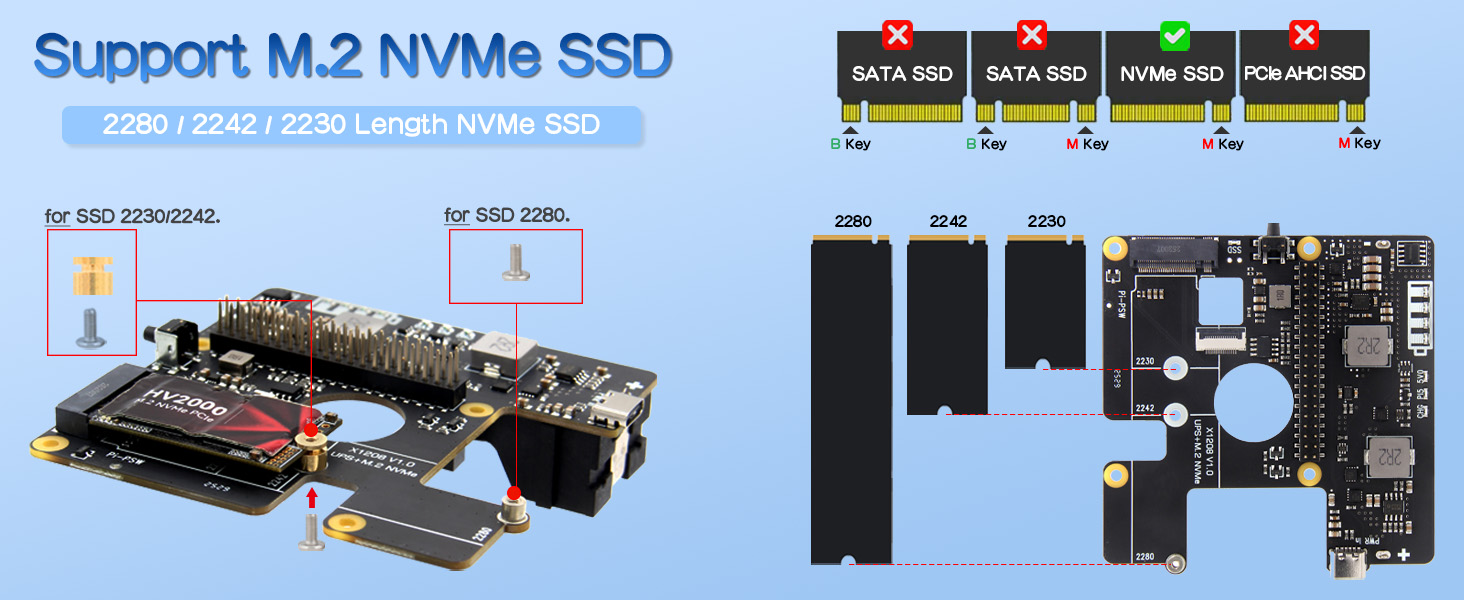

  • High Speed NVMe Storage Expansion Support booting and adding a high-speed M.2 NVMe SSD (2280/2242/2230) up to 4TB capacity. PCIe 2.0/3.0 support ensures fast data transfer without blocking the official Active Cooler

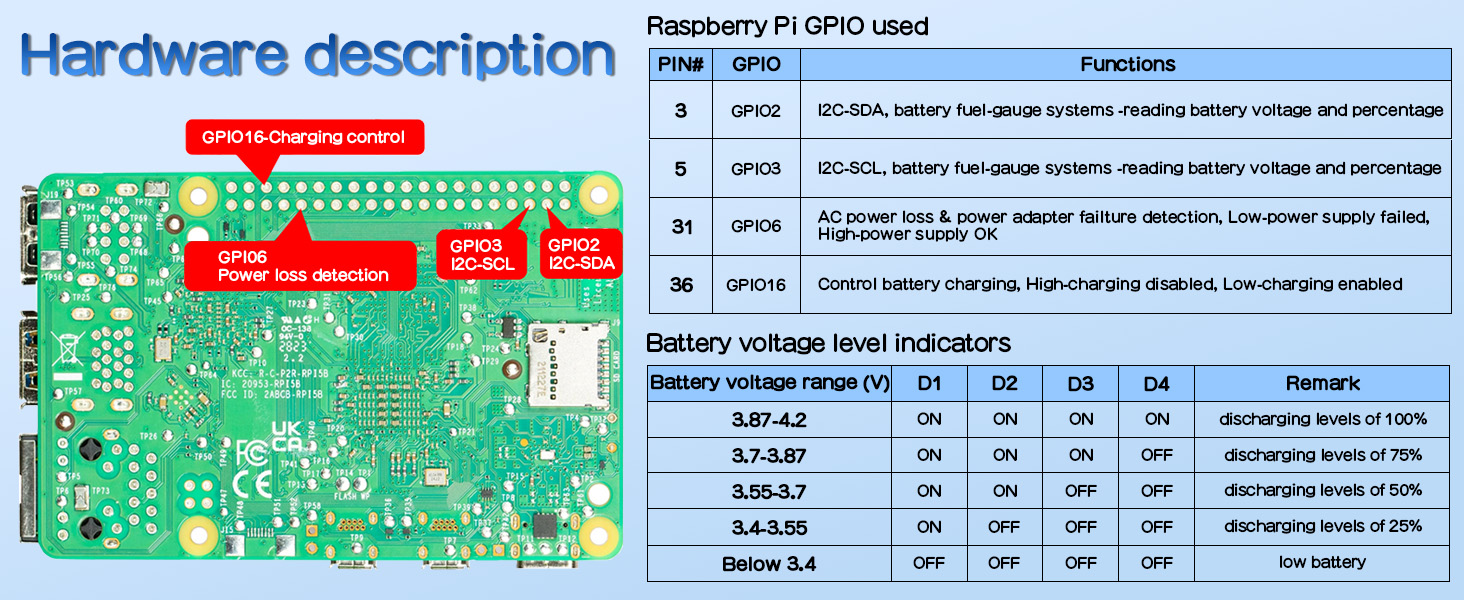

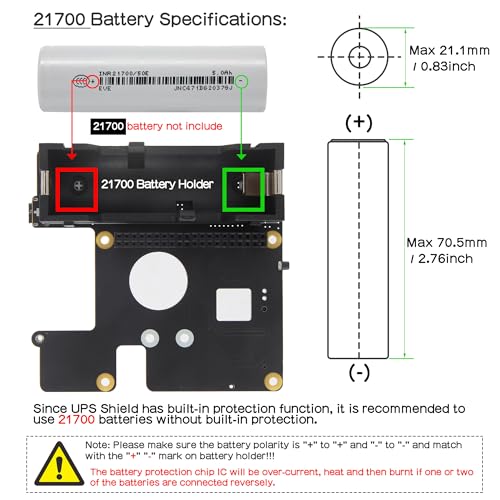

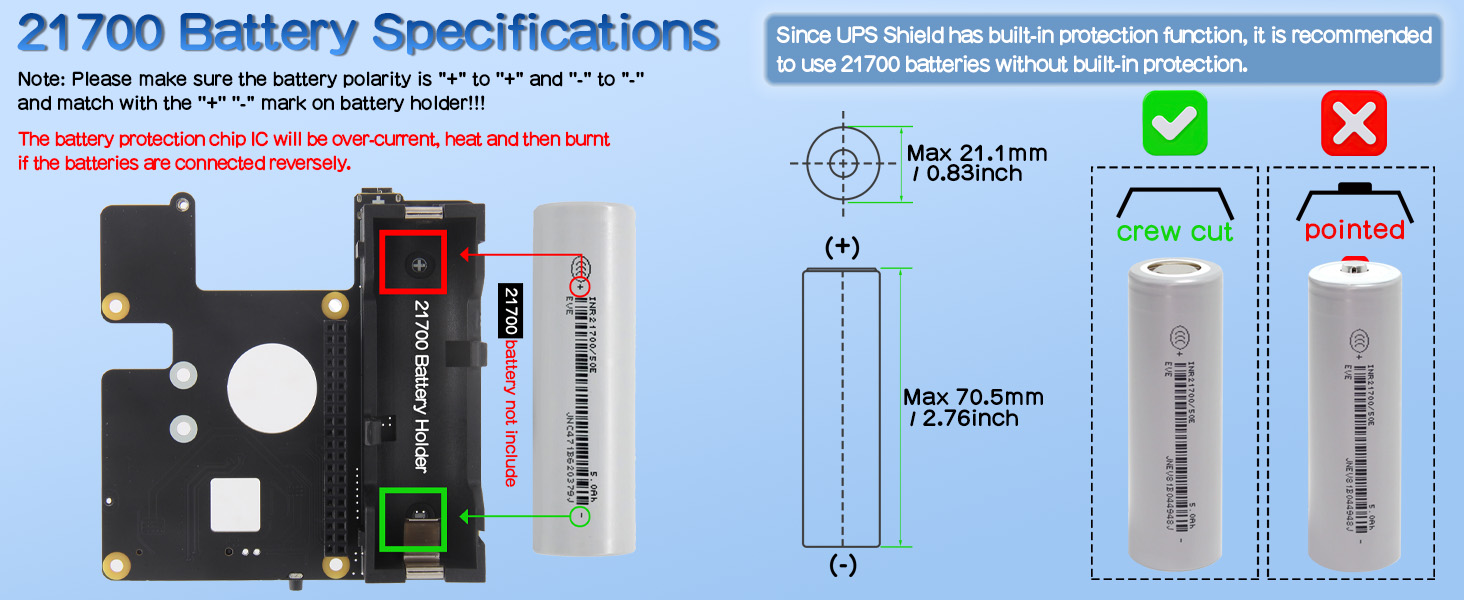

  • Professional quality design: includes a 21700 battery holder (up to 5000mAh), 1.5A charging with full protection, fuel volume monitoring via I2C, status LEDs and seamless power switching

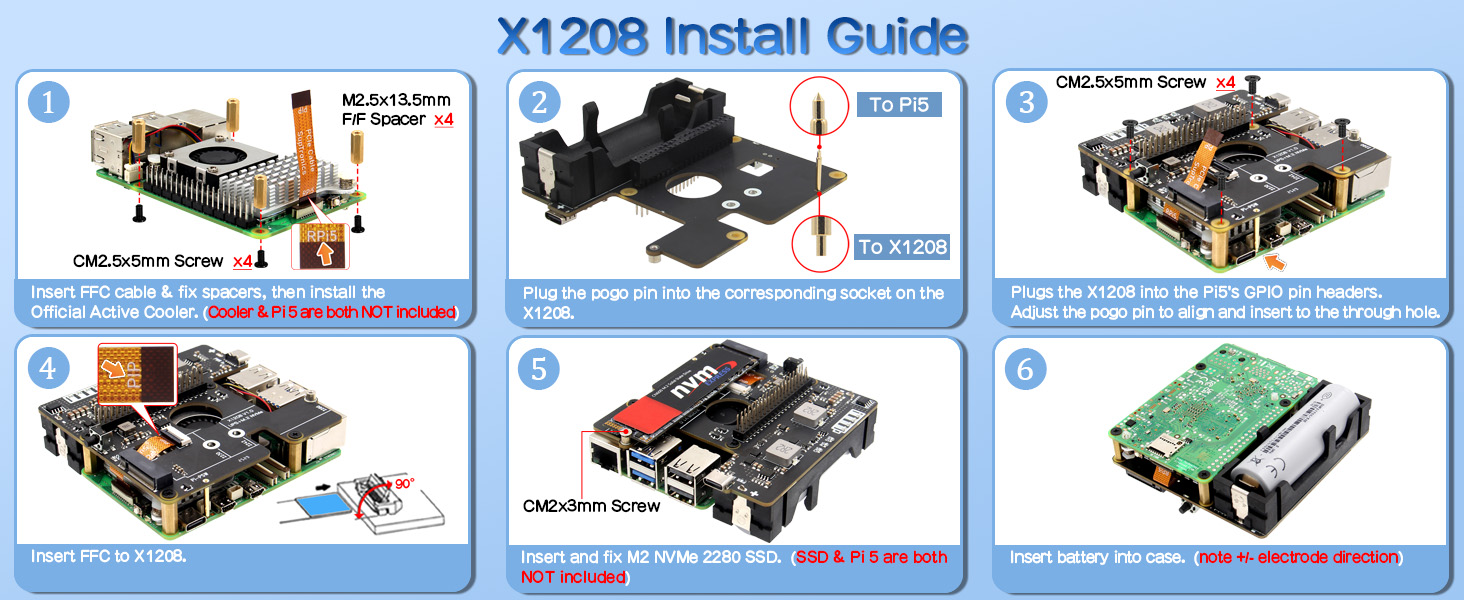

  • User Guide: Search for X1208 in the Google Geekworm Wiki and consult the user manual for hardware and software manuals
›
SKU: B0G4MQQKMY
Weight: 54 Grams
Dimensions: 8.6 x 2.5 x 8.4 centimetres
Brand: Geekworm
Model: X1208
Batteries Included: Lithium Ion
Manufacture: Geekworm

Product Description

aplus content imageaplus content image
  1. aplus content image
  2. aplus content image
  3. aplus content image
  4. aplus content image
aplus content imageaplus content image

Other Geekworm UPS Shield Series:

X1208

X1207

X1205

X1202

X1201

X1200

Customer Reviews — — 5.0 out of 5 stars33.8 out of 5 stars393.9 out of 5 stars94.8 out of 5 stars18
Price £55.00£60.00£50.00£54.99£49.99£47.99
Compatible with Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5
Position on the top of Pi 5 on the top of Pi 5 on the Bottom of Pi 5 on the Bottom of Pi 5 on the Bottom of Pi 5 on the Bottom of Pi 5
Battery Holder NO. 1-Cell 21700 1-Cell 21700 2-Cell 21700 4-Cell 18650 2-Cell 18650 2-Cell 18650
How to Power (Optional-1) 5Vdc 5A via USB-C of X1208 5Vdc 5A via USB-C of X1207 5Vdc 5A via USB-C of X1205 5Vdc 5A via USB-C of X1202 5Vdc 5A via USB-C of X1201 5Vdc 5A via USB-C of X1200
How to Power (Optional-2) — 35-57Vdc via PoE (802.3af/at) 9-18Vdc≥3A via DC5521 of X1205 6-18Vdc≥3A via DC5521 of X1202 5Vdc ≥3A via XH2.54 of X1201 —
How to Power (Optional-3) — — 9-18Vdc via XH2.54 of X1205 6-18Vdc≥3A via XH2.54 of X1202 — —
Matching Case (NOT included) X1207-C1(B0G7TM8Q96) X1207-C1(B0G7TM8Q96) X1205-C1(B0F2HQ61YM) X1202-C1(B0D4ZBXGSH) X1201-C1(B0D4Z92TBB) X1200-C1(B0D4Z7NDNP)
Support NVMe SSD(NOT included) × √ NVMe SSD 2280/2242/2230 × × × ×
