JetKVM-Efficient remote management of computers

JetKVM is a highly efficient open-source IP KVM switch. It provides a remote control solution for target computers using just one set of peripherals (keyboard,mouse,monitor). Efficiently remote management of computers, servers, and workstations,such as operating systems, or adjusting BIOS settings.

Seamless Remote Control

Main features

Seamless Remote Control

• Experience fluid control and crystal-clear video quality that makes remote access feel local. Perfect for IT professionals, developers, and power users who demand responsive remote management.

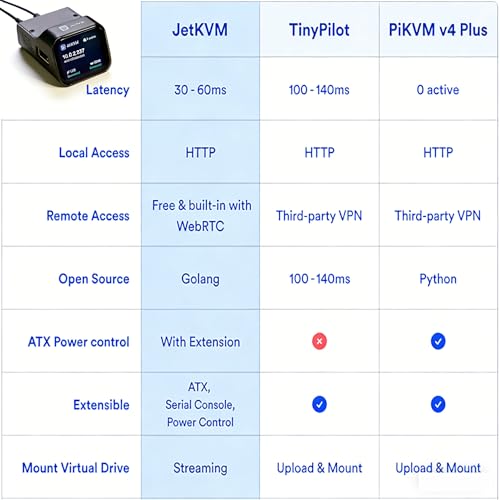

Ultra-low Latency

• 1080p@60FPS video with 30-60ms latency using H.264 encoding. Smooth mouse and keyboard interaction for responsive remote control.

Free & Optional Remote Access

• Remote management via JetKVM Cloud using WebRTC.

Open-source Software

• Written in Golang on Linux. Easily customizable through SSH access to the JetKVM device.

Super Secure Encryption Methods

Secure Connectivity for JetKVM

Built-in VPN protects private workflows

• JetKVM KVM over IP Cloud (WebRTC/STUN/TURN) bypasses restrictive NAT for encrypted direct connections. 100% free cloud access, ideal for remote workers/travelers.

JETKVM's security modes

• Local Mode：Local mode allows you to set a login password within a local area.
• Remote Access Password Protection: Access tokens are stored as HTTP-only cookies in your browser for 7 days,Regular re-verification is required to ensure the absolute safety of the equipment.
• OIDC authentication：Remote access requires OIDC authentication, meaning all access controls are processed locally on the device.

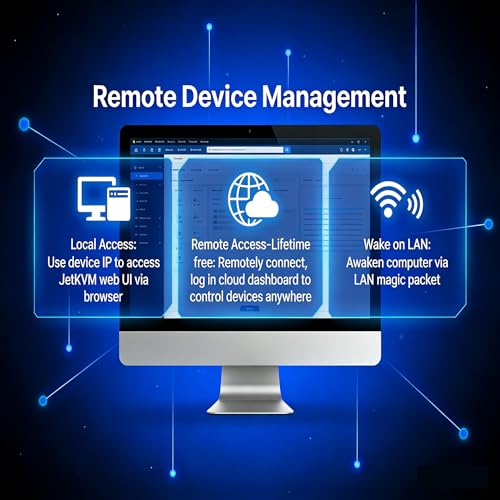

Three Ways of Networking

Local Access

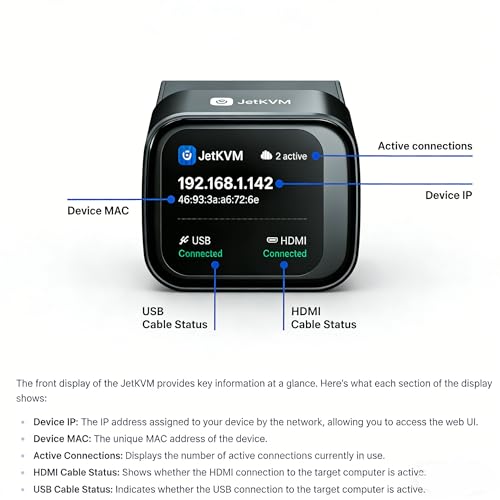

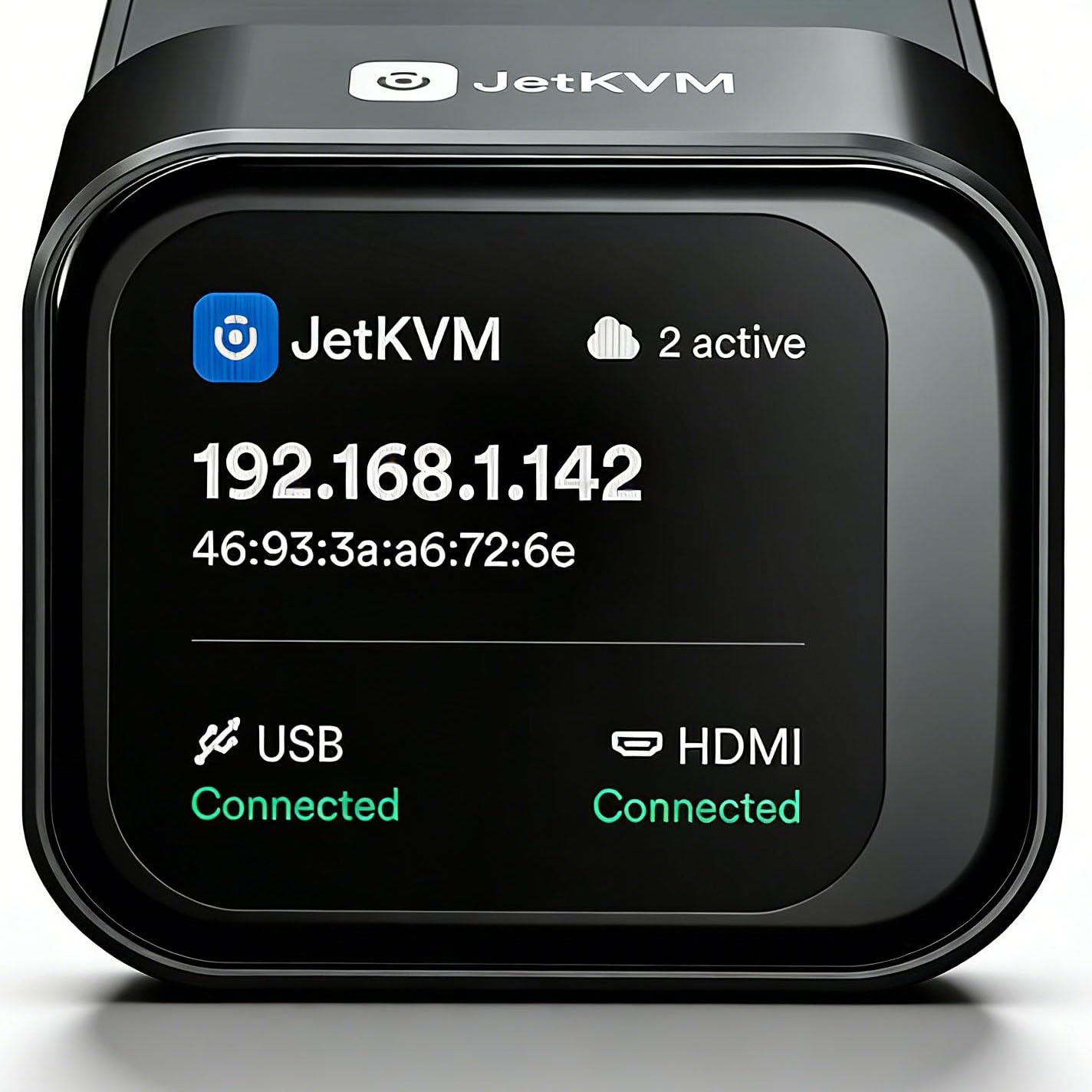

To access the JetKVM web UI, you'll need the device's IP address, which is displayed on the front screen of the JetKVM device along with the MAC address. Simply refer to this screen, note the IP address, and use it to navigate to the web UI in your browser.

Remote Access

Remote Access allows you to connect to your JetKVM device from anywhere on the internet. Through our cloud dashboard, you can log in, get an overview and control any of your cloud-enabled devices. This means you can access and manage your JetKVM devices from your phone or computer, anywhere in the world with an internet connection.

Wake on Lan

Wake on LAN is a standard feature that allows a computer to be powered on or awakened from sleep mode by receiving a network message, known as a "magic packet." This message is sent from one device to another on the local area network (LAN).

Please note, the target computer must be configured to listen for incoming magic packets to be awakened.

Open-Source Go/React WebRTC Dashboard with Lightweight Linux System

Special Features and Power Options

Special Features of JetKVM

• After installing the driver, JetKVM remains accessible during BIOS or UEFI boot processes. This proves extremely useful for tasks like reinstalling operating systems or mounting ISO images to install applications on the target host.
• Beyond standard keyboard and mouse support, JetKVM includes a virtual keyboard feature, providing basic keyboard input via the UI. This enables sending individual keystrokes to the remote computer as needed.
• Note: Currently, JetKVM supports only US keyboard layouts, with host key mappings defaulting to US settings.

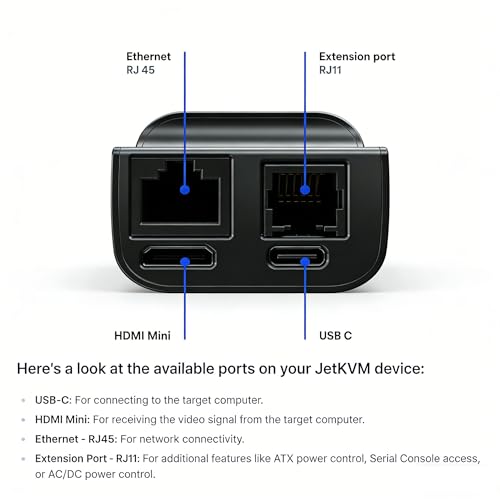

• The rear of JetKVM features an RJ-12 expansion port designed for complete customization and flexibility. Whether integrating additional hardware functions or providing custom add-ons, the expansion port offers limitless possibilities for extension.

Power Options

• Primary Power Method:The most common way to power the JetKVM is through its USB-C port, connected directly to the computer you're controlling. Many computers have USB ports with constant power, though in some cases, you may need to enable it in the BIOS or UEFI settings (often labeled as "USB Power During Standby" or "USB Always On"), so be sure to check there if it's not working by default.
• Alternative Power Options:USB-C Power/Data Splitter (Included),DC Extension,ATX Board Extension.

Unlimited Hackability

ATX Power Extension

• A control board that manages computer power states through the JetKVM's RJ-12 extension port. Connect to your motherboard's front panel headers to gain remote power control over your PC.
• Each pin features dual headers: one set for KVM control and another for the original front panel buttons — meaning you don't have to choose between them. Both can be connected simultaneously.
• Comes with a PCIe slot cover bracket for clean cable routing through your PC case without requiring an actual PCIe slot.

Remote Power Control for any DC device

• Add remote power cycling to your JetKVM setup. Plug into the RJ-12 port, route your device's DC power through the module, and control power directly from the browser with the JetKVM.
• It supports DC input ranging from 12 to 20 volts, and we're including adapters to support 5.5×2.1 mm connections as well.
• The extension can also power the JetKVM itself through the RJ-12 connection, streamlining setup and reducing the need for additional power sources.

Serial Console Extension for JetKVM

• Extend your JetKVM capabilities with serial console access. This extension provides both RS-232 and RJ-12 connectivity options, allowing you to access serial consoles directly from your browser through the JetKVM interface.
• Connect to devices with either RS-232 serial ports commonly found on network equipment, servers, and embedded systems.
• The extension integrates seamlessly with your JetKVM setup, providing reliable serial communication for configuration, troubleshooting, and remote management tasks.

• 【Ultra-low Latency&Free and Optional Remote Access】High-definition 1080p video at 60 FPS with 30-60 millisecond latency, using efficient H.264 encoding. Smooth mouse and keyboard action transfer for responsive remote interaction.Remote management via JetKVM Cloud using WebRTC. Secure and a fast direct connection, even behind the most restrictive NAT environments, with our STUN and TURN servers.
• 【Open Source&Interactively Upgradeable System】Written in Golang, running on Linux, making it easy to modify the software on your JetKVM device. Want to customize the JetKVM? Simply patch the software and upload it to the JetKVM device through SSH, and you’re good to go.Continuous interaction allows for ongoing optimization and upgrades of the product system. Regular updates provide further improvements.
• 【Multi-System Flexible Internet Access】Remote access is enabled through our web-based cloud control, supporting Windows, macOS, and Linux systems without any software installation. Three connectivity modes are supported: local access, remote access, and LAN Wake-on-LAN to power on or wake the device.
• 【Super Secure Encryption Methods】Local Authentication Mode: Optionally password-protect device access to the local network. Remote Access Password Protection: Access tokens are stored as HTTP-only cookies in your browser for 7 days, enabling effortless password protection. Remote access requires OIDC authentication, meaning all access controls are processed locally on the device.
• 【Unlimited Hackability】The hardware is fully customizable. Through the RJ11 extension port, extra hardware capabilities can easily be added by anyone. It still has been used like a temperature sensor.As optional add-ons, the hardware extensions using the extension port, enabling features like ATX Power Control, Serial Console and AD/DC power control on your device.No personal information is collected by JETKVM, ensuring a private experience.
• 【ATX Power Control & DC Power Control】A control board for managing computer power status. It also includes a USB-C port for connecting a 5V power supply. JetKVM can then be powered via an RJ11 cable. 5V power can also be supplied via pin connectors. PCIe slot covers allow for neat cable management within the chassis. The DC power control expansion board supports power management for connected DC-powered devices (such as mini PCs or NAS devices), supporting 12 to 20 volt DC input.
• 【Expanding power supplies are available for sale】ATX expansion boards and DC power control boards are also available in our store. Please check our product listings.

---

Product Description

Serial Console Extension for JetKVM

• Extend your JetKVM capabilities with serial console access. This extension provides both RS-232 and RJ-12 connectivity options, allowing you to access serial consoles directly from your browser through the JetKVM interface.
• Connect to devices with either RS-232 serial ports commonly found on network equipment, servers, and embedded systems.
• The extension integrates seamlessly with your JetKVM setup, providing reliable serial communication for configuration, troubleshooting, and remote management tasks.
