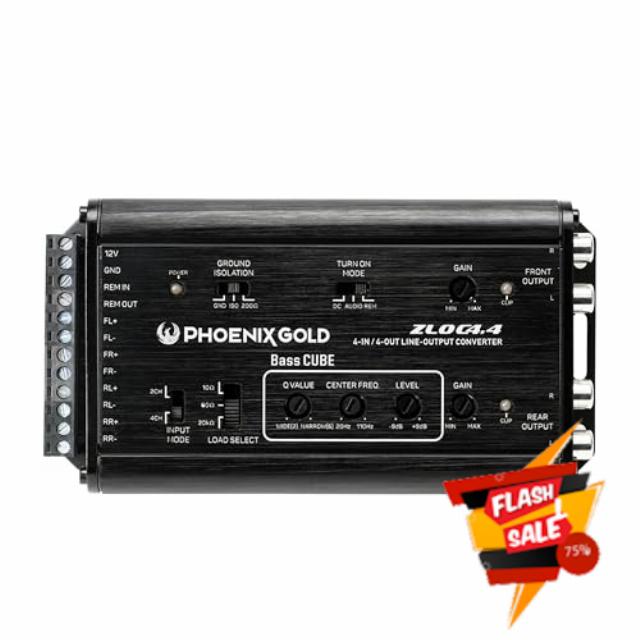

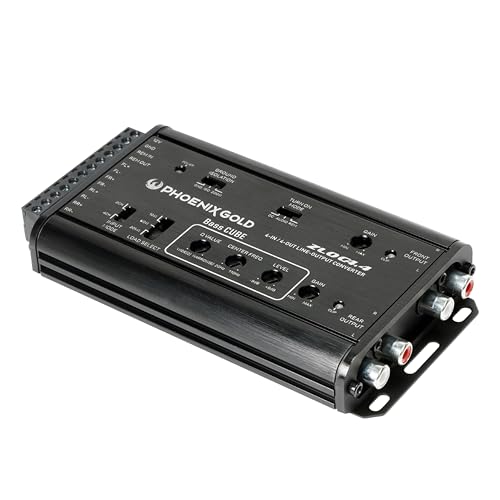

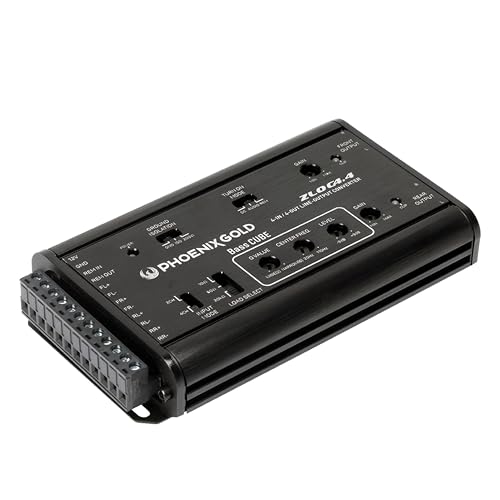

Phoenix Gold ZLOC4.4 4‑Channel Line Output Converter

Phoenix Gold ZLOC4.4 4‑Channel Line Output Converter – Bass Cube EQ

Phoenix Gold ZLOC4.4 4‑Channel Line Output Converter – Bass Cube EQ, High-Level to Low-Level RCA Signal Conversion, Adjustable Gain & Clip Indicator, Universal Car Audio Integratio

The 4 Channel ZLOC4.4 Converter transforms your vehicle’s audio system by bridging the gap between factory-installed components and aftermarket upgrades. This sophisticated audio converter features two high-level inputs that capture speaker signals from your OEM head unit or amplifier, converting them to clean low-level outputs for enhanced performance. With selectable input impedance options (10-Ohm, 60-Ohm, 20K-Ohm) and adjustable gain from -28 to 0dB, it bypasses OEM resistance whilst eliminating unwanted system noise. The built-in CLIP indicator monitors signals in real-time, alerting you to any distortion for immediate adjustment. Housed in a durable aluminium body measuring 150.6 x 82 x 24.8mm, it offers flexible turn-on modes (REM/DC/AUDIO), ground isolation settings, and bass level control (-9 to +9dB). Operating on 9 to 32V with minimal current draw, this converter delivers exceptional signal-to-noise ratio (>100dB) and ultra-low distortion (

  • PROFESSIONAL AUDIO CONVERTER: 4-channel line output converter transforms OEM speaker-level signals into clean RCA outputs, enabling seamless integration of aftermarket amplifiers without replacing factory head units.
  • ADVANCED SIGNAL PROCESSING: Features adjustable gain (-28 to 0dB), bass level control (-9 to +9dB), and selectable input impedance (10/60/20K-Ohm) to optimize signal quality and eliminate factory system limitations.
  • DISTORTION PREVENTION: Built-in dual clipping indicators monitor input and output signals in real-time, alerting you to potential distortion for immediate adjustment and pristine audio quality with THD+N less than 0.01%.
  • FLEXIBLE CONNECTIVITY: Supports 2CH/4CH input modes with 4CH outputs, multiple turn-on options (REM/DC/AUDIO), ground isolation switch (GND/ISO/200-Ohm), and accommodates input sensitivity from 0.5 to 32V.

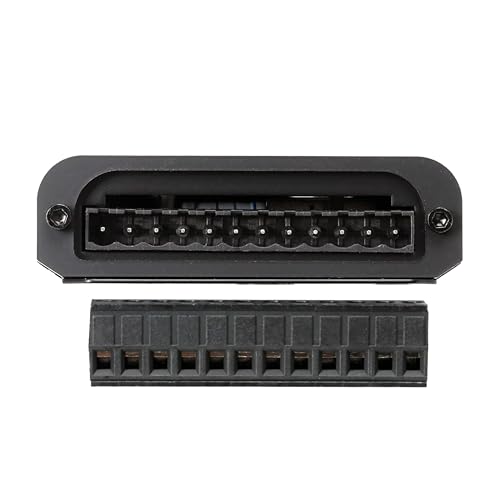

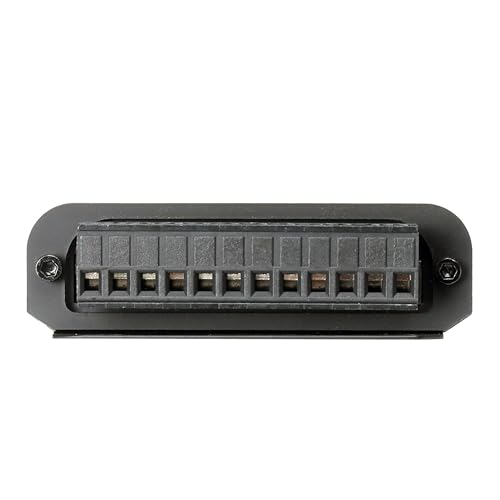

  • COMPACT ALUMINIUM CONSTRUCTION: Durable aluminium body measuring 150.6 x 82 x 24.8mm ensures efficient heat dissipation, operates on 9-32V with low current draw (121-150mA), and features quick-connect terminals for easy installation.
›
SKU: B0CNQ4HBB5
Dimensions: 15.6 x 8.2 x 0.1 centimetres
Brand: PHOENIX GOLD
Model: ZLOC4.4
Manufacture: Phoenix Gold
Origin: China
