Radioddity HF-010 Portable RF Antenna

Installation Instruction:

1. Base Assembly & Grounding

Assemble the ground spike, connecting piece, tripod mount, and antenna base.

2. Install Extension Rods

Screw both extension rods onto the top of the antenna base.

3. Attach the Loading Coil

Mount the appropriate coil on top of the extension rods:

For 60m-17m: Use the tunable loading coil.

For 80m: Use the fixed loading coil.

Note: Omit the coil for frequencies above 18 MHz (15m–6m) for best performance.

4. Mount the Telescopic Whip

Screw the telescopic whip onto the very top of the assembly. Adjust the whip's extension length according to the frequency table in the manual to achieve resonance.

5. Connect the Ground Radial Wires with their specified lengths.

Tips Before Use

• Can I use this antenna for mobile operations on my car?

Yes. The HF-010 supports vehicle mounting with a compatible magnetic antenna base (sold separately). We recommend pairing it with the M916 magnetic base and the HF-0101A adapter for a stable setup on a parked vehicle. Since not all users require vehicle mounting, these accessories are optional.

• How stable is the antenna on hard surfaces like a patio?

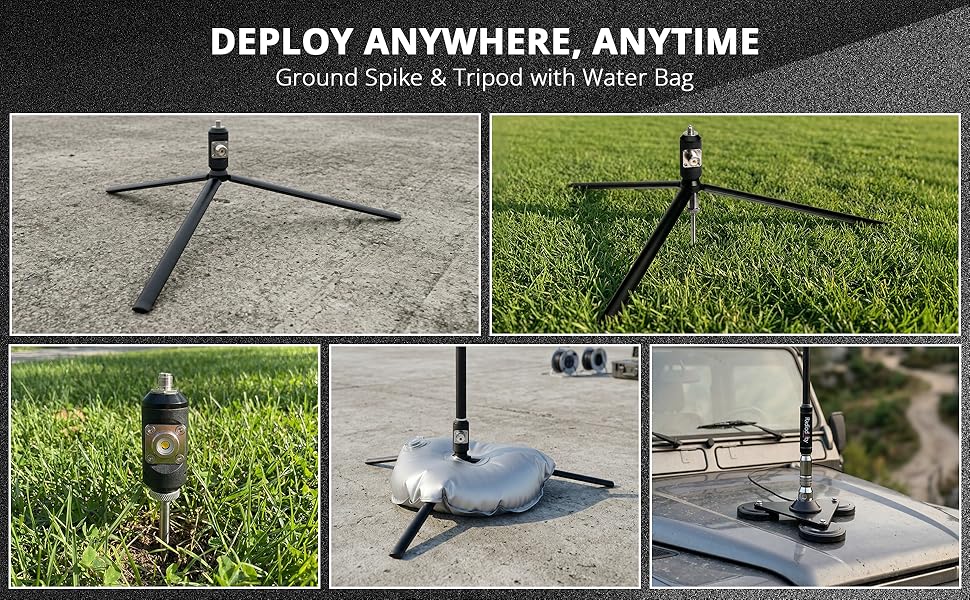

For surfaces where a ground spike can’t be used, the HF-010 includes a folding tripod and a 3-liter water bag to increase its stability. Once filled, the bag provides ballast to keep the antenna secure and stable even in moderate wind on concrete, patios, or other hard surfaces.

• Is it difficult to tune for different bands?

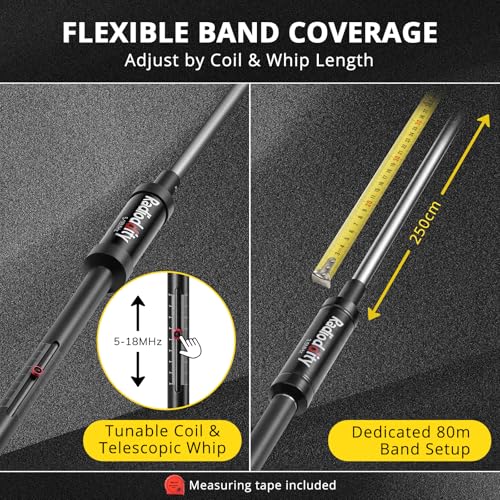

Not at all. The HF-010 comes with a detailed Quick Setup table. Simply adjust the sliding coil and telescopic whip to the marked positions using the included tape measure to achieve near-perfect SWR in seconds, enabling fast, hassle-free multiband operation.

Specifications

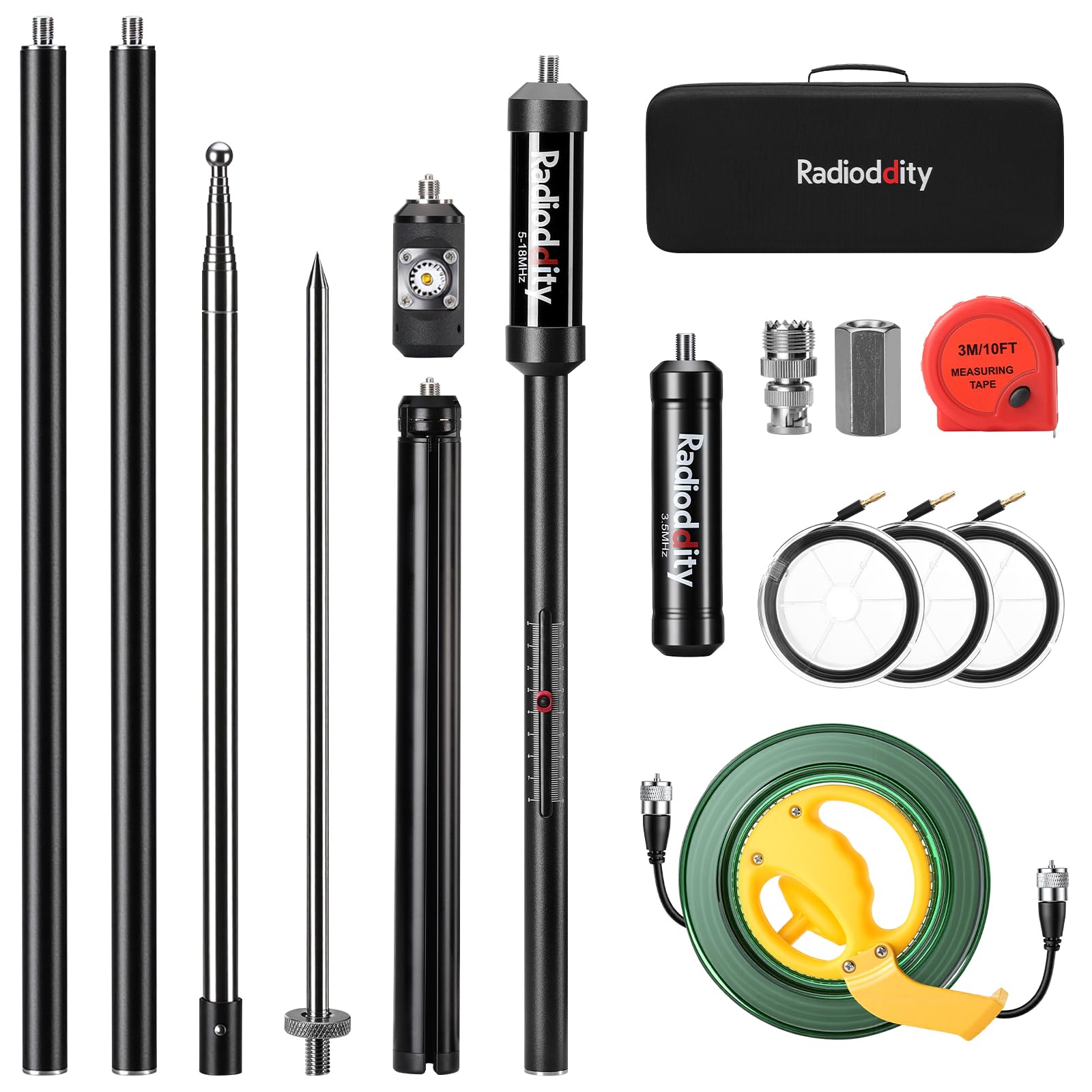

What’s in the box?

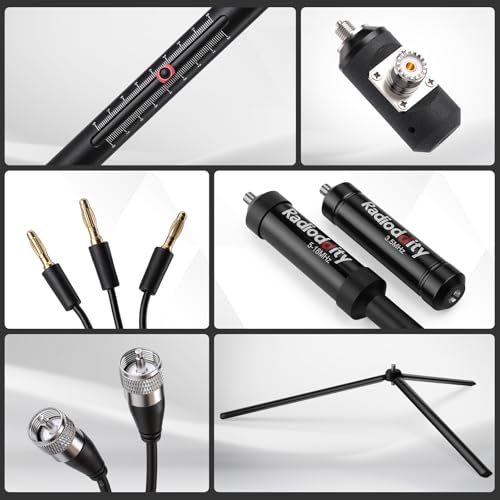

1 x Antenna Base, 1 x Securing Nut

1 x Ground Spike (7.9 in / 20 cm), 2 x Extension Rod (17.7 in / 45 cm)

1 x Tunable Loading Coil (17.7 in / 45 cm), 1 x Fixed Loading Coil (5.1 in / 13 cm)

1 x Telescopic Whip (Max Length 108.3 in / 275 cm)

1 x Antenna Coax-Cable (32.8 feet / 10 m)

1 x BNC-M to SO239 Adapter, 1 x Tripod Mount (11.8 in / 30 cm)

1 x Connecting Piece, 1 x Tape Measure

1 x Water Bag, 1 x Carrying Bag

3 x Ground Radial Wire

1 x User manual (Englisch)

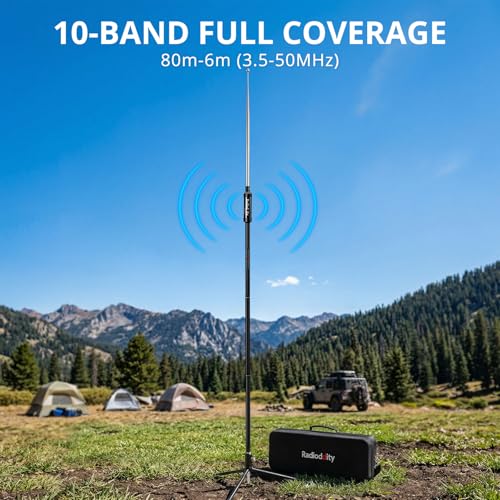

• Wide Frequency Range & High Performance: Covers the bands from 60m to 6m (5-50MHz) and is suitable for up to 100W CW / 150W PEP SSB – ideal for most RF transceivers and amplifiers. Provides a stable standing wave ratio (SWR) of 1.0-1.5 across all bands for efficient signal transmission with minimal tuning effort
• LIGHTWEIGHT AND READY TO USE At only 1kg in weight, this collapsible segmented antenna is ideal for mobile use. It comes with a durable padded carry bag and reinforced straps – perfect for hiking, camping trips, road trips or field operations in remote areas such as POTA/SOTA.

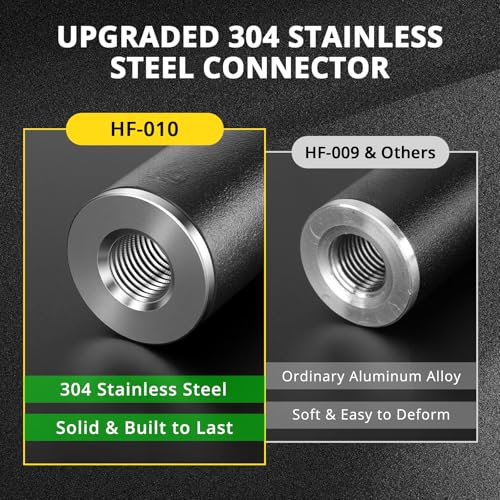

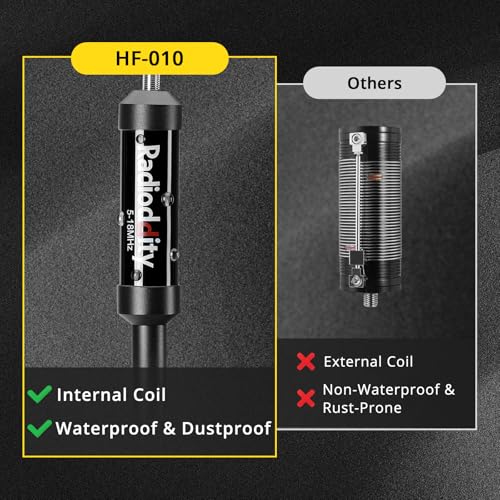

• Sturdy and durable: made of high quality aluminium alloy and stainless steel with anti-corrosion coating, it can withstand adverse weather conditions (rain, dust, etc.). The internal tuning coil ensures fewer exposed parts, improving durability and waterproofing compared to conventional constructions.
• Quick tuning technology: Thanks to the manual sliding and locking system, you can easily switch between straps without tools or complicated adjustments. Within seconds, you are ready to go, whether at home or in the field.
• EASY PLUG AND PLAY SETUP – Includes 5 meter pure copper coaxial cable and BNC m to SO239 adapter for quick setup with the short wave radio. No other accessories required – just unpack, plug and send.
• Hassle-free floor installation: magnetic feet or vehicle brackets are superfluous. Thanks to the integrated stainless steel ground spike and aluminium base, the stand can be anchored directly into soil, sand or grass. Ideal for outdoor adventures, emergency operations or any place without a metal surface.

---

Product Description

Tips Before Use

• Can I use this antenna for mobile operations on my car?

Yes. The HF-010 supports vehicle mounting with a compatible magnetic antenna base (sold separately). We recommend pairing it with the M916 magnetic base and the HF-0101A adapter for a stable setup on a parked vehicle. Since not all users require vehicle mounting, these accessories are optional.

• How stable is the antenna on hard surfaces like a patio?

For surfaces where a ground spike can’t be used, the HF-010 includes a folding tripod and a 3-liter water bag to increase its stability. Once filled, the bag provides ballast to keep the antenna secure and stable even in moderate wind on concrete, patios, or other hard surfaces.

• Is it difficult to tune for different bands?

Not at all. The HF-010 comes with a detailed Quick Setup table. Simply adjust the sliding coil and telescopic whip to the marked positions using the included tape measure to achieve near-perfect SWR in seconds, enabling fast, hassle-free multiband operation.

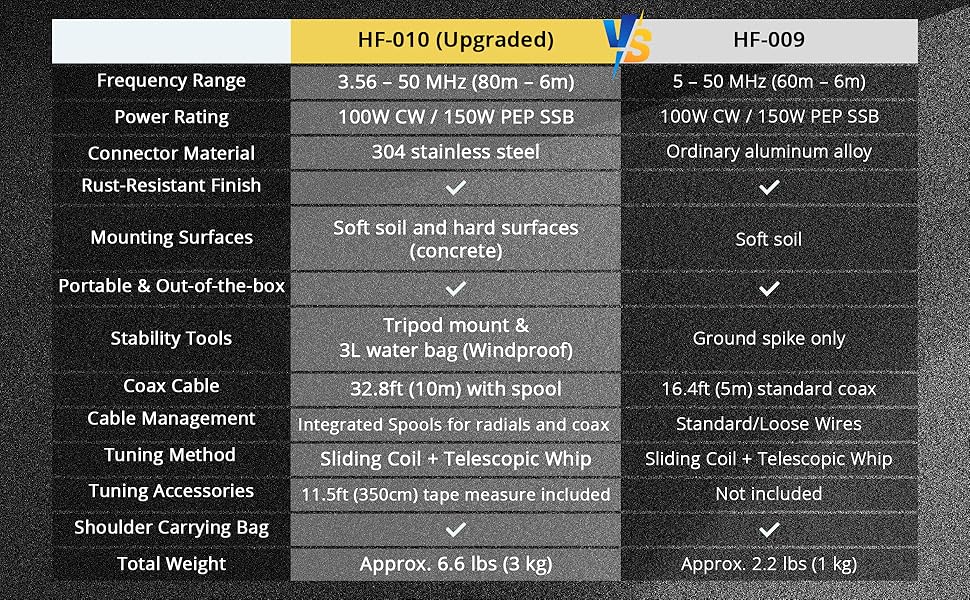

Specifications

Frequency	80m – 6m (3.5 – 50MHz)
Maximum Power Rating	100W CW / 150W PEP SSB
SWR	≤ 1.5:1
Ground Radials	3 × 4.8 m (15.7 ft each)
Coaxial Cable	10 m (32.8 ft)
Impedance	50 Ω

Max total length	2.75 m (9.0 ft)
Maximum visible length	5.1 m (16.7 ft)
Net Weight	2.5 kg (5.5 lb)
Total Weight (w/ accessories)	3 kg (6.6 lb)
Carrying Bag Size	55 × 20 × 9 cm (21.7 × 7.9 × 3.5 in)

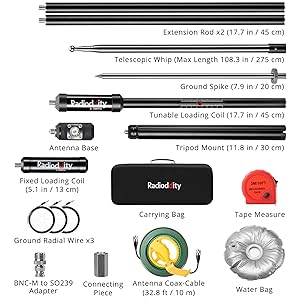

What’s in the box?

1 x Antenna Base, 1 x Securing Nut

1 x Ground Spike (7.9 in / 20 cm), 2 x Extension Rod (17.7 in / 45 cm)

1 x Tunable Loading Coil (17.7 in / 45 cm), 1 x Fixed Loading Coil (5.1 in / 13 cm)

1 x Telescopic Whip (Max Length 108.3 in / 275 cm)

1 x Antenna Coax-Cable (32.8 feet / 10 m)

1 x BNC-M to SO239 Adapter, 1 x Tripod Mount (11.8 in / 30 cm)

1 x Connecting Piece, 1 x Tape Measure

1 x Water Bag, 1 x Carrying Bag

3 x Ground Radial Wire

1 x User manual (Englisch)
