YouLoop Magnetic Antenna, Portable Passive Antenna with BNC

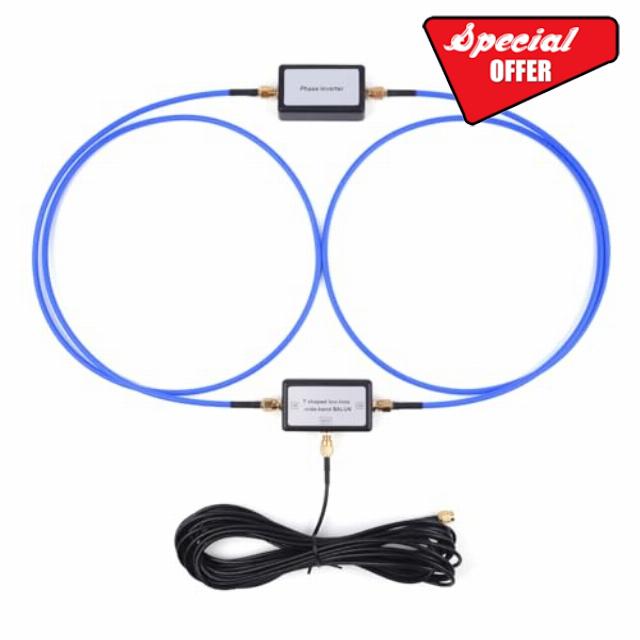

YouLoop Magnetic Antenna

YouLoop Magnetic Antenna, Portable Passive Antenna with BNC Connector (10KHz-300MHz) For HF/VHF 250mW Max Powe

WSOLDMA YouLoop Magnetic Antenna 250mW Portable Passive Loop Antenna

Feature

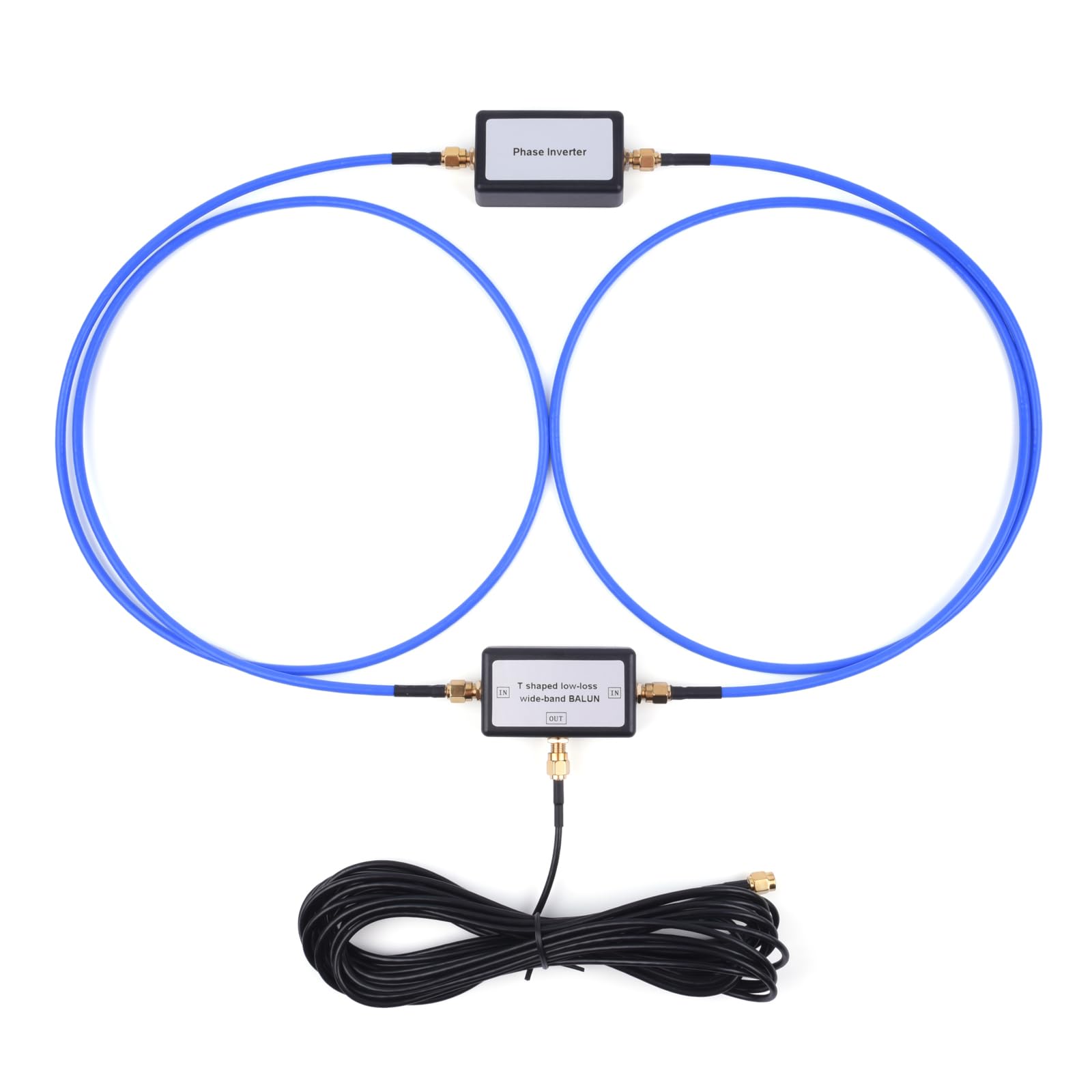

The YouLoop Magnetic Antenna is a portable, 250mW passive magnetic loop antenna available with SMA/BNC/3.5MM audio connectors. It features low loss and broadband capabilities, making it suitable for both HF and VHF frequencies.

Passive Design, No Tuning required

Its passive design eliminates the need for external power or tuning, making it ready to use right out of the box—perfect for on-the-go use or quick setup in any environment.

NOTIICE

This antenna is not waterproof, so if used outdoors, we recommend applying waterproof glue or protective casing to shield it from moisture.

  • Crafted from 100% brand-new, the antenna matches the sleek design shown in the images.
  • Minor measurement variations (1%-5%) may occur due to natural factors and tools.

Specifications

  • Max Power: 250mW
  • Connector: SMA/BNC/3.8mm Audio
  • HF Response: 10KHz to 30MHz
  • VHF Response: up to 300MHz
  • Low-Loss Wide-Band BALUN with 0.28 dB loss type

  • Passive & No Tuning Needed: Hassle-free operation with a passive design—no complex tuning required. Simply connect to your device and start communicating instantly, saving time and effort for all users.
  • Wide Bandwidth Coverage: Supports HF (10KHz-30MHz) and VHF (up to 300MHz) frequencies, versatile for amateur radio, shortwave, emergency communications, and field operations.
  • Low-Loss BALUN Technology: Integrated 0.28dB low-loss wide-band BALUN minimizes signal waste, ensuring clear transmission and maximum communication range with minimal power loss.
  • Portable & Durable: Compact, lightweight design for easy carrying during travel or outdoor use. 100% high-quality materials guarantee durability and consistent performance.
  • BNC Connector Compatibility: Standard BNC connector fits most radios, scanners, and communication devices—no extra adapters needed for quick, secure connections.
›
SKU: B0GDFCCRYT
Brand: WSOLDMA
Colour: Only Antenna (BNC Connector)
Manufacture: WSOLDMA
Colour: Only Antenna (BNC Connector)
Origin: China

Product Description

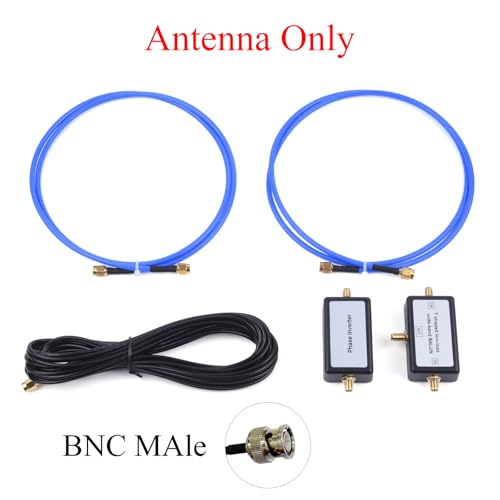

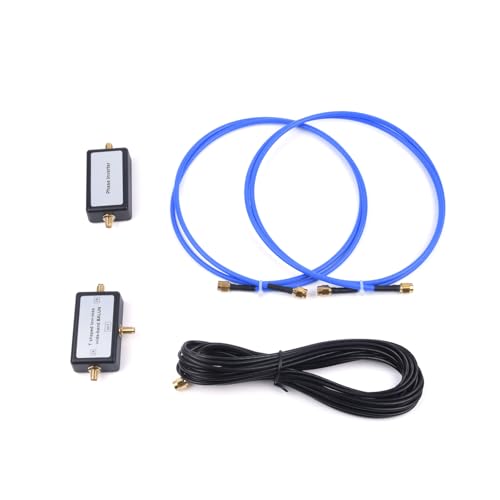

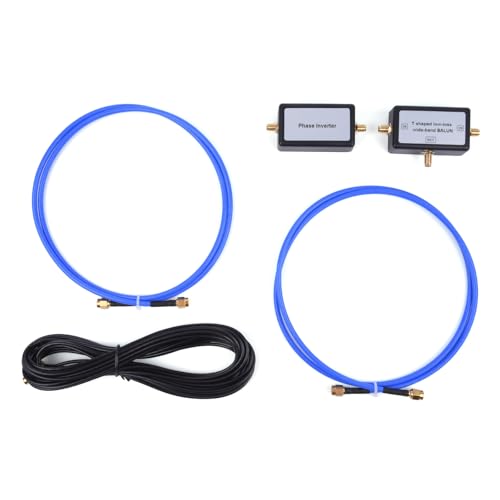

aplus content imageTechnical product layout showing black cables, blue circular components, and various connectors arranged in a display configuration against white background.

Passive Design, No Tuning required

Its passive design eliminates the need for external power or tuning, making it ready to use right out of the box—perfect for on-the-go use or quick setup in any environment.

NOTIICE

This antenna is not waterproof, so if used outdoors, we recommend applying waterproof glue or protective casing to shield it from moisture.

  • Crafted from 100% brand-new, the antenna matches the sleek design shown in the images.
  • Minor measurement variations (1%-5%) may occur due to natural factors and tools.

Specifications

  • Max Power: 250mW
  • Connector: SMA/BNC/3.8mm Audio
  • HF Response: 10KHz to 30MHz
  • VHF Response: up to 300MHz
  • Low-Loss Wide-Band BALUN with 0.28 dB loss type
