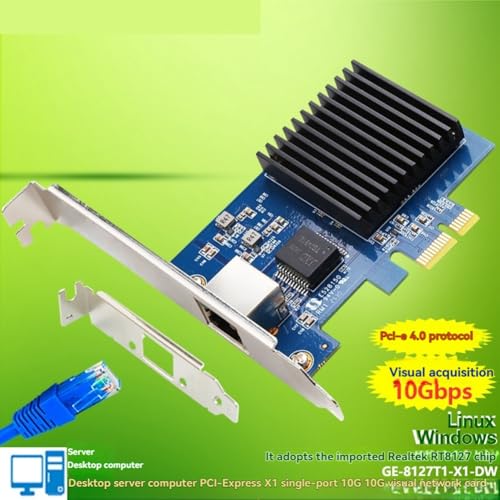

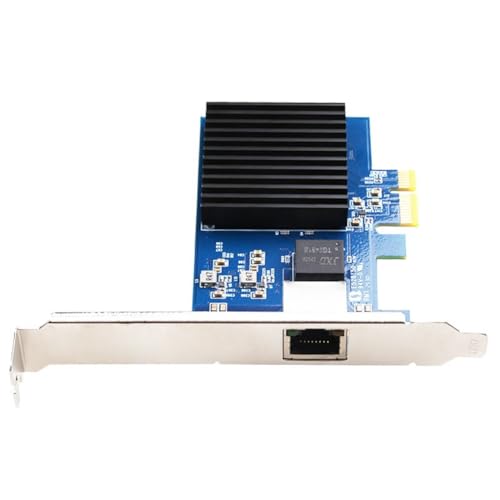

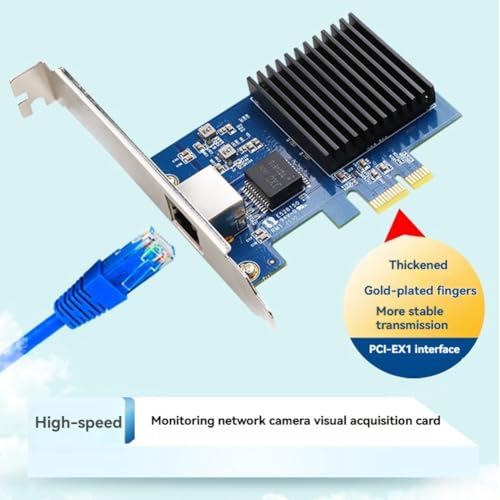

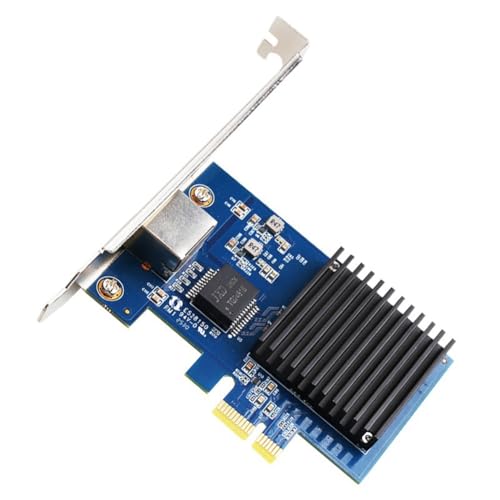

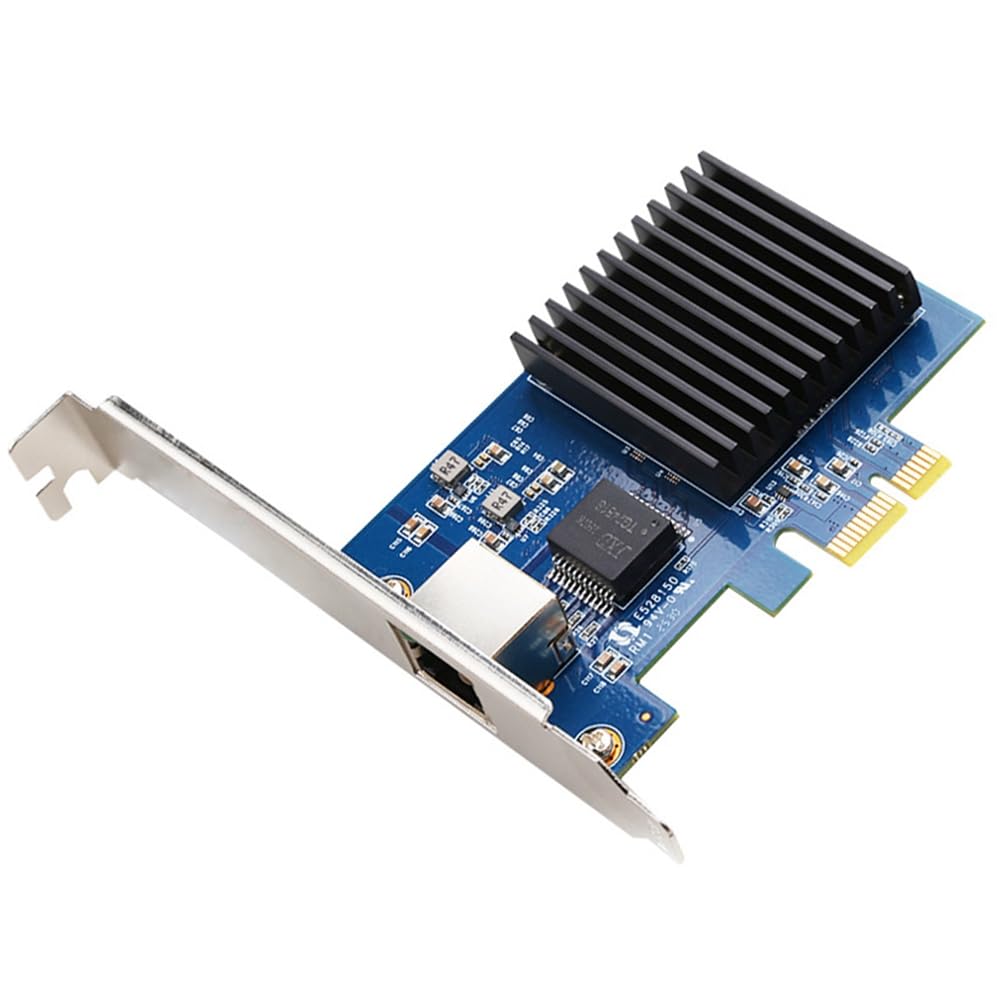

10Gb PCIe NIC Network Card Single RJ45 Port RTL8127 Chip

10Gb PCIe NIC Network Card Single RJ45 Port RTL8127 Chip PCI- Express X1 Vision Acquisition Card for Win11/Win 1

ximie 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat6A
1.5W typical 5GBASE-T operating power per port
1W typical 1GBASE-T operating power per port
Audio Video Bridging (AVB) and /1588v2
Synchronous Ethernet (Sync-E),ITU-T standard in accordance with IEEE
Supports Message-Signaled Interrupts( and -X), and legacy INTx
PCIe interrupts
Support for Controller Sideband Interface(NC-SI)
Management Component Transport Protocol(MCTP)
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
IEEE 802.3bz 2.5/5GBASE-T
IEEE 802. 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.1Q VLANs
IEEE 802.3x Full Duplex and contro
IEEE 802.3az – Efficient Ethernet (EEE)
Support Preboot Execution Environment (PXE)
FCoE No
Operation Temperature:0℃ to 85℃ (-32℉ to 185℉)
Storage Temperature:-55℃ to 105 ℃ (-67℉ to 221℉)
Storage humidity:90% non condensing relative humidity at 35 ℃
Bus Type:PCI Express.
Bus Width:PCI Express x1
Chipset ID:Realtek RTL8127
Number of Ports:1 Port
Transfer Rate:10Gbps
OS Compatibility:for 10/11, Server 2022, RHEL/Centos7.3/7.6, RHEL/Centos7.9/8.2/8.3, 15.11/20/20.6, 16.04.3/18.04.5/20.04/22.10/23.10,for OS
Color:As Shown
Material:PCB

Package Contents:
1 * Network Card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Jumbo frame support up to 16 KB
• Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per
• Support PCI Express Gen-III x1
• Supports bus widths: x1, x4, x16
• Support 10G/5G/2.5G/1000M/100M LAN speed
