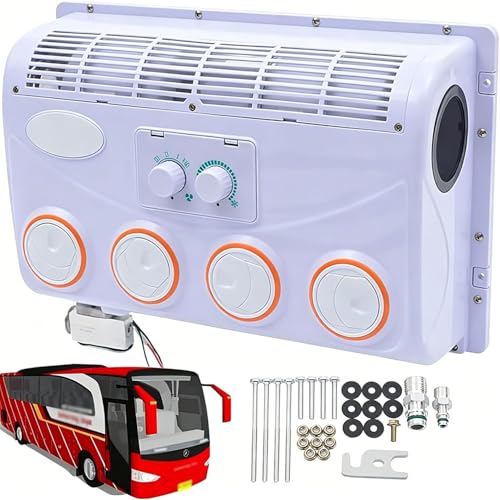

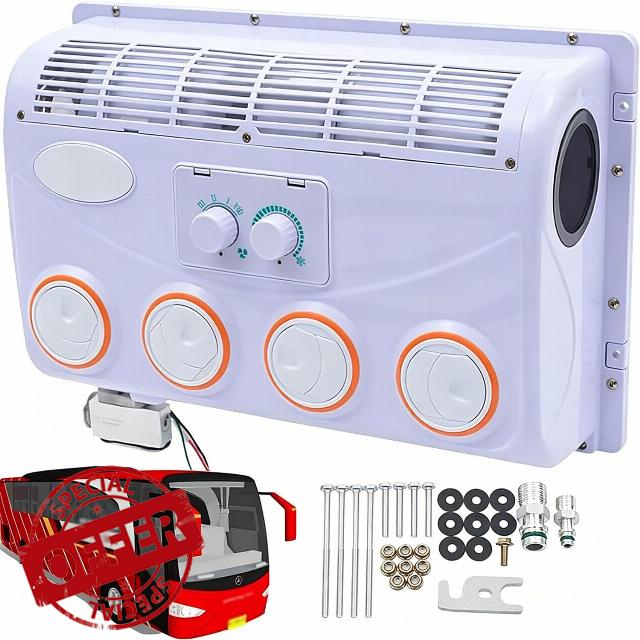

12V/24V RV Rooftop Air Conditioner, Evaporator Assembly, Universal Electric Truck Air Conditioner with 360° Rotatable Outlet, for Excavators, Vans, Caravans, Campers 12V

➤This universal 12V/24V auto AC evaporator assembly replaces your vehicle’s original indoor AC outlet for all fuel vehicle A/C retrofits. Compatible with trucks, RVs, construction machinery, caravans and vans.

➤Product Features

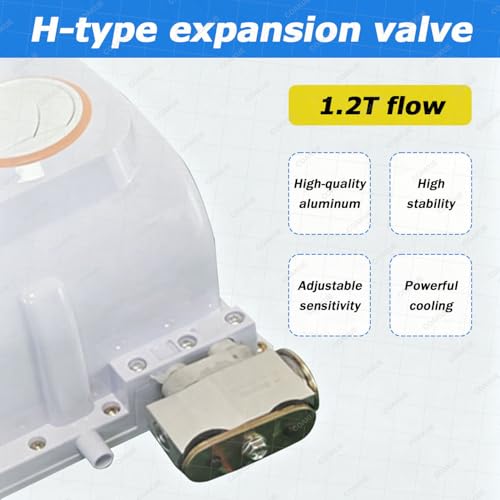

– 32 thickened aluminum tubes + 1.2T H valve for efficient stable cooling.
– 80W high-temp copper motor, 3800RPM, low noise, long lifespan.
– 3-speed fan, 390CFM max airflow, dual-side fast cabin cooling.
– 360° rotatable air outlet + removable dust filter.
– Dual-knob control: temperature adjustment + on/off + fan speed.
– Energy-saving 12V/8A & 24V/4A, compatible with most vehicle systems.

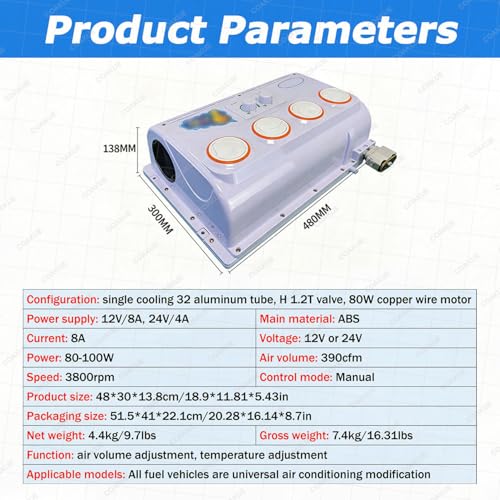

➤Product Specifications
Name: 12V/24V DC Air Conditioner
Configuration: Single cooling, 32 aluminum tubes, 1.2T H valve, 80W copper wire motor
Power Supply: 12V/8A, 24V/4A
Power: 80-100W
Speed: 3800RPM
Air Volume: 390CFM (≈440m³/h)
Cooling Capacity: ≈4000 kcal/h
Control Mode: Manual dual-knob
Main Material: ABS
Product Size: 48*30*13.8cm/18.9*11.81*5.43in
Net Weight: ≈4.15kg/9.15lbs
Gross Weight: ≈6.75kg/14.88lbs

➤Package List
1 x Air Conditioning Evaporator Kit
1 x Fixing Plate
1 x Insulation Foam
1 x Downpipe
2 x Mounting Brackets
1 x Adhesive Tape

➤Notes
1. This evaporator cannot cool alone. It must be installed and used together with your vehicle’s original AC system components, including compressor, condenser assembly, drying bottle and pipelines.
2. No refrigerant is included in the package. You must add refrigerant manually before use; otherwise, the air conditioner may be damaged.

• 【UNIVERSAL 12V/24V AC EVAPORATOR ASSEMBLY】Truck air conditioner universal retrofit evaporator replaces the original indoor AC outlet of your vehicle. It is compatible with light trucks, heavy trucks, RVs, construction machinery, and all fuel vehicle air conditioning modification projects.
• 【DURABLE HIGH-TEMPERATURE COPPER MOTOR】12V/24V DC electric air conditioner features a high-temperature resilient copper wire motor with constant speed function and low noise. Rated power 80W, high speed 3800rpm, and an extended service life of up to 28,000 hours for long-lasting performance.

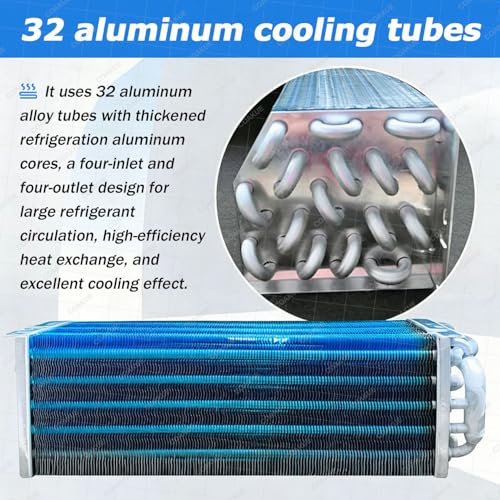

• 【EFFICIENT HEAT EXCHANGE SYSTEM】12V/24V RV air conditioner is built with 32 thickened aluminum refrigerant tubes and a four-in-four-out design. This creates large refrigerant circulation and enhanced heat exchange performance, delivering strong cooling effects even in hot summer conditions.
• 【POWERFUL 390CFM DUAL-SIDE AIRFLOW】12V/24V DC rooftop RV air conditioner is equipped with a high-quality large wind wheel that delivers air from both sides simultaneously. It reaches a maximum air volume of 390CFM, quickly cooling the entire cabin space for maximum comfort.

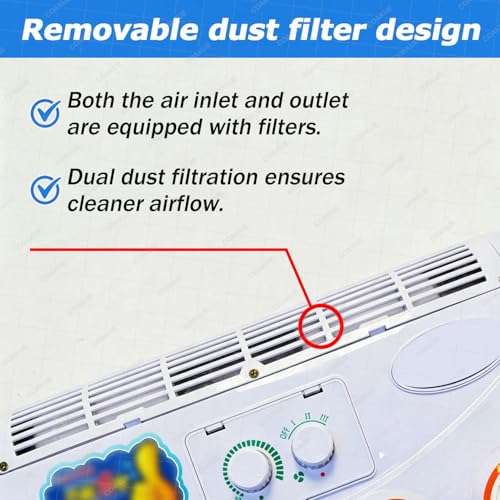

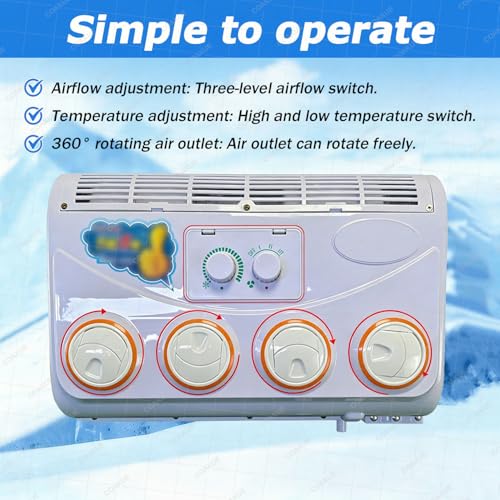

• 【USER-FRIENDLY CONTROLS WITH FILTRATION】Universal electric RV air conditioner adopts simple dual-knob function: left knob adjusts temperature, right knob controls on/off and 3-speed fan settings. Both air inlet and outlet feature filter designs to effectively filter dust and provide cleaner air.
