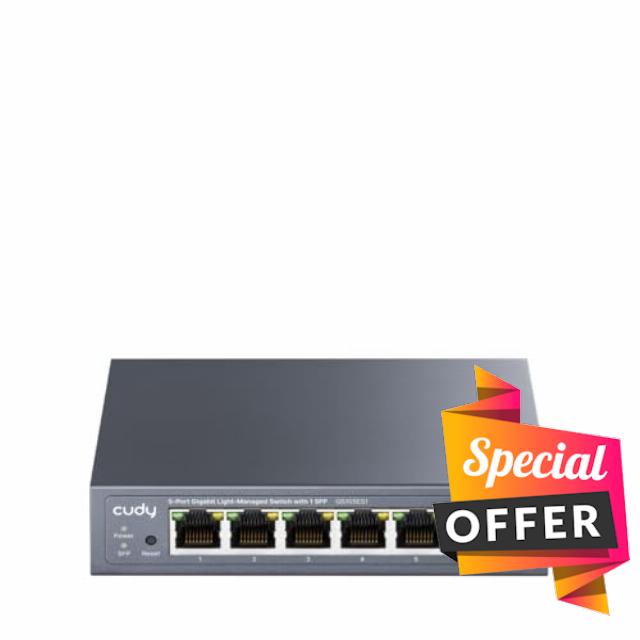

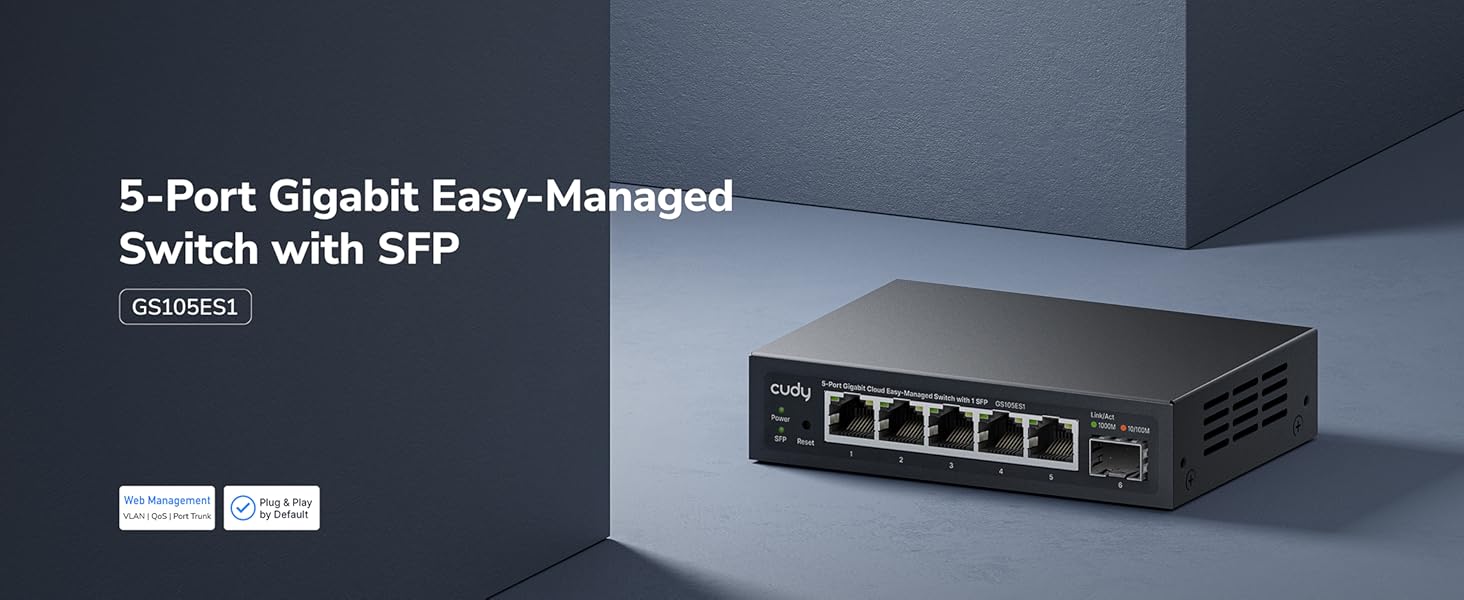

Cudy GS105ES1 5 Port Gigabit Light-Managed Switch with 1

Cudy GS105ES1 5 Port Gigabit Light-Managed Switch with 1 SFP

Cudy GS105ES1 5 Port Gigabit Light-Managed Switch with 1 SFP, Web Managed, VLAN, QoS, IGMP Snooping, Desktop/Wall Mou

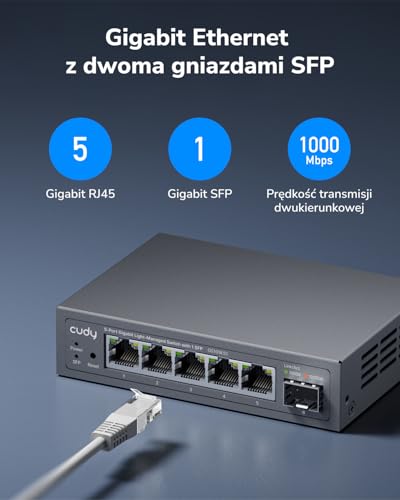

Super-Fast Gigabit

Fice 10/100/1000 Mbps Ethernet ports enable instant transferring of data. The SFP Slot allows long-distance connection.

Quiet Fanless Cooling

Metal casing enables effcient cooling, delivering stable performance.

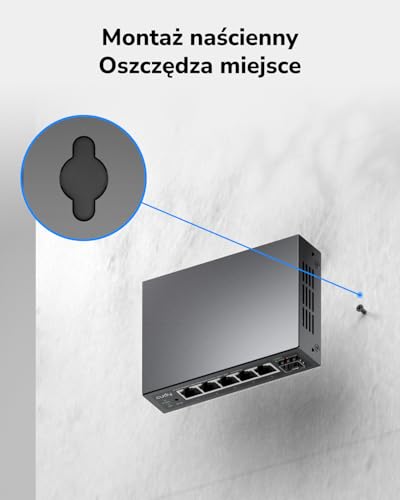

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.

Extra Electrical Protection

Improves connection reliability with built-in lightning surge and ESD protection.

A Plug and Play Network Hub

Connect Office Computers to Wired Network

Boost Home Devices with Stable Ethernet

Secure and High-Performance Switching

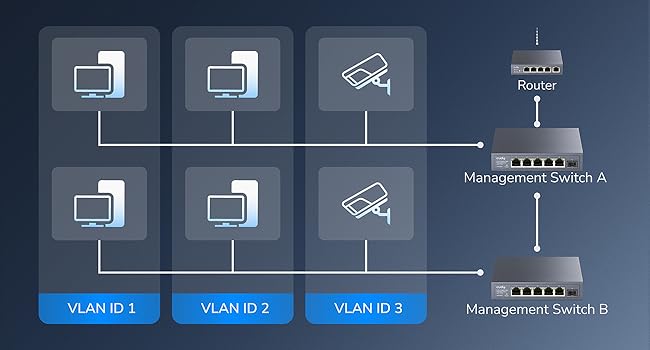

802.1Q/MTU/Port-Based VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

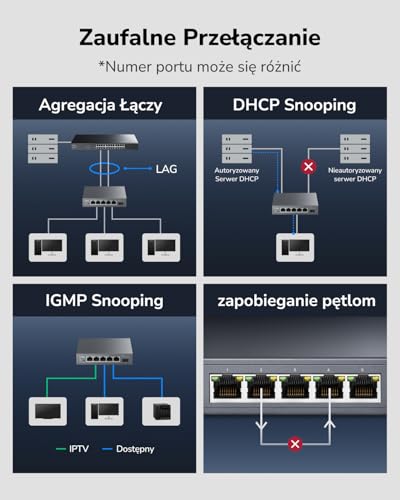

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

Port Mirroring

Mirror traffic from selected ports to a monitoring port for traffic analysis and troubleshooting.

Traffic Optimization

Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.

Loop Detection/Prevention

Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

Compare Easy-Managed Switches

Add To Basket Add To Basket Add To Basket Add To Basket Add To Basket
Customer Reviews4.8 out of 5 stars124.9 out of 5 stars114.2 out of 5 stars584.4 out of 5 stars734.3 out of 5 stars144—
Price£39.90£39.90£24.90£24.90—£59.90£59.90£39.90£39.90£49.90£49.90
RJ45 Ports8× GbE RJ455× GbE RJ458× GbE RJ4516× GbE RJ455× 2.5G RJ455× 2.5G RJ45
RJ45 Ports2× GbE SFP1× GbE SFP––––
MAC Address409620488192819240964096
Max Forwarding Rate14.88 Mpps8.929 Mpps11.904 Mpps23.808 Mpps18.6 Mpps18.6 Mpps
Jumbo Frame15 KB15 KB15 KB15 KB9 KB9 KB
Port Mirror Sessions224411
Port Trunk Groups224422
802.1p/Port VLAN✔✔✔✔✔✔
802.1Q/DSCP/Port QoS✔✔✔✔✔✔
Wall-mount✔✔✔✔✔✔

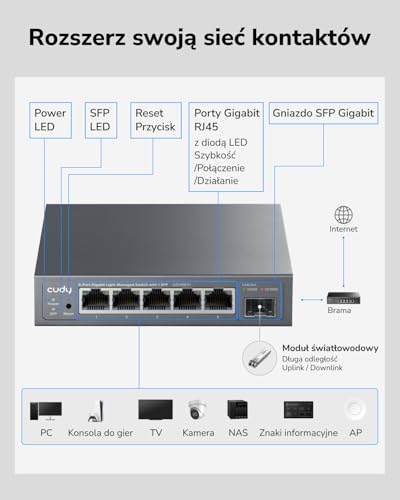

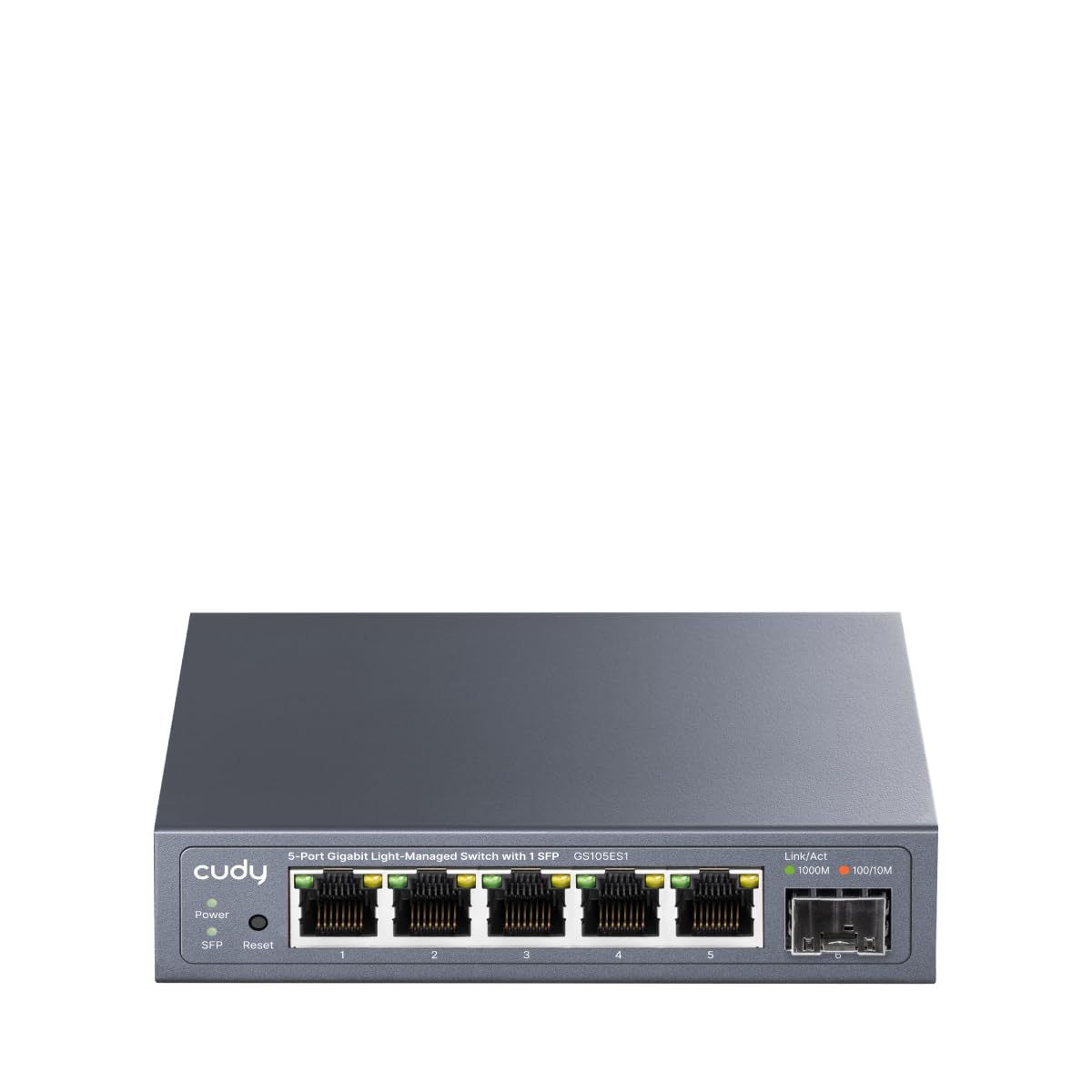

  • Smart Gigabit Switch with SFP: 5× Gigabit RJ45 ports and 1× 1.25G SFP slot provide high-speed wired connections and flexible fiber uplink.
  • Easy Web Management: Intuitive web interface enables easy network configuration and monitoring.
  • VLAN & QoS Optimization: Supports 802.1Q VLAN, MTU VLAN, Voice VLAN and QoS (802.1p/DSCP) for optimized traffic control.
  • Advanced Network Protection: Supports loop detection, DHCP Snooping and IGMP Snooping for stable network operation.
  • Fanless Energy-Efficient Design: Fanless metal housing ensures silent operation while EEE (802.3az) reduces power consumption.
›
SKU: B0GSFX3VLC
Weight: 263 Grams

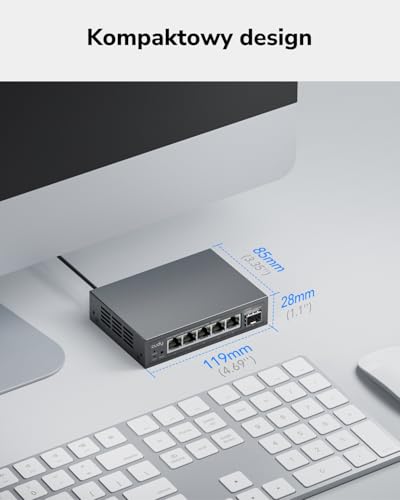

Dimensions: 11.9L x 8.5W x 2.8H centimetres
Brand: Cudy
Model: GS105ES1
Colour: Gray
Manufacture: Shenzhen Cudy Technology Co., Ltd.
Colour: Gray

Product Description

aplus content imageaplus content imageaplus content imageaplus content imageaplus content imageaplus content imageaplus content imageaplus content image

Loop Detection/Prevention

Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

Compare Easy-Managed Switches

GS108ES2

GS105ES1

GS108E

GS1016E

HS105

HS105U

Customer Reviews 4.8 out of 5 stars124.9 out of 5 stars114.2 out of 5 stars584.4 out of 5 stars734.3 out of 5 stars144 —
Price £39.90£24.90 — £59.90£39.90£49.90
RJ45 Ports 8× GbE RJ45 5× GbE RJ45 8× GbE RJ45 16× GbE RJ45 5× 2.5G RJ45 5× 2.5G RJ45
RJ45 Ports 2× GbE SFP 1× GbE SFP – – – –
MAC Address 4096 2048 8192 8192 4096 4096
Max Forwarding Rate 14.88 Mpps 8.929 Mpps 11.904 Mpps 23.808 Mpps 18.6 Mpps 18.6 Mpps
Jumbo Frame 15 KB 15 KB 15 KB 15 KB 9 KB 9 KB
Port Mirror Sessions 2 2 4 4 1 1
Port Trunk Groups 2 2 4 4 2 2
802.1p/Port VLAN ✔ ✔ ✔ ✔ ✔ ✔
802.1Q/DSCP/Port QoS ✔ ✔ ✔ ✔ ✔ ✔
Wall-mount ✔ ✔ ✔ ✔ ✔ ✔
