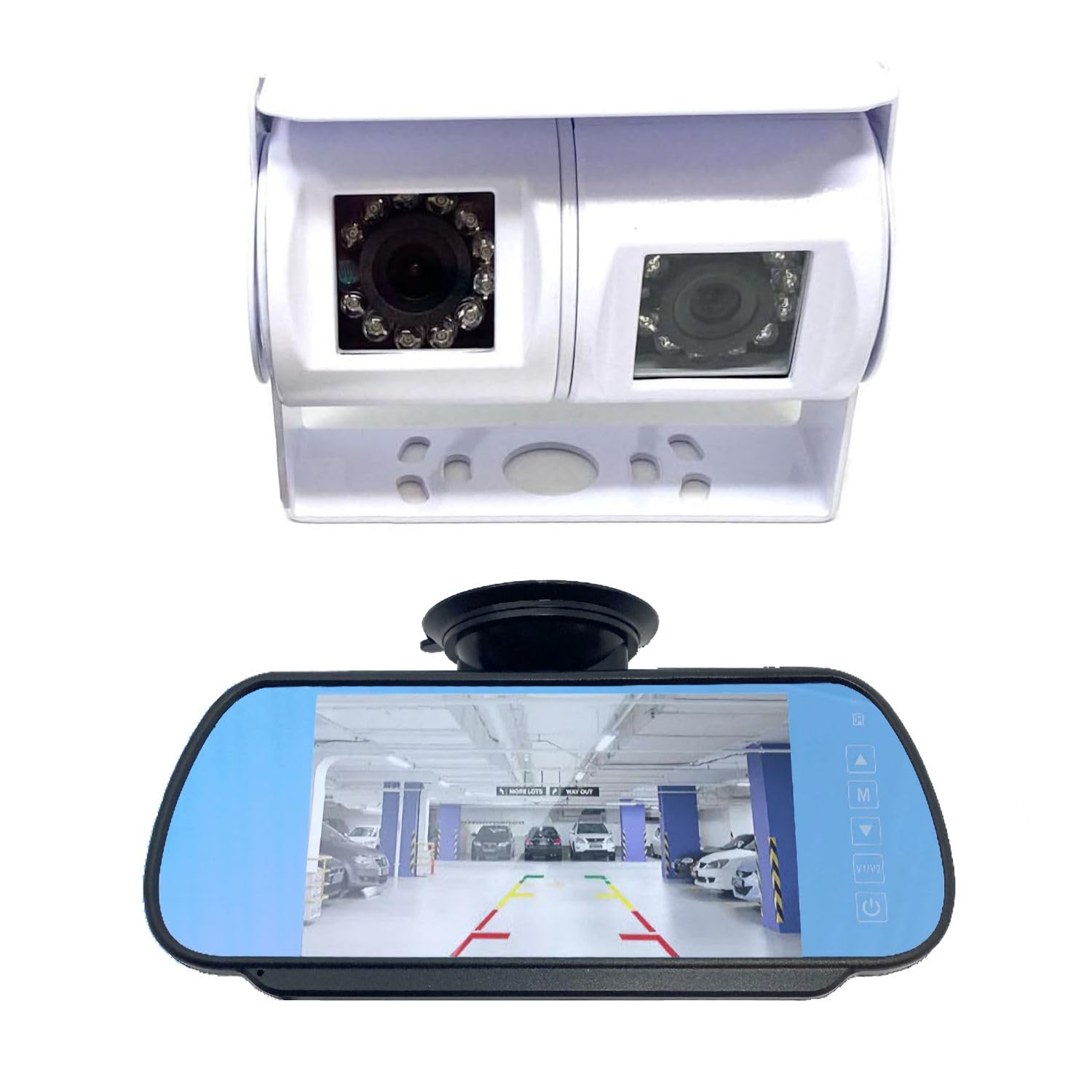

Dolphin Automotive Motorhome Camper Van Dual Twin 12v Reversing Reverse Rear View Parking Camera White/Optional Guidelines (Camera With 7″ Mirror Monitor)
Looks Factory Fitted
Our Dolphin Automotive range of van reversing cameras are designed to fit so well they look like original factory fitted equipment. However there is no one design of Motorhome so where they are coach built from the ground up then we have the most universally suitable option here but it white rather than black to give a better overall look. Note if you have a conversion variation of a Peugeot Boxer or Mercedes Sprinter for example which we have specific single and dual cameras for these if you look in our shop.
Dual Vision
These twin camera options allow you to have the outer rear facing camera always on so you can see the road behind like a rear-view mirror would allow and then when you select reverse gear the picture would swap to the one showing your bumper. If you want both camera on at the same time it would be possible to wire them so you can switch between views on either of the 7" monitors that we offer of you could get a second monitor. Both cameras are able to be adjusted in angle to your specific requirements.
Wiring

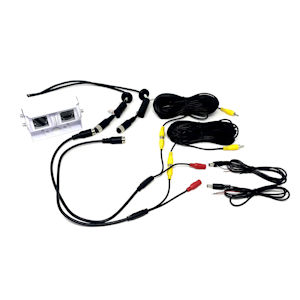

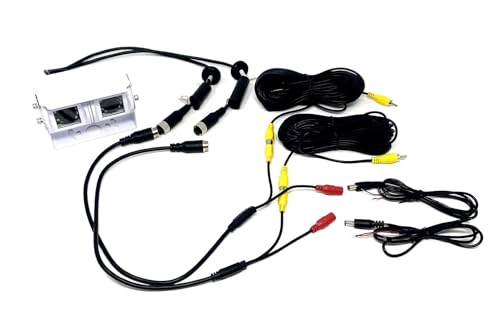

Each camera comes with a separate power input and video output using standard Phono / RCA connections giving you maximum flexibility on installation and you get 10m of phono cable for each camera to get to the front of the vehicle for you. As standard the first camera would be powered off the reversing light feed and the other via a 12v ignition switched feed – something that only has power when the ignition is on.
You can buy our cameras on their own if you already have a compatible head unit you can plug them into or we offer a range of dashboard mounted and rear view mirror mounted monitors. Please note some modern inbuilt manufacturer supplied head units my not use a standard Phono/RCA input or may need ‘programming’ to switch the reversing camera option to On with the vehicles ECU management system so check this out.
Our Range Of Monitors
If you are looking to replace a faulty camera you already have fitted on a motorhome or similar please check your wiring before ordering. Ours have 2 separate 4pin connectors – one for each camera. This is often different to cameras found on many Bessacarr, Autotrail, Sargent, Elddis and Swift motorhomes & are NOT COMPATIBLE.
Our Range Of Monitors

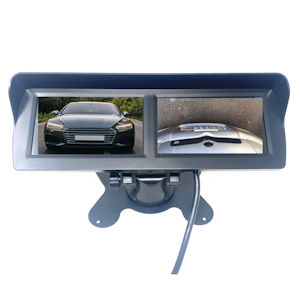

The dual 4.3" monitor has an adhesive base which is equally at home stuck to your dashboard or windscreen. Each camera plugs into the monitor independently so this setup allows you to have both cameras on at the same time viewed side-by-side.
Our Range Of Monitors
The 7 inch dash monitor is certainly the more commercial looking solution giving a larger picture on a bracket that both tilts and swivels so you can locate it as suits your needs. The mounting bracket comes with an adhesive pad but it can also be screwed down to your dashboard.
Our Range Of Monitors

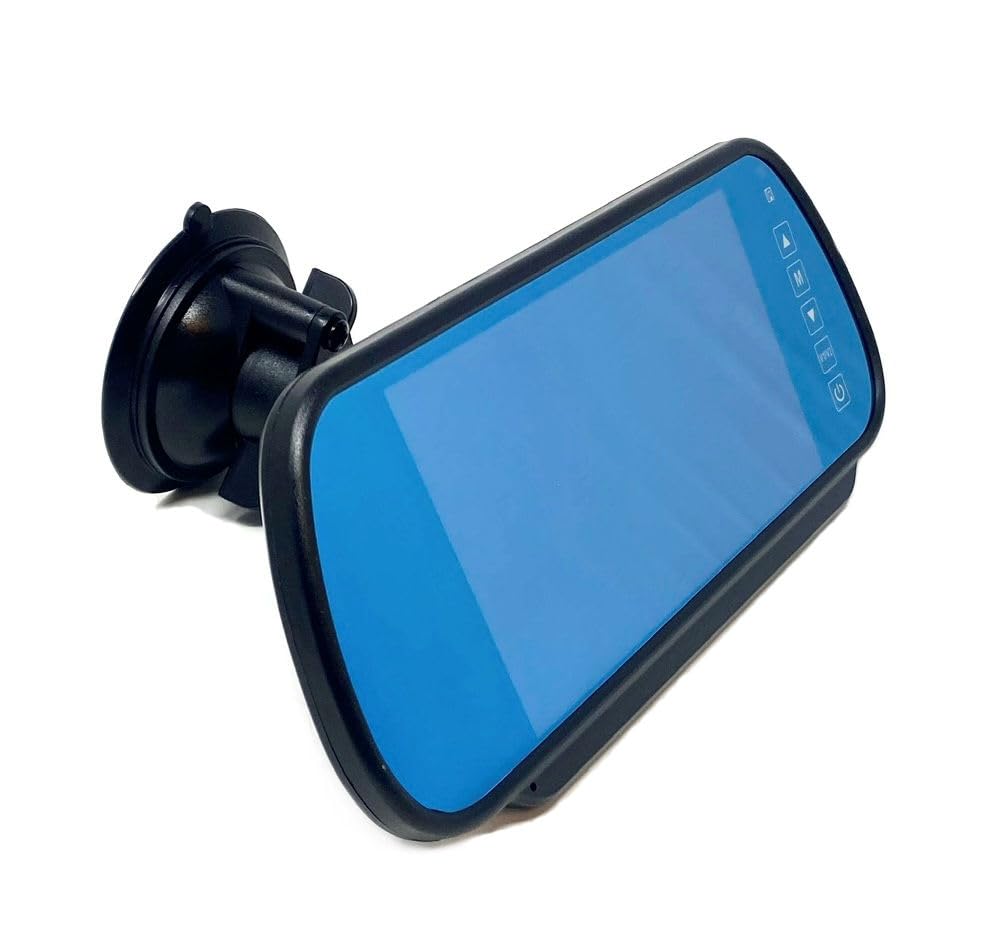

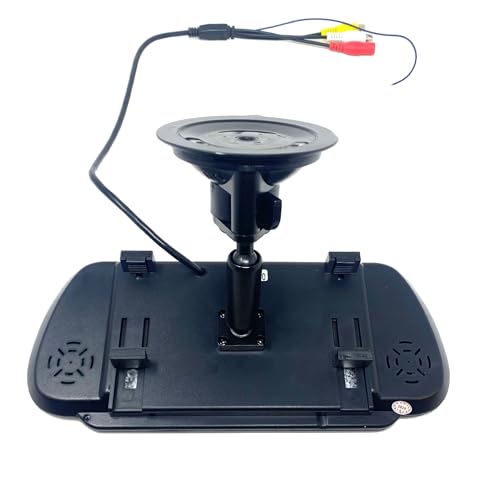

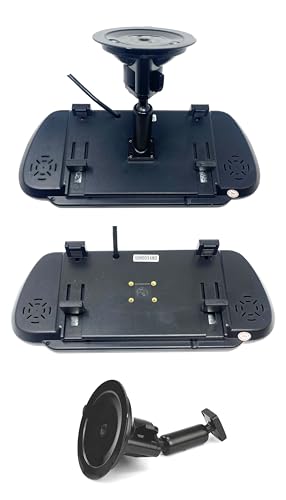

The 7 inch mirror monitor can either clip over an existing mounted rear view mirror or sucker to the windscreen with the included mount. It is designed to show your rear camera whilst driving and then automatically switch over to your parking camera when you select reverse gear.

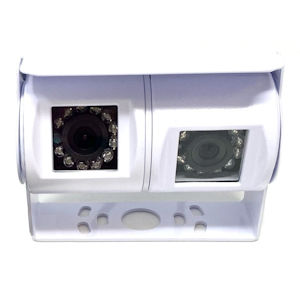

Camera Only
4.3" Dual Monitor
7" Dash Monitor

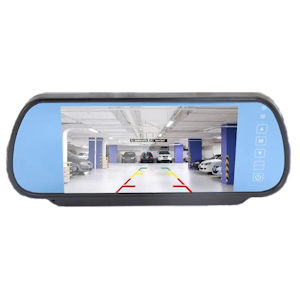

7" Mirror Monitor
Dolphin Automotive
UK Support
As a UK Company, established since 1997, we sell a range of automotive products in addition to reversing cameras and in the intervening 25+ years we have won awards for our range of reversing parking sensors in particular. Being in the UK we can offer both telephone and email support both pre and post purchase should you have any issues.

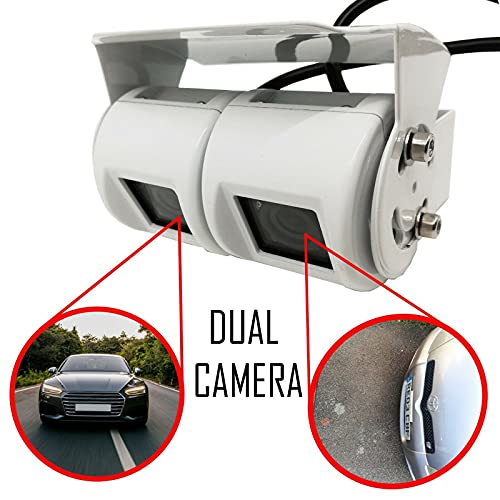

- KIT: This Dual Reversing Camera System Provides Extra Rear View Coverage With One Lens Angled Down Towards Your Rear Bumper And The Second Looking Out Behind You Similar To A Rear View Mirror. The 7" Universal Mirror Monitor Can Either Clip Over An Existing Rear View Mirror Mounted In Your Van Or If You Do Not Have One It Is Supplied With A Commercial Grade Suction Mounting Arm That Will Stick To Your Windscreen. When Powering The Rear Outward Camera By A 12v Ignition Live And The Downward Camera Off A Reversing Light Feed The Monitor With Automatically Switch To This View When You Go Into Reverse And Back Again When You Come Out Of Reverse Gear.
- DESIGN: Supplied On An Adjustable Mounting Bracket. You Can Choose Your Preferred Angle For Each Camera, Both Of Which Have Infrared LEDs For Improved Night Vision And A Sun / Weather Visor. Both Cameras Have Guidelines Which Can Be Deactivated If Not Required. With Independent Power Suppliers and 10m Phono Cables For Each Camera You Have Flexibility As How You Power & View Each Camera Either Both On Together Or One Then The Other Depending How You Wire Them – And Your Monitor Options.
- COMPATIBILITY: Please Note There Are Many Cameras on The Market Which Look Similar But In Reality They Have Different Wiring Connections. If You Are Looking To Replace A Faulty Camera You Already Have Fitted On A Motorhome or Similar Please Check Your Wiring Before Ordering. Ours Have 2 Separate 4pin Connectors – One For Each Camera. This is Often Different To Cameras Found On Many Bessacarr, Autotrail, Sargent, Elddis and Swift Motorhomes & Are NOT COMPATIBLE.
- OPERATION: Available as Camera Only or With a Range of Compatible Monitor Solutions. Our 7" Dash Monitors Are Designed To Show The rear Outward View When Driving and Switch to the Downward View When You Select Reverse Gear. If You Are Interest In Seeing Both Cameras Side-By-Side Then We Recommend On Of Our 4.3" Dual Screens & You Can Wire Both Cameras To 12v Ignition Rather Than Reverse So They Are Both Always On.
- SPECIFICATION: The Camera Works On 12v Power With A CMOS Lens At 720p Quality. It Has A 120 Degree Viewable Angle Looking Down Behind Your Van And A 90 Degrees View Looking Outwards Behind, Both With Mirror Image View And Are IP68 Waterproof. The Cameras Also Have 12 LEDs For Infrared Night Vision And Both Cameras Are Mounted In An Adjustable Bracket for Your Preferred Alignment.
- COMPANY: Dolphin Automotive is a brand of UK Company Trading Direct Ltd, Est 1997. VAT Registered Supplier, 12 Months Warranty And Telephone Support.
| SKU: | B0GKB2G7XS |
| Dimensions: | 12L x 7W x 8H centimetres |
| Brand: | Dolphin Automotive |
| Model: | DOLC217M |
| Manufacture: | Dolphin Automotive |
| Origin: | China |
