Heltec Mesh Node T096 Devboard Meshtastic NRF52840 Tracker
Heltec Mesh Node T096 Devboard Meshtastic NRF52840 Tracker LoRa Node SX1262 Bluetooth for MeshCore LoRaWAN 863-928MHz
Xnuiasqe Features:

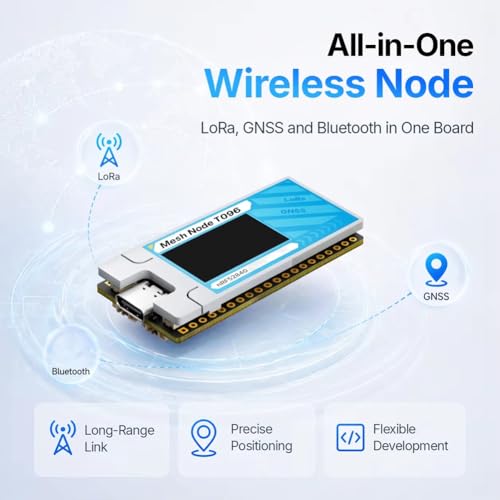

Supports Bluetooth, LoRa, and GNSS communication.

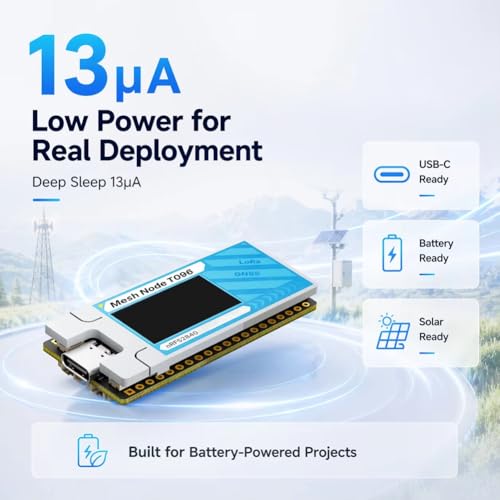

Ultra-low power consumption.
Maximum output power of 28±1dBm, and the can be bypassed.
Supports GPS, GLONASS, BDS (BeiDou), , NAVIC, and QZSS.
Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and shielding.
Supports the for development framework, providing LoRa/LoRaWAN examples.
Compatible with Meshtastic and MeshCore.
Specifications:
MCU: nRF52840
LoRa Chip: SX1262
GNSS Chip: UC6580(L1+L5)
Frequency: 863~928MHz
Max. TX Power: 28±1dBm
Bluetooth LE: Bluetooth 5, Bluetooth mesh
Hardware Resource: USB 2.0, 2 x LEDs, 2 x Buttons, 4 x SPI, 2 x TWI, 2 x UART, 4 x PWM, QSPI, I2S, PDM, QDEC Etc.
Interface: Type-C USB, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa ANT (.0), GNSS ANT (.0), 2 x 13 x 2.54 Header Pin
Power Supply: USB-C 5V, Lithium battery 3.7V( 3.3-4.2V )
Operating Temperature: -20 ~ 70 ℃
Color: As Shown
Material: PCB+Plastic
Package Contents:

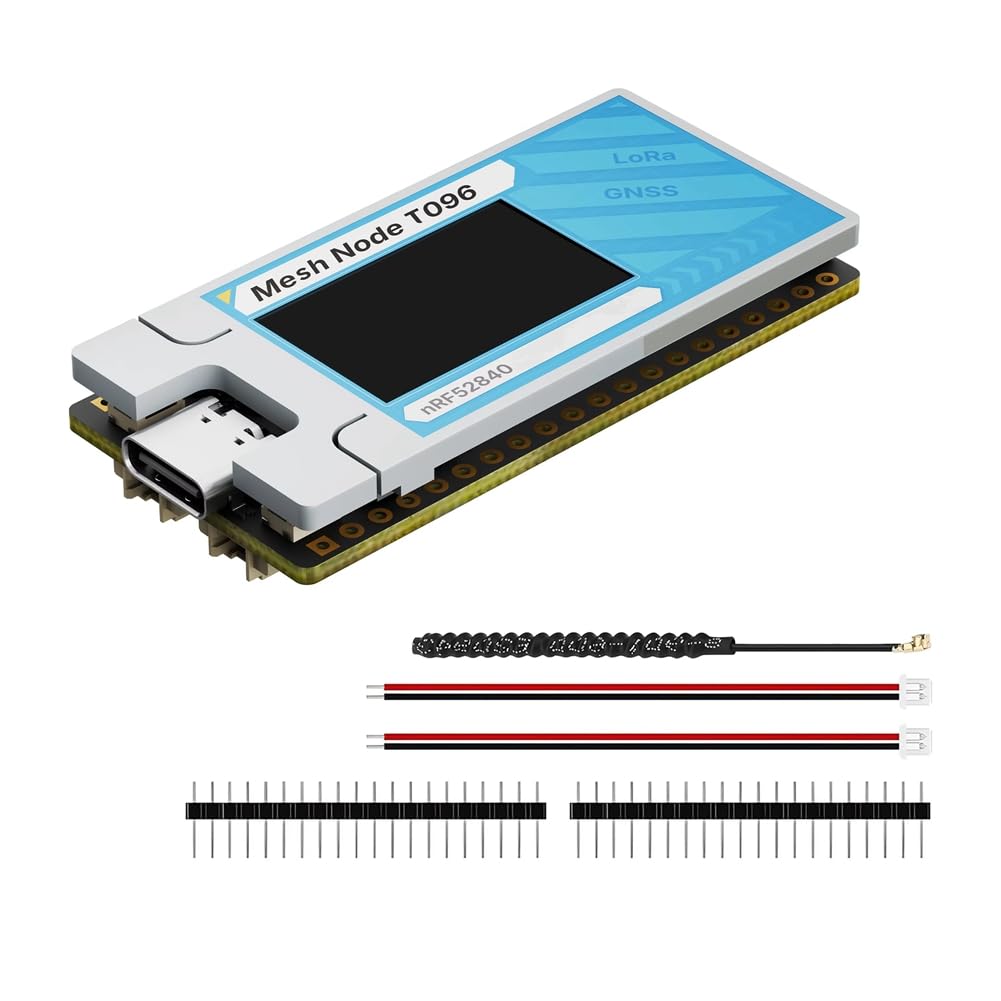

1 * Mesh Node with Accessories
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Engineered for low-power operation, it is perfectly suited for battery-powered deployments.
- The UC6580 GNSS chip enables precise global positioning, making the device ideal for decentralized mesh networks, asset tracking, and remote sensing.

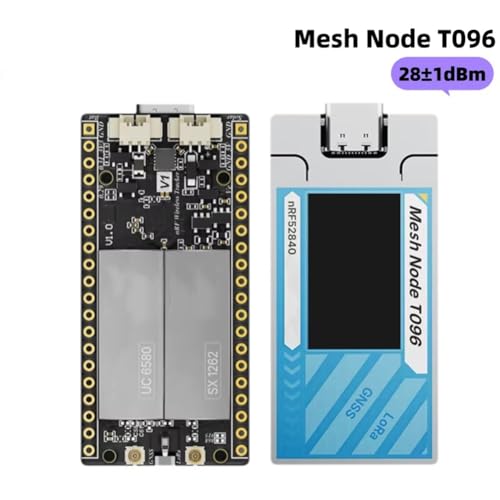

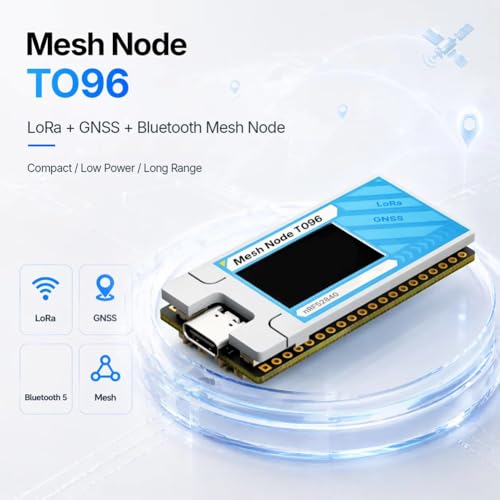

- Mesh Node T096 is a low-power development board that integrates Bluetooth, LoRa, and GNSS. At its core, the nRF52840 MCU provides ample processing power and Bluetooth connectivity, while the SX1262 LoRa transceiver-integrated with PA-delivers transmit power of 28±1 dBm, ensuring exceptional range and link reliability.
- Utilizing Laser Direct Structuring (LDS) technology for both GNSS and Bluetooth antennas, the T096 achieves a compact, , and highly efficient antenna solution.
- Fully supported by the for development environment and compatible with open-source mesh projects such as Meshtastic and MeshCore, the Mesh Node T096 offers developers and enthusiasts a versatile, ready-to-use platform for building resilient, scalable mesh networks.
| SKU: | B0GZW9PGKX |
| Dimensions: | 6 x 6 x 3 cm; 34 g |
| Manufacture: | Xnuiasqe |
