Heltec V4 Meshtastic WiFi LoRa 32 Dev-Board Set SX1262 Solar
Heltec V4 Meshtastic WiFi LoRa 32 Dev-Board Set SX1262 Solar Powered Mesh Network WiFi LoRa BLE Low Powe
Aboiled Specifications
MCU:-S3R2 (Xtensa32-bit lx7 dual core processor)
LoRa Chip:SX1262
Frequency:High-power version: 863-928MHz
Max. TX Power:High-power version: 28 ±1 dBm
Low-power version: 21 ±1 dBm
Max. Receiving sensitivity:-137dBm@SF12 =125KHz
Wi-Fi:802.11 b/g, up to 150Mbps
Bluetooth:Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Battery applicable:3.3-4.4V lithium battery
Operating Temperature:-20 ~ 70 ℃
(The product printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: PCB
Package Contents:

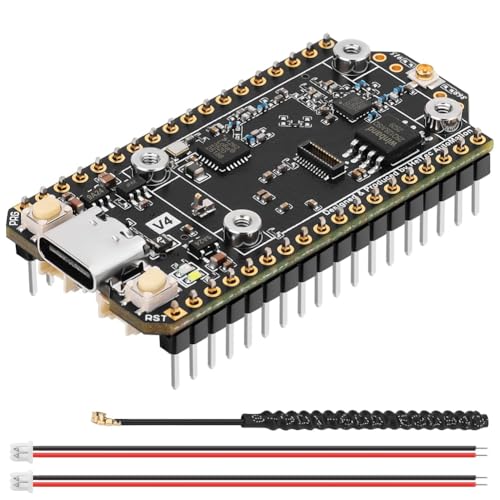

1*Meshtastic LoRa32 V4 board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system

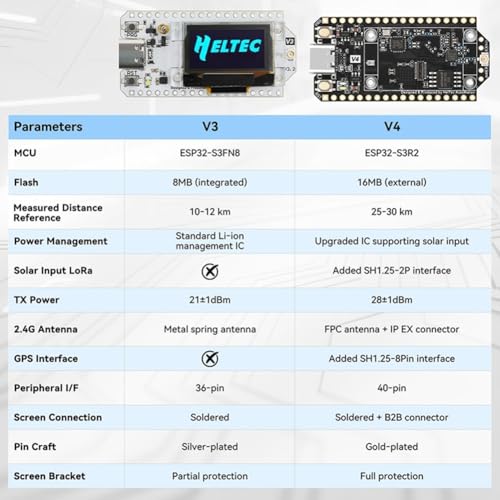

- WiFi LoRa 32 V4 is a fully upgraded version of the classic LoRa development board. Since its initial launch in 2017, this product series has been highly favored by developers and makers
- USB Type-C interface with integrated voltage – regulation, ESD protection, short-circuit protection, and isolation design
- It is suitable for various IoT applications such as smart cities, agricultural monitoring, smart homes, industrial control,security systems, and wireless meter reading, providing developers with a more efficient and flexible development experience
- High-power version with LoRa transmission power increased to 27±1dBm,Added SH1.25-2P solar panel interface.
| SKU: | B0GGHFHLMN |
| Dimensions: | 8 x 5 x 3 cm; 120 g |
| Manufacture: | Aboiled |
