MAh LCD Display for Battery Capacity Tester 4CH Lithium
MAh LCD Display for Battery Capacity Tester 4CH Lithium Digital for Battery Detection Module for 18650/217
Pinafresa Operating Voltage: DC 5V
Compatible Batteries: Batteries with a discharge voltage of 2.5-3.5V, or a starting voltage of 2.8V to a fully state of 4.2V.
Power Interface: Two Type-C power connectors (power supply and power cable provided separately)

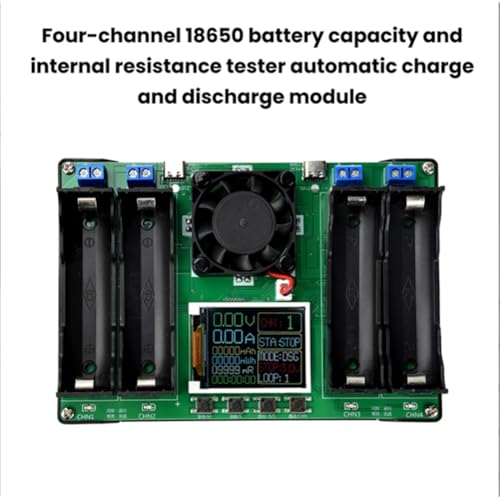

Number of tests: 4-channel charge and discharge measurement

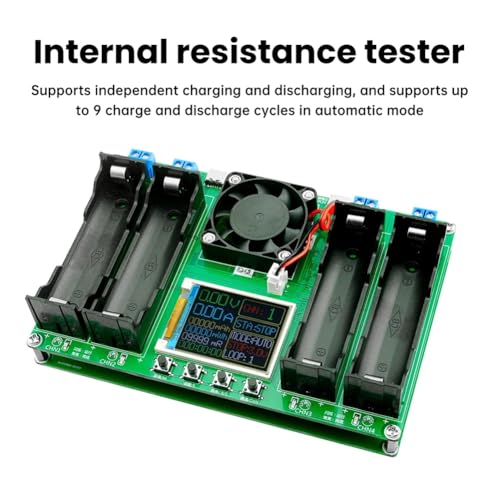

Internal resistance measurement: Supported, using the DC two-wire method to test internal resistance
Charge function: Supported, automatically cuts off when fully (does not support charging lithium iron phosphate batteries)
Discharge function: Supported, automatically stops when conditions are met, discharge current is not adjustable
Automatic charge and discharge: Supported, the battery is fully when automatic mode ends
Cyclic charge and discharge: Supported, adjustable from 1 to 9 cycles (only supported in automatic mode)
Discharge cut-off voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, and 3.5V.11 levels adjustable
Discharge Current: Maximum approximately 1A, non-adjustable, no custom modifications supported.
Charging Voltage: Controlled by a dedicated battery charging chip, maximum approximately 1A charging, fully voltage 4.2V.
Color: As Shown
Material: PC

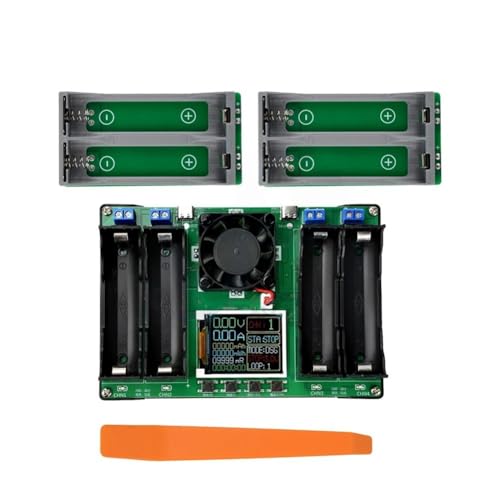

Package Contents:
1*18650 battery capacity
2*Holder
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Compatible Batteries: Batteries with a discharge voltage of 2.5-3.5V, or a starting voltage of 2.8V to a fully state of 4.2V.
- Internal resistance measurement: Supported, using the DC two-wire method to test internal resistance
- Number of tests: 4-channel charge and discharge measurement
- Power Interface: Two Type-C power connectors (power supply and power cable provided separately)
- Charge function: Supported, automatically cuts off when fully (does not support charging lithium iron phosphate batteries)
| SKU: | B0GS19Q2KB |
| Weight: | 293 g |
| Dimensions: | 18 x 12 x 10 cm; 293 g |
| Model: | 500983568 |
| Part: | 500983568 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Pinafresa |
