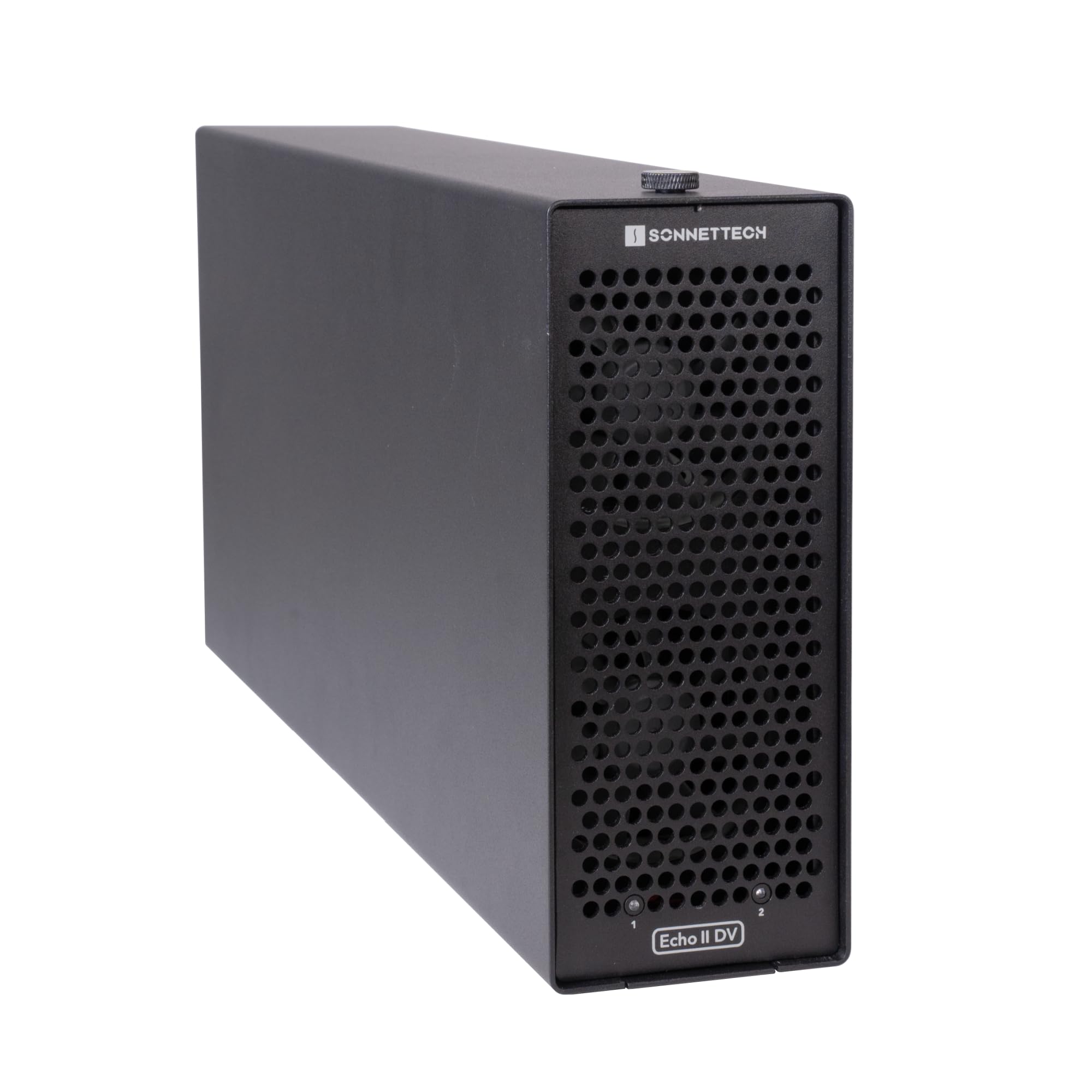

Sonnet Echo II DV T5 2-Slot Thunderbolt 5 PCIe Expansion Enclosure – Desktop Chassis for Two Full-Height PCIe Cards, 6000 MB/s Per Slot, Mac/Windows/Linux

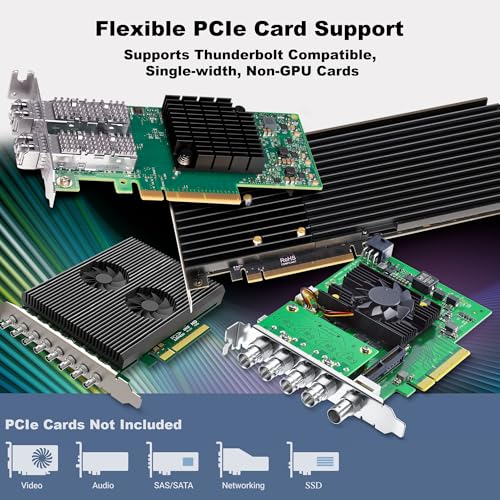

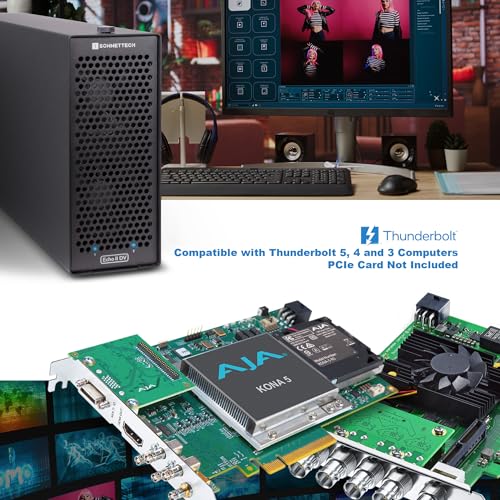

Echo II DV T5 Desktop is a professional 2-slot PCIe expansion system designed for DV I/O and other bandwidth-hungry PCIe cards. Featuring dual Thunderbolt 5 interfaces, it delivers full 6000 MB/s PCIe bandwidth to each slot simultaneously, eliminating shared bandwidth and ensuring maximum performance from both cards at the same time. Unlike traditional multi-slot enclosures, Echo II DV T5 Desktop uses a dedicated Thunderbolt 5 connection per PCIe slot, fully leveraging the independent Thunderbolt buses on the latest computers, including MacBook Pro (M4 Pro/M4 Max), Mac mini (M4 Pro), Mac Studio (M3 Ultra/M4 Max), and select Windows PCs. This enables two high-performance PCIe cards—such as DV I/O, ultra-fast NVMe storage, and 10GbE or 25GbE networking cards—to run at full speed with no compromise. Echo II DV T5 Desktop features two PCIe 4.0 x16 slots and supports virtually any Thunderbolt-compatible, single-width, non-GPU PCIe card, regardless of length or height. A built-in 400W universal power supply and dual 75W auxiliary PCIe power connectors support power-hungry cards including AJA KONA 5, Blackmagic DeckLink 8K Pro G2 (main board only), and Avid Pro Tools | HDX. With four Thunderbolt 5 ports, two connect directly to the computer for maximum performance, while the secondary ports support Thunderbolt daisy-chaining and provide 15W of power to peripherals. Housed in a rugged aluminum enclosure, Echo II DV T5 Desktop powers on and off automatically with the connected computer and is compatible with macOS, Windows, and Linux.

• Dual-Slot Thunderbolt 5 PCIe Expansion System: Connect two high-performance, non-GPU PCIe cards to your computer using Thunderbolt cables. Supports all Thunderbolt-compatible, single-width PCIe cards, regardless of card length or height—ideal for professional expansion workflows.

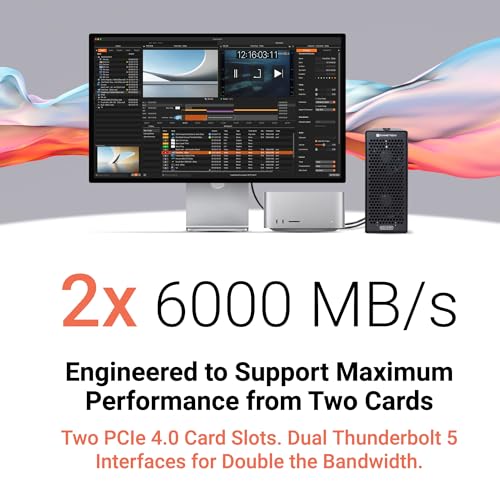

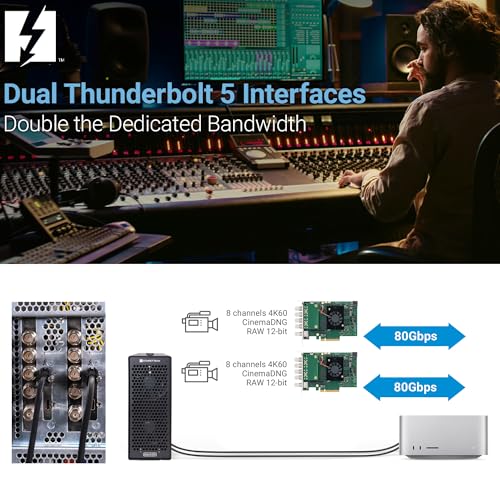

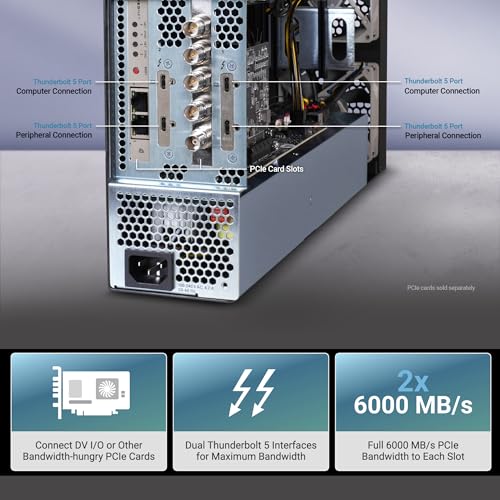

• Dual Thunderbolt 5 Interfaces with Full Bandwidth Per Slot: Features two Thunderbolt 5 connections and two PCIe 4.0 slots, delivering up to 6000 MB/s of PCIe bandwidth to each card simultaneously—no shared bandwidth, no performance compromise.
• Built for Bandwidth-Hungry Workflows: Run DV I/O cards, ultra-fast NVMe SSD adapters, and multi-port 10GbE or 25GbE network cards at full performance at the same time—perfect for video production, post-production, audio, and data-intensive environments.

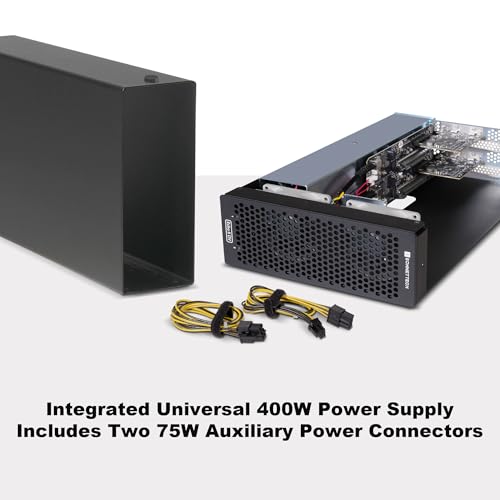

• Integrated 400W Universal Power Supply: Includes dual 75W auxiliary PCIe power connectors for power-hungry cards, plus 15W of power from secondary Thunderbolt ports for connected peripherals and Thunderbolt daisy-chaining.
• Rugged, Quiet, and Broadly Compatible: Housed in durable aluminum and designed for quiet operation. Compatible with macOS (Apple silicon and Intel Macs), Windows PCs with Thunderbolt 5, Thunderbolt 4, or USB4, and Linux systems.
