XUMIUZIY B365M D2VX SI M ATX Motherboard, Supports LGA 1151 Socket 9th 8th Gen for Core I9 I7 I5 I3, with DVI Output DDR4 Memory Slots PCI E 3.0 Slots

1.Spec:
Item Type: Motherboard
Material: PCB, Metal
Battery Type: 240mAh CR2032 Battery (Built in)
Motherboard Model: B365M D2VX SI
Chipset: B365 High Speed Chipset
Sound Chip: Integrated For ALC887 7.1 Channel Sound Chip
Network Chip: Onboard for GbE​ Gigabit Network Chip
Supported CPU Types: 9th and 8th Generation For Core i9 i7 i5 i3, For Pentium, For Celeron Series CPU Processors (CPU Excluded)
CPU Socket: For LGA 1151
Memory Type: 2 x DDR4 DIMM (Memory Module Excluded)
Maximum Memory Capacity: 32GB (Memory Module Excluded)
Memory Description: Supports Double Channel DDR4 2666 2400 2133MHz Memory (Memory Module Excluded)
PCI E Standard: PCI E 3.0
PCI E Slots: 1 x PCI E X16 Graphics Slot, 2 x PCI E X1 Slots
Storage Interfaces: 4 x Serial ATA III Interfaces, 1 x M.2 Slots
USB Interfaces: 6 x USB 3.1 Gen 1 Ports (4 on the Rear Panel, 2 Accessed via Ribbon Cable from Motherboard USB Header); 6 x USB 2.0 1.1 Ports (2 on the Rear Panel, 4 Accessed via Ribbon Cable from Motherboard USB Header)
Video Interface: 1 x DVI Interface
Power Connector: 1 x 8 Pin Power Connector, 1 x 24 Pin Power Connector
Other Interfaces: 1 x Mouse Port, 1 x Keyboard Port, 4 x USB 3.1 Gen 1 Ports, 2 x USB 2.0 Ports, 1 x RJ 45 Ethernet Port, 3 x Sound Ports
Motherboard Form Factor: M ATX

How to Use:
Install and use.

Package List:
1 x Motherboard

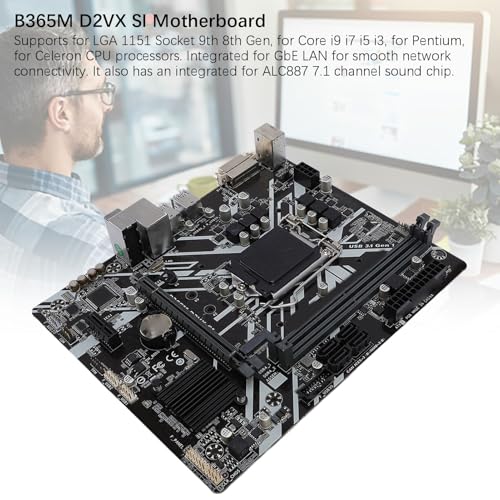

• B365M D2VX SI Motherboard: Supports for LGA 1151 Socket 9th 8th Gen, for Core i9 i7 i5 i3, for Pentium, for Celeron CPU processors. Integrated for GbE LAN for smooth network connectivity. It also has an integrated for ALC887 7.1 channel sound chip.

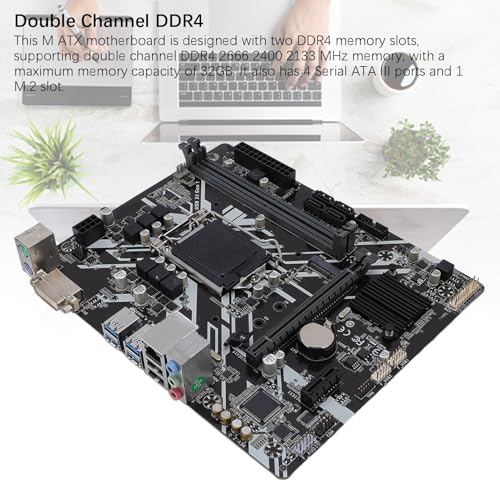

• Double Channel DDR4: This M ATX motherboard is designed with two DDR4 memory slots, supporting double channel DDR4 2666 2400 2133 MHz memory, with a maximum memory capacity of 32GB. It also has 4 Serial ATA III ports and 1 M.2 slot.

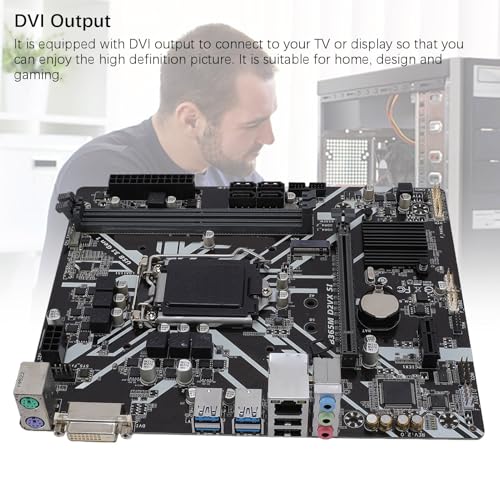

• DVI Output: It is equipped with DVI output to connect to your TV or display so that you can enjoy the high definition picture. It is suitable for home, design and gaming.

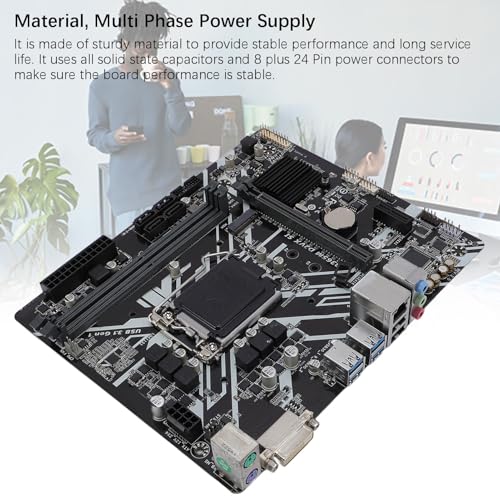

• Material, Multi Phase Power Supply: It is made of sturdy material to provide stable performance and long service life. It uses all solid state capacitors and 8 plus 24 Pin power connectors to make sure the board performance is stable.

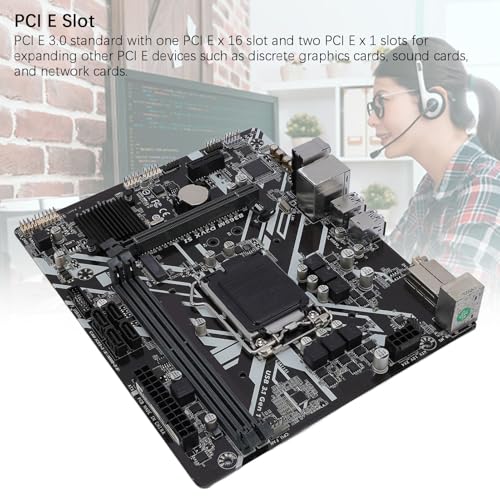

• PCI E Slot: PCI E 3.0 standard with one PCI E x 16 slot and two PCI E x 1 slots for expanding other PCI E devices such as discrete graphics cards, sound cards, and network cards.
