10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps SSD 5 Ports Adapter Converter PM Port Multiplier Selector JMB575 JMS58

10Gbps USB-C Type-C to NGFF Key B+M SATA 6Gbps 5 Ports Adapter Converter PM Port Multiplier Selector

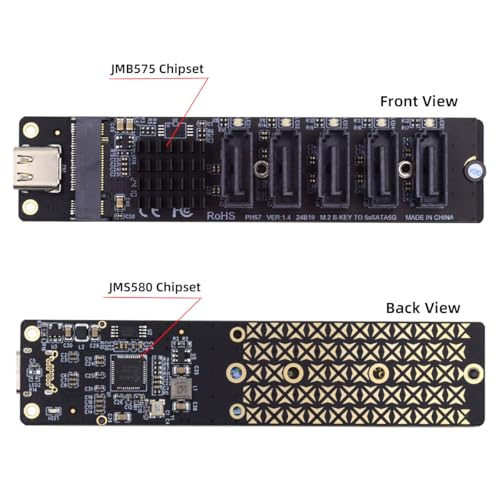

Dual chipset at the adapter, JMB575+JMS580.

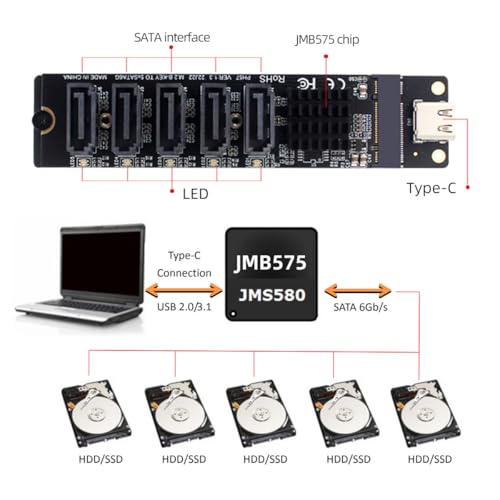

JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.

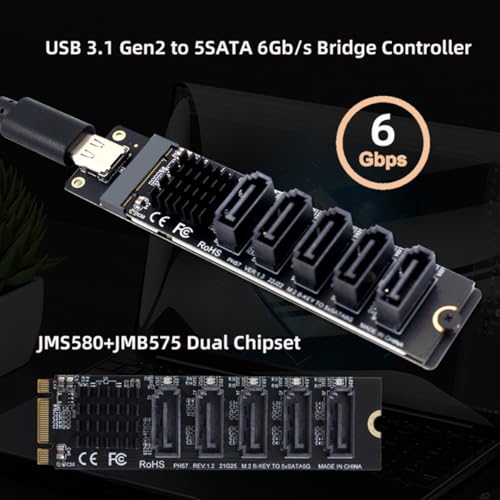

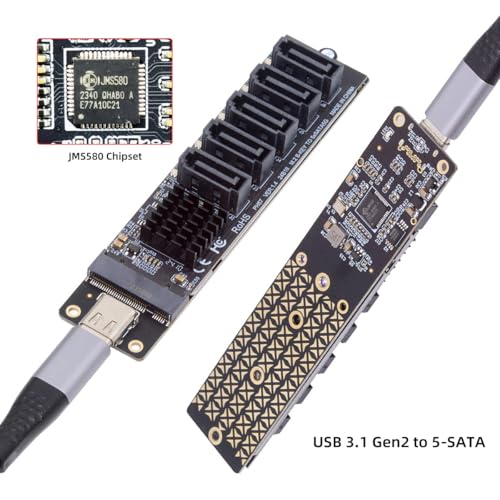

JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate.

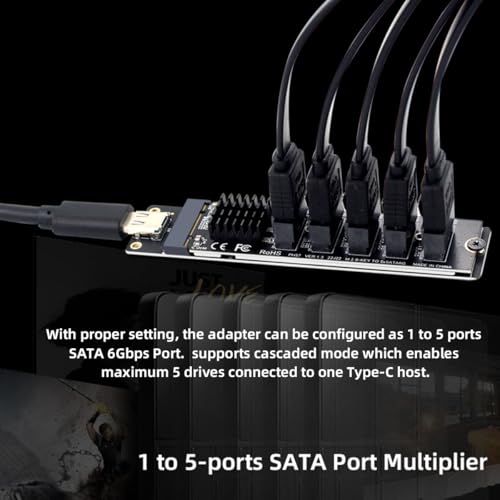

With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.

Key Features:

Complies with Serial ATA 6Gb/s Electrical Specification 3.2;

Complies with USB 3.1 Specification Revision 1.0, USB BOT Specification;

Support 5 port SATA 6Gbps interface; Supports BIST and loopback mode;

Support command-based and FIS-based switching; Support PM aware and non-PM aware host;

Main control chip: JMB575+JMS580

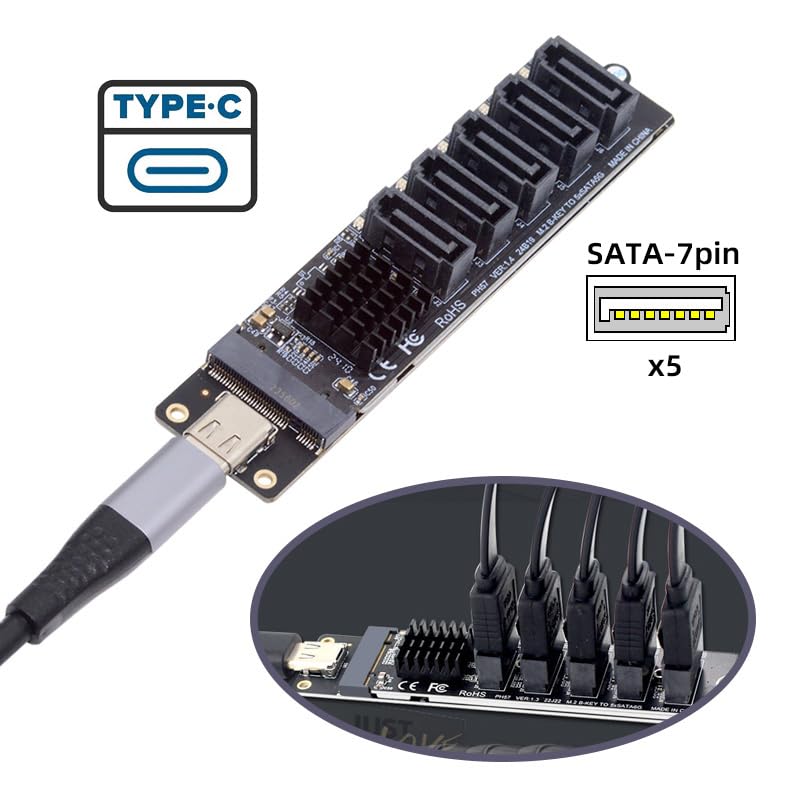

Interface: 5 x SATA3.0 interface

• 1) Dual chipset at the adapter, JMB575+JMS580; JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. Supports cascaded mode which enables maximum 5 drives connected to one host.
• 2) JMS580 is a USB 3.1 Gen 2 to SATA 6Gb/s bridge controller between USB host and SATA storage device. TheUSB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate; With proper setting, the chip can be configured as Type-C to 5 ports SATA 6Gbps Port.
• 3) Supports native command queue (NEQ). Under high load, NCQ technology can guarantee the performance and stability of the hard disk.
• 4) The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk; Applicable slot1: MINI PCI-E (mSATA is not supported); Applicable slot2: NGFF A+E key (B/M-Key is not supported)
• 5) With hot swap and hot plug capabilities, and power management functions;Support error reporting, recovery and correction;Supports partial and sleep power management states;Support Gen1i, Gen1x, Gen2i, Gen2m, Gen2x and Gen3i;
