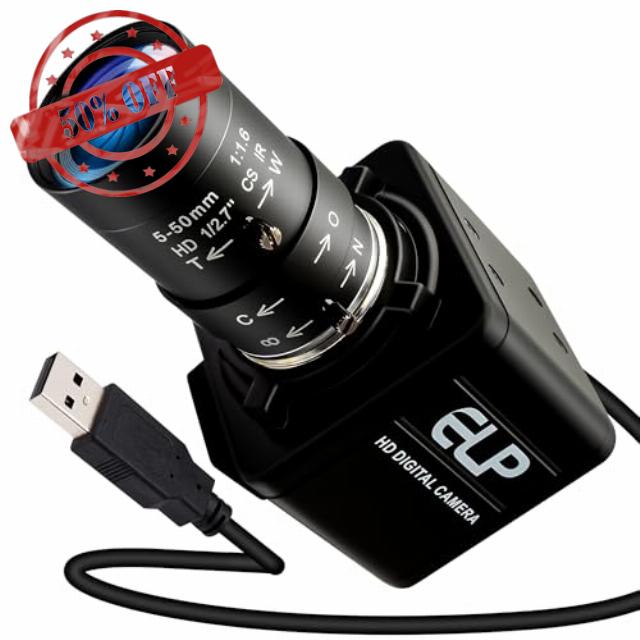

ELP 90fps Global Shutter USB Camera,1200P Golf Swing Webcam

ELP 90fps Global Shutter USB Camera

ELP 90fps Global Shutter USB Camera,1200P Golf Swing Webcam with High Frame Rate, 5–50 mm 10x Manual Zoom Lens, Industrial Cam for Image Processing, Lightburn, Jetson Nano, Live Streaming

ELP Global Shutter 90fps USB Camera 10X 5-50mm Varifocal Lens High Speed UVC Webcam, Golf Swing & 3D Printer Machine Industrial Vision Came

SPECIFICATIONS

– Sensor: 1/2.6” Aptina AR0234

– Resolution: 2mp 1920 x 1200

– Data Format: MJPG/YUY2

– Frame Rate: 90fps@1920×1200/1080P

Lens: 5-50mm variable focus lens

– Focusing Range: 0.33ft (10CM) to infinity

Functionality and Compatibility

– Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

– System Compatibility: Windows, Linux, Mac, and Android with UVC.

Power

– Power Supply: USB BUS POWER 4P-2.0mm Socket

– Working Current: MAX 370mA

– Operating Temp.: 14°F~158°F (-10~70℃)

ELP Global Shutter 90fps USB Camera, 5-50mm Varifocal Lens UVC Webcam for Golf Swing Analysis, 3D Printer, Industrial Vision, Plug & Play

ELP global shutter USB camera delivers clear, motion-blur-free video at up to 90fps, making it ideal for high-speed capture like golf swing analysis. It features a 5-50mm varifocal lens for flexible framing and adjustable focus. With UVC plug-and-play support, it works seamlessly with laptops, Android devices, and Raspberry Pi. Perfect for industrial machine vision, 3D printer monitoring, golf training, live streaming, and embedded projects.

ELP Global Shutter USB Camera 90fps High Frame Rate Industrial Camera, Distortion-Free Motion Capture Webcam for Machine Vision, Computer, Laptop

*Item: 2 Megapixel HD 1080P 90FPS Global Shutter USB Camera

*Sensor: 1/2.6”AR0234 CMOS Sensor

*Resolution:up to1200P, 1920(H)*1200(V)

*High Speed/High FPS: 1920×1200 Mjpeg 90FPS, 1920×1080 Mjpeg 90FPS

*Lens: Megapixel HD CS 5-50mm lens

*USB Cable: Support different length cable, standard with 3m cable (0.3m/0.5m/1m/2m/5m.optional)

*UVC Protocal:Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness.

*Operating Systems:Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

*Software:Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo

Booth, Face time, Quick Time.)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Package Includes: 1PCS USB Camera with 3m USB Cable.

ELP Global Shutter 90fps High Speed USB Camera, 5-50mm Varifocal Lens UVC Webcam, Golf Swing Analysis & 3D Printer Camera, Plug & Play for Laptop

ELP is a high-speed 2MP USB camera powered by the Aptina AR0234 1/2.6” global shutter sensor, supporting up to 90fps for crisp, motion-blur-free imaging—even for fast-moving objects. It features a 5-50mm manual varifocal zoom lens, allowing adjustable zoom, brightness, and focus for various shooting distances.

UVC-compliant and truly plug-and-play, this camera works with Windows, Linux, Mac, Android, and Raspberry Pi without extra drivers. With great low-light performance and stable high-speed transmission, it is ideal for golf swing analysis, industrial machine vision, 3D printing monitoring, robotics, and high-speed capture applications.

90fps High Speed USB Camera 2MP USB Camera Zoom Lens 1080P Close-up USB Camera Lightburn Industrial Camera for Laptop,Raspberry Pi,Jetson Nano

  1. Fully compatible with Windows, Linux, Mac, Android, and Raspberry Pi. UVC compliant and driver-free, simply plug and play for instant use.For PC & Devices
  2. Supports Android development boards, Raspberry Pi, and Jetson Nano.For Development Boards

  • USB 2.0 OTG interface
  • Works with popular streaming software: Skype, Zoom, FaceTime, YouTube, and more
  • Compatible with Amcap, OpenCV, VLC, V4L2, and default PC webcam software
  • Supports a wide range of systems: Windows, Linux, Android, Ubuntu, Mac OS, Raspberry Pi

90fps Global Shutter USB Camera 1200P Golf Swing Camera High Frame Rate 5-50mm 10X Manual Zoom Lens Industrial Camera for Machine Vision

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

Customer ReviewsPriceMax ResolutionImage SensorLensCompression FormatMini IlluminationMax Frame RatePlug and PlayUVC CompliantSupport OS
Add To BasketAdd To BasketAdd To BasketAdd To BasketAdd To BasketAdd To Basket
3.5 out of 5 stars333.5 out of 5 stars333.9 out of 5 stars403.8 out of 5 stars273.7 out of 5 stars204.1 out of 5 stars8
£175.99£175.99£165.99£165.99£132.99£132.99£152.00£152.00£103.00£103.00£91.00£91.00
4K/2160P4K/2160P4K/2160P4K/3040P5MP/1944P2K/1080P
CMOS imx415CMOS imx415CMOS imx415CMOS IMX577CMOS IMX317CMOS OV4689
MJPEG/YUY2/H.264MJPEG/YUY2/H.264MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2MJPEG/YUY2
5-50mm Optical Zoom Lens2.8-12mm Optical Zoom Lens2.8-12mm Optical Zoom Lens3.6-10mm Optical Zoom Lens5-50mm Optical Zoom Lens5-50mm Optical Zoom Lens
0.2LUX0.2LUX0.2LUX0.1LUX0.2LUX0.1LUX
60fps60fps30fps120fps30fps260fps
✓✓✓✓✓✓
✓✓✓✓✓✓
WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or aboveWinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

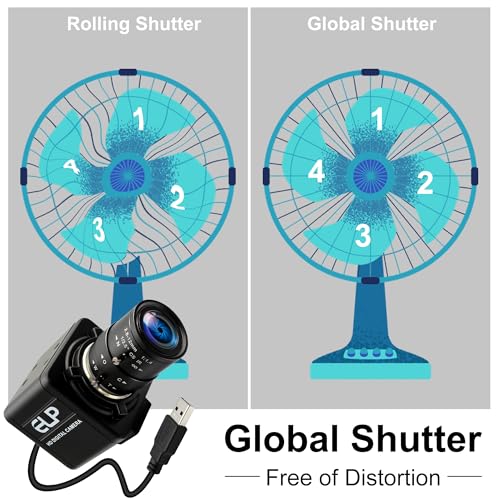

  • Global Shutter 90fps High Speed Camera： Equipped with global shutter technology and up to 90fps high frame rate, effectively eliminates motion blur and distortion, perfect for capturing fast-moving objects in golf swing analysis, 3D printing monitoring and high-speed motion recording.
  • 5-50mm Varifocal Lens with 10X Zoom： Features a 5-50mm adjustable varifocal lens, providing 10X manual zoom for flexible viewing distance and frame adjustment, allowing you to get clear and detailed images without changing lenses.
  • UVC Compliant & Plug and Play ： Adopts standard UVC video protocol, no extra driver required. Simply plug into the USB port to use instantly, saving time and effort for quick setup on various devices and applications.
  • Stable Performance for Professional Scenarios: Built for long time continuous operation, delivering stable video output and clear imaging for golf swing analysis, 3D printer monitoring, industrial inspection and other high speed capture tasks.
  • Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.
›
SKU: B077X9DY45
Weight: 0.01 Kilograms
Brand: ELP
Model: ELP-USBGS1200P01-MFV (5-50)
Manufacture: SHENZHENSHIJIAZHIGUANGKEJIYOUXIANGONGSI
Origin: China

Product Description

ELP Global Shutter 90fps USB Camera 10X 5-50mm Varifocal Lens High Speed UVC Webcam, Golf Swing & 3D Printer Machine Industrial Vision Came

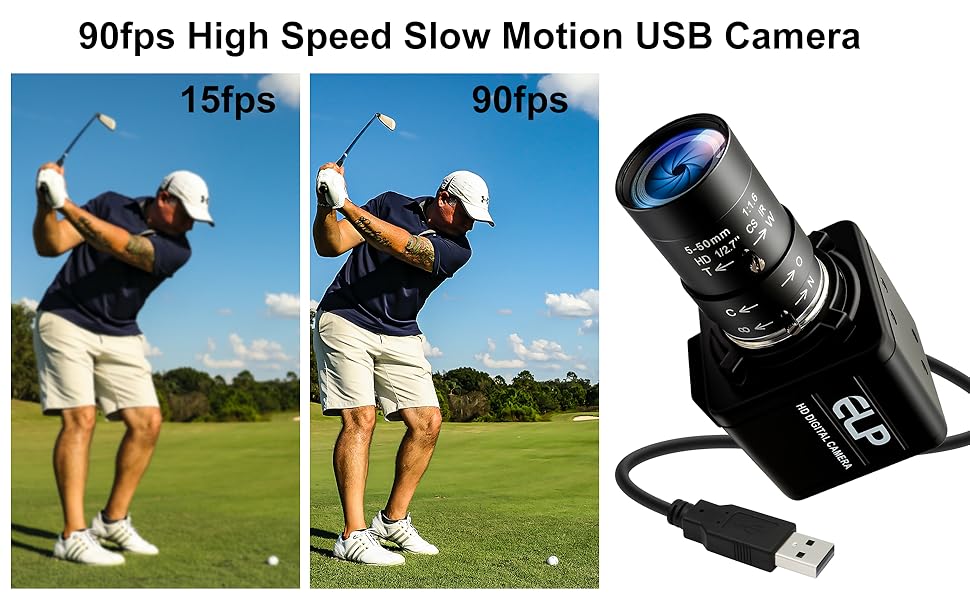

aplus content imageaplus content imageaplus content imageText reads '1200P@90fps USB Camera Multiple Application'. Three application scenarios shown: Industrial Inspection with microscopic machinery view, Motion Analysis with tennis player mid-serve, Scientific Research with microscope usage. USB camera device displayed on right.

1: If you encounter lighting issues during use: simply turn the knob at the bottom of the lens to adjust the aperture and control brightness. You may also turn the knob on the other end for manual focusing.

2: If you use this device for DIY projects such as 3D printer monitoring, please ensure the environment is well-lit.

3: This camera is extremely easy to install and compatible with all major platforms. The adjustable functions ensure you get the best angle and lighting for your needs.

4: Wide Compatibility for Multi Devices: Works seamlessly with laptops, Android devices, Raspberry Pi and more industrial or DIY platforms, ideal for machine vision, industrial monitoring, computer vision projects and home experimental applications.

ELP 4K USB3.0 HDMI USB Camera Manual Zoom 5-50 mm 10X Webcam 4K 60fps PC Came… ELP HDMI 4K Camera 60fps High Speed Webcam USB 3.0 HDMI Simultaneous Output P… ELP 4K HDMI USB Camera Wide Angle 2.8-12 mm Varifocal Focus Lens Webcam Close… ELP 120fps USB Camera 4K High Speed ​​USB Webcam Golf Swing Cam 12Megapixels … ELP 4K Web Camera, Ultra HD IMX317 USB Conference Varifocal Webcam with 5-50m… ELP USB Camera 1080P High Speed 260fps 5-50mm 10X Optical Zoom Lens 2MP USB W…
Customer Reviews 3.5 out of 5 stars333.5 out of 5 stars333.9 out of 5 stars403.8 out of 5 stars273.7 out of 5 stars204.1 out of 5 stars8
Price £175.99£165.99£132.99£152.00£103.00£91.00
Max Resolution 4K/2160P 4K/2160P 4K/2160P 4K/3040P 5MP/1944P 2K/1080P
Image Sensor CMOS imx415 CMOS imx415 CMOS imx415 CMOS IMX577 CMOS IMX317 CMOS OV4689
Lens MJPEG/YUY2/H.264 MJPEG/YUY2/H.264 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2
Compression Format 5-50mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 2.8-12mm Optical Zoom Lens 3.6-10mm Optical Zoom Lens 5-50mm Optical Zoom Lens 5-50mm Optical Zoom Lens
Mini Illumination 0.2LUX 0.2LUX 0.2LUX 0.1LUX 0.2LUX 0.1LUX
Max Frame Rate 60fps 60fps 30fps 120fps 30fps 260fps
Plug and Play ✓ ✓ ✓ ✓ ✓ ✓
UVC Compliant ✓ ✓ ✓ ✓ ✓ ✓
Support OS WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
