LD6004 mmWave Radar Human Presence Sensor Module, FMCW

LD6004 mmWave Radar Human Presence Sensor Module, FMCW Occupancy & Motion Detector, 3-Target Tracking with XYZ Coordinates, Zone Masking, UART/GPIO Output, 6m Range, Wide Angle

Overview

The LD6004 mmWave Radar Human Presence Sensor is a compact FMCW radar sensing module designed for accurate indoor occupancy detection. Unlike simple PIR motion sensors, LD6004 detects
motion, micro-motion, and stationary presence, helping automation systems respond to real human presence—whether someone is walking, typing, or sitting still.

Multi-target tracking for smarter automation

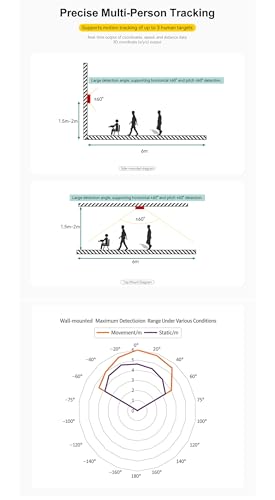

This human presence sensor module supports tracking up to 3 targets and can output x/y/z position coordinates, enabling more advanced logic such as multi-person presence, area-based triggers, and
directional behavior. It can also output auxiliary information such as target distance and speed, supporting richer room-awareness applications.

Zone partitioning & masking to reduce false triggers
LD6004 supports detection-zone partitioning and masked/blocked zones, allowing you to define active areas and suppress interference from unwanted regions (for example, hallways, outside a door, or
background movement). This improves presence detection stability in real installations.

Wide coverage, easy integration
With up to 6m sensing range and wide angle coverage (±60° horizontal and ±60° vertical), the module is suitable for ceiling-mounted presence sensor scenarios in homes, hotels, offices, restrooms, and
smart building spaces. For integration, it provides a UART serial interface with a documented protocol and configurable UART parameters, plus GPIO outputs for flexible signal handling. The compact 35×7mm
form factor supports both pin-header connection and SMT soldering.

Common applications
Ideal for human presence lighting, smart appliances that switch between active/standby states, and smart home/building occupancy monitoring.
Note: This is a wired sensor module for development and embedded integration (no Wi-Fi/Bluetooth connectivity). Not intended for medical diagnosis or life-safety decisions.


Package Contents

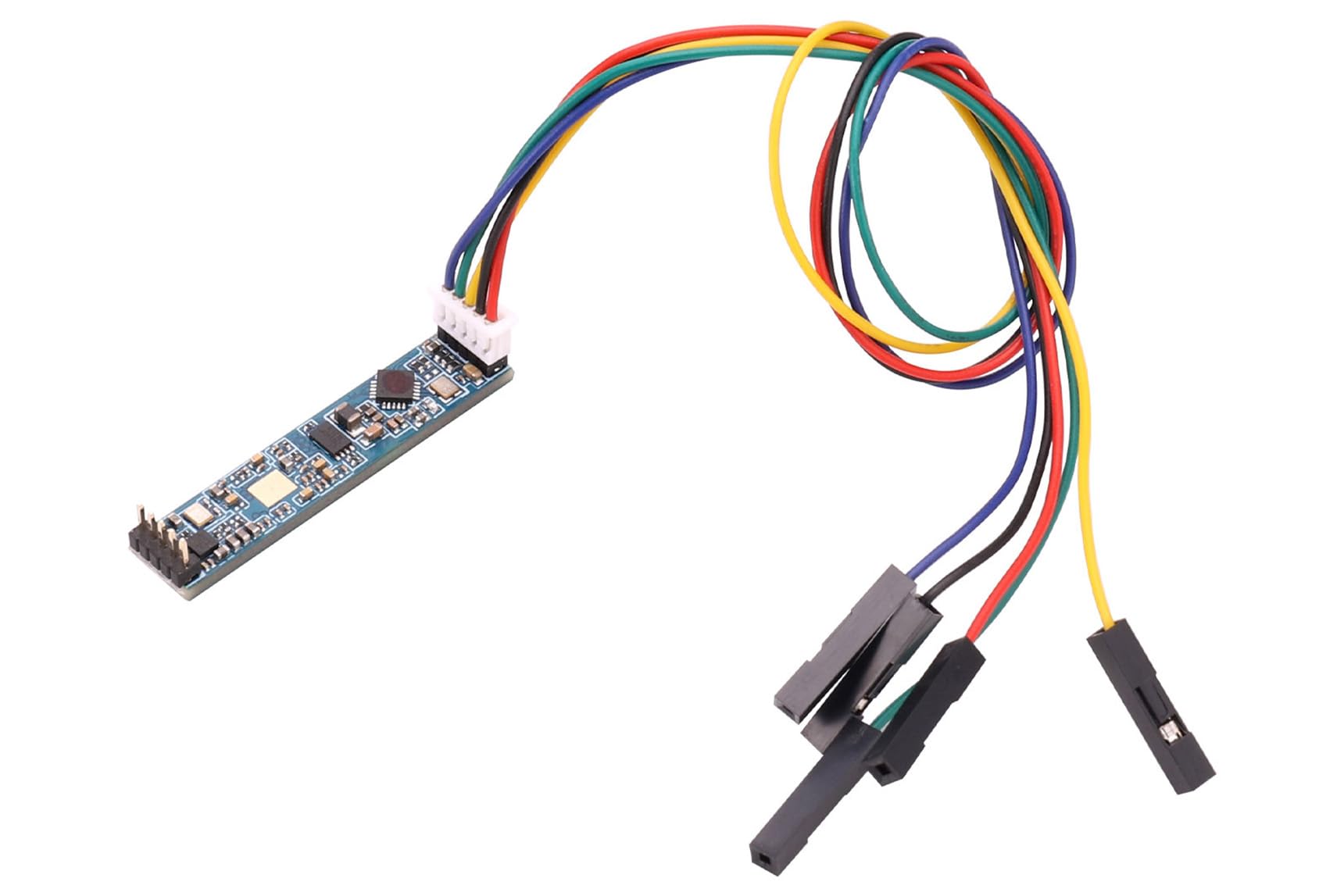

1. FMCW microwave radar human body sensing module LD6004 x1
2. MX1.27 5-pin connector x1

• Human Presence Sensor (Motion + Stillness) – LD6004 mmWave radar human presence sensor detects motion, micro-motion, and stationary presence for true occupancy detection in rooms, offices, and smart spaces.
• 3-Target Tracking + XYZ Coordinates – Advanced FMCW radar module supports up to 3-person tracking and outputs x/y/z position coordinates for smarter automation logic and zone-based presence control.
• Zone Partition & Masking (Anti-Interference) – Detection-zone partitioning with masked/blocked zones helps suppress interference inside/outside set areas, improving human presence detection accuracy in real rooms.
• Up to 6m Range + Wide Angle Coverage – Long 6m sensing range and wide detection angle (±60° H / ±60° V) makes this ceiling-mount presence sensor ideal for larger areas and open layouts.
• UART Serial Protocol + GPIO Outputs – UART interface with provided protocol and configurable parameters, plus GPIO outputs, enables easy integration into controllers; compact 35×7mm module supports pin-header or SMT soldering.
