LILYGO T-SIM7600E-L1C 4G LTE CAT4 USB Dongle Module ESP32
LILYGO T-SIM7600E-L1C 4G LTE CAT4 USB Dongle Module ESP32 TTGO Development Borad 18650 Battery Holder Solar Charging Board
Pin card

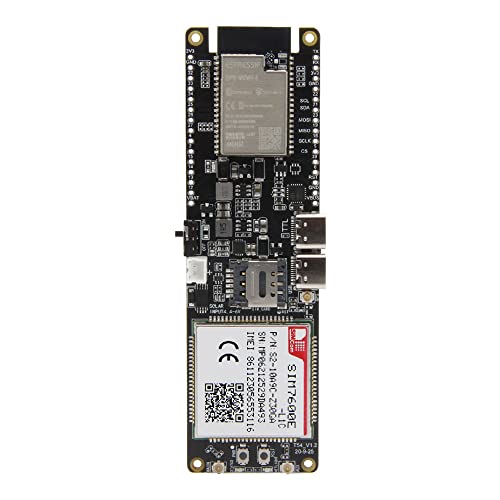

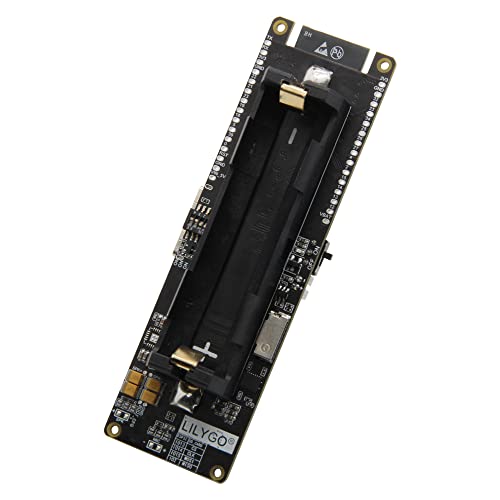

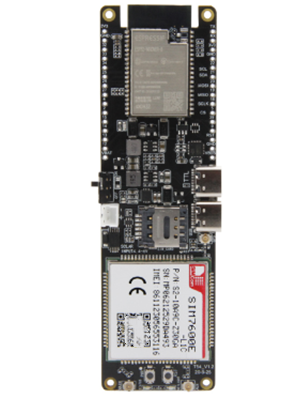

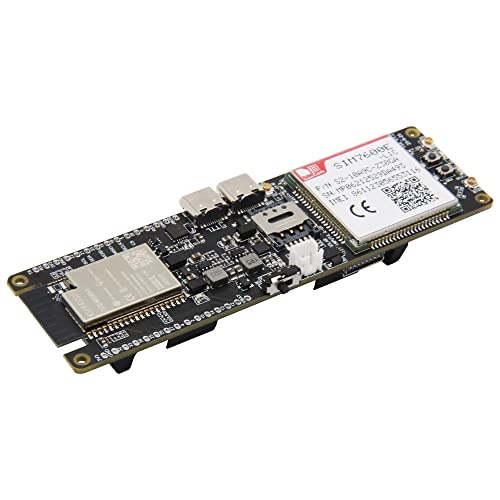

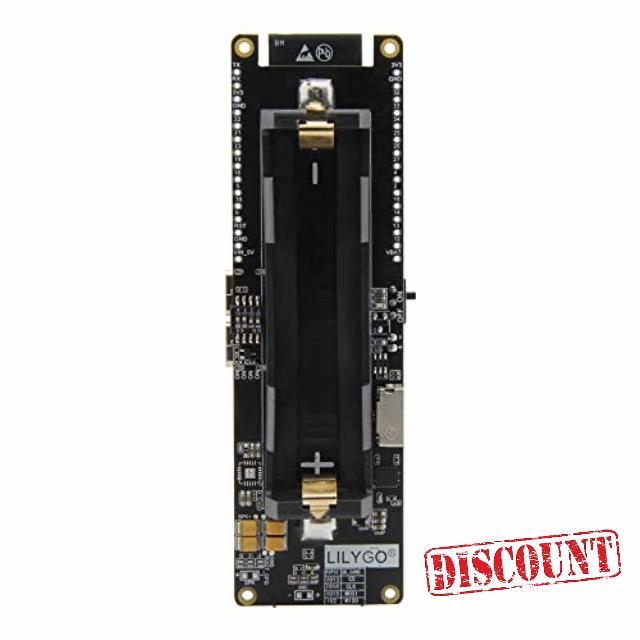

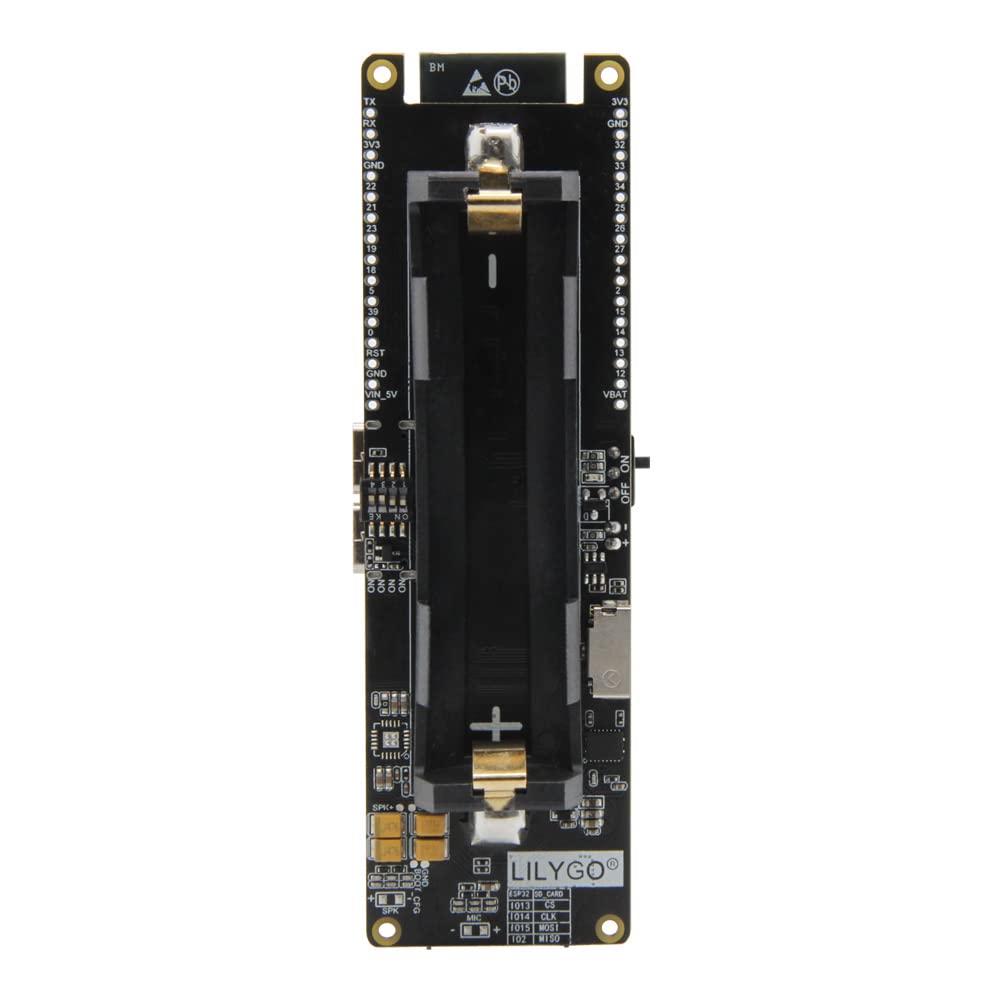

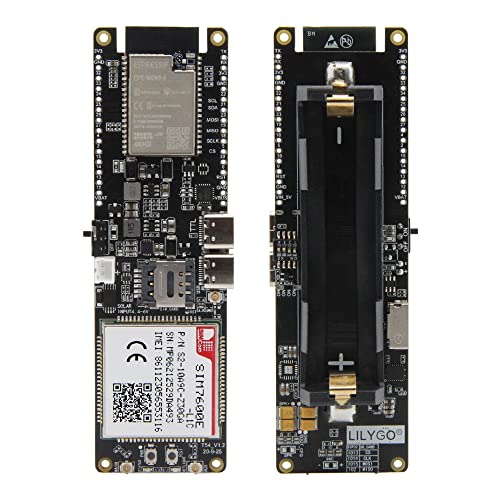

The LILYGO SIM7600 development board combines the performance of the ESP32-WROVER and the SIM7600 module and allows fast LTE connectivity for IoT and M2M applications. It has an integrated 18650 battery holder and a solar charging interface for added convenience. The board also contains two T-type C interfaces
For programming the main control chip for connecting the SIM7600E-H industrial network card USB dongle to a computer via a USB cable, so that it can act as a wireless network card.
These features make the SIM7600 development board a versatile and user-friendly solution for a wide range of application scenarios.
More information: github.com/Xinyuan-LilyGO/LilyGO-T-SIM7600X
SIM7600 Same Parameters
GNSS: BeiDou/GPS/GLONASS
Dimensions (mm): 24*24*2.6
Supply voltage (V): 3.4~4.2
SIM card: 1.8 V/3.0 V
Interfaces:
SIM card/SD card/UART/USB/ADC/I2C
- LTE (mA): 2.3
- wcdmA (mA): 3.3
- GSM (mA): 2.8
Power consumption (mA)
Clock rate: 240 MHz
Flash: 4 MB, PSRAM: 8 MB
Wireless connectivity:
Wi-Fi: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR and BLE
Peripheral interfaces:
I2C、SPI、UART、SDIO、I2S、CAN
Form factor: LCC, 87PIN
Region:
Middle East, Africa, South Korea, Thailand
- Protocol: TCP/UDP/LWM2M/COAP/MQTT/FTP/HTTP/TLS/DTLS/NTP
- Android RIL: Android 5.0/6.0/7.0/8.0/9.0
- Support: TLS/File System/LBS/FOTA/Fault Detection/WWAN(RNDIS)/ECM
frequency bands
LTE FDD: B1/B3/B5/B7/B8/B20
LTE-TDD : B38/B40/B41
WCDMA: B1/B5/B8,
GSM : 900/1800 MHZ
SIM module firmware: USB
Data transfer
LTE FDD: 150(dl)/50(ul)
LTE-TDD : 42(DL)/5.76(UL)
WCDMA: 384(DL)/384(UL)
GSM : 236.8(DL)/236.8(UL)
SHIPPING LIST
1 x T-SIM7600 module, 1 x SIM antenna, 1 x GPS antenna, 1 x power cable, 2 x pin

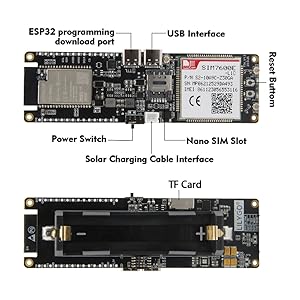

- Pin VIN is a USB input, when a battery is used to power the device, no voltage of VIN is output, i.e. 3.3V is the only current output
- The on/off switch is only for battery operation, it does not work when the device is connected to the USB port.
- The battery voltage cannot be read with the integrated BAT ADC(35) when the device is connected to USB
- When an SD card is inserted, you cannot upload software to the Arduino IDE as the SD card uses IO2 as CS; the SD card must be removed when uploading a new sketch
- More information: github.com/Xinyuan-LilyGO/LilyGO-T-SIM7600X
| SKU: | B0BXXKVFY8 |
| Brand: | LILYGO |
| Model: | T-SIM7600E-L1C |
| Manufacture: | LILYGO |
| Origin: | China |
Product Description




SHIPPING LIST
1 x T-SIM7600 module, 1 x SIM antenna, 1 x GPS antenna, 1 x power cable, 2 x pin
