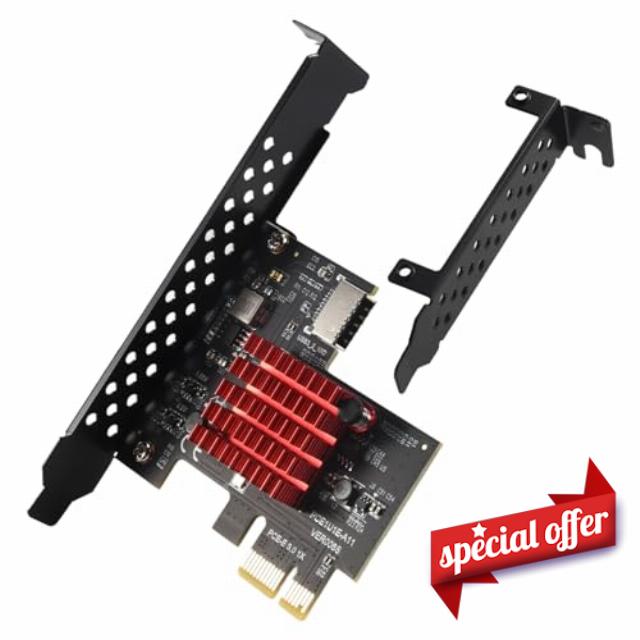

PCIE USB 3.1 GEN2 Type-E Expansion Card,10Gbps PCI Express

PCIE USB 3.1 GEN2 Type-E Expansion Card,10Gbps PCI Express 3.0 1X to 20Pin Front Panel Type C Connector for 10/8

RESFNSE Product Specification:
Product Name: USB 3.1 TYPE-E Expansion Card
Product Interface: TYPE-E 20PIN, PCI-E 1X(Compatible with PCI-E 2X 4X 8X 16X )
Product Chip: ASMedia ASM3142
Transmission Rate: 10 Gbit / s
Support System: WIN8 WIN10 32BIT/64BIT
Product Features:
This product can convert the PCIE high-speed data transfer interface of the computer into a TYPE-C 3.1 front-panel high-speed data transfer interface (TYPE-E to TYPE-C 10Gbps).
Notice:
1. The motherboard must support PCI-E 3.0 to run to high speed.
2. Front TYPE-C interface, also called TYPE-E interface.

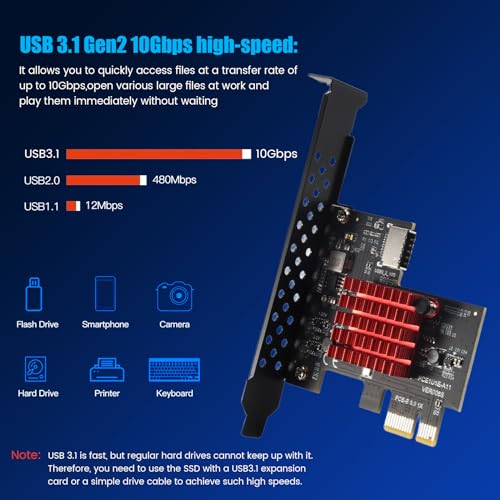

3. USB3.1 is very fast, but ordinary hard drives just can’t keep up that fast. Therefore, you need to use SSD with USB3.1 expansion card or simple drive cable together to get such high speed.
4. Please make sure the power has been cut off before installation
5. Do not use in a humid environment, otherwise it affect the connection of the device.
6. If the card does not work, first check whether there is a problem with the PCI Express slot on the motherboard.
Colour: black, red
Material: PCB+metal

Package Contents:

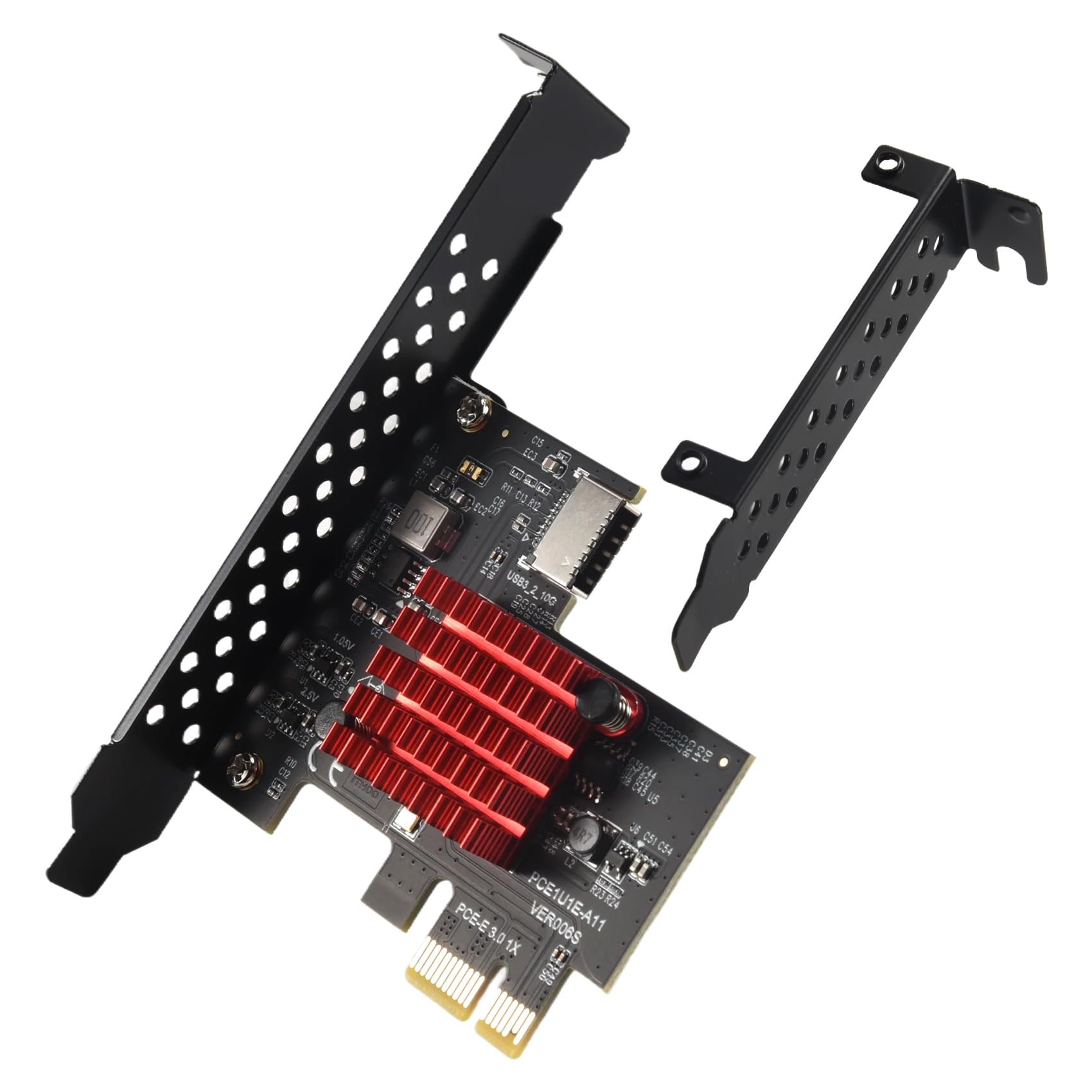

1 * USB 3.1 Front TYPE-E Expansion Card
1 * Low Profile Bracket

Only the above package content, other products are not included.

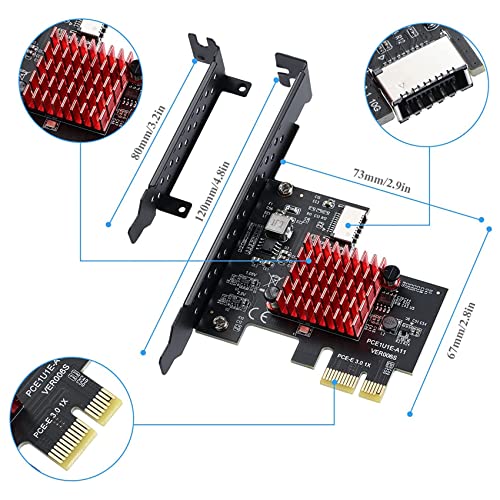

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• USB C PCIE Card: The USB PCIE card provides a internal 20pin USB 3.1 Type E Front Panel Header (can be DIY extended to the front panel USB 3.1 TYPE C for your computer). plug and play, easy installation.

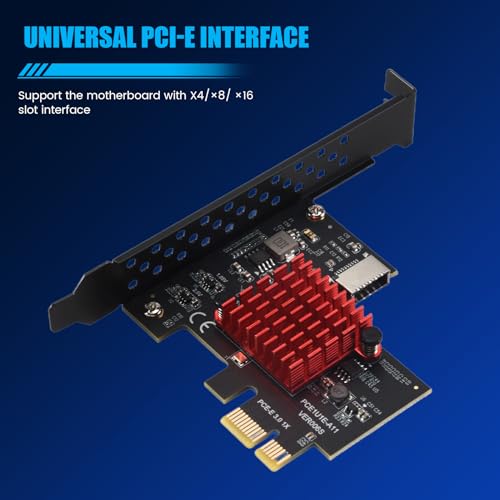

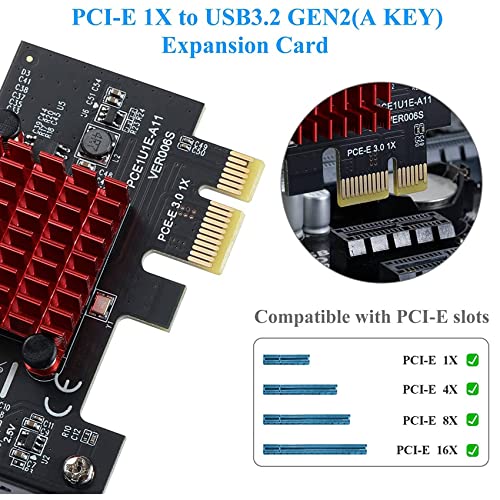

• Compatibility: Applicable interfaces: PCI-E 1X /4X /8X /16X. System support WIN8 WIN10 32BIT/64BIT Supports the PCI-E 3.0 specification, PCIE 2.0 specification. Compatible with USB 3.1, USB 3.0 and USB 2.0.
• Large Aluminum Heatsink: Equipped with large aluminum alloy heatsink, effectively dissipate the excess heat of the usb front panel adapter, so that the usb port card is always in a normal temperature state, working more stability and efficiency.

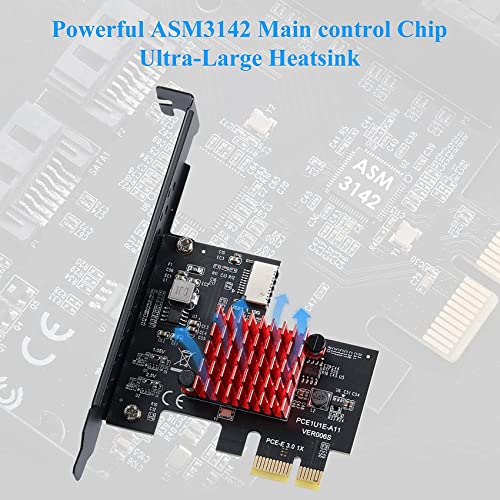

• USB 3.1 Gen2 10Gbps High-speed: Using ASMedia ASM3142 master control, it allows you to quickly access your files with a transfer rate of up to 10Gbps, opens a variety of large files in the work and play immediately without waiting.
• High-quality Materials: This USB 3.1 card uses high-performance electronic components and metal panels, 4-layer PCB, increasing anti-interference ability and improve the stability of data transmission.
