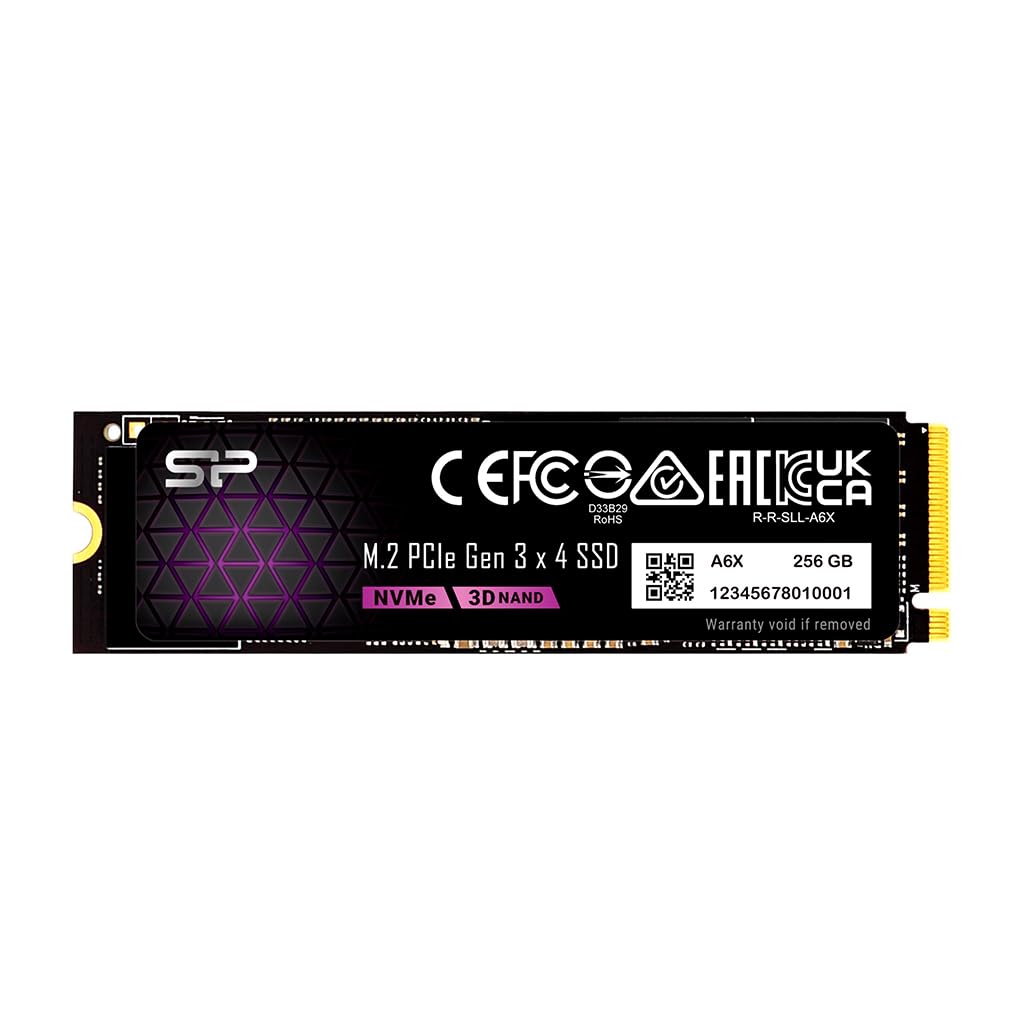

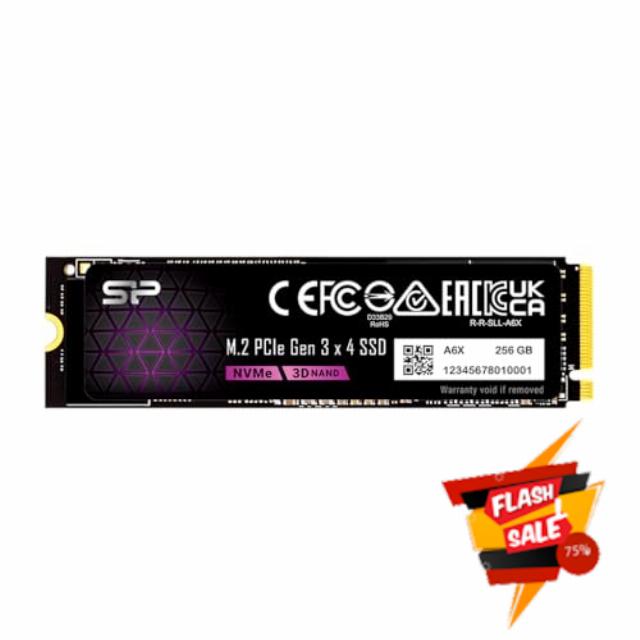

Silicon Power 256GB NVMe M.2 PCIe Gen3x4 2280 SSD (SP256GBP34A60M28AY)

The P34A60 is an affordable storage solution that doesn’t skimp on performance. It’s designed for novice users, DIY system builders, purpose-built system manufacturers, and simply those who are looking to upgrade their PC. But with a PCIe Gen3x4 interface, which means four lanes are used for transmitting and receiving data simultaneously, read speeds up to 2,100 MB/s, and write speeds up to 1,200 MB/s, this SSD is anything but basic. The P34A60 supports NVMe 1.3, which demands better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency. In addition, HMB (Host Memory Buffer) architecture, which allows the host driver to allocate system memory (RAM) for exclusive use by the SSD, results in higher efficiency. It’s this teamwork that provides optimum performance. The P34A60 is engineered with LDPC (Low-Density Parity Check) coding, a powerful error correction code (ECC) algorithm, to keep data secure. Furthermore, End-To-End (E2E) data protection, to ensure that accessed and retrieved data are correct from start to finish, and a RAID engine, which provides an acceptable level of fault tolerance, work to enhance data integrity for greater reliability and stability. With an M.2 2280 (80mm) form factor, the P34A60’s compact size allows for easy installation in laptops, small form factor PC systems, and some ultrabooks. And with up to a massive 2TB capacity option, it’s an easy upgrade that can greatly expand your system’s storage potential while also saving space for other components.

• PCIe Gen 3×4 interface with read/write speed up to 2,100/1,200MB/s
• TBW=150 The warranty terms on all of its SSDs are based on whether the warranty length or TBW limit occurs first.
• The custom screw should come with the motherboard or PC. Please acquire the screw from your motherboard or PC Manufacturer, if needed
• To support a Silicon Power PCIe SSD, the system must have an M. 2 connector with only an M key. The Silicon Power PCIe SSD does not have a b notch and therefore, the b key on the SSD connector will prevent it from being inserted
