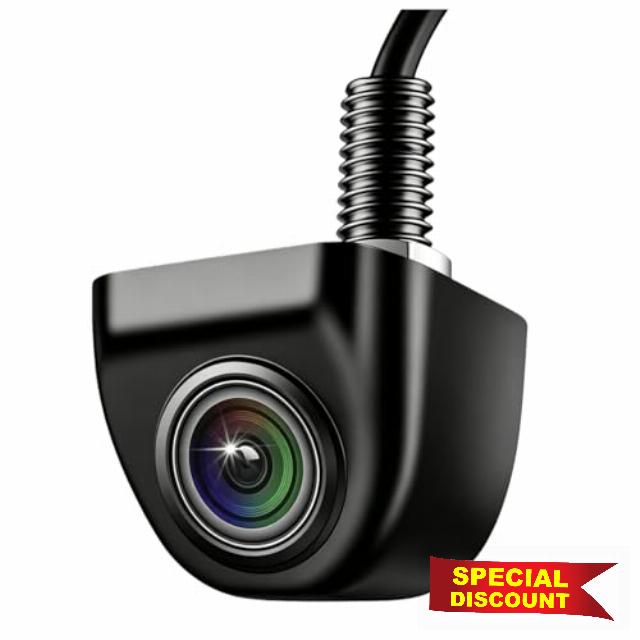

Upgrade AHD 1080P 720P Reverse Camera, 170° Wide-Angle HD Color Night Vision Guideline Reversing/Front Cameras IP68K Waterproof Rear View Camera for Car SUVs Pickup Truck Bus

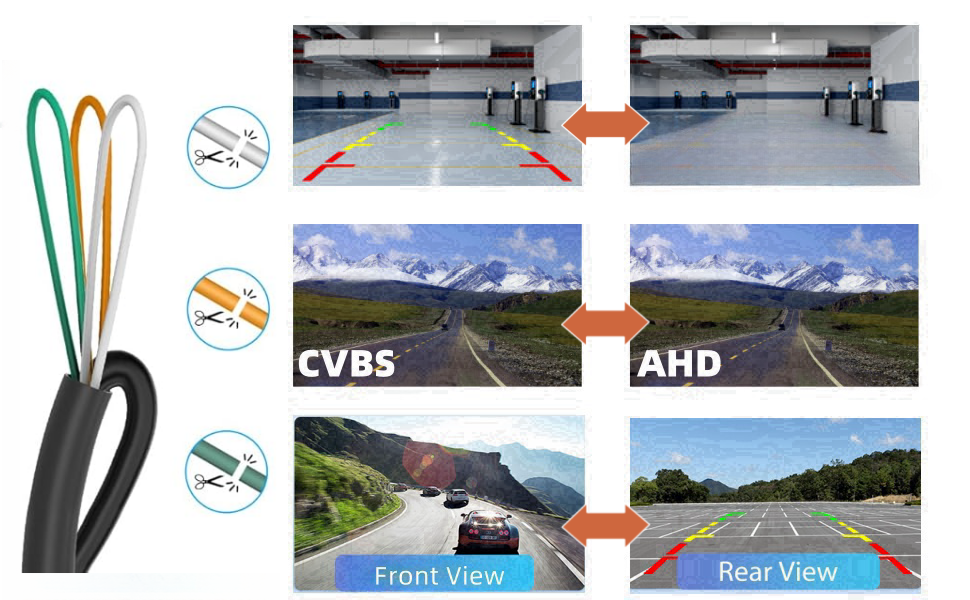

1) Cut green wire will switch image to front view(default is mirror rear view)

2) Cut white wire will open the parking guide lines. (default without guide line)

3) Cut orange wire will switch to NTSC image (default is HD-1080P-25hz rear view)

Note: If you cut the short wire,you need to disconnect the power of the camera and reconnect it,so that the image will be displayed.

• 3.5mm jack one end, 4pin at camera end
• Please don’t replace it to 2.5mm AV-IN port video cable.

• Reverse camera features a 170-degree wide horizontal view angle lens, providing a significantly wider range of visibility

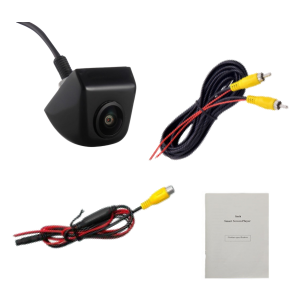

• 1 * HD Backup Camera
• 1 * 26FT Double Shielded Video Cable
• 1 * 5FT Power Cable
• 1 * Metal Holder

• Real 1080P AHD Backup Camera: Adopting HLC CMOS sensor chip and WDR Wide Dynamic technology, which makes the imaging image performance better with 1960*1080 25Hz higher resolution
• Super Night Vision&Waterproof: Pretty Clear Video, 6 Glass Lens, Full metal housing and IP68K Waterproof Reverse camera working in weather-22℉ to 176℉. Excellent night vision (low illumination level: 0.01Lux)
• Rear View 170°Wide Angle : A more suitable angle for reverse camera. The camera mount can be adjusted up and down to find a angle you prefer
• Rear view camera license plate support both NTSC and PAL/AHD video signal output (great for Android stereo). AHD1080P-25hz by default, cut the Orange loop to choose HD-720P NTSC signal

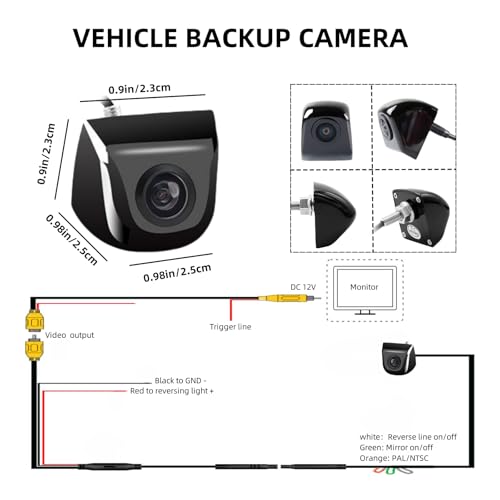

• DC12-24V Easy to Install: Used with aftermarket LCD / TFT monitors with standard input connectors, the 12-24V camera is suitable for all kinds of cars, SUVs, pickup trucks and more

---

Product Description

• 1 * HD Backup Camera
• 1 * 26FT Double Shielded Video Cable
• 1 * 5FT Power Cable
• 1 * Metal Holder
